SIDE GUARD MOLDING

EXT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

CAUTION:

Do not apply tack-paper adhesive remover to body panel surface finished with lacquer-based paints.

• Original side guard molding is affixed to body panel with double-faced adhesive tape.
1. Heat molding to between 30

° and 40°C (86° to 104°F) with a heat gun.

2. Raise end of molding and cut away tape to remove molding. Remove all traces of tape.

INSTALLATION

• On vehicles coated with Hard Clear Coat, use double-faced 3M adhesive tape Product No. 4210 or equiva-

lent, after priming with 3M primer Product No. N200, C-100 or equivalent.

• The repair parts are also affixed with double-faced adhesive tape.

• To re-use existing molding, clean all traces of double sided tape from the molding and apply new double-

faced tape to the molding.

1. Clean the panel surface with isopropyl alcohol or equivalent to degrease the surface.
2. Heat the panel and molding tape surface to 30

° to 40°C (86° to 104°F).

3. Remove the backing sheet from the tape surface.

• Align the locating pin into the hole in the outer door.

• Continue aligning the pins into their corresponding holes in the outer door during installation.

4. Press ends by hand and use a roller to apply 5 kg-f (11 lbs-f) to press molding to door surface.

• Apply even pressure along molding to insure proper wet out.

CAUTION:

To secure contact, do not wash vehicle for 24 hours after installation.

EXT-36

< REMOVAL AND INSTALLATION >

BED RAILS AND TRIM

BED RAILS AND TRIM

Removal and Installation

INFOID:0000000009479012

REMOVAL

1. Remove sliding bed extender (if equipped).
2. Remove floor rail covers.

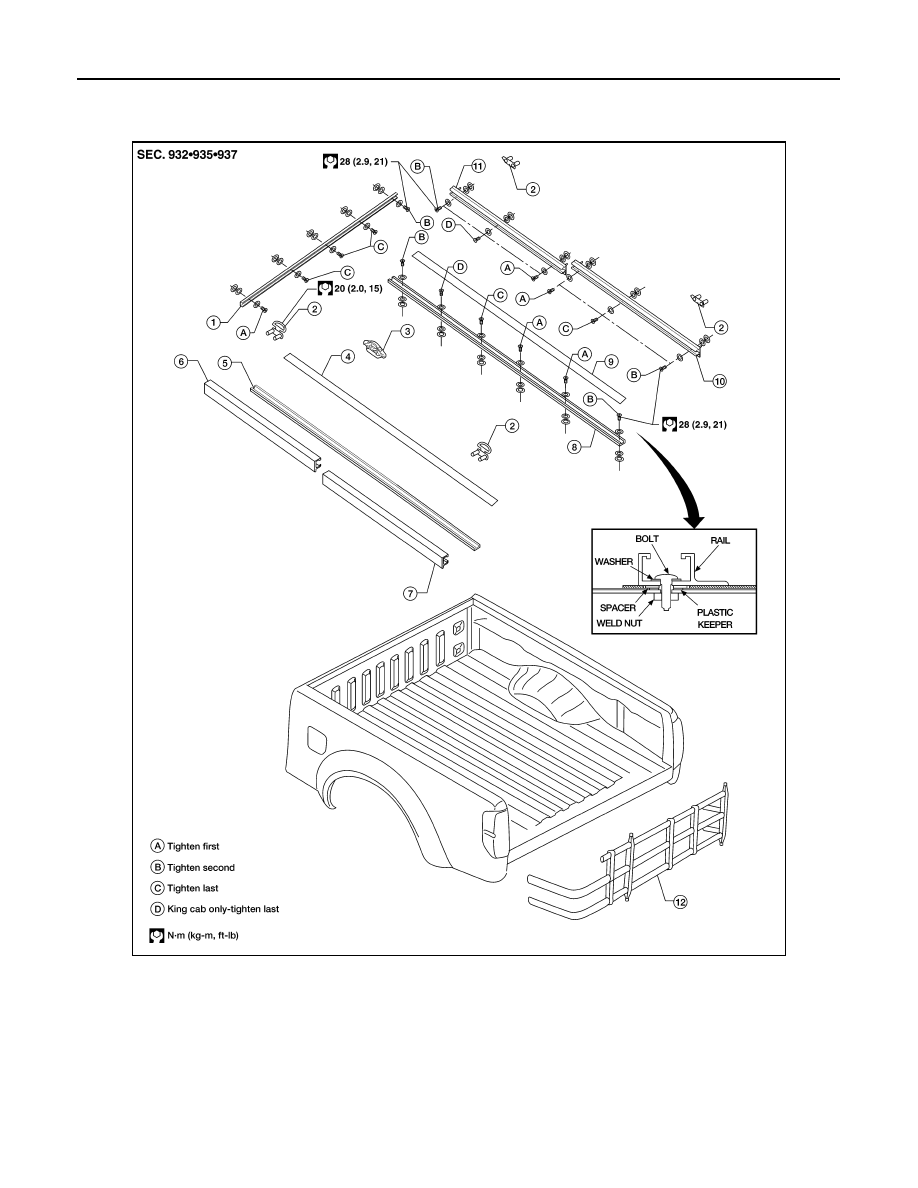

AWKIA2327GB

1.

Header tiedown rail

2.

Rope hook

3.

Tiedown cleat

4.

Floor rail cover (LH)

5.

Floor rail (LH)

6.

Bed side front tiedown rail (LH)

7.

Bed side rear tiedown rail (LH)

8.

Floor rail (RH)

9.

Floor rail cover (RH)

10. Bed side rear tiedown rail (RH)

11. Bed side front tiedown rail (RH)

12. Sliding bed extender (if equipped)

BED RAILS AND TRIM

EXT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

3. Remove tiedown cleats.
4. Remove floor rails (LH/RH).
5. Remove bed side front and rear tiedown rails (LH/RH).
6. Remove rope hooks.
7. Remove header tiedown rail.

INSTALLATION

Installation is in the reverse order of removal.

EXT-38

< REMOVAL AND INSTALLATION >

TAIL GATE FINISHER

TAIL GATE FINISHER

Removal and Installation

INFOID:0000000009479013

REMOVAL

1. Open the tailgate to access the rear camera connector bracket.
2. Remove the harness connector bracket.
3. Disconnect harness connector from the rear camera.
4. Release clips and remove tail gate spoiler.
5. Remove screws and remove tail gate protector (if equipped) and tail gate cover plate.

INSTALLATION

Installation is in the reverse order of removal.

1.

Tail gate protector (if equipped)

2.

Tail gate cover plate

3.

Tail gate

4.

Tail gate spoiler

5.

Rear view camera (if equipped)

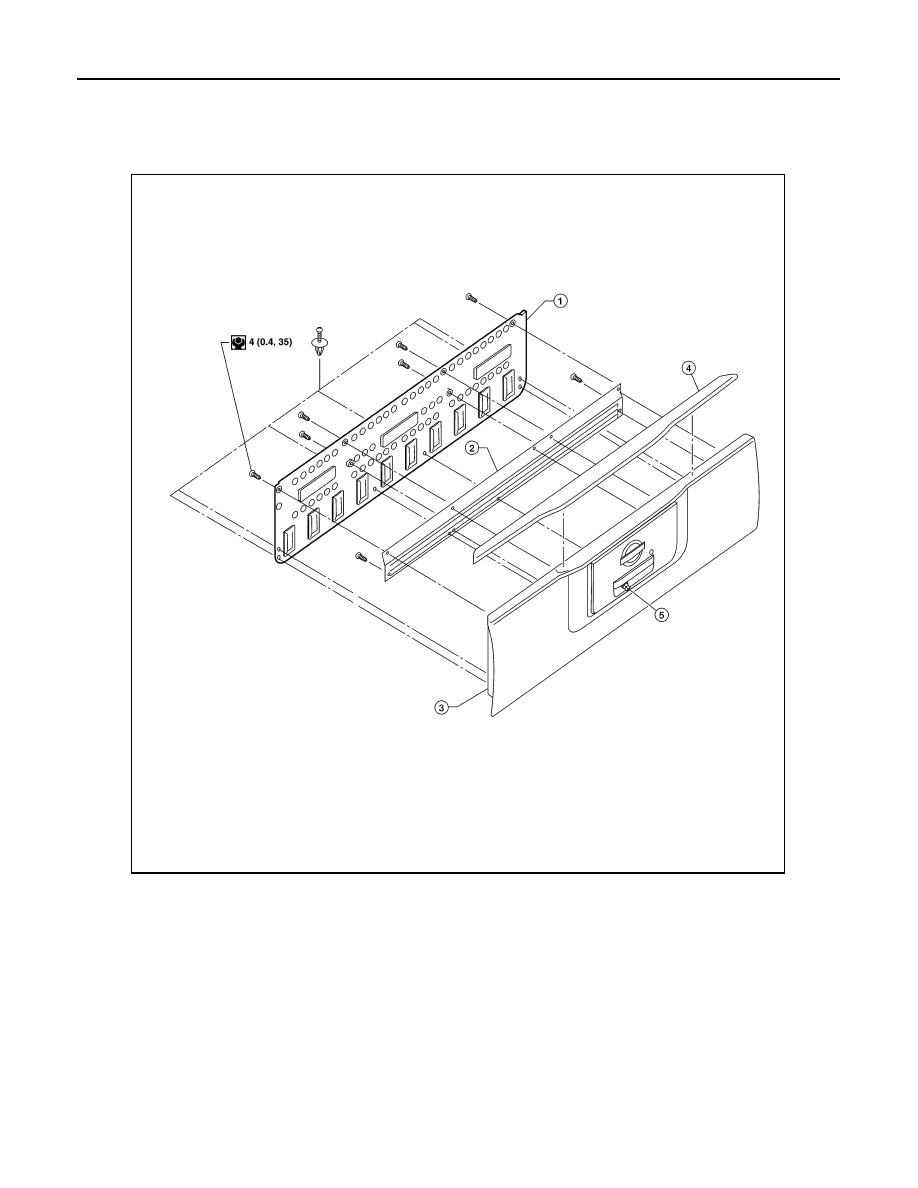

AWKIA2258ZZ
