DLN-102

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

TRANSFER ASSEMBLY

• After the installation, check the 4WD shift indicator pattern. If NG, adjust the position between the transfer

assembly and transfer control unit. Refer to

DLN-83, "Precaution for Transfer Assembly and Transfer Con-

trol Unit Replacement"

.

TRANSFER ASSEMBLY

DLN-103

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

TRANSFER ASSEMBLY

Exploded View

INFOID:0000000009479718

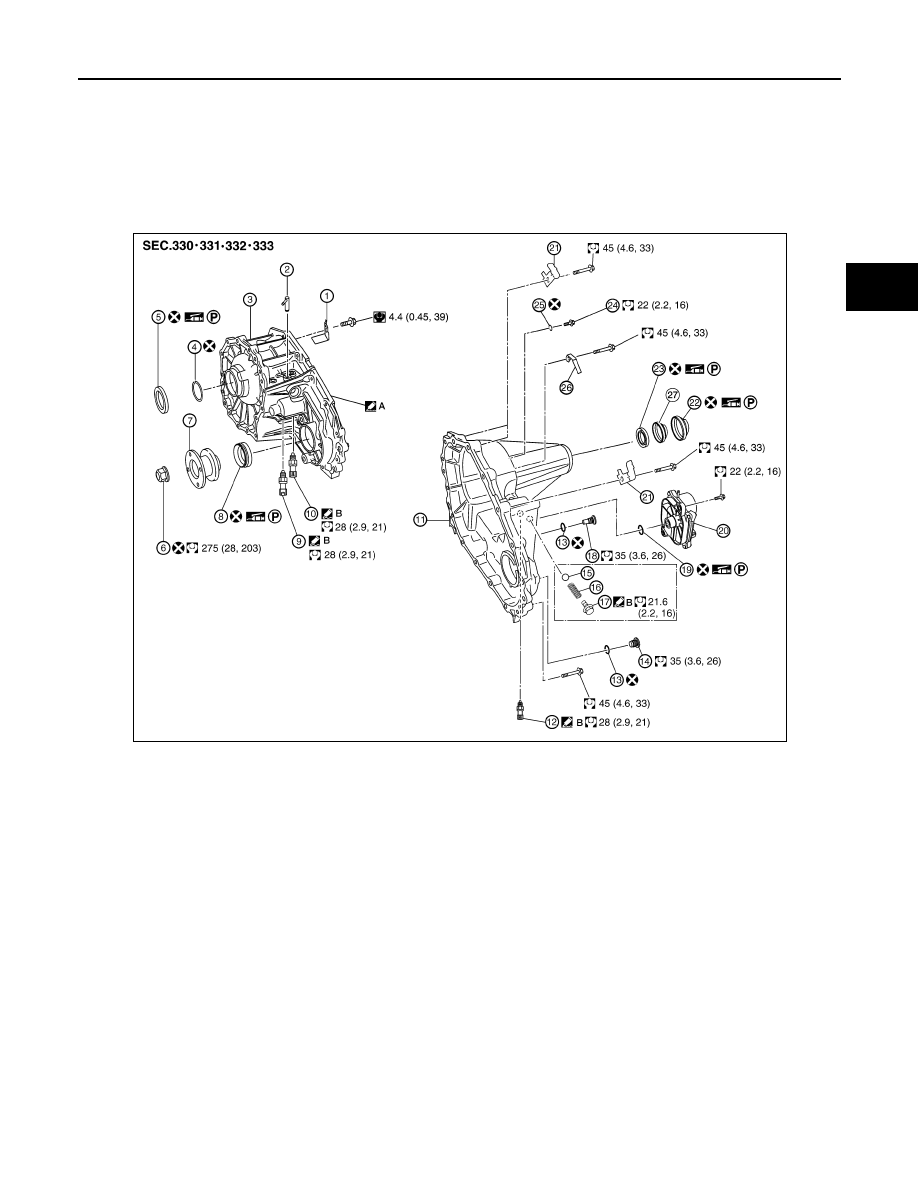

COMPONENTS

1.

Baffle plate

2.

Breather tube

3.

Front case

4.

Snap ring

5.

Input oil seal

6.

Self-lock nut

7.

Companion flange

8.

Front oil seal

9.

4LO switch (gray with green paint)

10. ATP switch (black)

11. Rear case

12. Wait detection switch (gray)

13. Gasket

14. Filler plug

15. Check ball (M/T models only)

16. Check shift spring (M/T models only) 17. Check plug (M/T models only)

18. Drain plug

19. O-ring

20. Transfer control device

21. Harness bracket

22. Dust cover

23. Rear oil seal

24

Retainer bolt

25. Gasket

26. Air breather hose clamp

27. Oil cover

A.

Apply Genuine Anaerobic Liquid
Gasket or equivalent.

B.

Apply Genuine Silicone RTV or
equivalent.

AWDIA0765GB

DLN-104

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

TRANSFER ASSEMBLY

Disassembly and Assembly

INFOID:0000000009479719

DISASSEMBLY

1. Remove the drain plug and filler plug.

1.

Input bearing

2.

Snap ring

3.

Internal gear

4.

Carrier bearing

5.

Sun gear

6.

Needle bearing

7.

Metal bushing

8.

Planetary carrier assembly

9.

L-H sleeve

10. Drive chain

11. Mainshaft

12. Sprocket

13. 2-4 sleeve

14. Clutch gear

15. Oil pump assembly

16. Retainer

17. Mainshaft rear bearing

18. Front bearing

19. Front drive shaft

20. Rear bearing

21. Clevis pin

22. Shift collar

23. L-H shift fork

24. L-H shift rod

25. Retaining pin

26. 2-4 shift bracket

27. 2-4 shift fork

28. Fork guide collar

29. 2-4 shift fork spring

30. Retaining ring

31. Snap ring

32. Drum cam

33. Control shift rod

34. Spacer

35. Control shift rod assembly

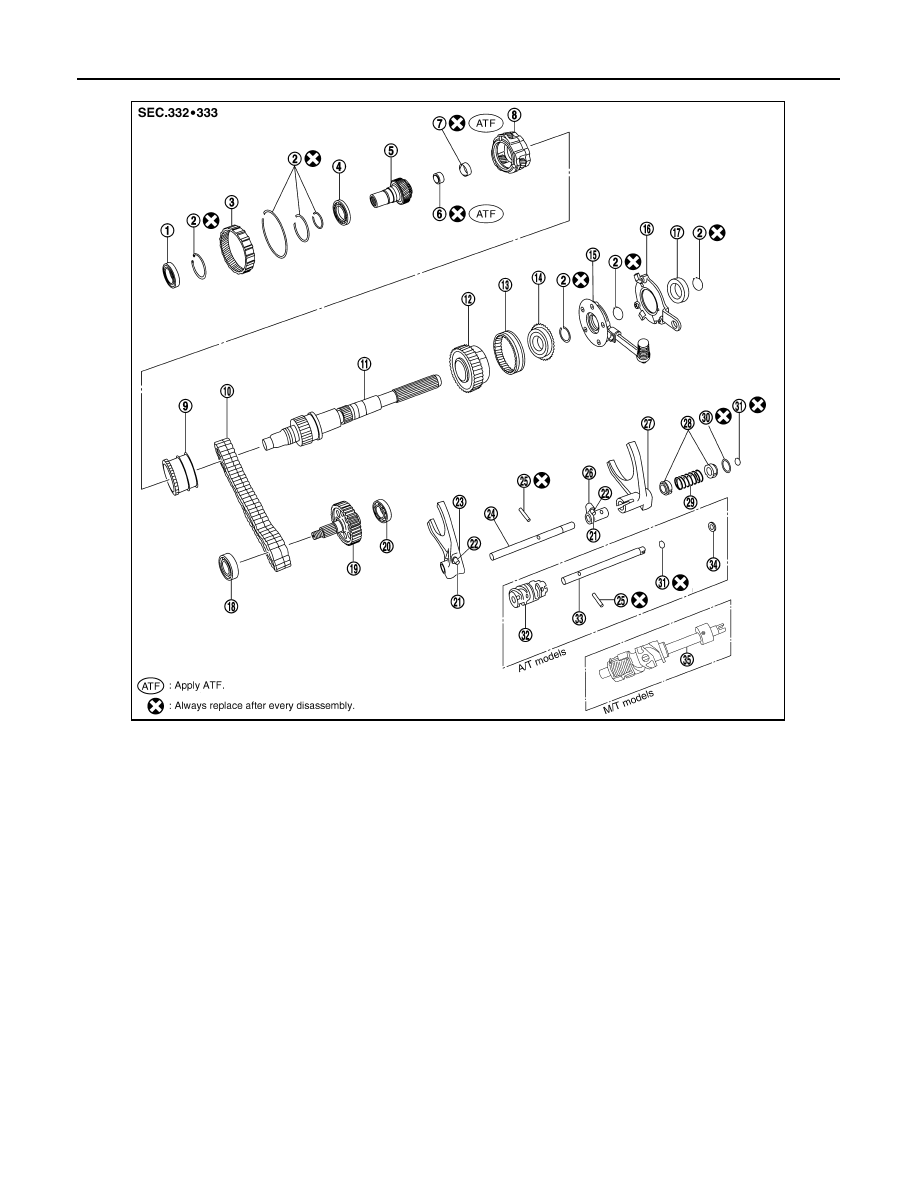

SDIA3421E

TRANSFER ASSEMBLY

DLN-105

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

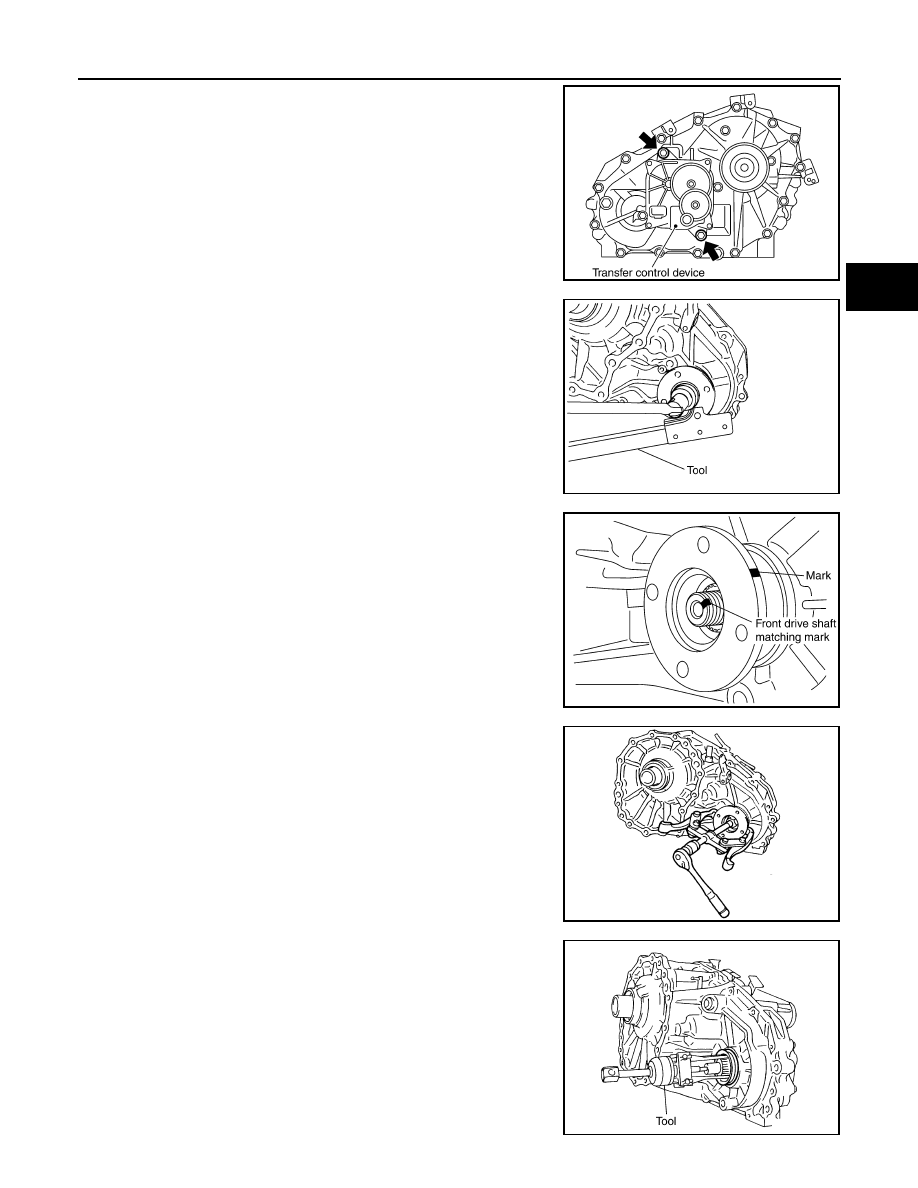

2. Remove the transfer control device from the rear case.
3. Remove the O-ring from the transfer control device.

CAUTION:

Do not reuse O-ring.

4. Remove the self-lock nut from the companion flange, using suit-

able tool.

5. Put a matching mark on top of the front drive shaft in line with

the mark on the companion flange.

CAUTION:

Use paint to make the matching mark on the front drive

shaft. Do not damage the front drive shaft.

6.  Remove the companion flange, using suitable tool.

7. Remove the front oil seal from the front case, using Tool.

CAUTION:

Do not damage front case or front drive shaft.

SDIA2212E

SDIA2841E

SDIA2779E

WDIA0133E

Tool number

: ST33290001 (J-34286)

SDIA2423E
