Nissan Frontier. Manual - part 298





DLN-94

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

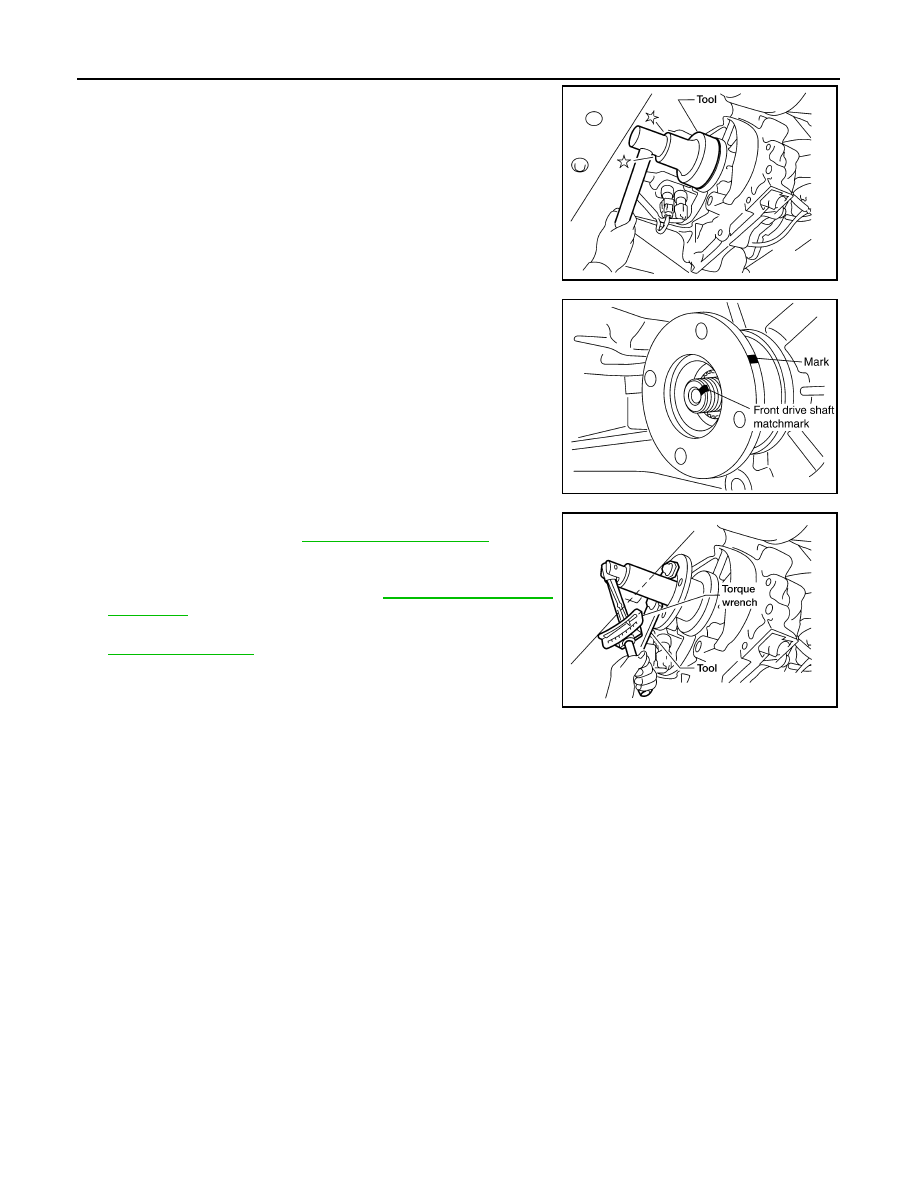

FRONT OIL SEAL

1. Install the new front oil seal until it is flush with the end face of

the front case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

2. Align the matching mark of the front drive shaft with the match-

ing mark of the companion flange, then install the companion

flange.

3. Install the new self-lock nut and tighten to the specified torque

using suitable tool. Refer to

DLN-103, "Exploded View"

.

CAUTION:

Do not reuse self-lock nut.

4. Install the front propeller shaft. Refer to

DLN-134, "Removal and

Installation"

.

5. Check the transfer fluid level and refill as necessary. Refer to

DLN-90, "Inspection"

.

Tool number

: KV38100500 ( — )

LDIA0145E

SDIA2214E

LDIA0147E

REAR OIL SEAL

DLN-95

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

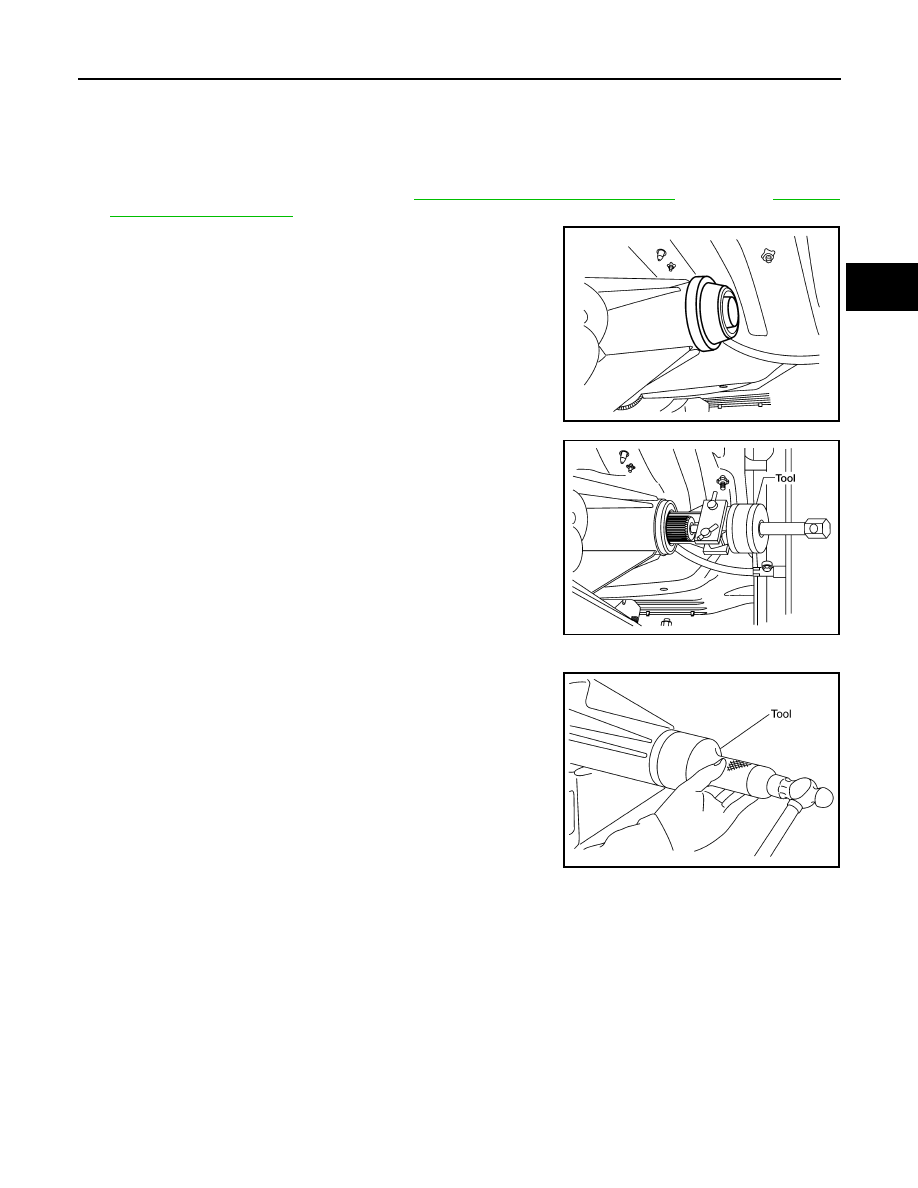

REAR OIL SEAL

Removal and Installation

INFOID:0000000009479714

REMOVAL

1. Remove the rear propeller shaft. Refer to

DLN-143, "Removal and Installation"

 (2S1330) or

DLN-174,

"Removal and Installation"

 (3S1330-2BJ100).

2. Remove the dust cover from the rear case.

CAUTION:

Do not damage the rear case.

3. Remove the oil cover from the dust cover.

4. Remove the rear oil seal from the rear case using Tool.

CAUTION:

Do not damage the rear case.

INSTALLATION

1. Install the new rear oil seal until it is flush with the end face of the

rear case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

2. Install the oil cover until it reaches the end face of the new dust cover.

CAUTION:

• Position the oil cover with the notch at bottom position.

• Do not reuse duct cover.

WDIA0127E

Tool number

: ST33290001 (J-34286)

LDIA0139E

Tool number

: KV38100500 ( — )

PDIA0115E

DLN-96

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

REAR OIL SEAL

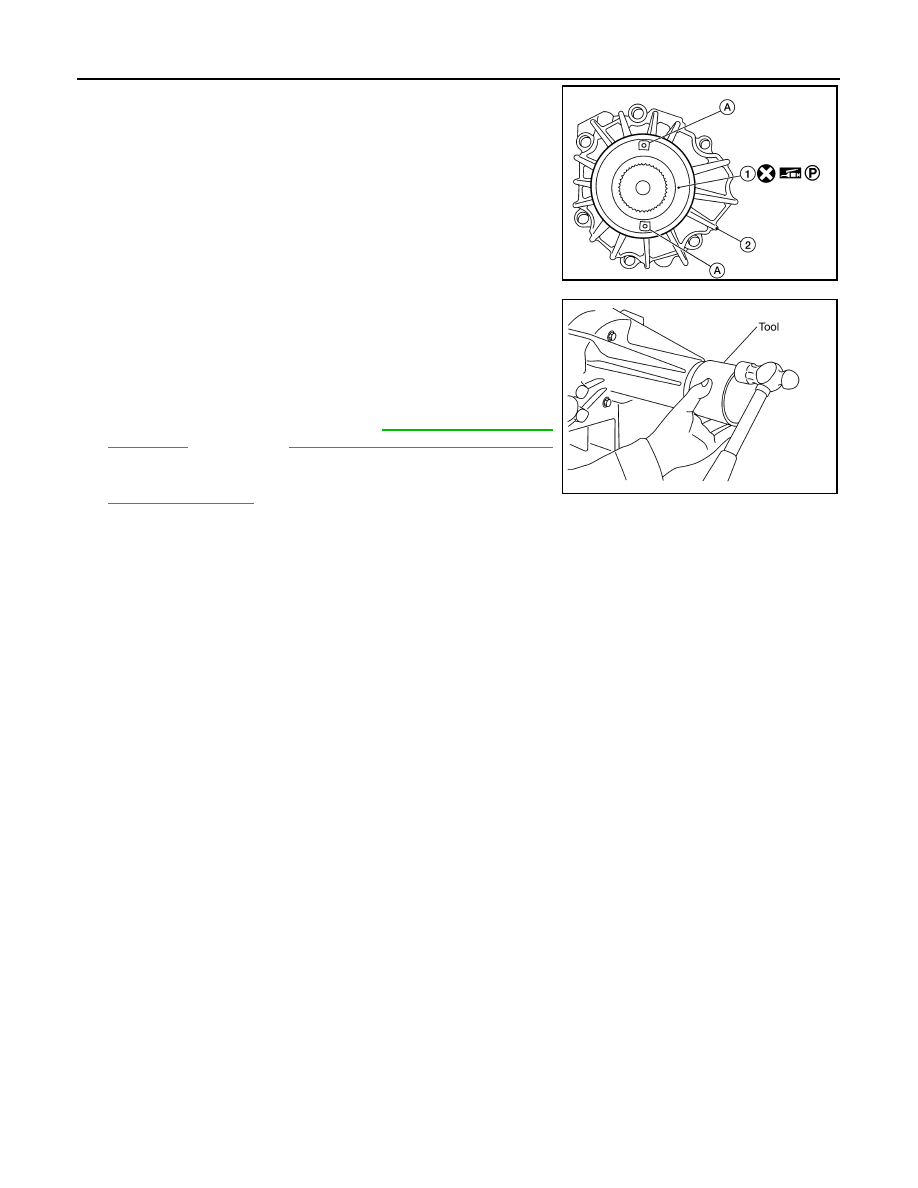

3. Apply petroleum jelly to the circumference of the new dust cover.

Position the new dust cover as shown.

CAUTION:

• Do not reuse dust cover.

• Position the protrusions at the position shown.

• (1): Dust cover

• (A): Protrusions

• (2): Rear case assembly

4. Install the new dust cover to the rear case using Tool.

CAUTION:

• Do not reuse dust cover.

• Apply petroleum jelly to dust cover.

5. Install the rear propeller shaft. Refer to

DLN-143, "Removal and

Installation"

 (2S1330) or

DLN-174, "Removal and Installation"

(3S1330-2BJ100).

6. Check the transfer fluid level and refill as necessary. Refer to

DLN-90, "Inspection"

.

AWDIA0550GB

Tool number

: KV40105310 ( — )

PDIA0116E

TRANSFER CONTROL DEVICE

DLN-97

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

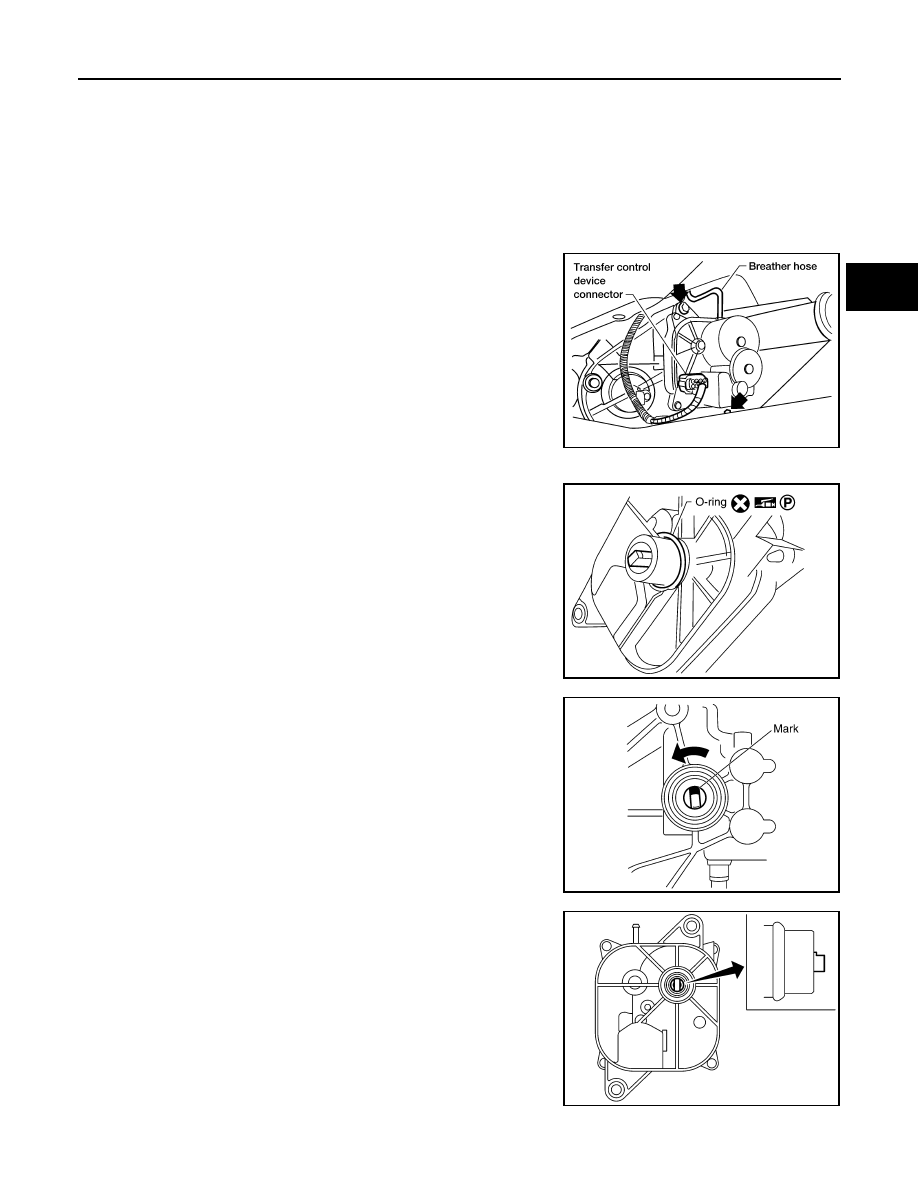

TRANSFER CONTROL DEVICE

Removal and Installation

INFOID:0000000009479715

REMOVAL

1. Switch the 4WD shift switch to 2WD and set the transfer assembly to 2WD.
2. Disconnect the transfer control device connector.
3. Remove the breather hose from the transfer control device.
4. Remove the bolts and detach the transfer control device.

INSTALLATION

1. Install the new O-ring to the transfer control device.

CAUTION:

• Do not reuse O-ring.

• Apply petroleum jelly to O-ring.

2. Install the transfer control device.
a. Turn the control shift rod fully counterclockwise using a flat-

bladed screwdriver, and then put a mark on the control shift rod.

b. Align the transfer control device shaft cutout with the mark on

the control shift rod, and install.

NOTE:

Turn the transfer control device when the transfer control device

connection does not match.

LDIA0136E

SDIA3378E

PDIA0119E

PDIA0120E
