PG-56

< WIRING DIAGRAM >

HARNESS

C3 C11

BR/2

: Rear wheel sensor LH

C5

C206

GR/2

: Rear combination lamp RH (with A/T)

C3 C14

GR/4

: To C115

A3

C207

GR/2

: Rear combination lamp LH

B4

C15

GR/8

: To C200

C5

C208

GR/2

: Rear combination lamp RH

A3

C16

B/6

: To C226

C5

C209

GR/2

: Rear combination lamp RH (with M/T)

B5

C17

GR/10 : To C212

A4

C210

GR/2

: Rear combination lamp LH (with M/T)

B4

C51

GR/6

: To C125

A3

C211

B/6

: To C225

A4

C52

B/2

: To C150

B5

C212

GR/10

: To C17

Differential lock sub-harness

C5

C213

B/6

: To C250

C3 C115

GR/4

: To C14

Rear sonar sub-harness

D3 C116

GR/2

: Differential lock position switch

A3

C225

B/6

: To C211

D4 C117

B/2

: Differential lock solenoid

A3

C226

B/6

: To C16

Trailer sub-harness

A3

C227

B/3

: Rear sonar sensor LH outer

A4

C125

GR/8

: To C51

A3

C228

B/3

: Rear sonar sensor LH inner

B5

C126

B/7

: Trailer

A4

C229

B/3

: Rear sonar sensor RH inner

B5

C129

B/7

: Trailer receptacle

A4

C230

B/3

: Rear sonar sensor RH outer

A4

C150

B/2

: To C52

Rear view camera sub-harness

Tail lamp sub-harness

B5

C250

B/6

: To C213

A4

C200

GR/8

: To C15

C5

C251

GR/6

: Rear view camera

PG

HARNESS

PG-57

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

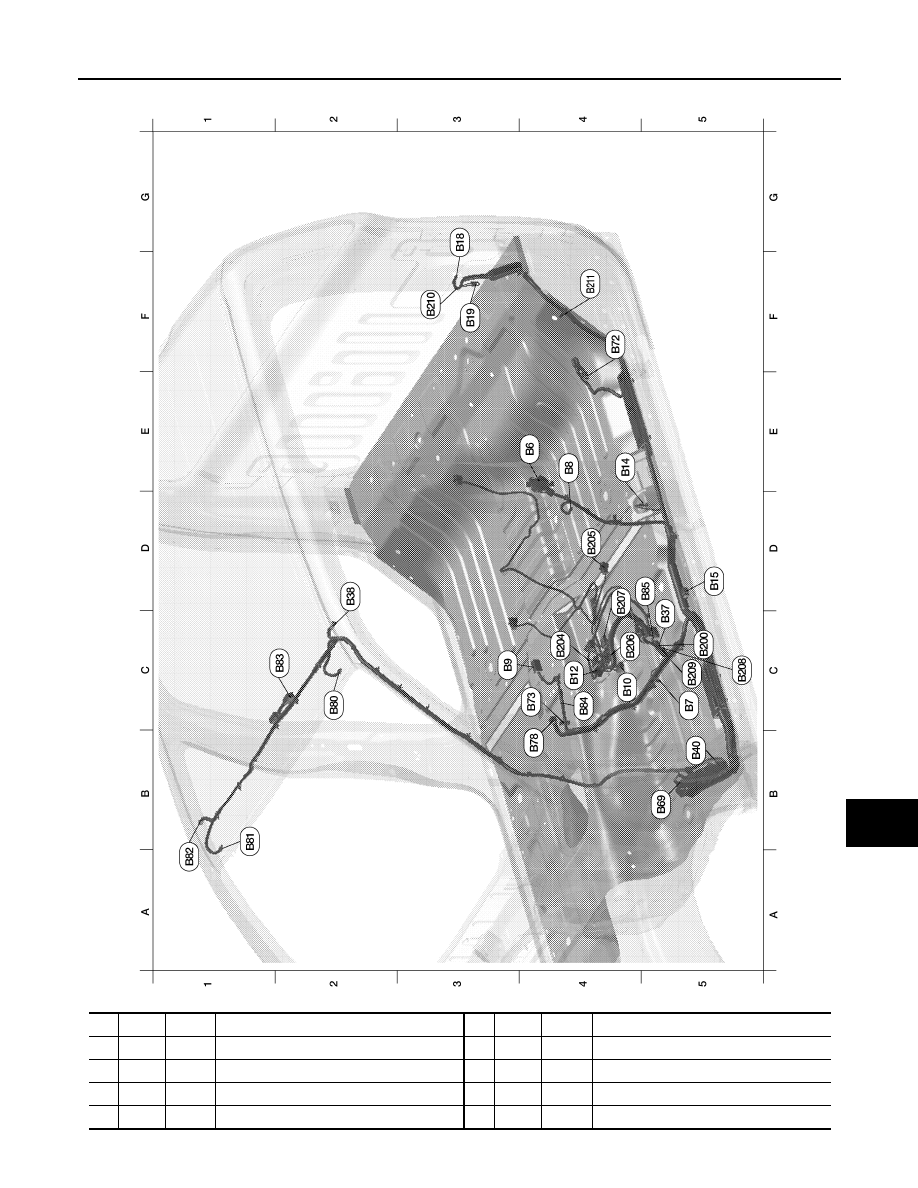

BODY HARNESS (KING CAB MODELS)

ABMIA5564ZZ

C5 B7

: Body ground

C4 B78

Y/2

: To B157

C3 B9

Y/22

: Air bag diagnosis sensor unit

C2 B80

W/2

: Vanity lamp LH

C4 B10

Y/2

: Front LH side air bag module

B1

B81

W/2

: Vanity lamp RH

C4 B12

W/4

: Seat belt buckle switch LH

C1 B82

Y/2

: RH side curtain air bag module

D5 B15

Y/2

: LH side air bag (satellite) sensor

C4 B84

B/1

: Parking brake switch

PG-58

< WIRING DIAGRAM >

HARNESS

F3

B16

W/8

: To D216

C5 B85

W/3

: Front seat heater LH

F3

B19

: Body ground

Front seat LH harness

C5 B37

W/16

: To B200

D5 B200

W/16

: To B37

D2 B38

Y/2

: LH side curtain air bag module

C4 B204

GR/2

: Sliding motor LH

B5

B40

W/8

: To E34

D4 B205

W/2

: Reclining motor LH

B4

B69

SMJ

: To M40

C4 B206

GR/2

: Lifting motor (front)

D3 B73

B/4

: Yaw rate/side/decel G sensor

D4 B207

GR/2

: Lifting motor (rear)

F3

B76

W/2

: Rear door speaker LH

D5 B208

W/10

: Power seat switch LH

PG

HARNESS

PG-59

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

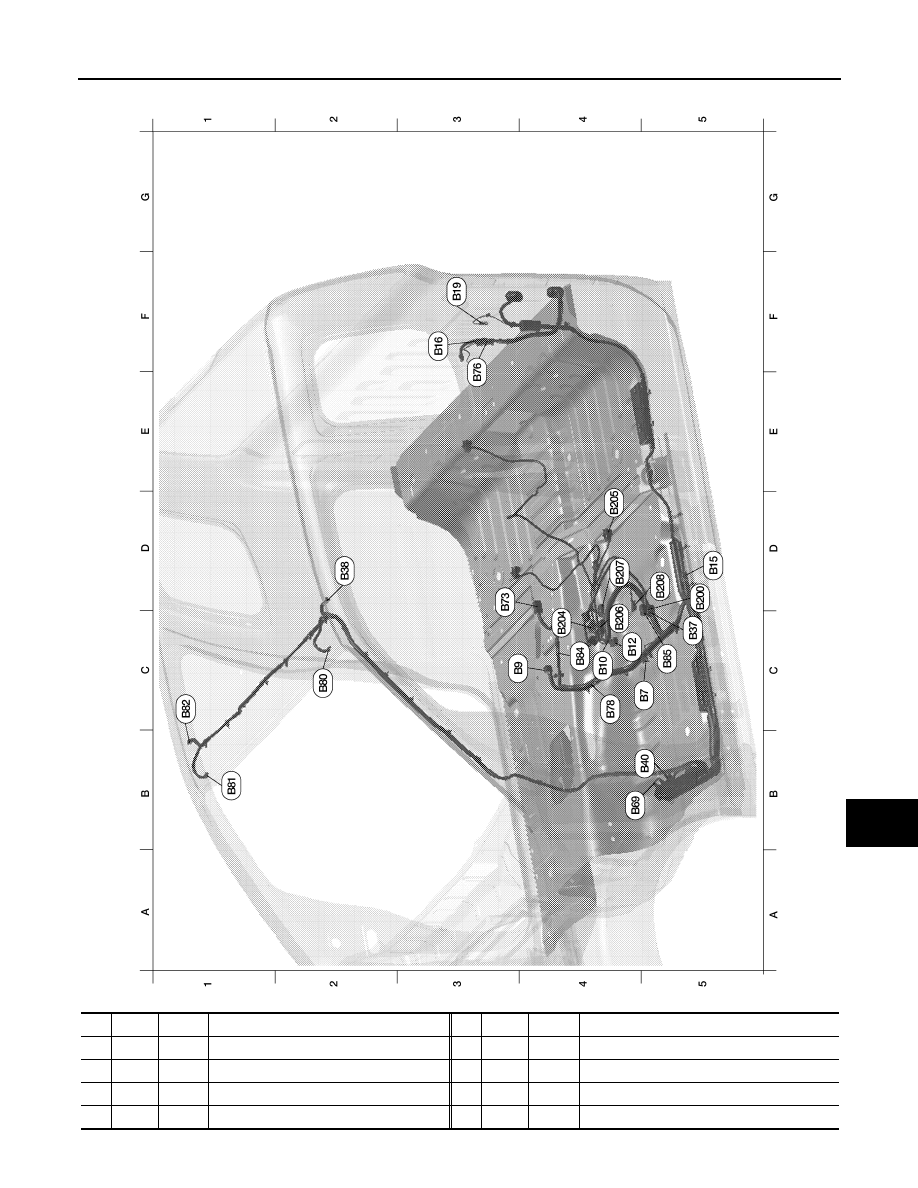

BODY HARNESS (CREW CAB MODELS)

ABMIA5565ZZ

E4

B6

W/12

: To D201

C2 B80

W/2

: Vanity lamp LH

C5 B7

: Body ground

B1

B81

W/2

: Vanity lamp RH

E4

B8

W/3

: Front door switch LH

A1

B82

Y/2

: RH side curtain air bag module

C3 B9

Y/22

: Air bag diagnosis sensor unit

C2 B83

GR/10

: Sunroof motor assembly

C4 B10

Y/2

: Front LH side air bag module

C4 B84

B/1

: Parking brake switch
