< WIRING DIAGRAM >

HARNESS

G3

E36

W/2

: To B102

G3 E160

W/8

: Fuse block (J/B)

C3

E37

BR/2

: Brake pedal position switch (with
  M/T)

C3 E163

L/2

: Clutch interlock switch (with clutch
  interlock cancel system)

C3

E38

B/2

: Stop lamp switch (with M/T)

C4 E167

B/2

: Diode-3

D3

E39

W/4

: Stop lamp switch (with A/T)

C3 E169

L/2

: Clutch interlock switch (without clutch
  interlock cancel system)

C3

E42

BR/2

: Brake pedal position switch (with
  A/T)

PG

HARNESS

PG-49

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

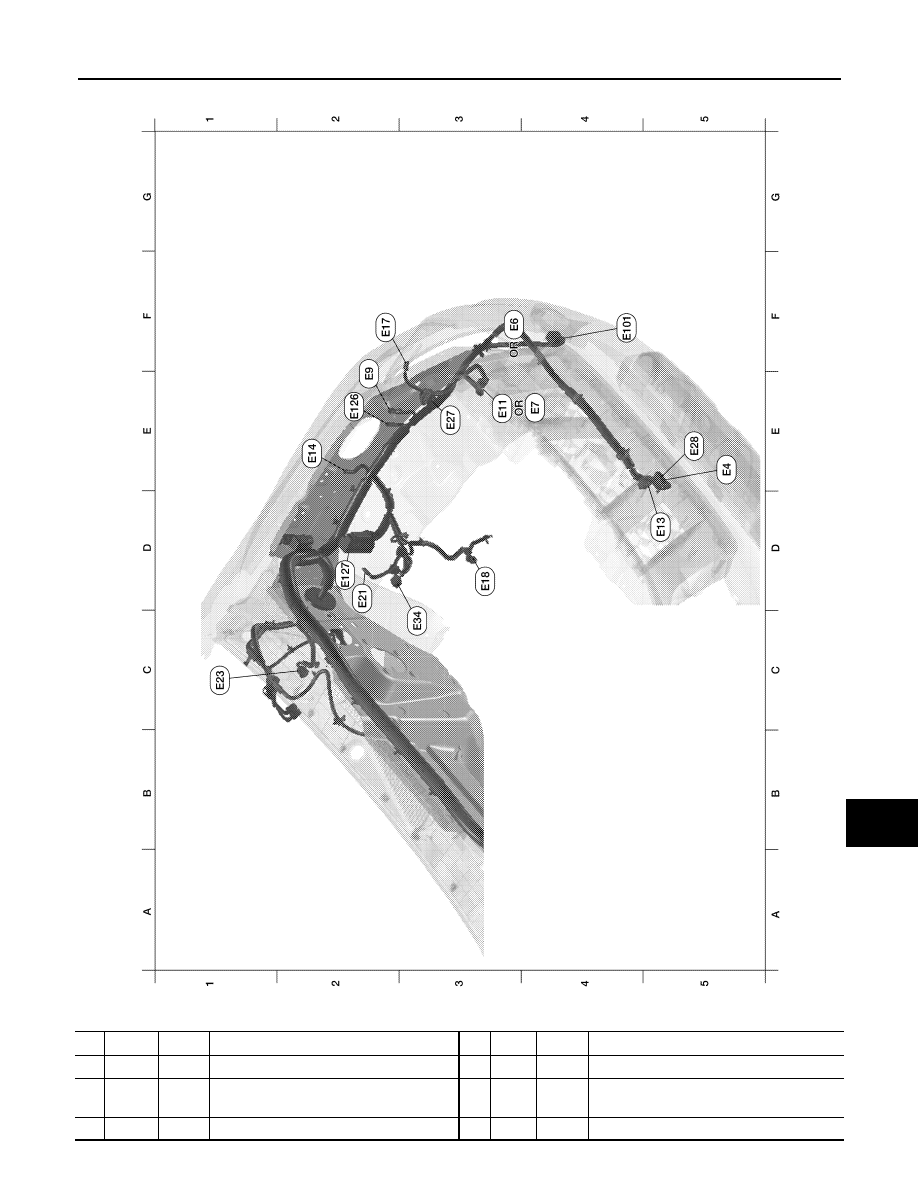

ENGINE ROOM HARNESS (LH VIEW)

Refer to "ENGINE ROOM HARNESS (RH VIEW)" for continuation of engine room harness.

ABMIA4392GB

E5

E4

Y/2

: Crash zone sensor

D2 E21

GR/2

: Brake fluid level switch

F3

E6

B/2

: Horn

C1 E23

GR/5

: Front wiper motor

E4

E7

B/3

: Front combination lamp LH (with daytime
  light system)

E3

E27

GR/3

: Front combination lamp LH

F2

E9

—

: Body ground

E5

E28

B/2

: Ambient sensor

PG-50

< WIRING DIAGRAM >

HARNESS

E3

E11

B/3

: Front combination lamp LH (without
  daytime light system)

C3 E34

W/8

: To B40

D5 E13

B/2

: Ambient sensor 2

F4

E101

B/2

: Front fog lamp LH

E2

E14

—

: Body ground

E2

E126

—

: Body ground

F2

E17

GR/2

: Front combination lamp LH

D2 E127

B/47

: ABS actuator and electric unit (control
  unit)

D3 E18

GR/2

: Front wheel sensor LH

PG

HARNESS

PG-51

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

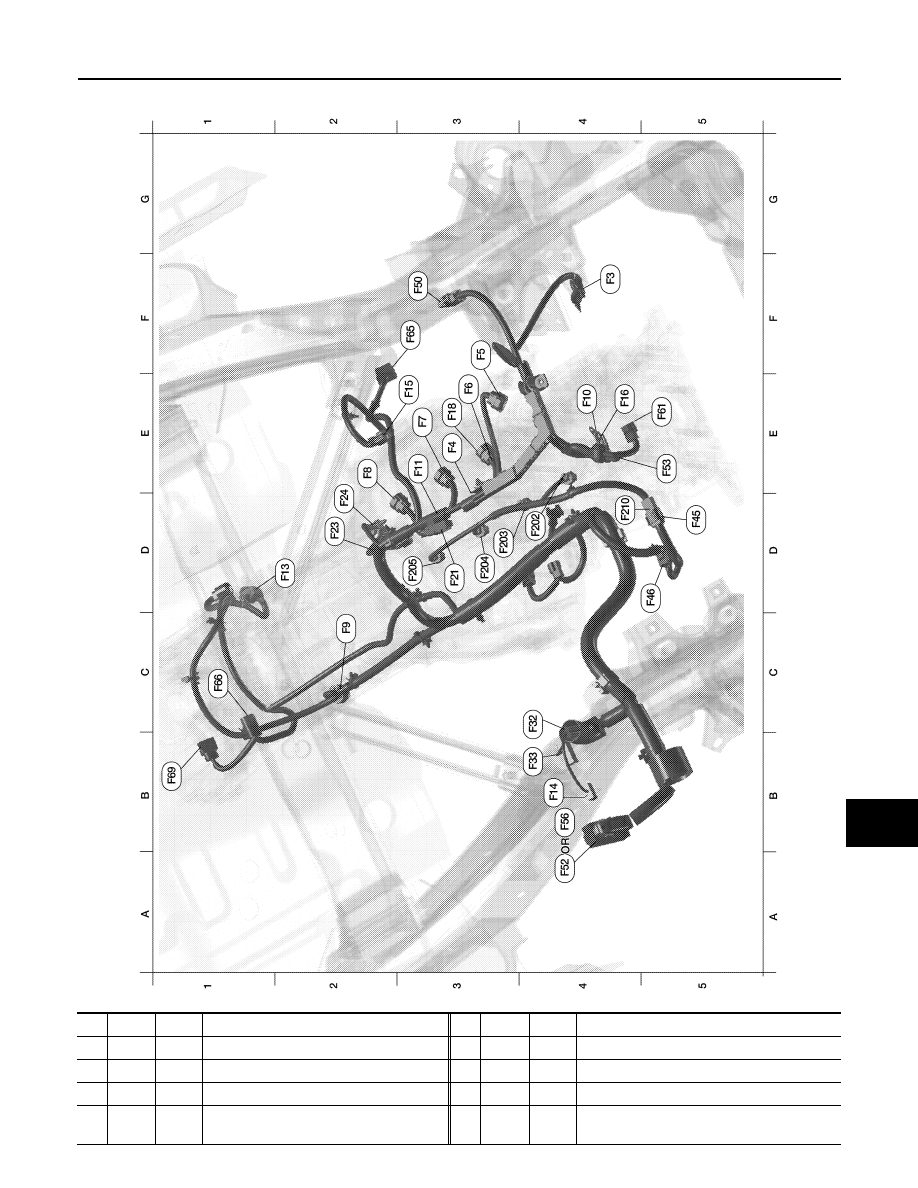

ENGINE CONTROL HARNESS (QR25DE MODELS)

ABMIA4376GB

F4

F3

B/1

: A/C Compressor

B4

F33

W/16

: To E19

E3

F4

GR/1

: Oil pressure switch

D5 F45

B/6

: To F210

E3

F5

GR/3

: Ignition coil No. 1 (with power transistor)

C5 F46

B/3

: Power steering pressure sensor

E3

F6

GR/3

: Ignition coil No. 2 (with power transistor)

F3

F50

W/6

: Electric throttle control actuator

E3

F7

GR/3

: Ignition coil No. 3 (with power transistor)

A4

F52

GR/
32

: ECM (with QR25DE)
