PG-60

< WIRING DIAGRAM >

HARNESS

C4 B12

W/4

: Seat belt buckle switch LH

D5 B85

W/3

: Front seat heater LH (without power
  seats)

E4

B14

Y/2

: Front LH seat belt pre-tensioner

Front seat LH harness

D5 B15

Y/2

: LH side air bag (satellite) sensor

C5 B200

W/16

: To B37

G3 B18

W/3

: Rear door switch LH

C4 B204

GR/2

: Sliding motor LH

F3

B19

—

: Body ground

D4 B205

W/2

: Reclining motor LH

C5 B37

W/16

: To B200

C4 B206

GR/2

: Lifting motor (front)

D2 B38

Y/2

: LH side curtain air bag module

D4 B207

GR/2

: Lifting motor (rear)

B5

B40

W/8

: To E34

C5 B208

W/10

: Power seat switch LH

B5

B69

SMJ

: To M40

C5 B209

W/3

: Front seat heater LH (with power seats)

F4

B72

GR/4

: Subwoofer

F3

B210

B/1

: Rear window defogger

C4 B73

B/4

: Yaw rate/side/decel G sensor

F4

B211

—

: Body ground

B4

B78

Y/2

: To B157

PG

HARNESS

PG-61

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

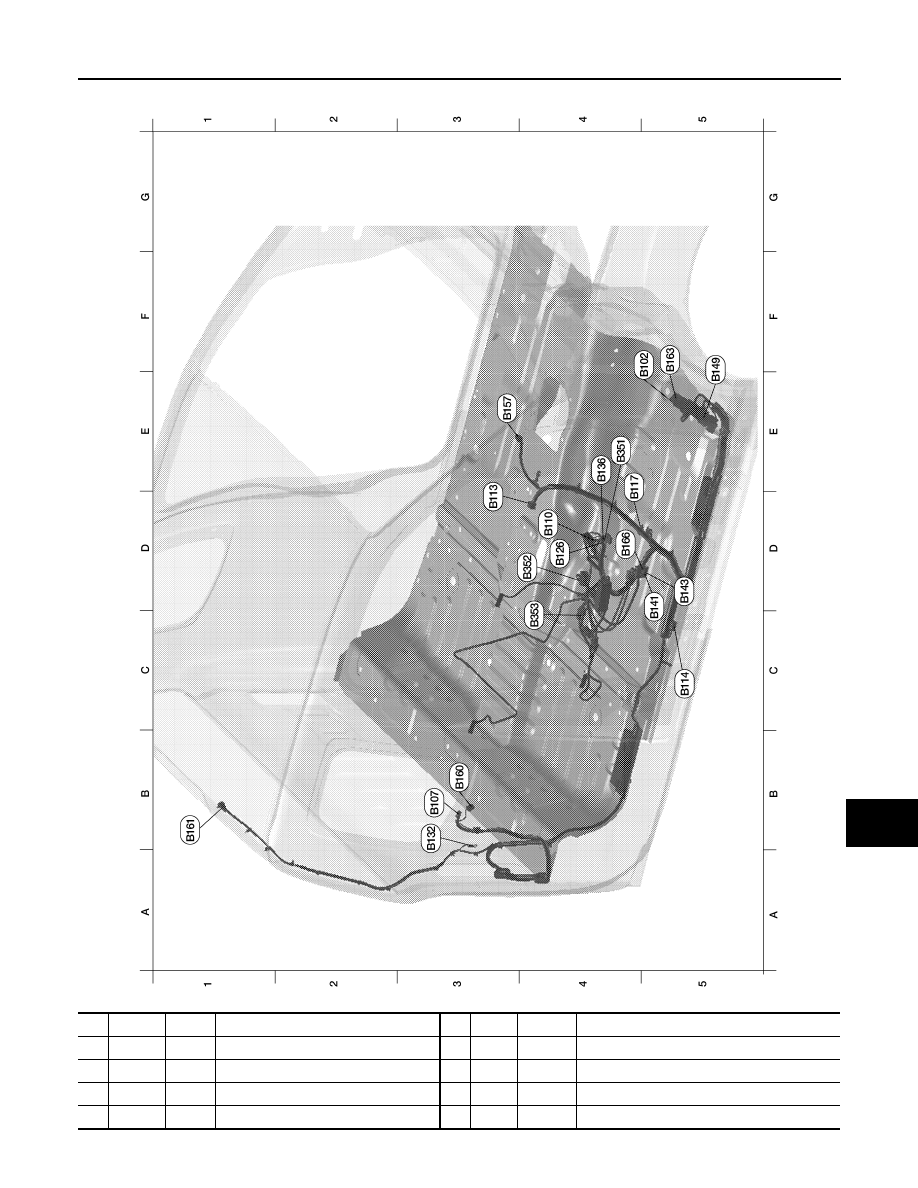

BODY NO. 2 HARNESS (KING CAB MODELS)

ABMIA5566ZZ

F4

B102

W/2

: To E36

F5

B149

SMJ

: To M36

B3

B107

W/8

: To D302

E3

B157

Y/2

: To B78

D4 B110

W/4

: Seat belt buckle switch RH

B3

B160

W/2

: Rear door speaker RH

D3 B113

Y/22

: Air bag diagnosis sensor unit

B1

B161

W/3

: High-mounted stop lamp assembly

C5 B114

Y/2

: RH side air bag (satellite) sensor

F5

B163

W/16

: To M17

PG-62

< WIRING DIAGRAM >

HARNESS

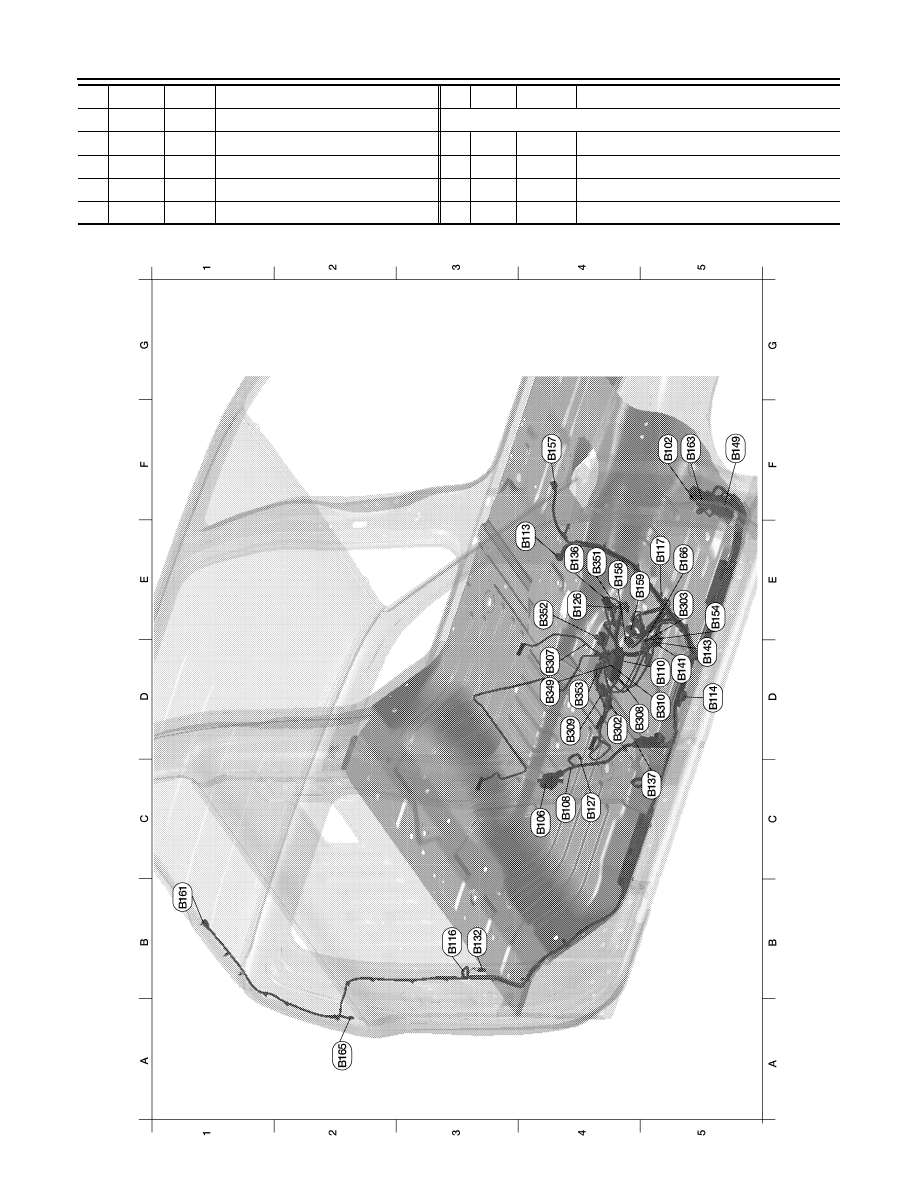

BODY NO. 2 HARNESS (CREW CAB MODELS)

E4

B117

—

: Body ground

D4 B166

W/3

: Front seat heater RH

D4 B126

Y/2

: Front RH side air bag module

Front seat RH harness

B3

B132

—

: Body ground

E4

B351

W8

: To B136

E4

B136

W/8

: To B351

D4 B352

B/18

: Occupant classification system control unit

D5 B141

W/32

: Bluetooth® control unit

C4 B353

B/3

: Occupant classification system sensor

D5 B143

W/8

: Bluetooth® control unit

ABMIA5567ZZ

PG

HARNESS

PG-63

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

F5

B102

W/2

: To E36

D4 B158

W/8

: Audio amplifier

C4 B106

W/12

: To D301

E4

B159

W/24

: Audio amplifier

C4 B108

W/3

: Front door switch RH

B1

B161

W/3

: High-mounted stop lamp assembly

D4 B110

W/4

: Seat belt buckle switch RH

F5

B163

W/16

: To M17

E4

B113

Y/22

: Air bag diagnosis sensor unit

A2

B165

B/1

: Rear window defogger

D5 B114

Y/2

: RH side air bag (satellite) sensor

E5

B166

W/3

: Front seat heater RH (without power seats)

B3

B116

W/3

: Rear door switch RH

Front seat RH harness

E5

B117

—

: Body ground

D4 B302

W/2

: Reclining motor RH

E4

B126

Y/2

: Front RH side air bag module

E5

B303

W/16

: To B154

C4 B127

Y/2

: Front RH seat belt pretensioner

D4 B307

W/3

: Front seat heater RH (with power seats)

B3

B132

—

: Body ground

D4 B308

W/6

: Power seat switch RH

E4

B136

W/8

: To B351

D4 B309

GR/2

: Sliding motor RH

C5 B137

B/3

: Belt tension sensor

D4 B310

W/8

: To B349

D5 B141

W/32

: Bluetooth® control unit

D4 B349

W/8

: To B310

D5 B143

W/8

: Bluetooth® control unit

E4

B351

W/8

: To B136

F5

B149

SMJ

: To M36

E4

B352

B/18

: Occupant classification system control unit

E5

B154

W/16

: To B303

D4 B353

B/3

: Occupant classification system sensor

F4

B157

Y/2

: To B78
