AUDIO ANTENNA

AUDIO ANTENNA

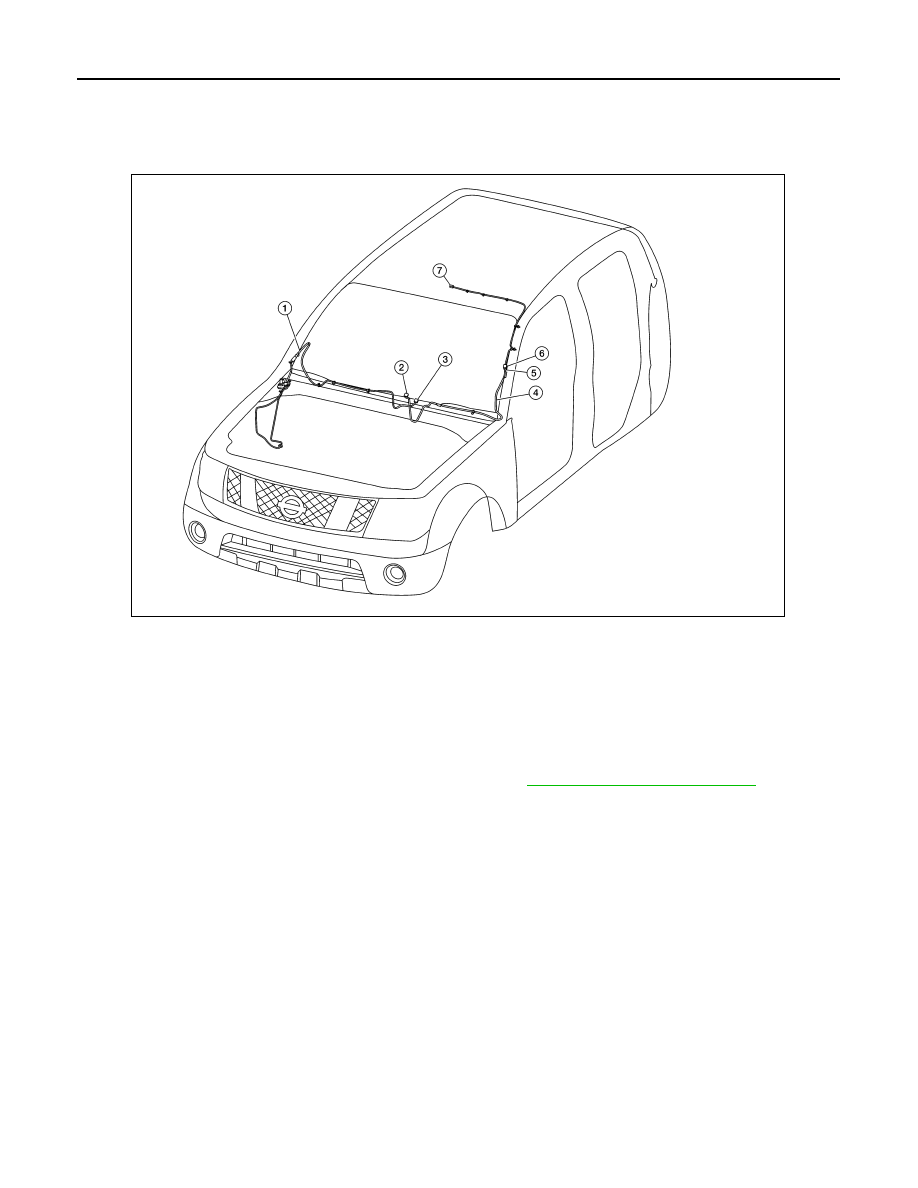

Location of Antenna

INFOID:0000000009482182

Removal and Installation

INFOID:0000000009482183

REMOVAL

1. Remove instrument lower panel RH and glove box. Refer to

IP-24, "Removal and Installation"

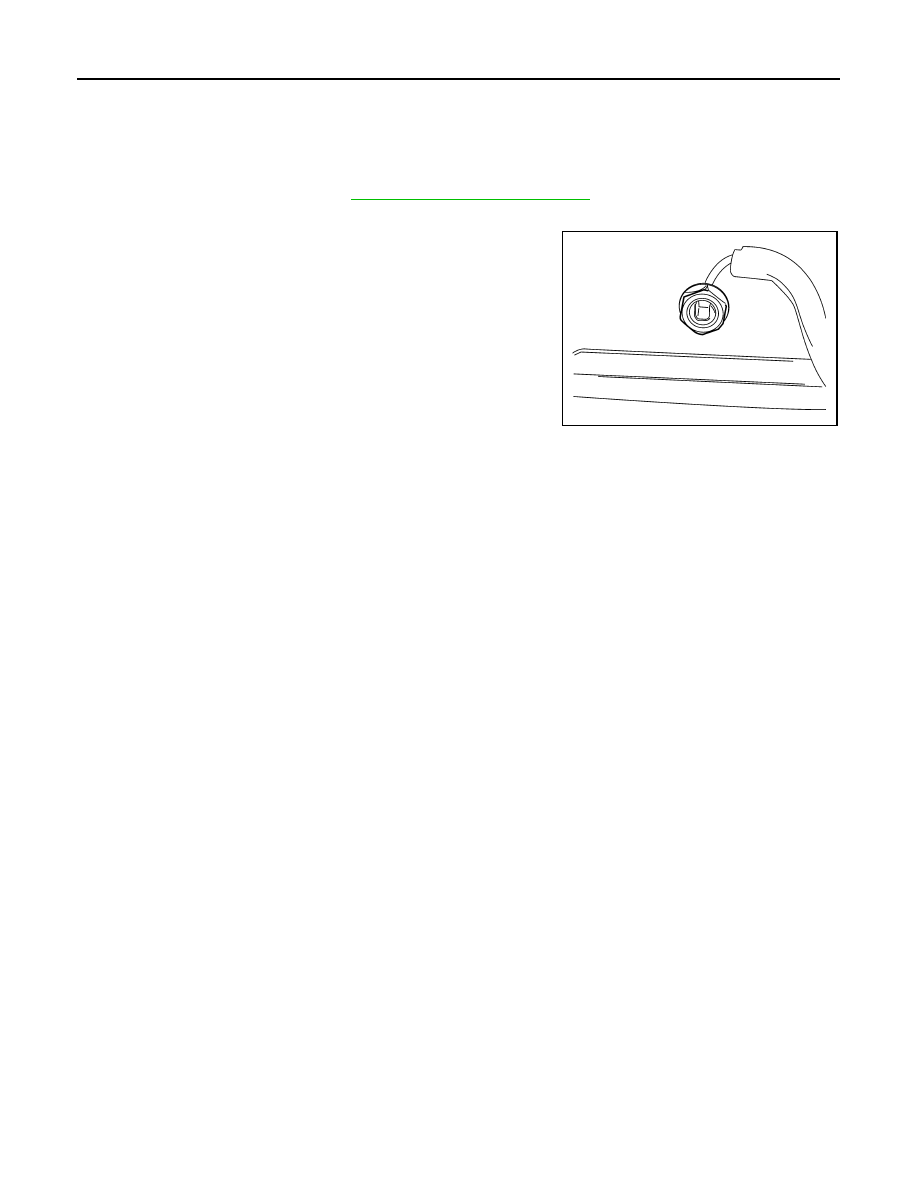

2. Disconnect audio antenna cable from antenna feeder.

Coaxial antenna feeder

M48

M37

Satellite antenna feeder

M67

M500

M501

AWNIA2926ZZ

AUDIO ANTENNA

AV-245

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH AMPLIFIER]

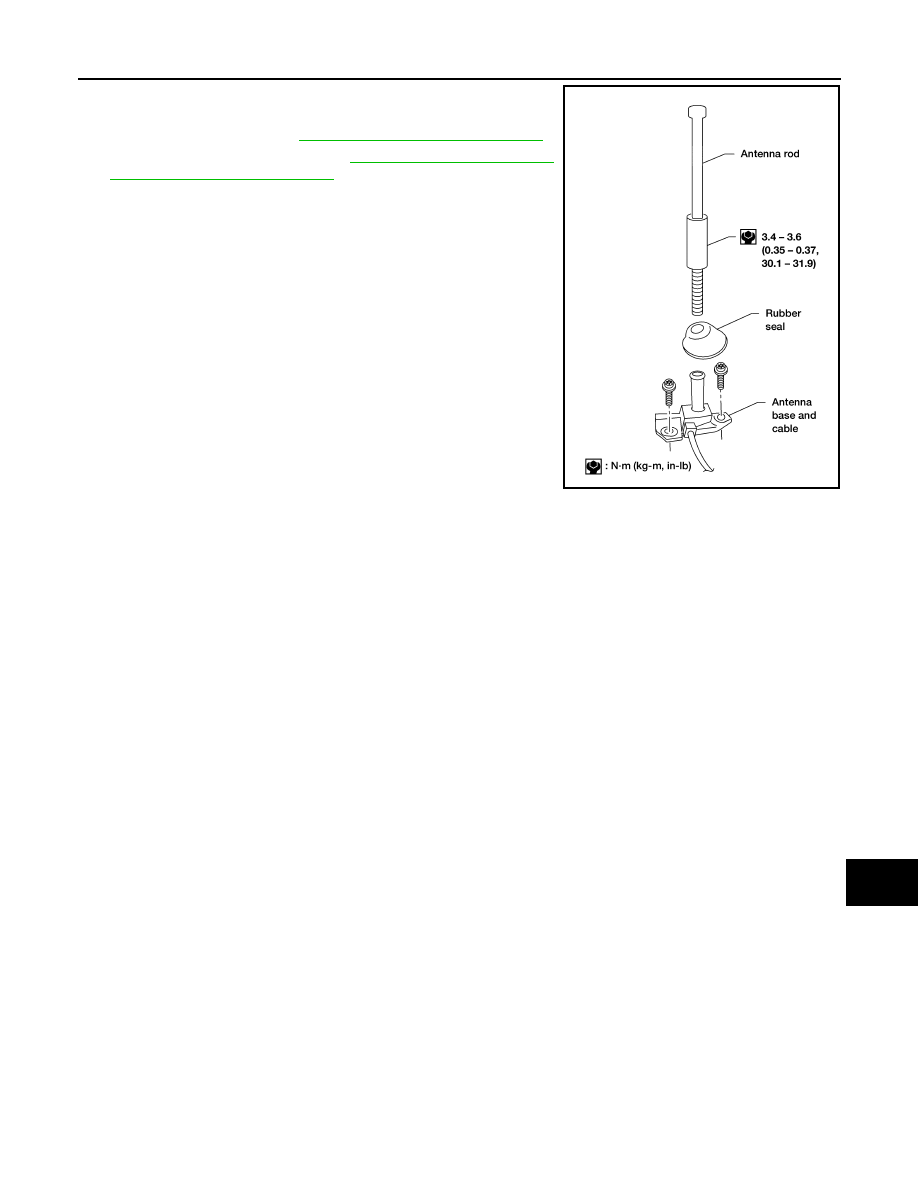

3. Remove antenna rod.
4. Remove rubber seal.
5. Remove cowl top. Refer to

EXT-24, "Removal and Installation"

6. Remove fender protector. Refer to

EXT-27, "Removal and Instal-

lation of Front Fender Protector"

7. Remove antenna base bolts.
8. Remove antenna base and cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Always properly tighten the antenna rod during installation or the antenna rod may bend or break dur-

ing vehicle operation.

AEL610C

AV-246

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH AMPLIFIER]

SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000009482184

REMOVAL

1. Remove the roof console. Refer to

INT-25, "Removal and Installation"

2. Disconnect the harness connector from the satellite radio antenna.
3. Remove the satellite radio antenna nut.
4. Remove the satellite radio antenna.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0679E

USB CONNECTOR

AV-247

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH AMPLIFIER]

USB CONNECTOR

Removal and Installation

INFOID:0000000009482185

REMOVAL

1. Remove the center console assembly. Refer to

IP-26, "Removal and Installation"

2. Push the pawl from the back of the center console to remove the USB interface.

INSTALLATION

Installation is in the reverse order of removal.
