AV-236

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH AMPLIFIER]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000009482175

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

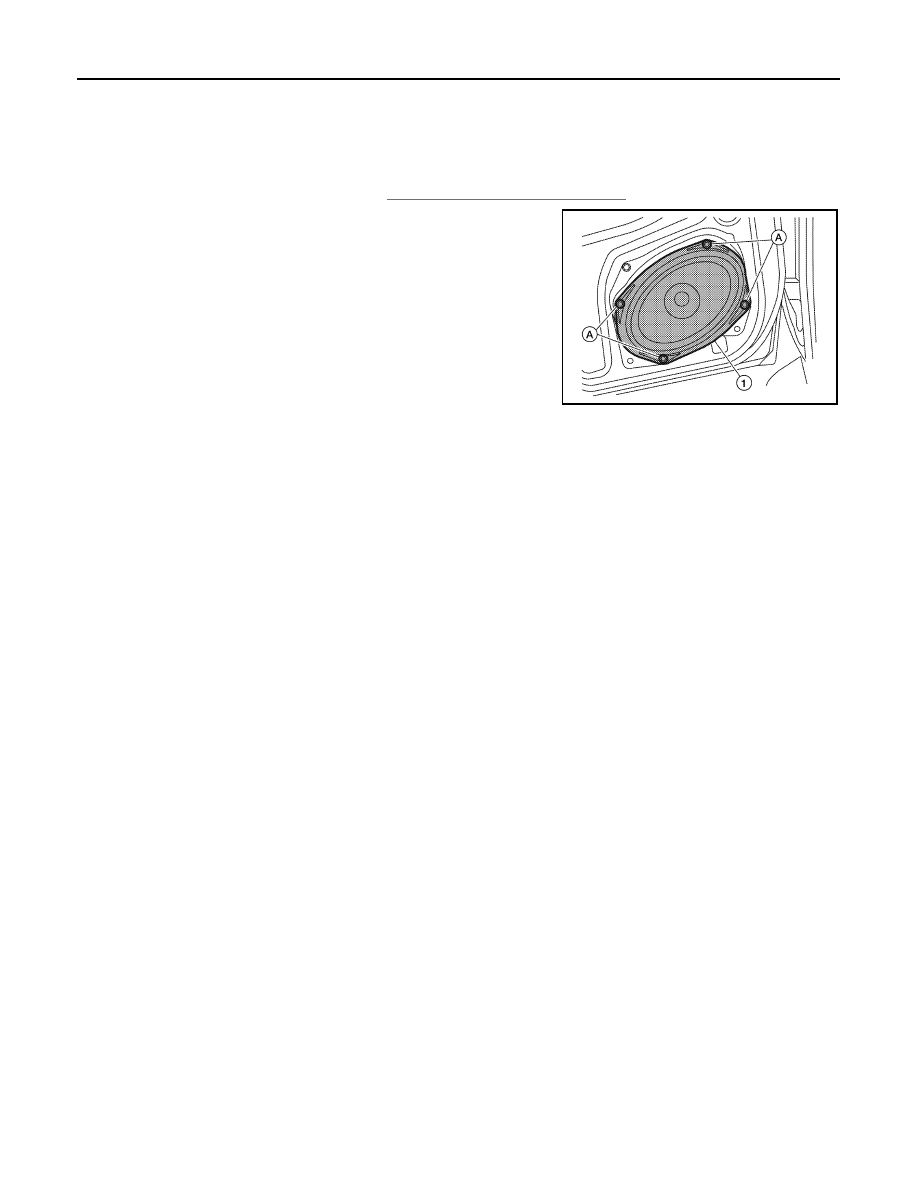

2. Remove the front door speaker screws (A).
3. Pull out the front door speaker (1).
4. Disconnect the harness connector from the front door speaker

(1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

AV

REAR DOOR SPEAKER

AV-237

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH AMPLIFIER]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000009482176

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

.

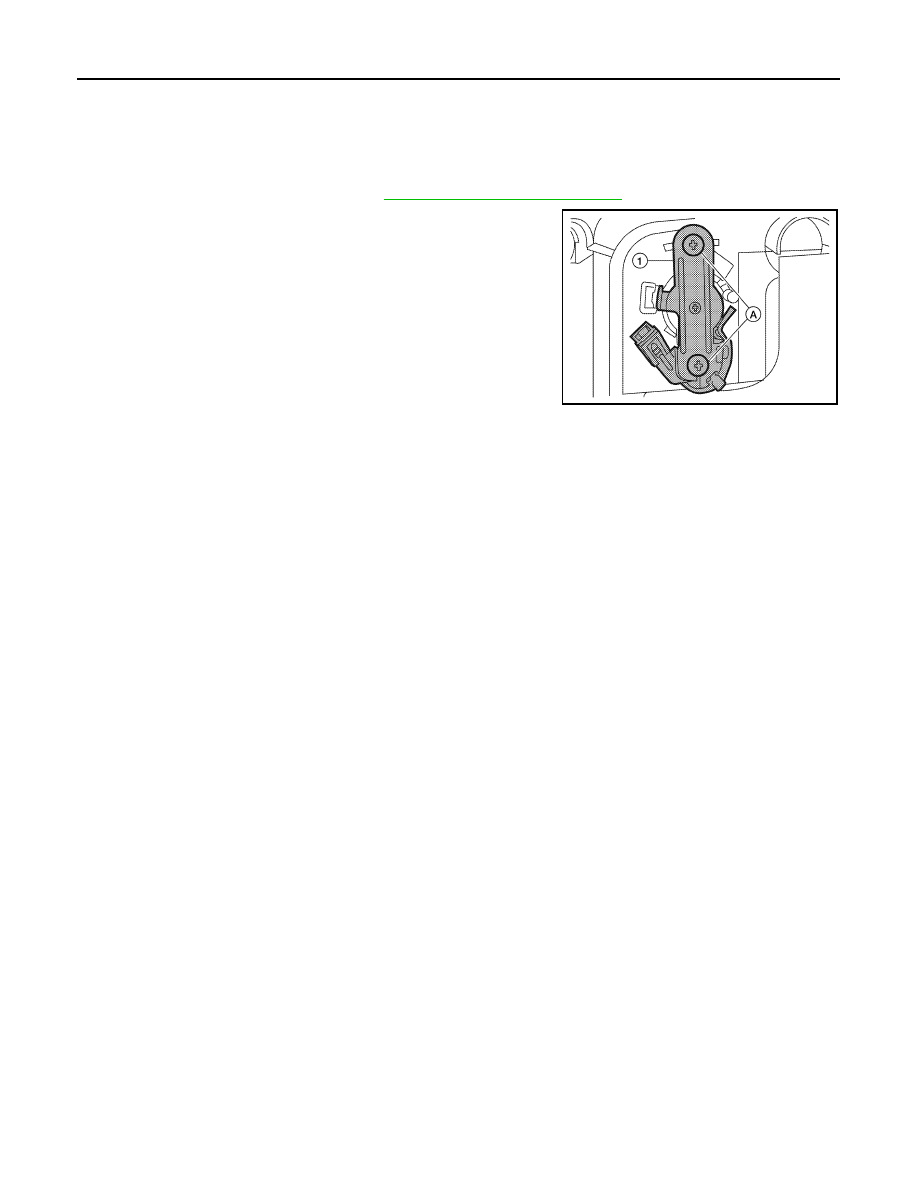

2. Remove the rear door speaker screws (A).
3. Disconnect the harness connector (B) from the rear door

speaker (1) and remove.

NOTE:

King cab shown, crew cab similar.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1071ZZ

AV-238

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH AMPLIFIER]

REAR TWEETER

REAR TWEETER

Removal and Installation

INFOID:0000000009482177

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

.

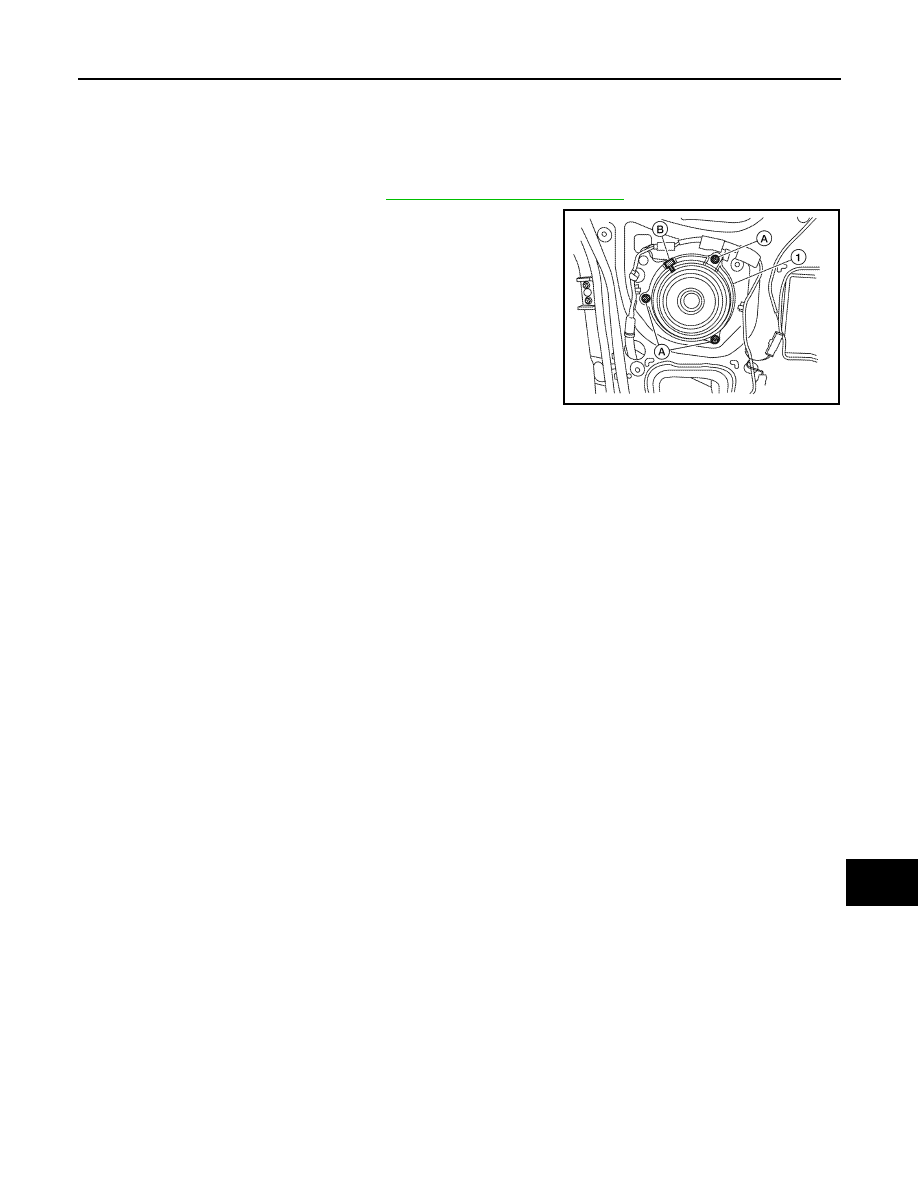

2. Remove the rear door tweeter screws (A) and the rear door

tweeter (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0351ZZ

AV

SUBWOOFER

AV-239

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH AMPLIFIER]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SUBWOOFER

Removal and Installation

INFOID:0000000009482178

REMOVAL

1. Position the LH rear seat cushion in the folded up position.
2. Remove storage box (RH) (crew cab). Refer to

INT-23, "Removal and Installation"

.

3. Remove the subwoofer screws.
4. Disconnect the harness connector from the subwoofer and remove.

INSTALLATION

Installation is in the reverse order of removal.

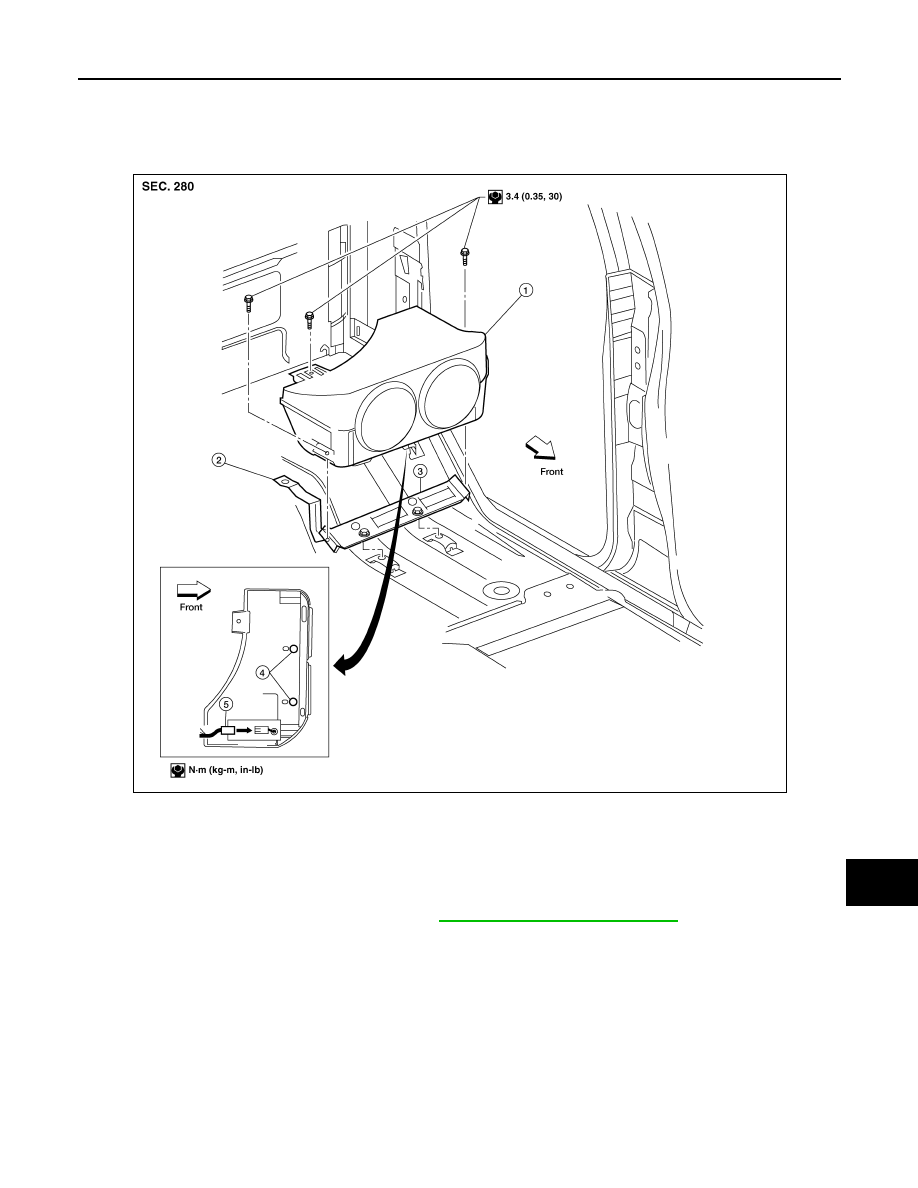

1.

Subwoofer

2.

Bracket

3.

Locating pin plate

4.

Locating pin

5.

Connector

LKIA0639E
