Nissan Frontier. Manual - part 60





AV-232

< PREPARATION >

[DISPLAY AUDIO WITH AMPLIFIER]

PREPARATION

PREPARATION

PREPARATION

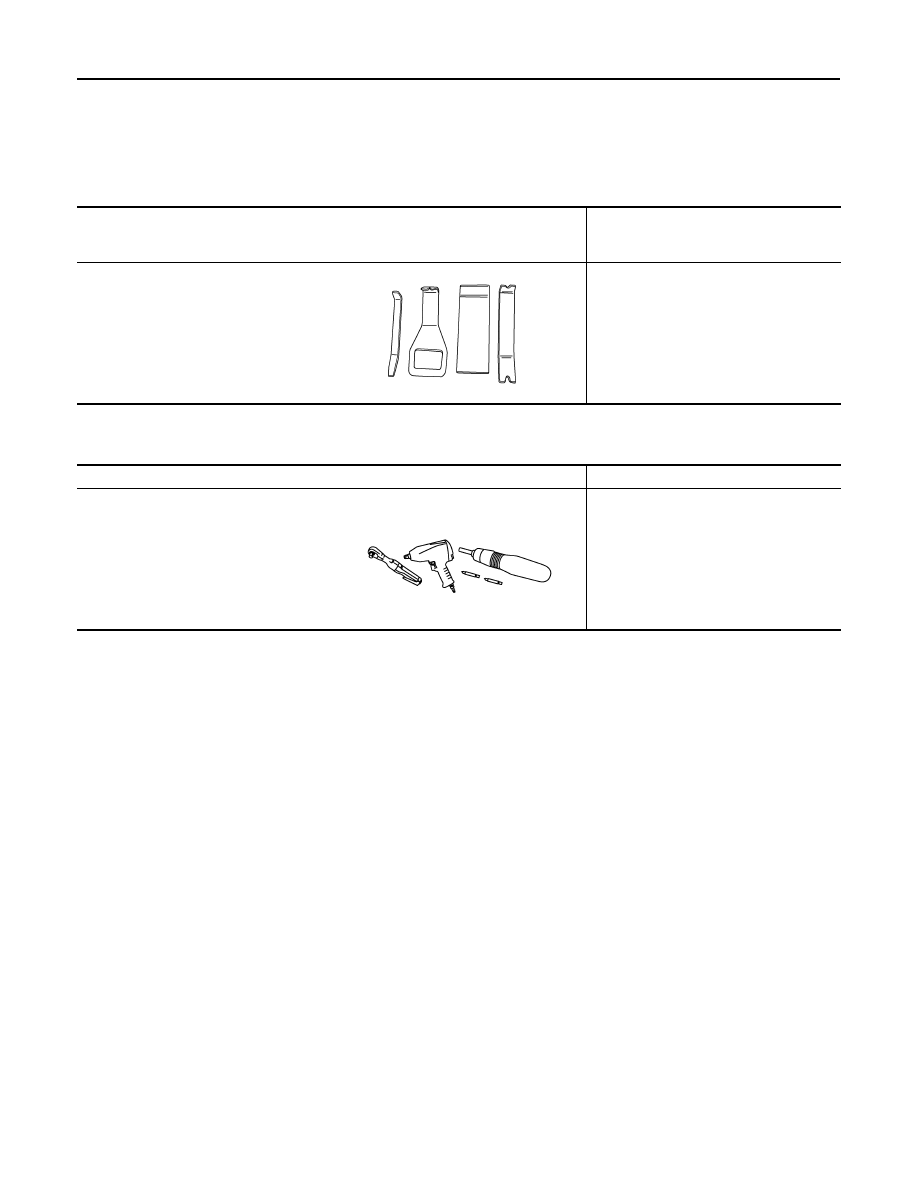

Special Service Tools

INFOID:0000000009482170

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000009482171

Tool number
(TechMate No.)
Tool name

Description

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

AV

AUDIO UNIT

AV-233

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH AMPLIFIER]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

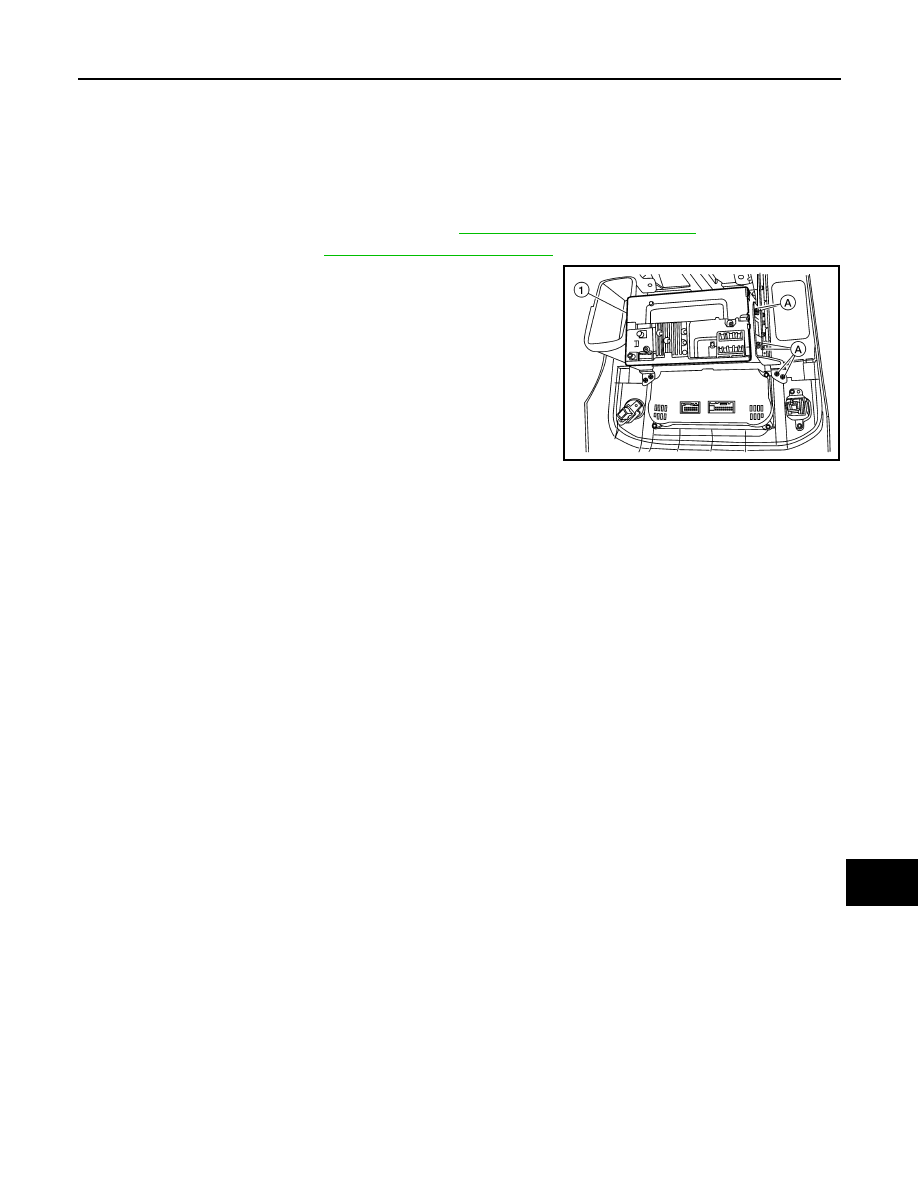

AUDIO UNIT

Removal and Installation

INFOID:0000000009482172

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-83, "Removal and Installation"

.

2. Remove cluster lid C. Refer to

IP-19, "Removal and Installation"

.

3. Remove the screws (A) from the bracket.
4. Remove the audio unit (1) from cluster lid C.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA2930ZZ

AV-234

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH AMPLIFIER]

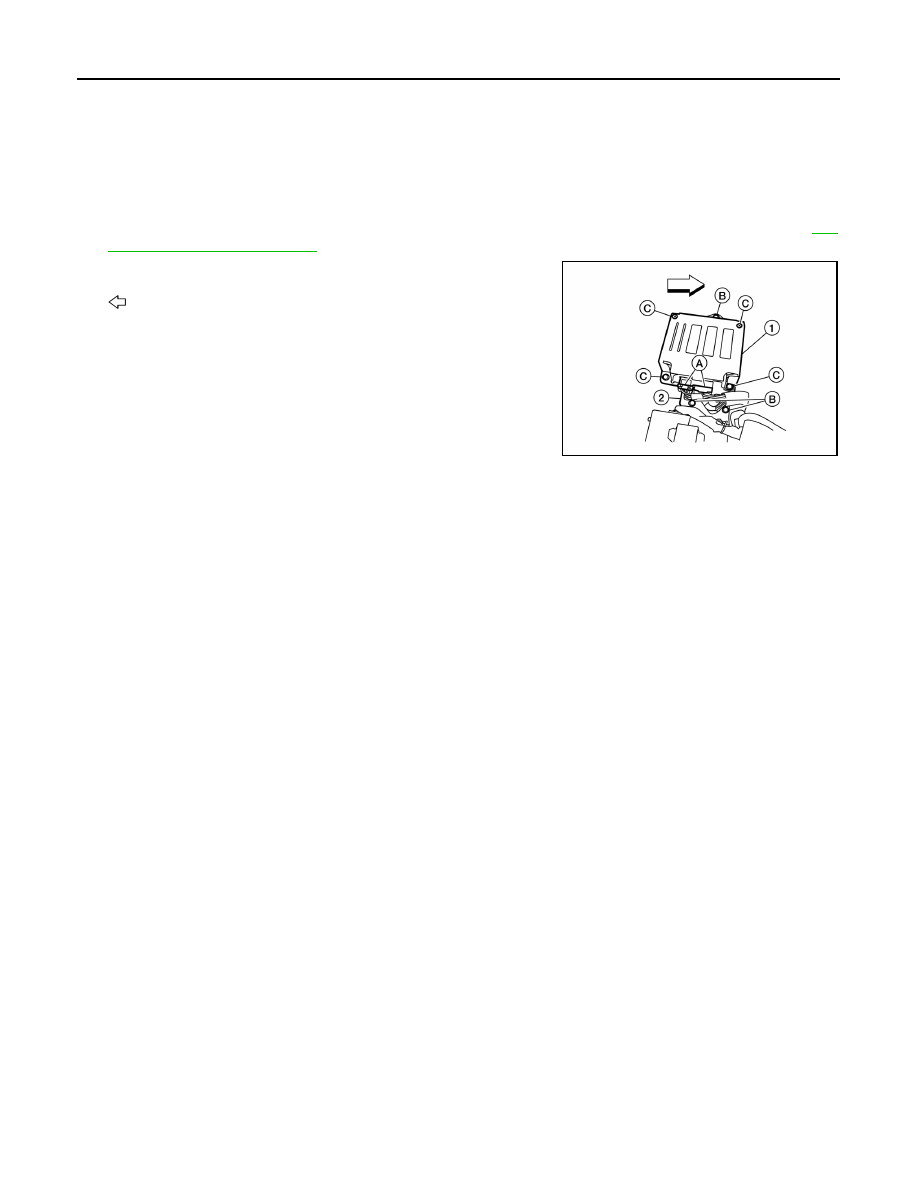

AUDIO AMP.

AUDIO AMP.

Removal and Installation

INFOID:0000000009482173

REMOVAL

NOTE:

Do not remove the RH front seat from the vehicle.
1. Remove the RH front seat bolts, disconnect the harness connectors from the RH front seat. Refer to

SE-

32, "Removal and Installation"

2. Tilt the RH front seat back to access the audio amp. (1) and

remove the audio amp. kick shield screws (C).

: Front

3. Disconnect the harness connectors (A) from the audio amp. and

remove the audio amp. (1) from the bracket (2).

4. Remove the audio amp. bracket screws (B) and bracket (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1248ZZ

AV

FRONT TWEETER

AV-235

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH AMPLIFIER]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

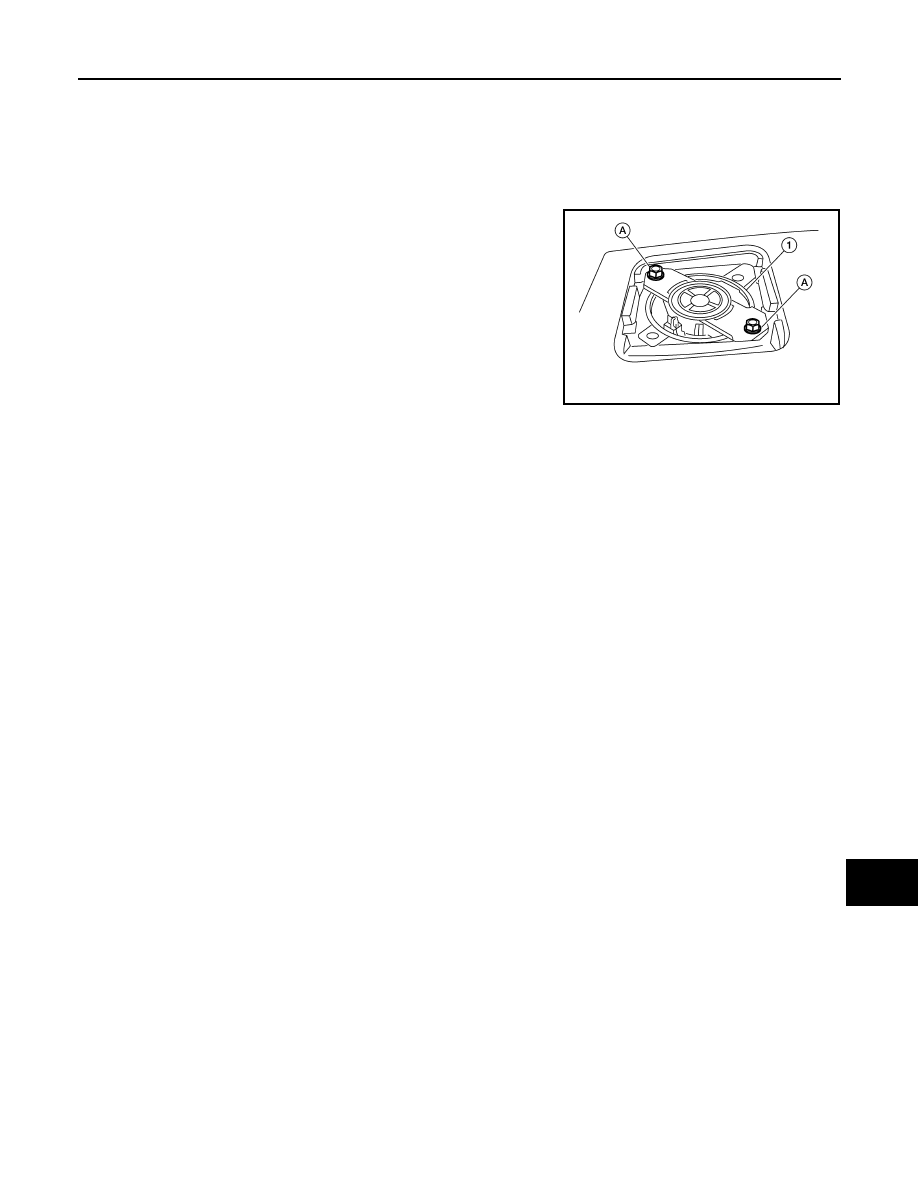

FRONT TWEETER

Removal and Installation

INFOID:0000000009482174

REMOVAL

1. Remove the front tweeter grille.
2. Remove the front tweeter screws (A).
3. Pull out the front tweeter (1), then disconnect the harness con-

nector from the front tweeter and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1074ZZ
