AV-248

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH AMPLIFIER]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000009482186

REMOVAL

1. Remove the tail gate protector. Refer to

EXT-38, "Removal and Installation"

.

2. Remove the rear view camera screws and the rear view camera.

INSTALLATION

Installation is in the reverse order of removal.

AV

COMPONENT PARTS

AV-249

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

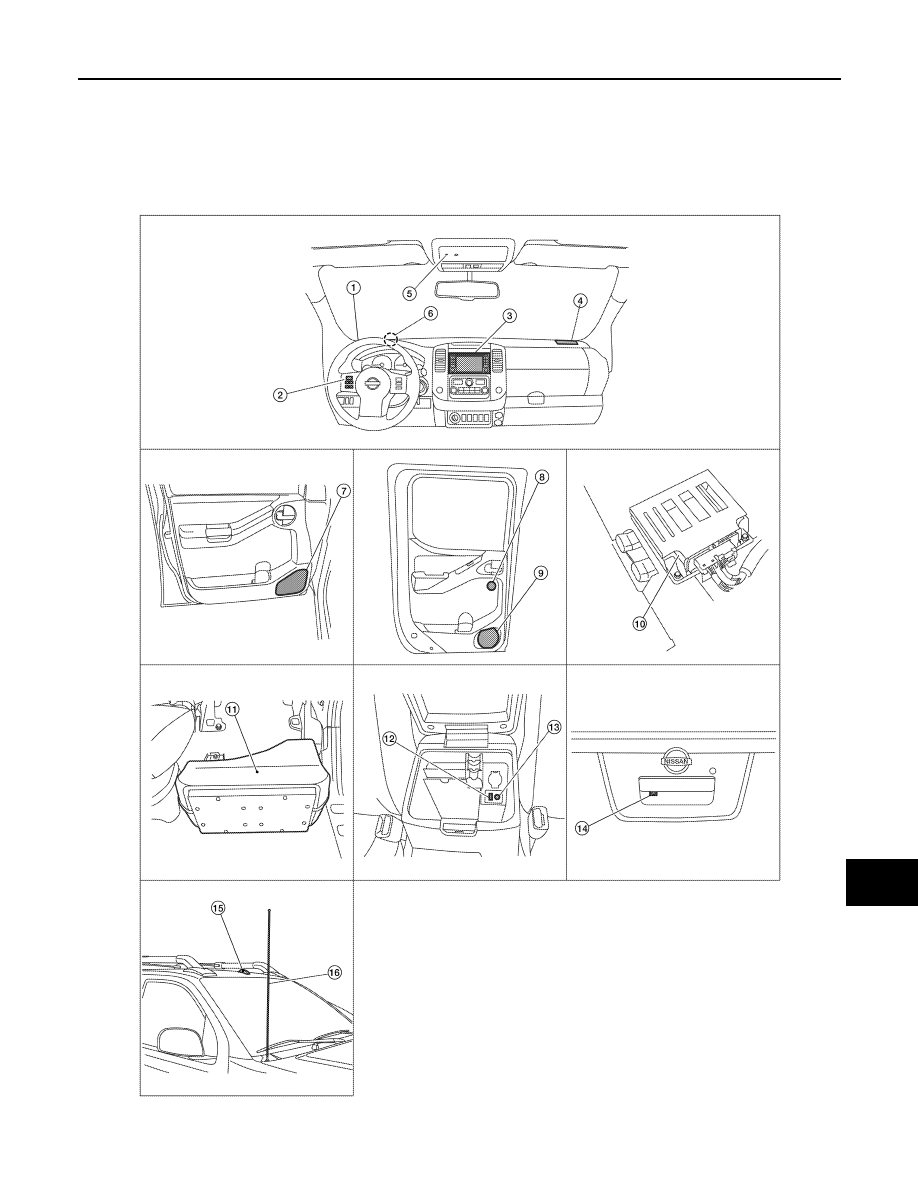

Component Parts Location

INFOID:0000000009482187

AWNIA2912ZZ

AV-250

< SYSTEM DESCRIPTION >

[NAVIGATION]

COMPONENT PARTS

Component Description

INFOID:0000000009482188

1.

Front tweeter LH M109

2.

Steering wheel audio control switches 3.

AV control unit M96, M97, M98, M99,
M100

4.

Front tweeter RH M111

5.

Microphone R8

6.

GPS antenna (Underneath instrument
panel, forward of combination meter)

7.

Front door speaker LH D12
Front door speaker RH D112

8.

Rear door tweeter LH D208
Rear door tweeter RH D308

9.

Rear door speaker LH D207
Rear door speaker RH D307

10. Audio amp B158, B159 (Underneath

passenger seat)

11. Subwoofer B72 (Underneath rear LH

seat)

12. USB interface M214

13. AUX in jack M215

14. Rear view camera C251

15. Satellite antenna

16. Rod antenna

Part name

Description

AV control unit

• Operation of navigation and audio systems are integrated.
• Includes the audio, hands-free phone, navigation, satellite radio, rear view

monitor, USB connection and AUX IN connection functions.

• Map data can be loaded from SD-card inserted in SD-card slot.
• Audio signals are output to audio amplifier.
• Inputs illumination signals required for display dimming control.
• Inputs signals for driving status recognition (vehicle speed and reverse).
• Touch panel functions can be operated by touching display directly.

Map SD-card

A collection of Map data.

Audio amplifier

Receives audio signals from AV control unit and outputs audio signals to each
speaker.

Front tweeters

Outputs high, mid and low range audio signals from audio amp.

Front door speakers

Rear tweeters

Rear door speakers

Subwoofer

Steering wheel audio control switches

• Operations for audio, hands-free phone and voice recognition are possible.
• Steering switch signal is output to combination meter.
• Combination meter outputs steering switch signal to AV control unit.

Microphone

• Used for hands-free phone operations.
• Microphone signal is transmitted to AV control unit.
• Power is supplied from AV control unit.

USB interface

USB sound and data signals are transmitted to AV control unit.

AUX input

Auxillary sound signals are transmitted to AV control unit.

Rear view camera

• Outputs image of vehicle rear to AV control unit.
• Power is supplied from AV control unit.

Satellite antenna

Satellite radio signal is received and transmitted to AV control unit.

GPS antenna

GPS signal is received and transmitted to AV control unit.

Rod antenna

AM/FM signal is received and transmitted to AV control unit.

AV

SYSTEM

AV-251

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

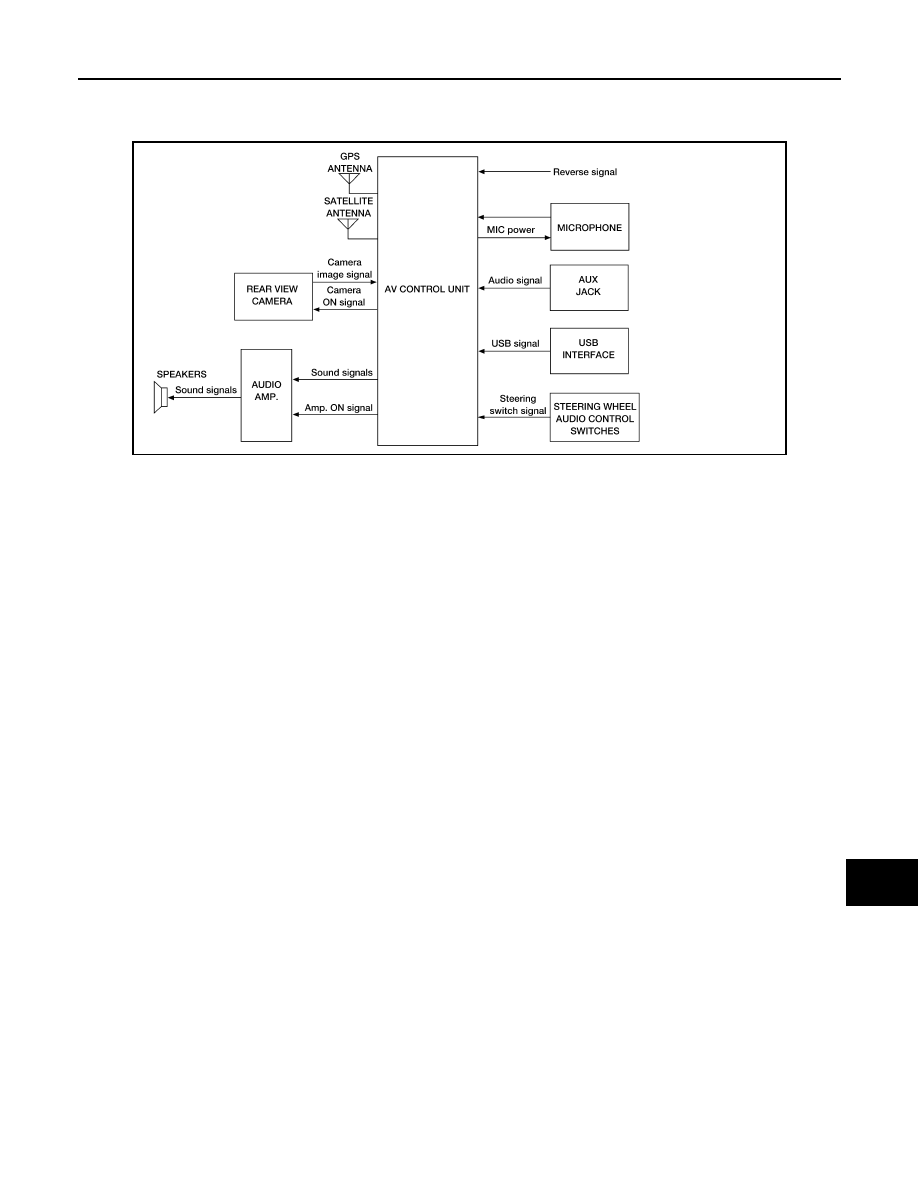

System Diagram

INFOID:0000000009482189

System Description

INFOID:0000000009482190

Refer to Owner’s Manual for navigation and audio system operating instructions.

Audio function and display are built into AV control unit.

This navigation has the following functions.

• Map data on SD-card
• Full support for playback of music from iPod

®

 and USB device

• High resolution color 5 inch display with touch panel function

• FM/AM twin digital tuner

• USB mass storage connection

• Satellite radio

• Hands-free phone system
iPod

®

 is a trademark of Apple inc., registered in the U.S. and other countries.

NAVIGATION SYSTEM FUNCTION

Description

• The navigation system can be operated by control panel of the AV control unit and display (touch panel) of

the AV control unit.

• Guide sound during the operation of the navigation system is output from AV control unit to front speakers.

• AV control unit calculates the vehicle location based on the signals from GYRO (angle speed sensor), vehi-

cle sensor, and GPS satellite, as well as the map data from map SD-card. The vehicle location is displayed

on the AV control unit.

POSITION DETECTION PRINCIPLE

The navigation system periodically calculates the vehicle's current position according to the following three

signals:

• Travel distance of the vehicle as determined by the vehicle speed sensor

• Turning angle of the vehicle as determined by the gyroscope (angular velocity sensor)

• Direction of vehicle travel as determined by the GPS antenna (GPS information)

The current position of the vehicle is then identified by comparing the calculated vehicle position with map data

read from the map SD-card (map-matching), and indicated on the screen as a vehicle mark. More accurate

data is judged and used by comparing vehicle position detection results found by the GPS with the result by

map-matching.

AWNIA2777GB
