PREPARATION

VTL-3

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

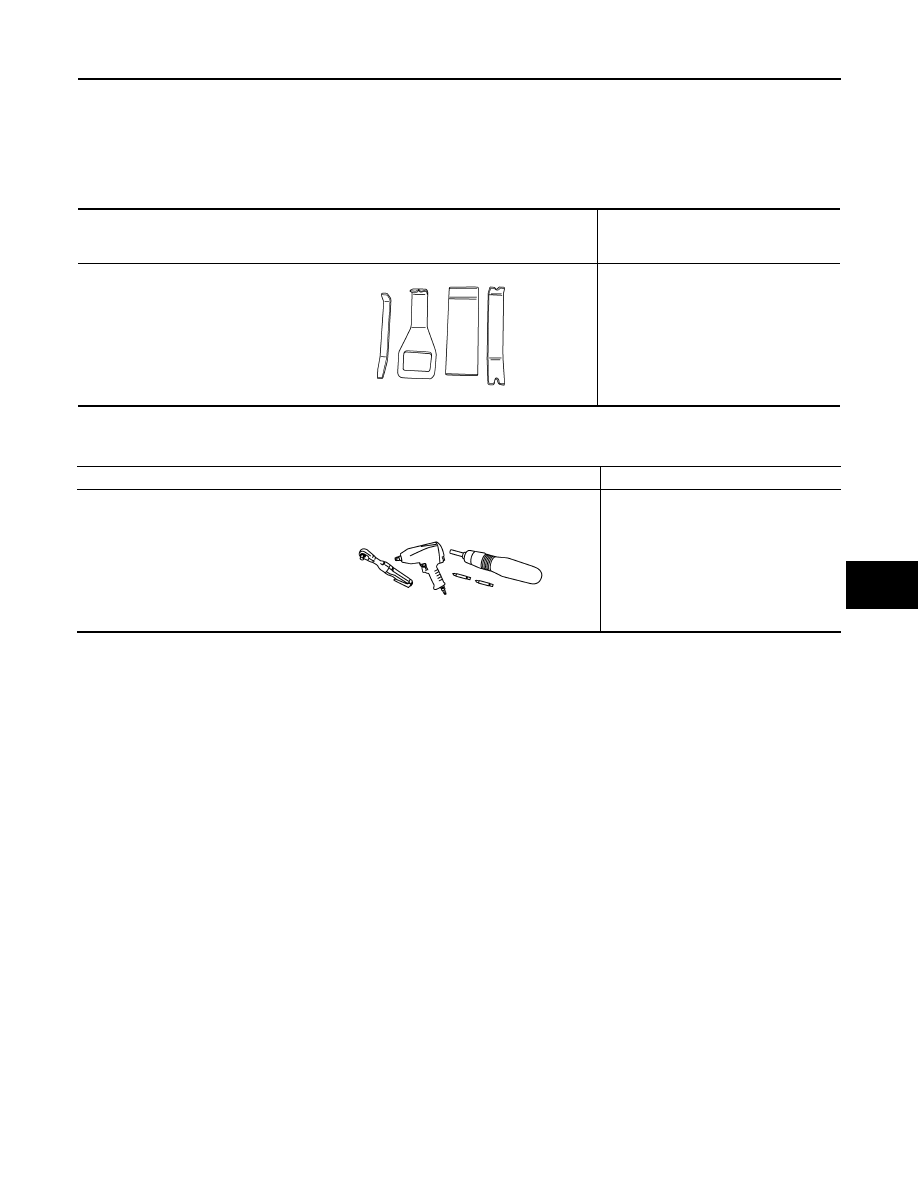

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009758097

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000009758098

Tool number
(TechMate No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

VTL-4

< PERIODIC MAINTENANCE >

IN-CABIN MICROFILTER

PERIODIC MAINTENANCE

IN-CABIN MICROFILTER

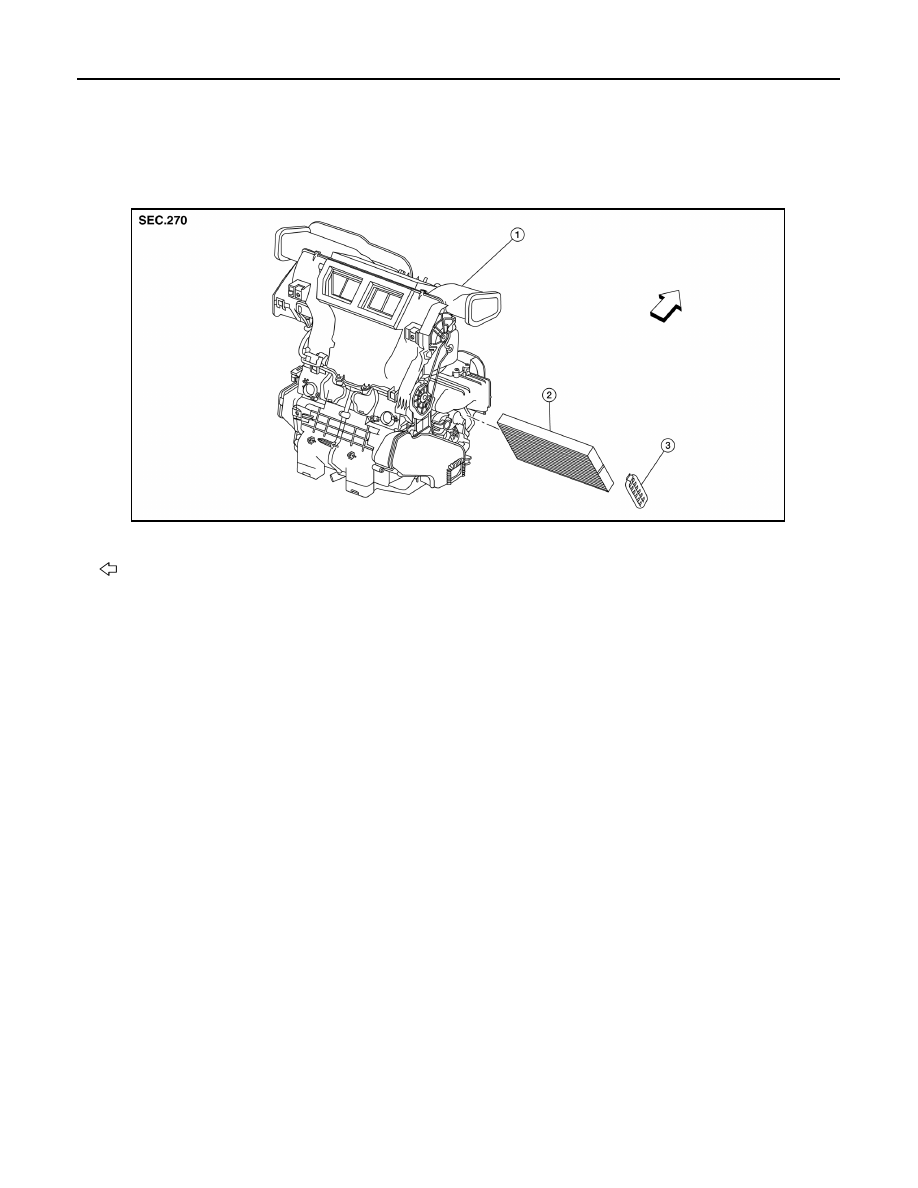

Exploded View

INFOID:0000000009758099

Removal and Installation

INFOID:0000000009758100

REMOVAL

1. Remove the in-cabin microfilter cover.

CAUTION:

Before removing the in-cabin micofilter cover, let the vehicle rest for at least 30 minutes.

a. Release the filter cover tab (A), then pull the bottom of the in-cabin microfilter cover outwards.
b. Pull down the in-cabin microfilter cover to disengage the hook at the top, then remove the in-cabin micro-

filter cover.

2. Remove the in-cabin microfilter.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check that the in-cabin microfilter cover is securely fastened to the heating and cool-

ing unit assembly.

1.

Heating and cooling unit assembly

2.

In-cabin microfilter

3.

In-cabin microfilter cover

Front

ALIIA0670ZZ

IN-CABIN MICROFILTER

VTL-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

SYSTEM DESCRIPTION

IN-CABIN MICROFILTER

Description

INFOID:0000000009758101

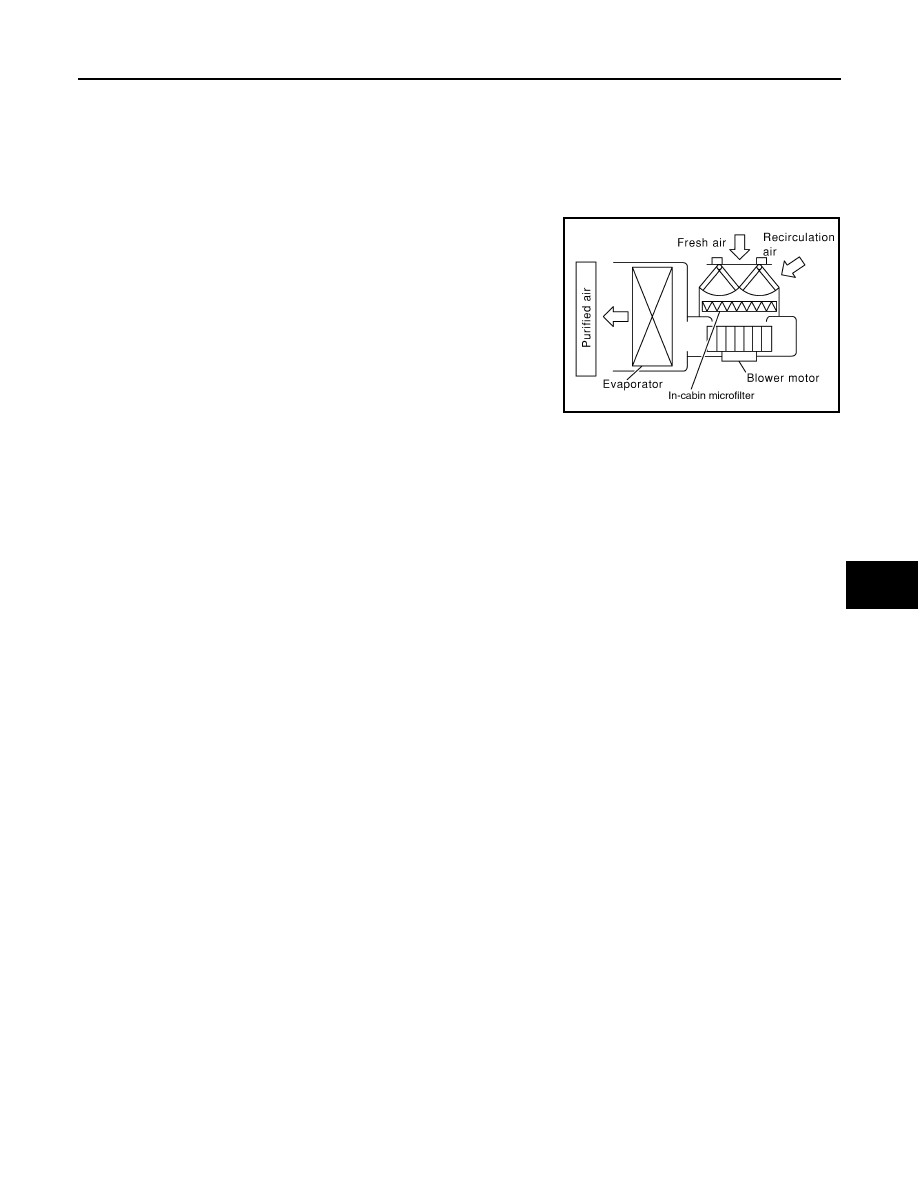

FUNCTION

Air inside the passenger compartment is kept clean at either recircu-

lation or fresh mode by installing an in-cabin microfilter into the heat-

ing and cooling unit assembly.

LJIA0012E

VTL-6

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

REMOVAL AND INSTALLATION

DUCTS AND GRILLES

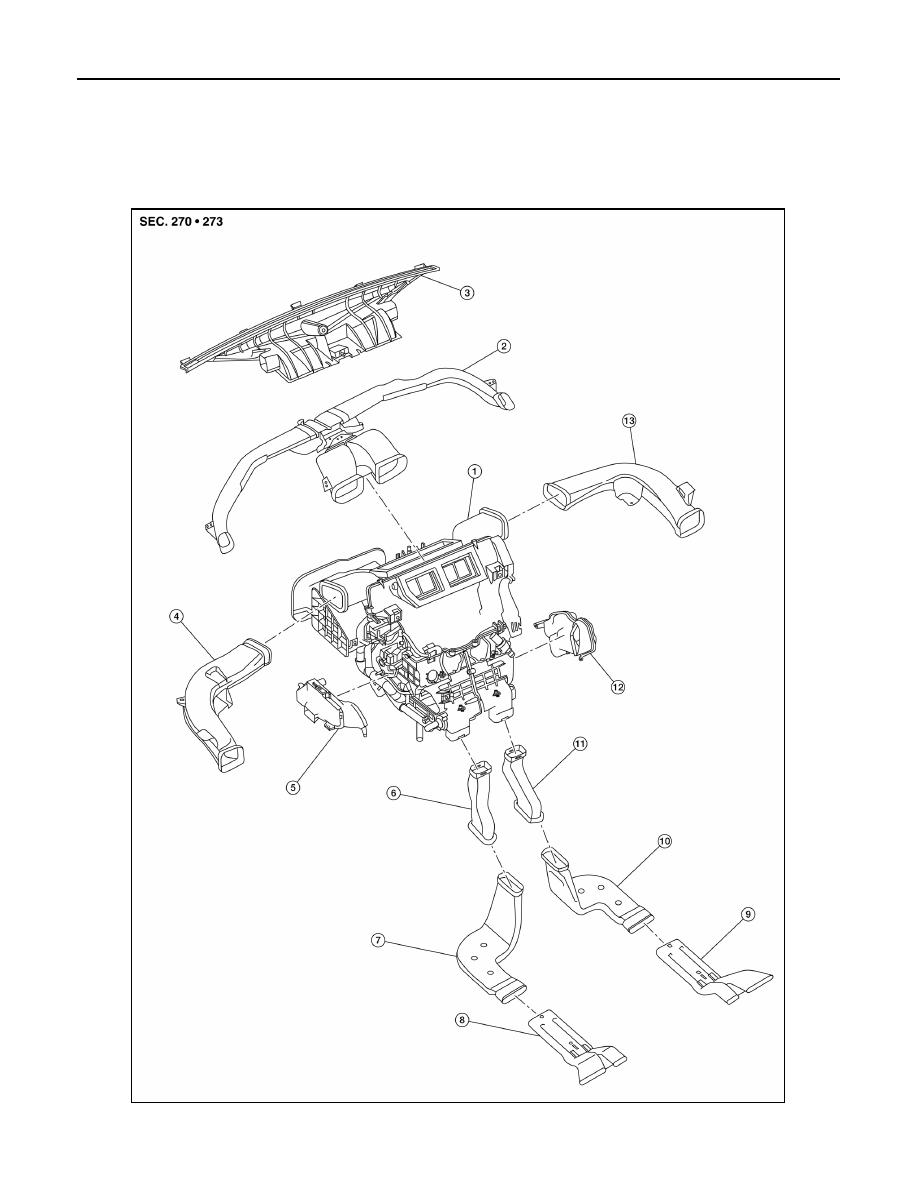

Exploded View

INFOID:0000000009758102

ALIIA0671ZZ
