DUCTS AND GRILLES

VTL-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

DEFROSTER NOZZLE
DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000009758103

REMOVAL

1. Remove the side defroster ducts (LH/RH). Refer to

VTL-7, "SIDE VENTILATOR DUCT : Removal and

Installation"

.

2. Remove the defroster nozzle screws.
3. Remove the defroster nozzle.

INSTALLATION

Installation is in the reverse order of removal.

CENTER VENTILATOR DUCT
CENTER VENTILATOR DUCT : Removal and Installation

INFOID:0000000009758104

REMOVAL

1. Remove the instrument panel assembly. Refer to

IP-14, "Removal and Installation"

.

2. Remove the center ventilator duct screws.
3. Remove the center ventilator duct.

INSTALLATION

Installation is in the reverse order of removal.

SIDE VENTILATOR DUCT
SIDE VENTILATOR DUCT : Removal and Installation

INFOID:0000000009758105

REMOVAL

1. Remove the instrument panel assembly. Refer to

IP-14, "Removal and Installation"

.

2. Remove the side ventilator duct screws.
3. Release the side ventilator duct from the defroster duct and remove.

INSTALLATION

Installation is in the reverse order of removal.

REAR FLOOR DUCT
REAR FLOOR DUCT : Removal and Installation - Rear Floor Connecting Duct

INFOID:0000000009758106

REMOVAL

1. Remove the center console side finisher. Refer to

IP-17, "Exploded View"

.

2. Remove the rear floor connecting duct (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

REAR FLOOR DUCT : Removal and Installation - Rear Floor Duct

INFOID:0000000009758107

REMOVAL

1. Remove the front floor trim. Refer to

INT-35, "Removal and Installation"

.

1.

Heating and cooling unit assembly

2.

Center ventilator duct

3.

Defroster duct

4.

Side ventilator duct (LH)

5.

Front floor duct (LH)

6.

Rear floor connecting duct (LH)

7.

Rear floor duct (LH)

8.

Rear floor duct nozzle (LH)

9.

Rear floor duct nozzle (RH)

10. Rear floor duct (RH)

11. Rear floor connecting duct (LH)

12. Front floor duct (RH)

13. Side ventilator duct (RH)

VTL-8

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

2. Remove the floor insulator.
3. Release the rear floor duct nozzle from the rear floor duct and remove.

INSTALLATION

Installation is in the reverse order of removal.

REAR FLOOR DUCT : Removal and Installation - Rear Floor Duct Nozzle

INFOID:0000000009758108

REMOVAL

1. Remove the rear floor duct. Refer to

VTL-8, "REAR FLOOR DUCT : Removal and Installation - Rear Floor

Duct Nozzle"

.

2. Remove the rear floor duct nozzle (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

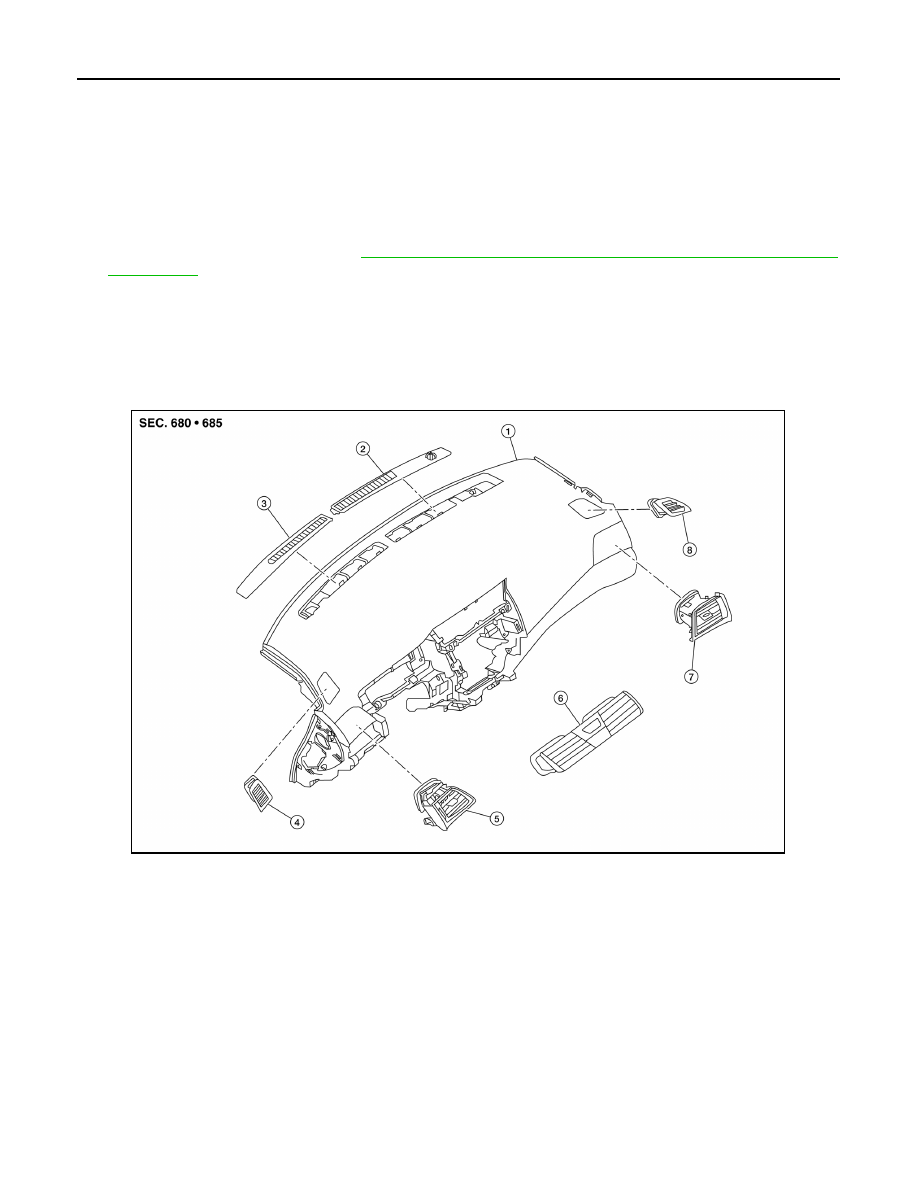

Exploded View

INFOID:0000000009758109

DEFROSTER GRILLE
DEFROSTER GRILLE : Removal and Installation

INFOID:0000000009758110

REMOVAL

1. Release the defroster grille pawls using a suitable tool.
2. Remove the defroster grille (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

1.

Instrument panel assembly

2.

Defroster grille (RH)

3.

Defroster grille (LH)

4.

Side defroster grille (LH)

5.

Side ventilator grille (LH)

6.

Center ventilator grille

7.

Side ventilator grille (RH)

8.

Side defroster grille (RH)

ALIIA0674ZZ

DUCTS AND GRILLES

VTL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

CENTER VENTILATOR GRILLE
CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009758111

REMOVAL

1. Remove cluster lid C. Refer to

IP-20, "Removal and Installation - Cluster Lid C"

.

2. Release the center ventilator grille pawls using a suitable tool.
3. Remove the center ventilator grille (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

SIDE VENTILATOR GRILLE
SIDE VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009758112

REMOVAL

1. Remove the instrument side finisher. Refer to

IP-14, "Exploded View"

.

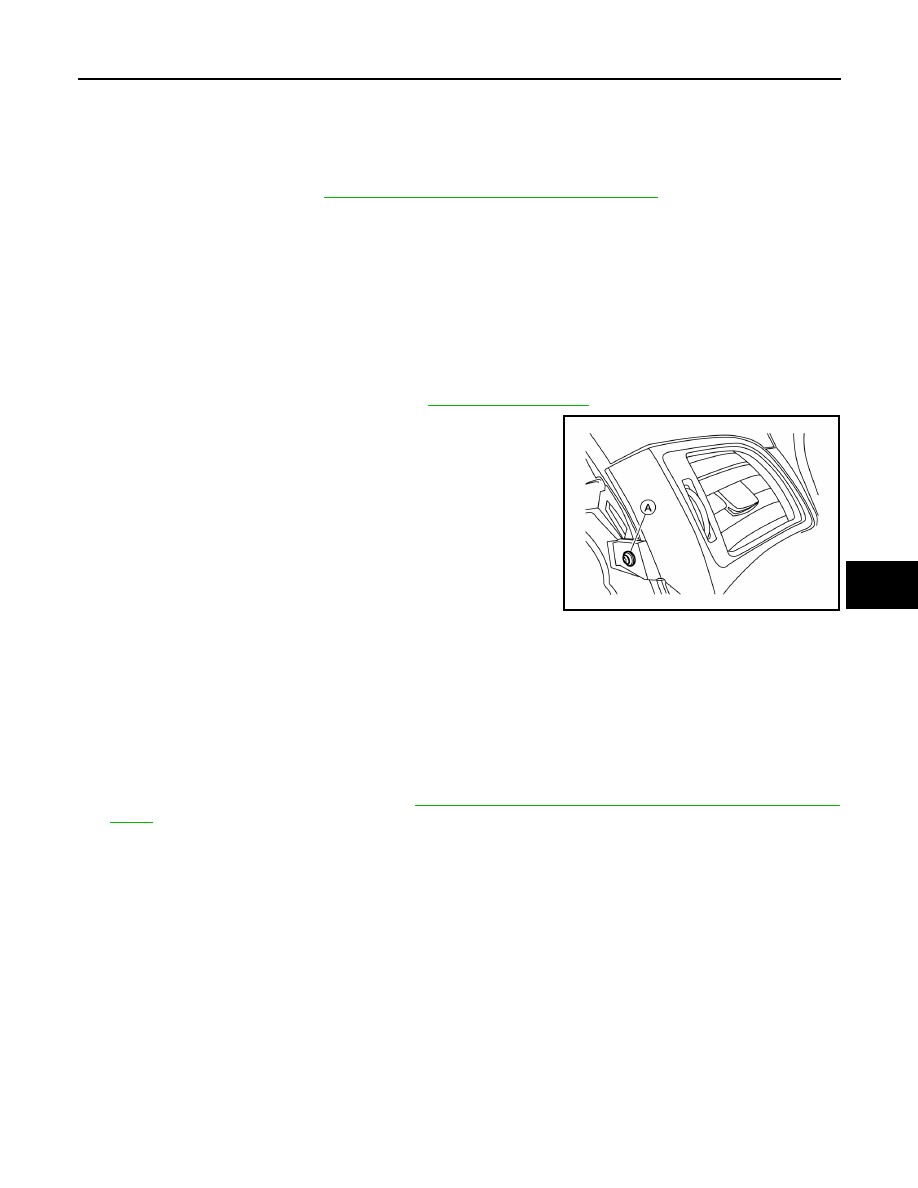

2. Remove the side ventilator grille screw (A).

3. Remove the side ventilator grille (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

SIDE DEFROSTER GRILLE
SIDE DEFROSTER GRILLE : Removal and Installation

INFOID:0000000009758113

REMOVAL

1. Remove the center ventilator duct. Refer to

VTL-7, "CENTER VENTILATOR DUCT : Removal and Instal-

lation"

.

2. Release the side defroster grille pawl using a suitable tool.
3. Remove the side defroster grille (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0675ZZ

VTL-10

< REMOVAL AND INSTALLATION >

BLOWER MOTOR

BLOWER MOTOR

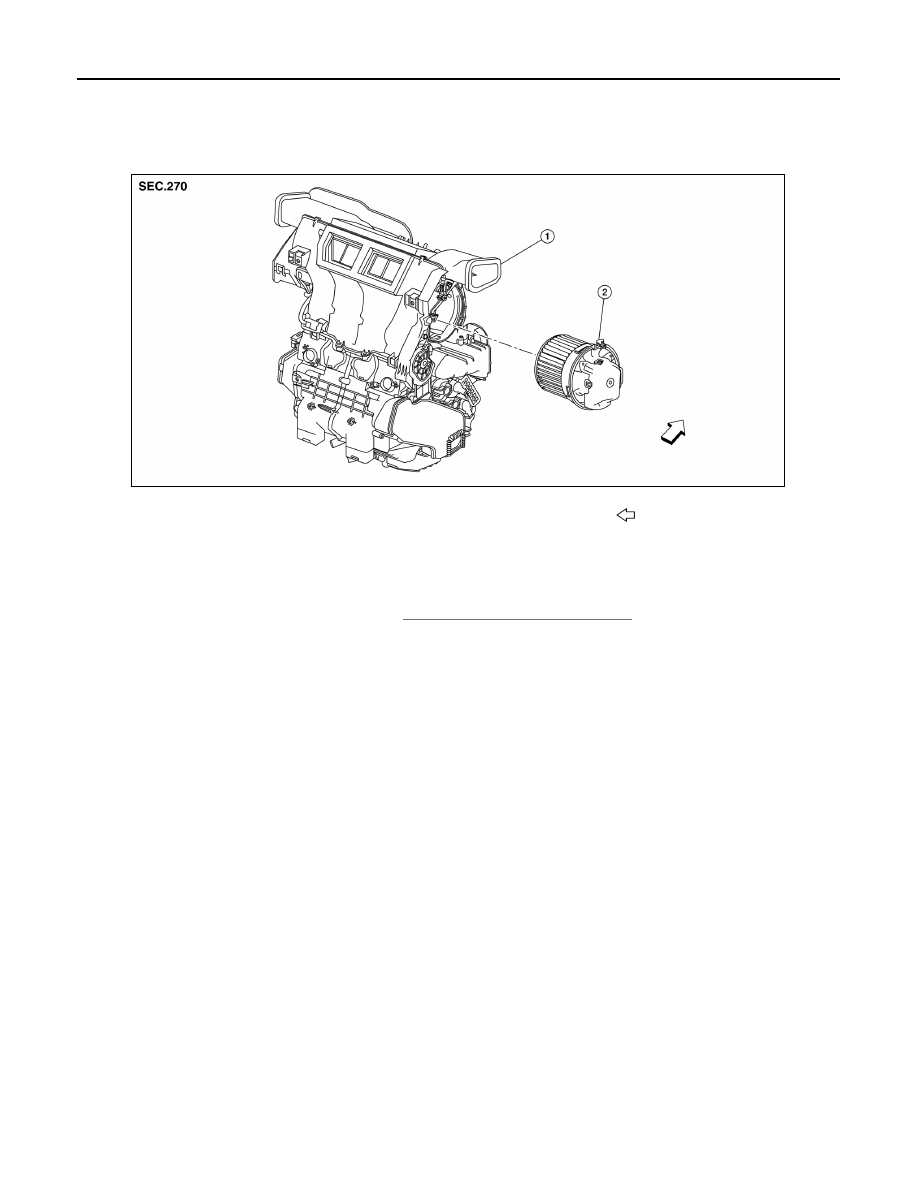

Exploded View

INFOID:0000000009758114

Removal and Installation

INFOID:0000000009758115

REMOVAL

1. Remove the glove box assembly. Refer to

IP-22, "Removal and Installation"

.

2. Disconnect the harness connector from the blower motor.
3. Remove the blower motor screws.
4. Remove the blower motor.

INSTALLATION

Installation is in the reverse order of removal.

1.

Heating and cooling unit assembly

2.

Blower motor

Front

ALIIA0673ZZ
