TM-260

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

KEY INTERLOCK CABLE

KEY INTERLOCK CABLE

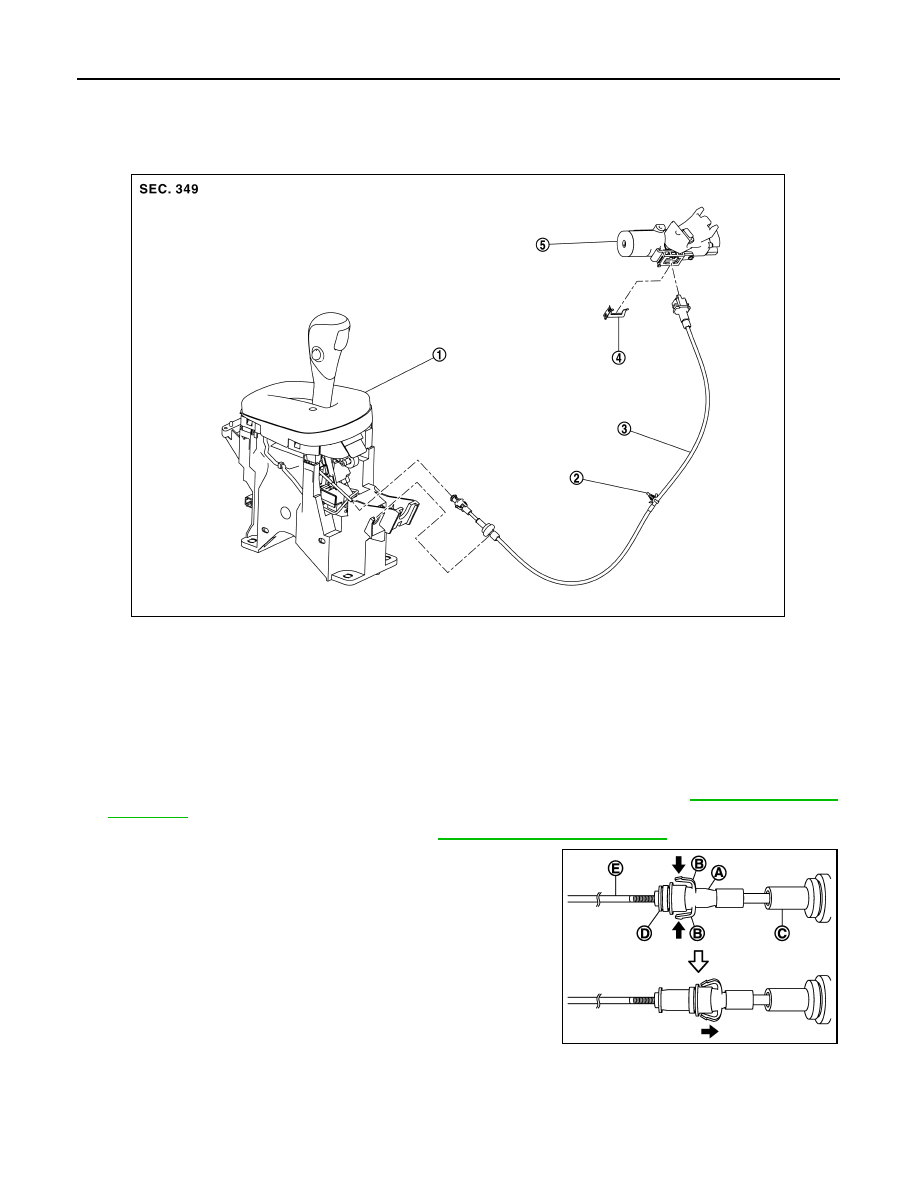

Exploded View

INFOID:0000000009759505

Removal and Installation

INFOID:0000000009759506

REMOVAL

CAUTION:

Always apply the parking brake before performing removal and installation.
1. Remove the steering column cover, and the instrument lower panel LH. Refer to

IP-21, "Removal and

Installation"

.

2. Remove the center console assembly. Refer to

IP-17, "Removal and Installation"

.

3. Press the pawls (B) of the key interlock cable slider (A) while

sliding it in the direction of the casing cap (C), and separate the

adjusting holder (D) and slider.

4. Remove the key interlock cable from the shift selector.

1.

Shift selector assembly

2.

Clip

3.

Key interlock cable

4.

Clip

5.

Key cylinder

JSDIA3613ZZ

(E)

:Key interlock rod

JSDIA1797ZZ

KEY INTERLOCK CABLE

TM-261

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

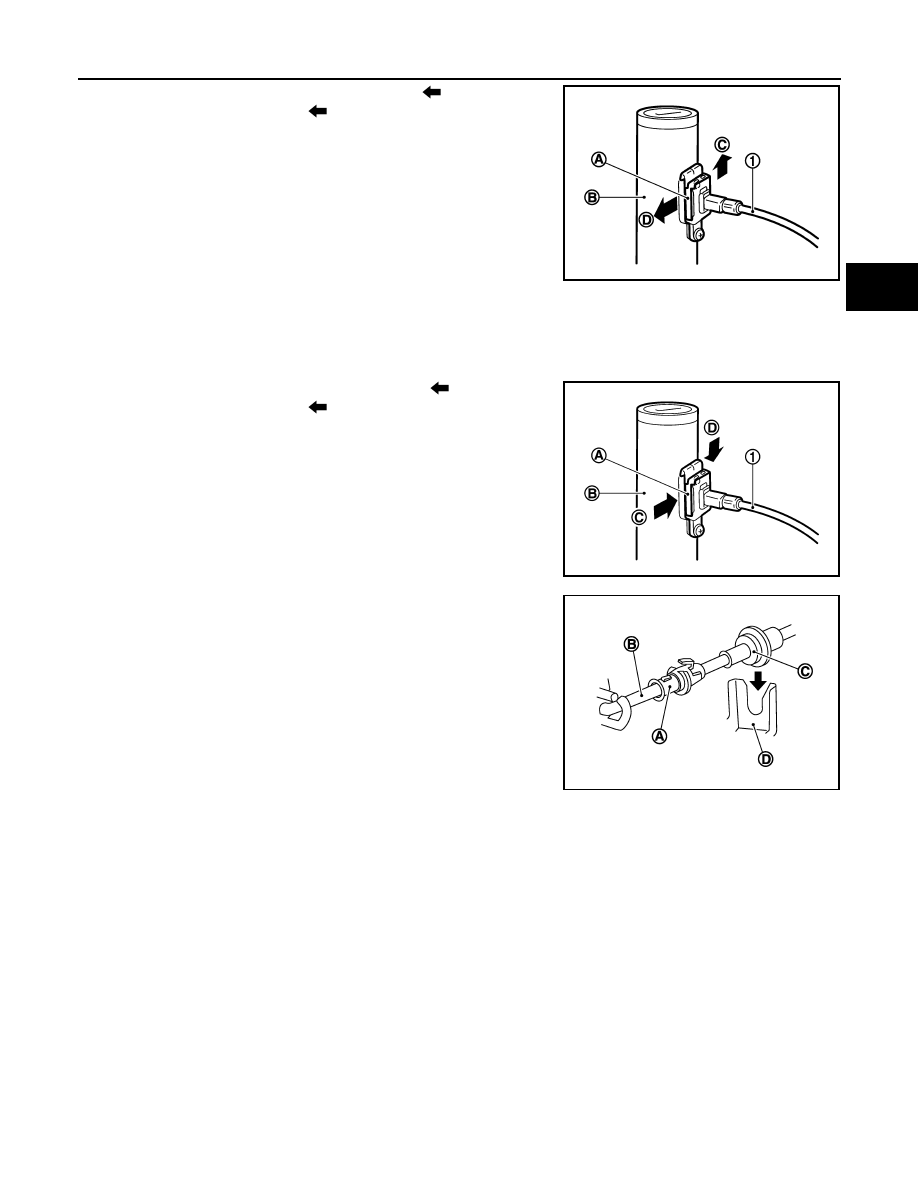

5. Lift the clip (A) in the direction of the arrow (

[C]) and remove

in the direction of the arrow (

[D]).

6. Remove the key interlock cable from the key cylinder.
7. Disengage the clip and disconnect the key interlock cable from

the vehicle.

INSTALLATION

1. Move the shift selector to P position.
2. Turn the ignition switch to ACC or ON position.
3. Install the holder of key interlock cable to key cylinder.
4. Install the clip (A) in the direction of the arrow (

[C]) and push it

in the direction of the arrow (

[D]).

5. Turn the ignition switch to LOCK position.

6. Install the adjusting holder (A) onto the key interlock rod (B),

then install the casing cap (C) onto the shift selector cable

bracket (D).

CAUTION:

• When installing the key interlock cable, never bend or

twist the cable forcefully.

• After connecting the key interlock cable to the shift selec-

tor cable bracket, be sure to check that the casing cap is

completely fastened to the cable bracket. If the casing cap

is easily displaced, replace the key interlock cable.

(1)

: Key interlock cable

(B)

: Key cylinder

JSDIA1798ZZ

(1)

: Key interlock cable

(B)

: Key cylinder

JSDIA3589ZZ

JSDIA1799ZZ

TM-262

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

KEY INTERLOCK CABLE

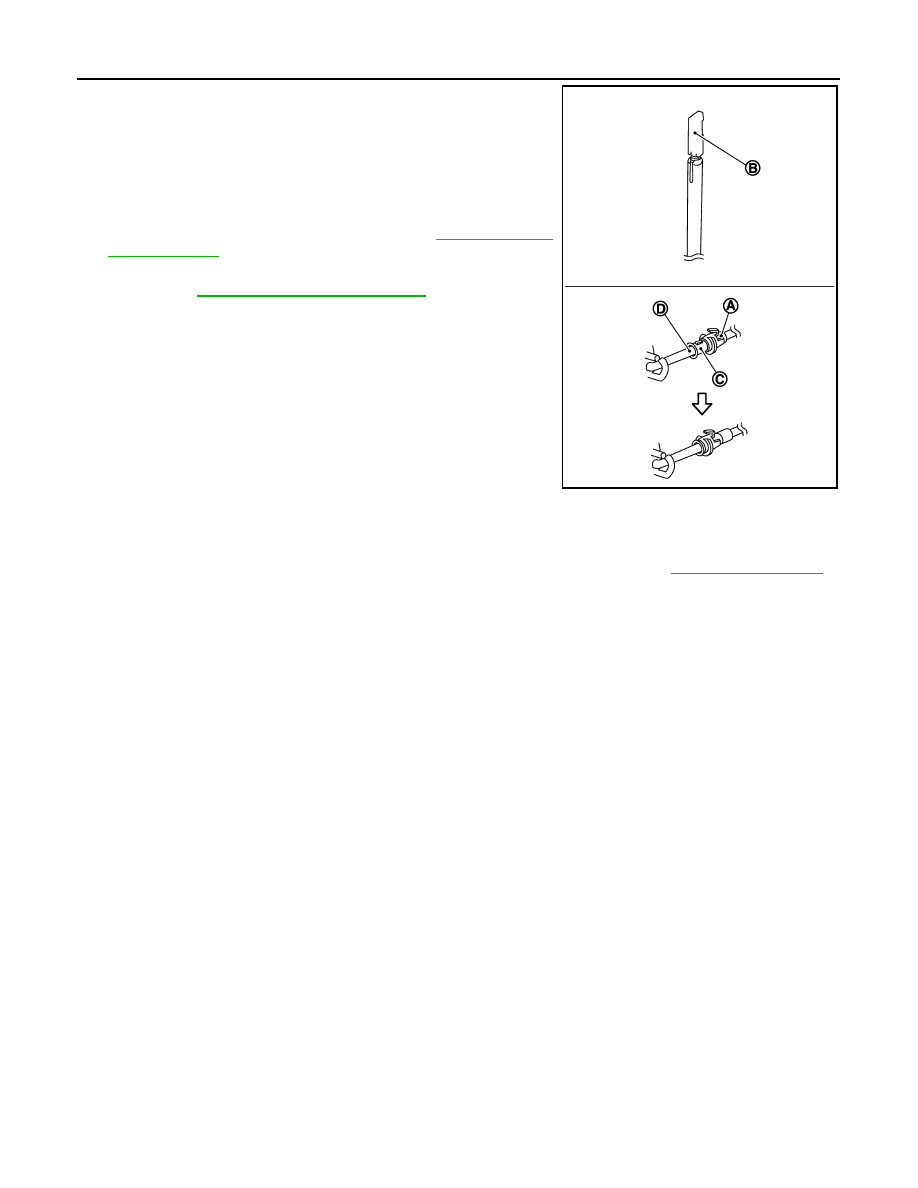

7. While pressing the detent rod (B) down, slide the key interlock

cable slider (A) toward the key interlock rod (D) side and install

the adjusting holder (C) and key interlock rod.

CAUTION:

• Do not squeeze the pawls on the key interlock cable slider

when holding the slider.

• Do not apply force in a perpendicular direction to the key

interlock rod when sliding the slider.

8. Install the center console assembly. Refer to

IP-17, "Removal

and Installation"

.

9. Install the steering column cover, and the instrument lower panel

LH. Refer to

IP-21, "Removal and Installation"

.

Inspection

INFOID:0000000009759507

INSPECTION AFTER INSTALLATION

• Check the CVT position. If a malfunction is found, adjust the CVT position. Refer to

TM-150, "Adjustment"

.

• The key can be removed only when the shift selector is in the “P” position. (With key interlock)

• It must not be possible to turn the ignition switch to LOCK when the selector lever is not in the “P” position.

(With key interlock)

JSDIA1800ZZ

TCM

TM-263

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

TCM

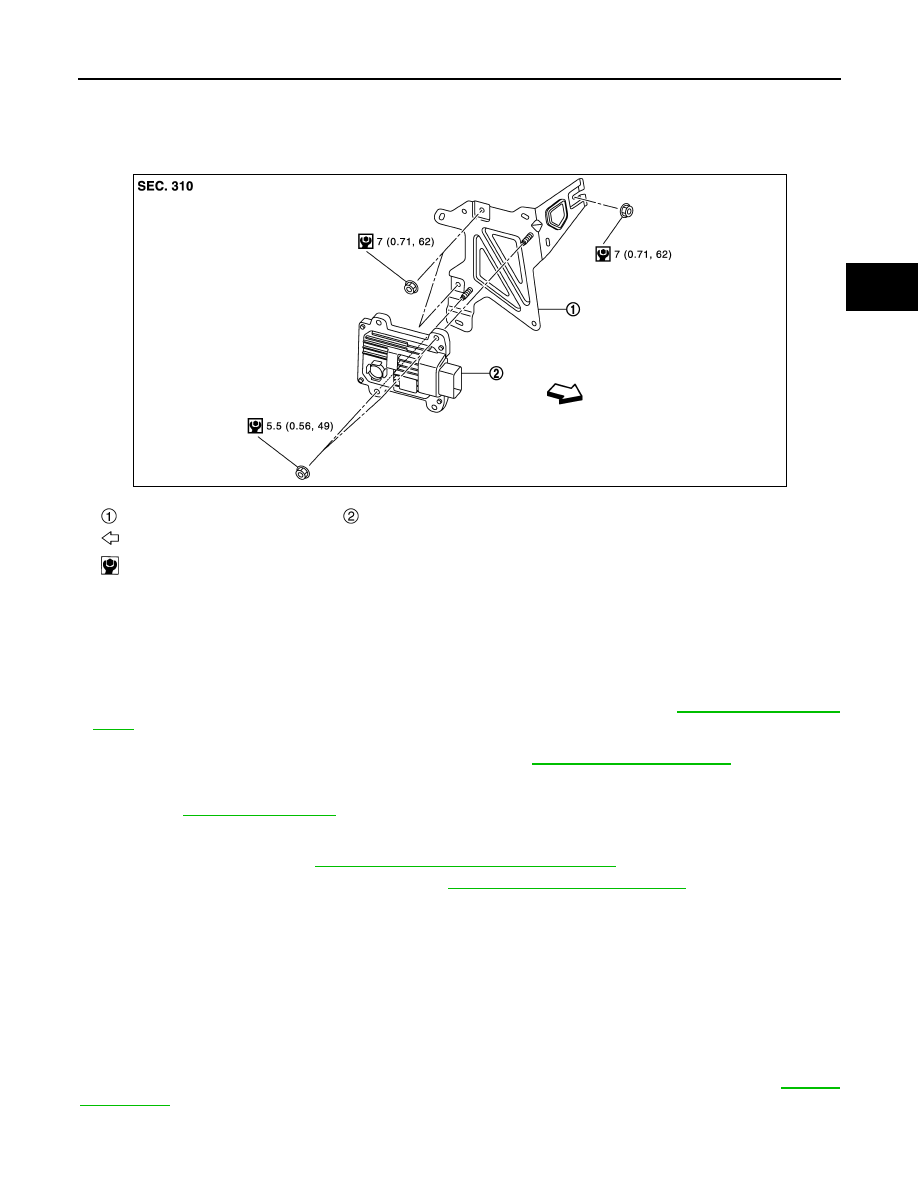

Exploded View

INFOID:0000000009759508

Removal and Installation

INFOID:0000000009759509

CAUTION:

• When replacing TCM, note the “CVTF DETERIORATION DATE” value displayed on CONSULT “CON-

FORM CVTF DETERIORTN” in MAINTENANCE BOOKLET, before start the operation.

• Do not impact the TCM when removing or installing TCM.

• Before replacing TCM, perform "ADDITIONAL SERVICE WHEN TCM". Refer to

TM-142, "Work Proce-

dure"

.

• Before replacing TCM and transaxle assembly as a set, perform "ADDITIONAL SERVICE WHEN

REPLACING TCM AND TRANSAXLE ASSEMBLY". Refer to

TM-144, "Work Procedure"

.

NOTE:

When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then replace

TCM. Refer to

TM-142, "Description"

.

REMOVAL

1. Remove the battery. Refer to

PG-50, "Removal and Installation (Battery)"

.

2. Remove the air cleaner case assembly. Refer to

EM-25, "Removal and Installation"

.

3. Disconnect the TCM harness connector.
4. Remove the TCM.
5. Remove the bracket.

INSTALLATION

Installation is the reverse order of removal.

Adjustment

INFOID:0000000009759510

ADJUSTMENT AFTER INSTALLATION

When replaced the TCM, perform “ADDITIONAL SERVICE WHEN REPLACING TCM”. Refer to

TM-142,

"Description"

.

Bracket

TCM

: Vehicle front

: N·m (kg-m, in-lb)

JSDIA1776GB
