STR-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

STARTING SYSTEM (WITH INTELLIGENT KEY)

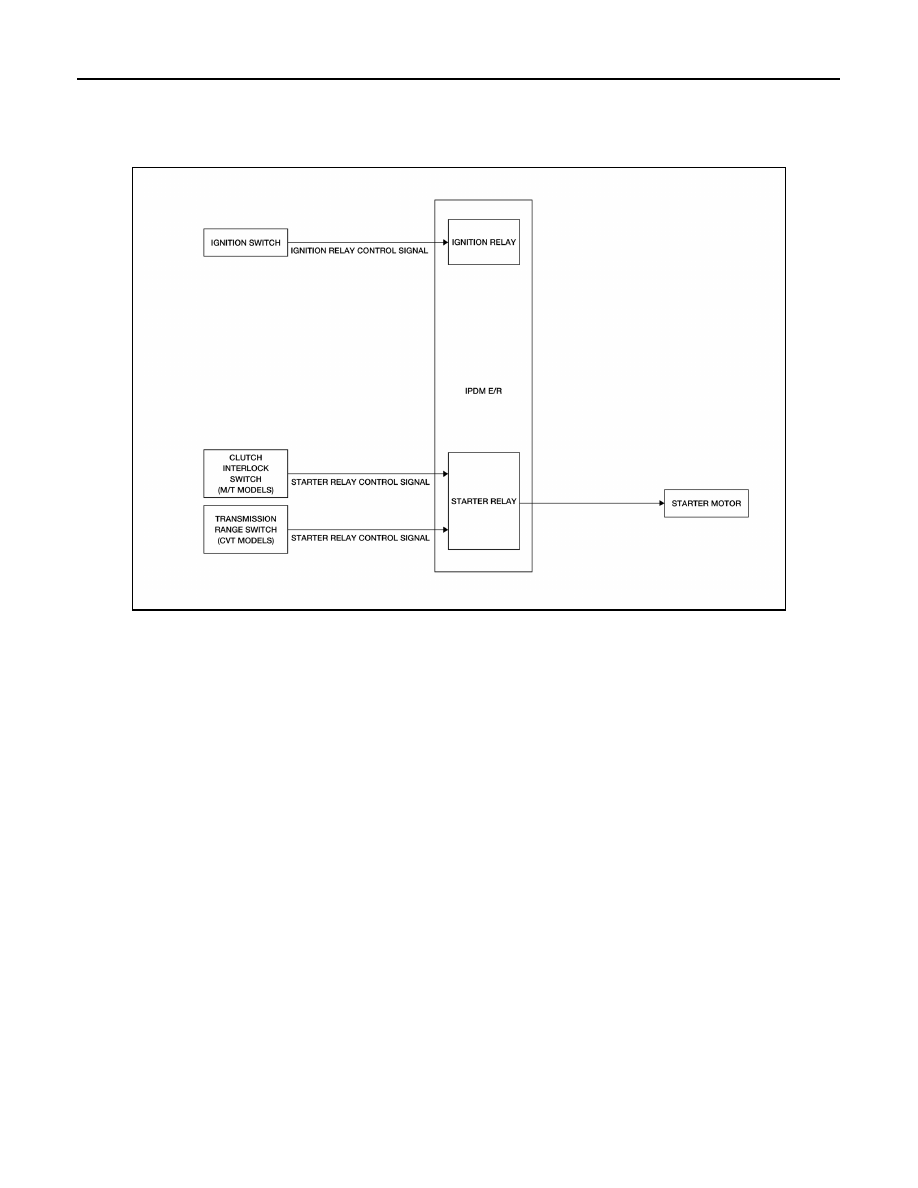

STARTING SYSTEM (WITH INTELLIGENT KEY) : System Diagram

INFOID:0000000009759155

STARTING SYSTEM (WITH INTELLIGENT KEY) : System Description

INFOID:0000000009759156

The starter motor plunger closes and provides a closed circuit between the battery and the starter motor. The

starter motor is grounded to the cylinder block. With power and ground supplied, the starter motor operates.

STARTING SYSTEM (WITHOUT INTELLIGENT KEY)

AWBIA1125GB

SYSTEM

STR-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

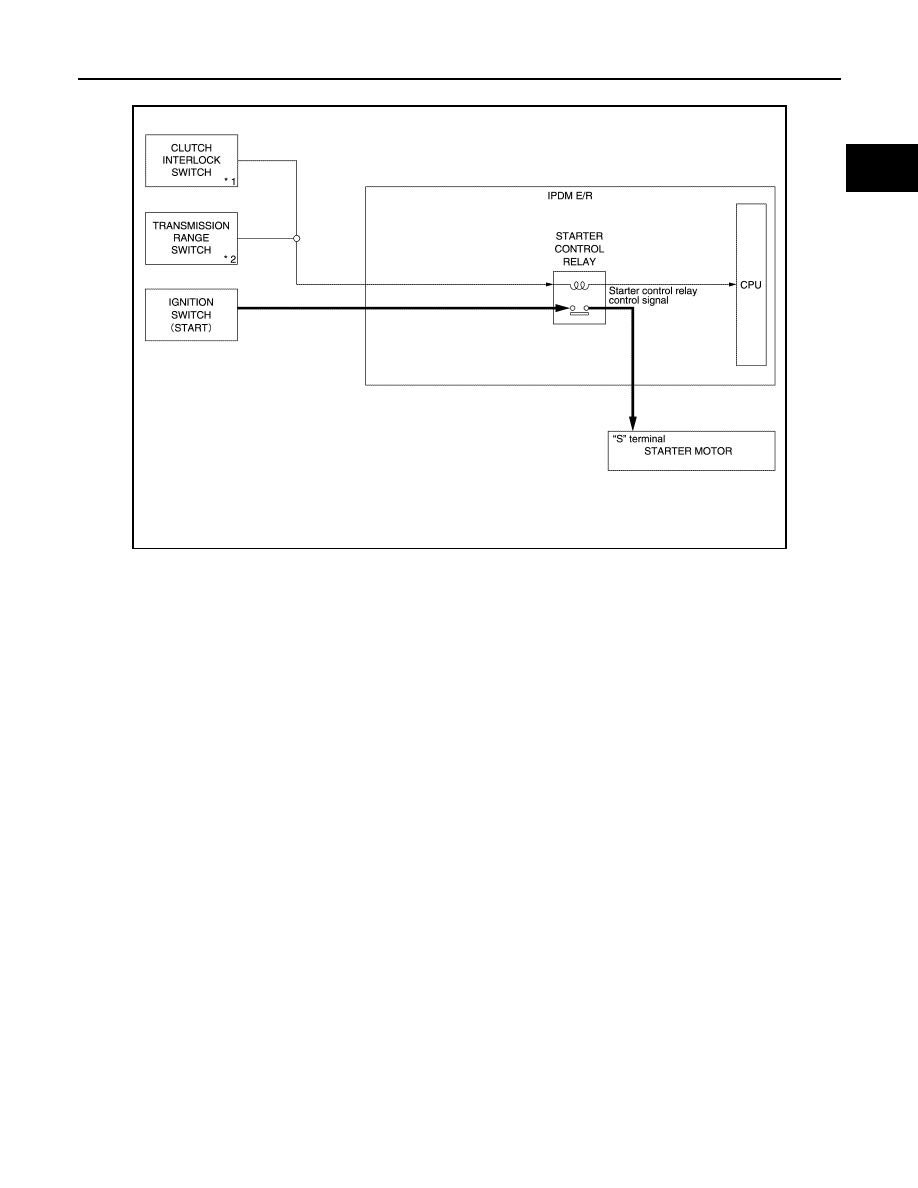

STARTING SYSTEM (WITHOUT INTELLIGENT KEY) : System Diagram

INFOID:0000000009759157

*

1

: M/T models

*

2

: CVT models

STARTING SYSTEM (WITHOUT INTELLIGENT KEY) : System Description

INFOID:0000000009759158

CVT MODELS

• When the selector lever is in the P or N position, power is supplied to starter control relay by the transmis-

sion range switch. The IPDM E/R (CPU) detects selector lever P/N condition by the inputted signal.

• When engine cranking condition is satisfied, then battery power is supplied to starter motor (“S” terminal)

through starter control relay.

M/T MODELS

When the clutch pedal is depressed, battery power is supplied to starter motor (“S” terminal).

JMBIA3039GB

STR-10

< WIRING DIAGRAM >

STARTING SYSTEM (WITH INTELLIGENT KEY)

WIRING DIAGRAM

STARTING SYSTEM (WITH INTELLIGENT KEY)

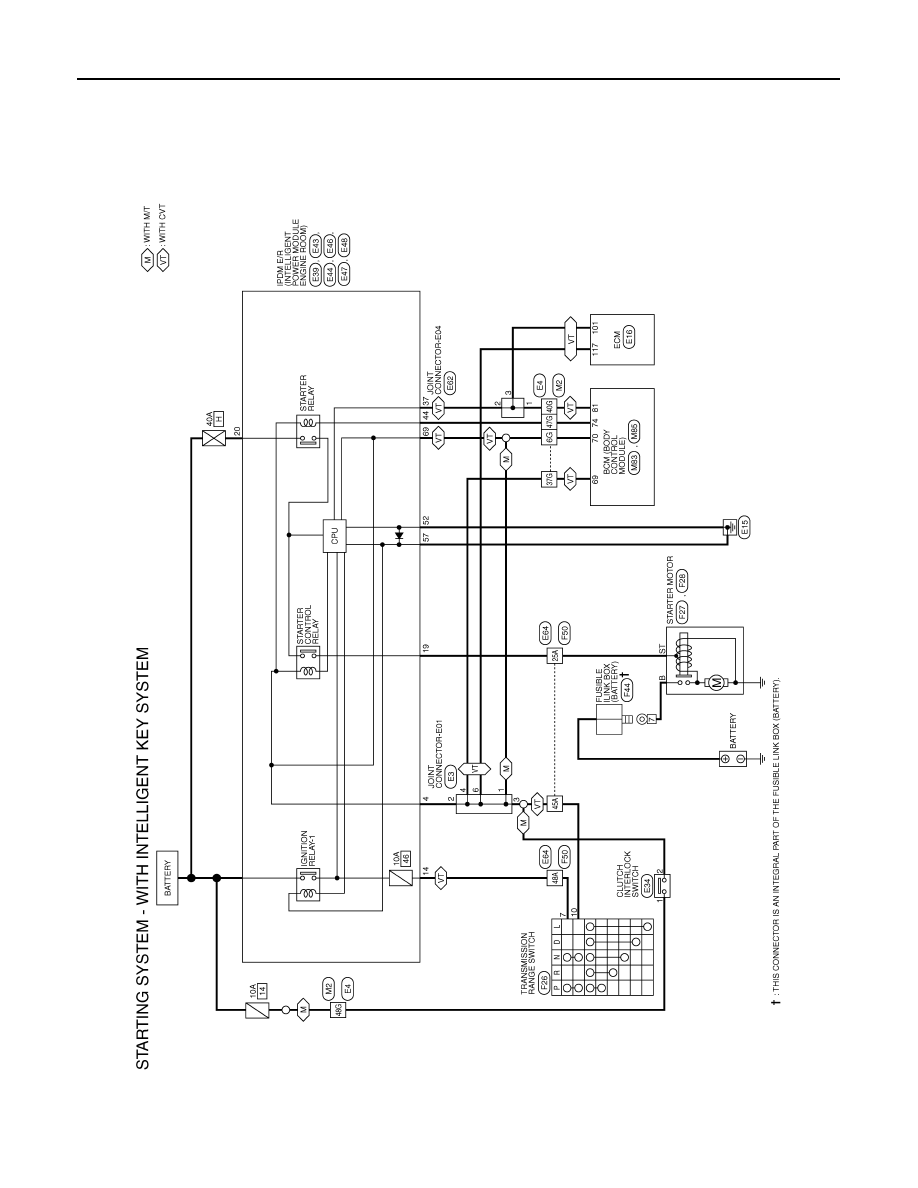

Wiring Diagram

INFOID:0000000009759159

ABBWA1250GB

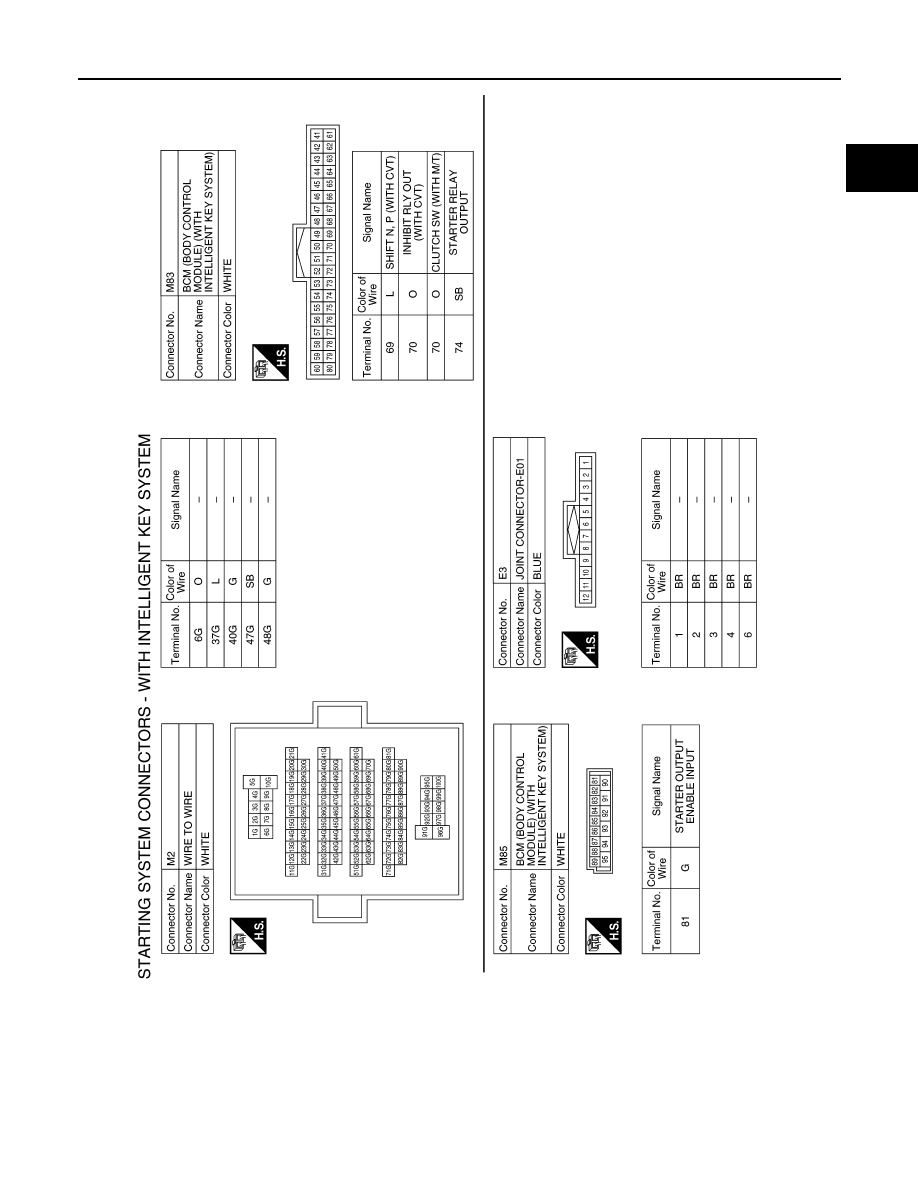

STARTING SYSTEM (WITH INTELLIGENT KEY)

STR-11

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

ABBIA2170GB
