Nissan Sentra. Manual - part 836

STR-12

< WIRING DIAGRAM >

STARTING SYSTEM (WITH INTELLIGENT KEY)

ABBIA2171GB

STARTING SYSTEM (WITH INTELLIGENT KEY)

STR-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

ABBIA2172GB

STR-14

< WIRING DIAGRAM >

STARTING SYSTEM (WITH INTELLIGENT KEY)

ABBIA2173GB

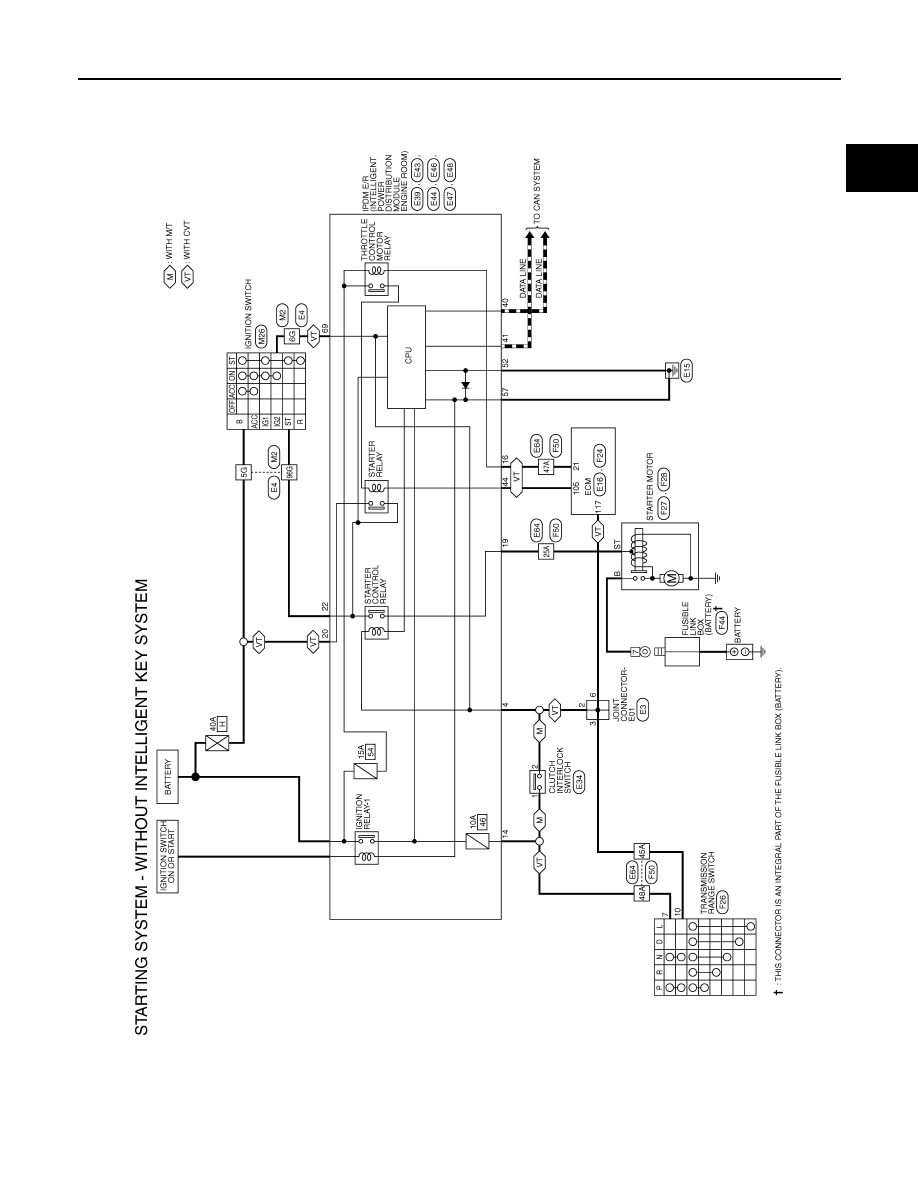

STARTING SYSTEM (WITHOUT INTELLIGENT KEY)

STR-15

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

STARTING SYSTEM (WITHOUT INTELLIGENT KEY)

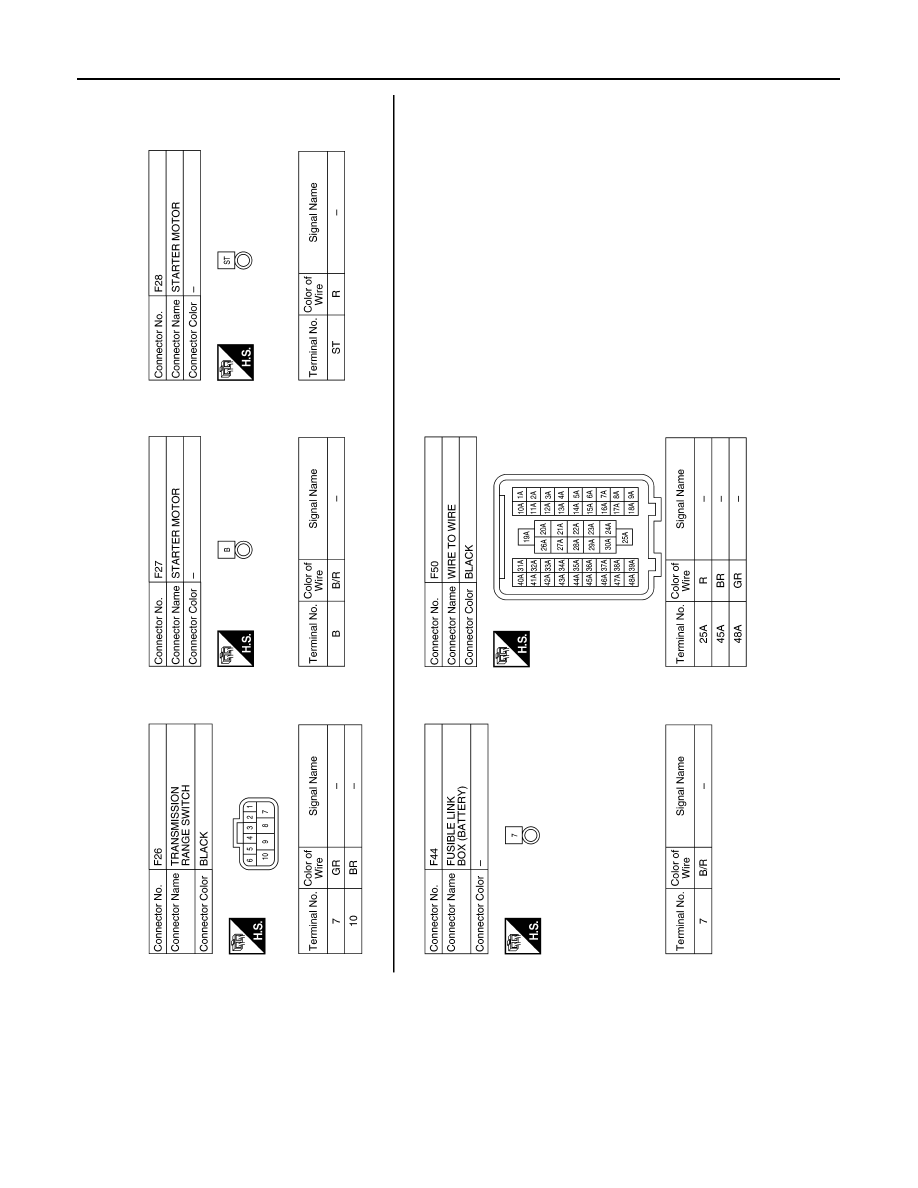

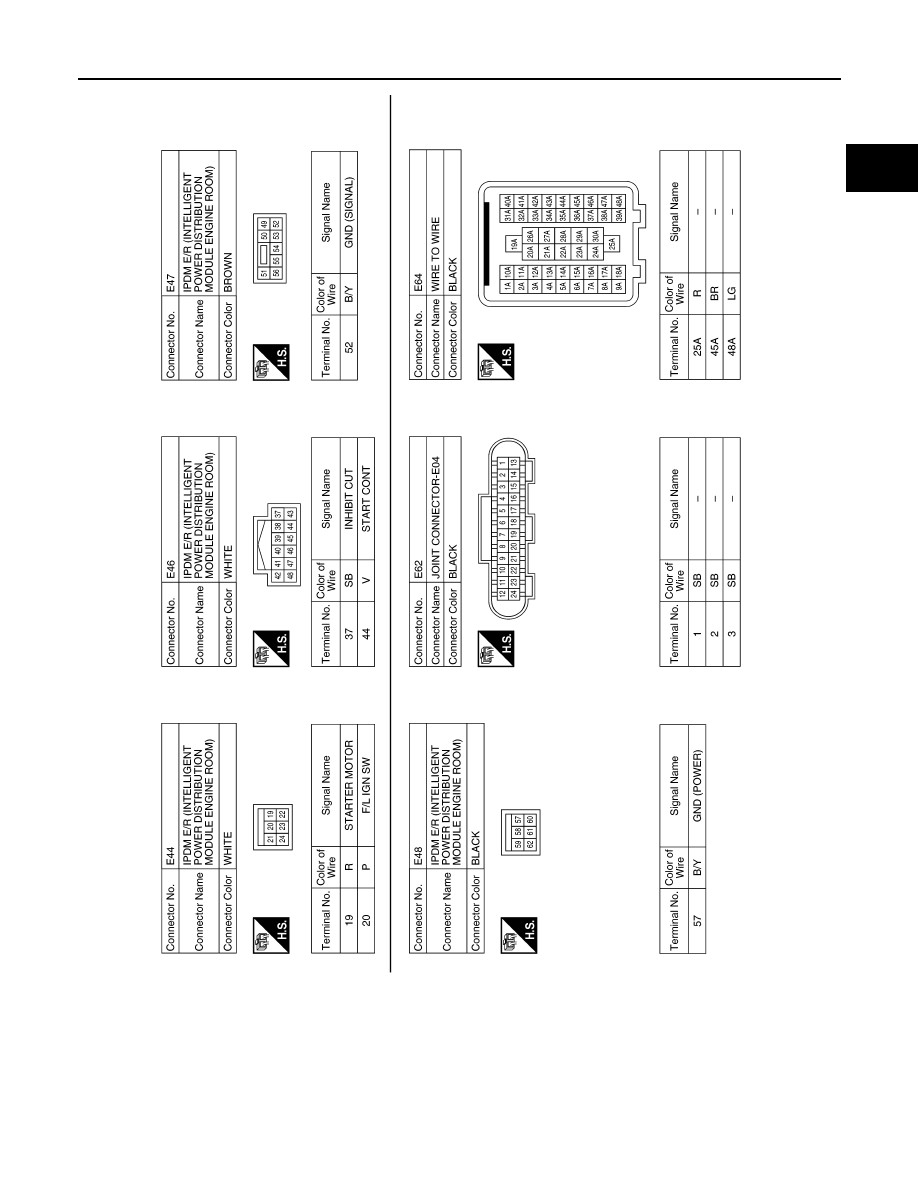

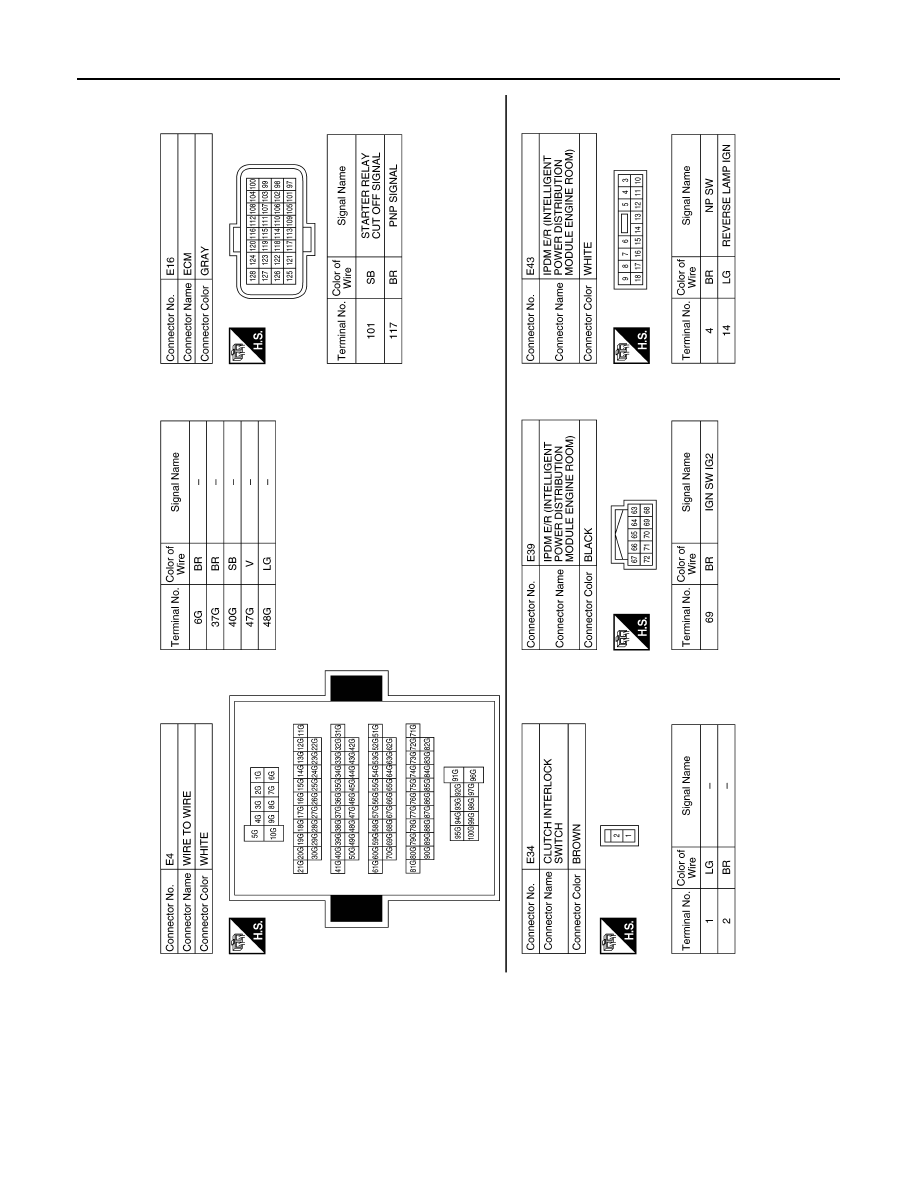

Wiring Diagram

INFOID:0000000009759160

ABBWA1249GB
