STR-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

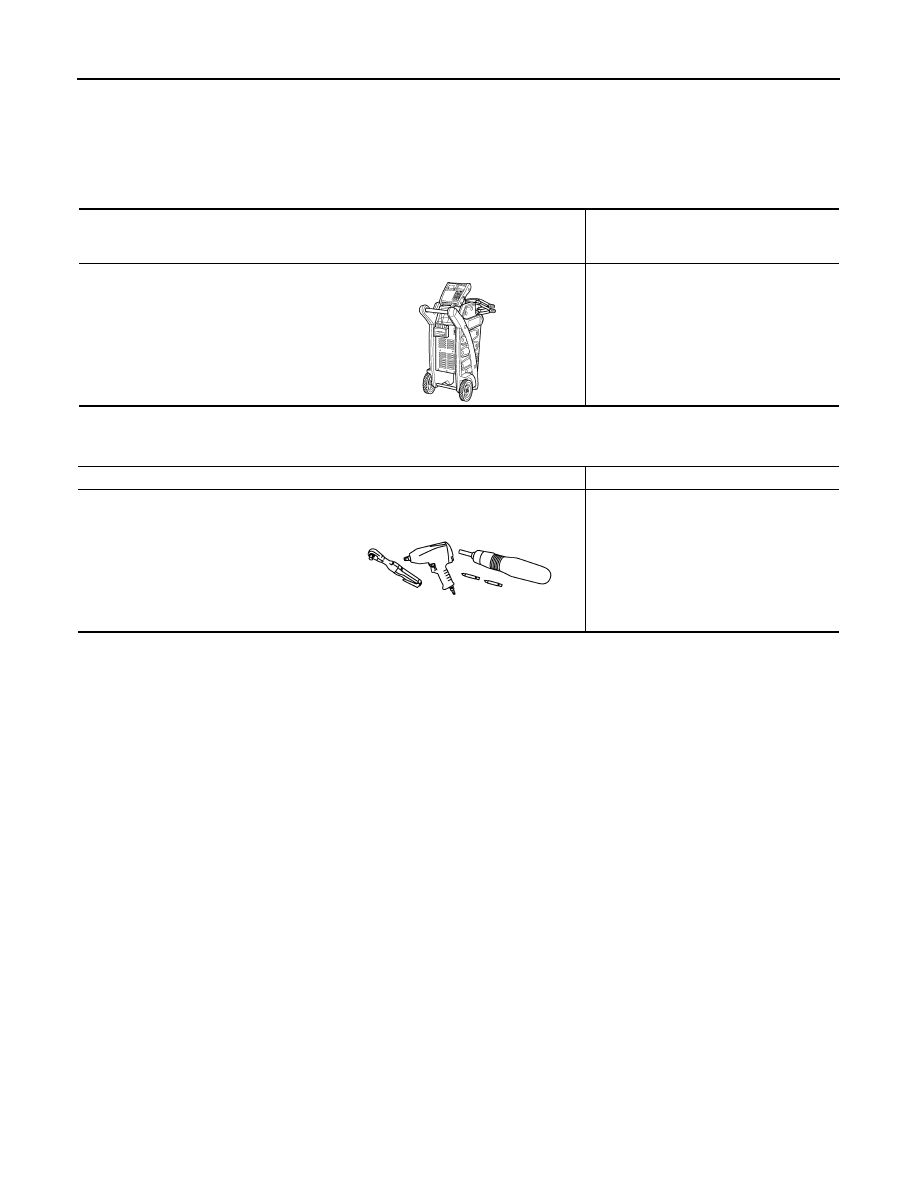

Special Service Tool

INFOID:0000000009759149

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000009759150

Tool number
(TechMate No.)
Tool name

Description

—

(—) Model GR8-1200 NI
Multitasking battery and electrical diag-
nostic station

Tests batteries, starting and charging
systems and charges batteries.
For operating instructions, refer to diag-
nostic station instruction manual.

AWIIA1239ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

COMPONENT PARTS

STR-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SYSTEM DESCRIPTION

COMPONENT PARTS

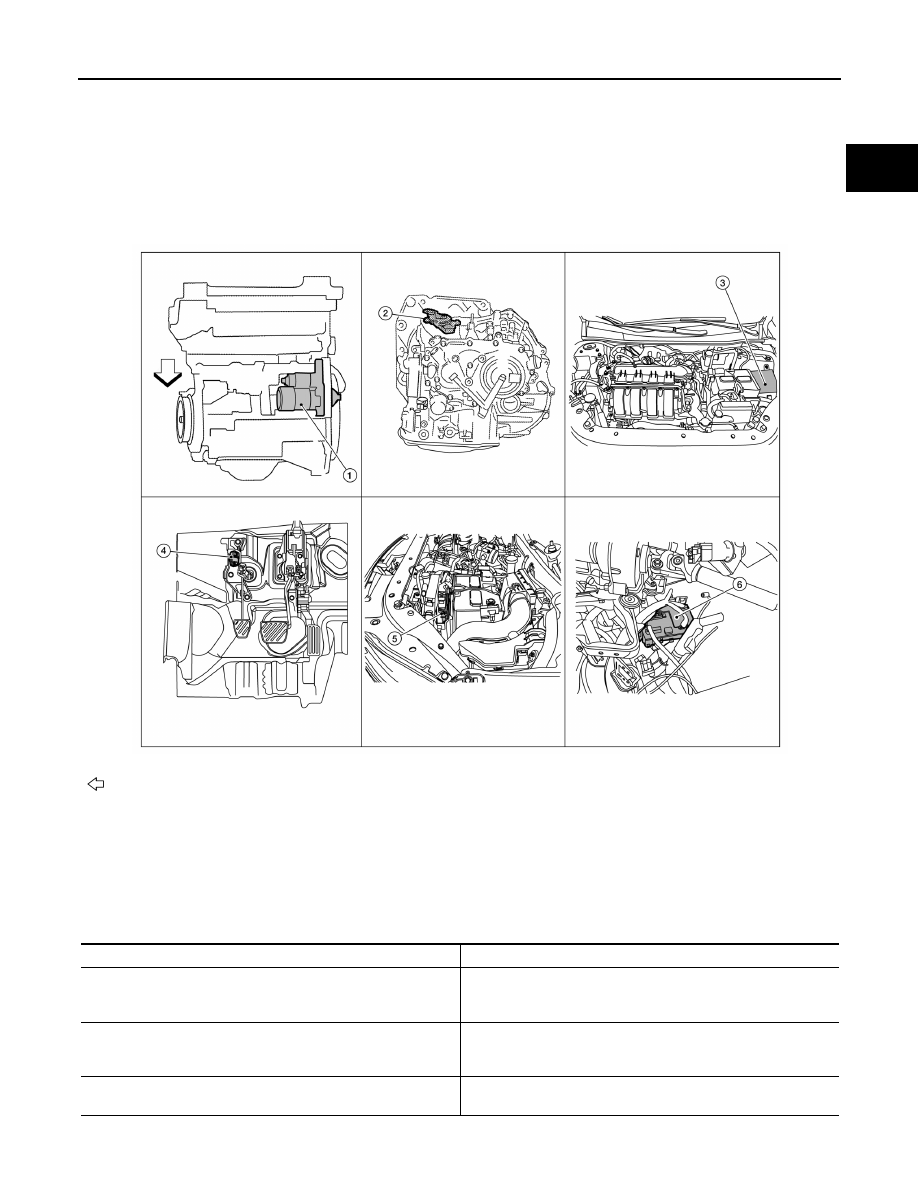

STARTING SYSTEM (WITH INTELLIGENT KEY)
STARTING SYSTEM (WITH INTELLIGENT KEY) : Component Parts Location

INFOID:0000000009759151

STARTING SYSTEM (WITH INTELLIGENT KEY) : Component Description

INFOID:0000000009759152

Vehicle front

1.

Starter motor

2.

Transmission range switch (CVT Models) 3.

IPDM E/R (view with air inlet duct
removed)

4.

Clutch interlock switch (M/T Models)

5.

ECM

6.

BCM (view under instrument panel,
left side of vehicle)

AWBIA1407ZZ

                                         Component part

                                             Description

Starter motor

The starter motor plunger closes and the motor is supplied with
battery power, which in turn cranks the engine, when the S termi-
nal is supplied with electric power.

Transmission range switch (CVT Models)

Transmission range switch supplies power to the starter relay and
starter control relay inside the IPDM E/R when the shift selector is
placed in the P or N position.

IPDM E/R

CPU inside IPDM E/R operates the starter relay when the ignition
switch is in the start position.

STR-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

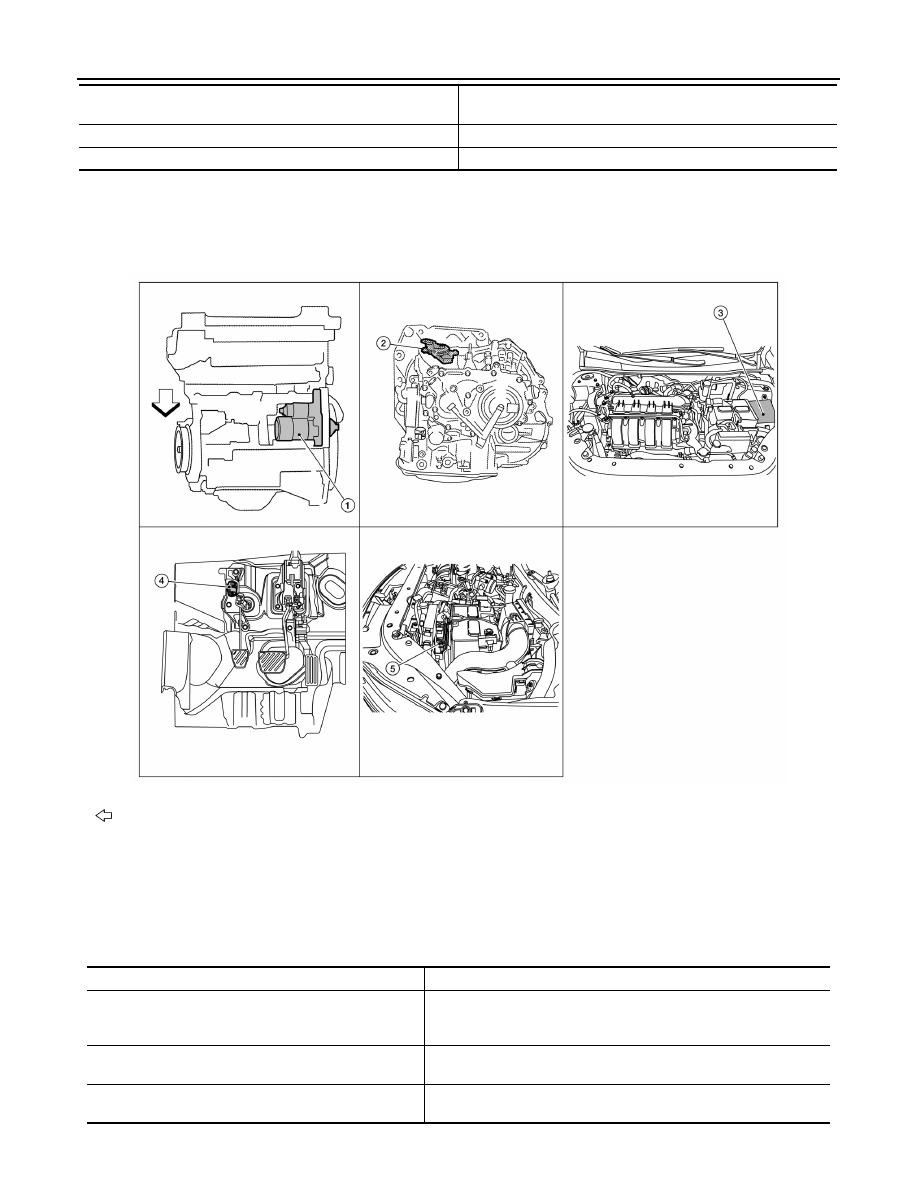

STARTING SYSTEM (WITHOUT INTELLIGENT KEY)
STARTING SYSTEM (WITHOUT INTELLIGENT KEY) : Component Parts Location

INFOID:0000000009759153

STARTING SYSTEM (WITHOUT INTELLIGENT KEY) : Component Description

INFOID:0000000009759154

Clutch interlock switch (M/T Models)

Clutch interlock switch supplies power to the coil side of the starter
when the clutch pedal is depressed to crank the engine.

ECM

ECM controls the starter control relay inside the IPDM E/R.

BCM

BCM controls the starter relay inside IPDM E/R.

Vehicle front

1.

Starter motor

2.

Transmission range switch (CVT Models) 3.

IPDM E/R (view with air inlet duct
removed)

4.

Clutch interlock switch (M/T Models) 5.

ECM

AWBIA1497ZZ

                                         Component part

                                             Description

Starter motor

The starter motor plunger closes and the motor is supplied with battery
power, which in turn cranks the engine, when the S terminal is supplied
with electric power.

Transmission range switch

Supplies power to the starter relay and starter control relay (inside
IPDM E/R) when the selector lever is shifted into the P or N position.

IPDM E/R

CPU inside IPDM E/R operates the starter relay when the ignition
switch is in the start position.

COMPONENT PARTS

STR-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

Clutch interlock switch (M/T Models)

Clutch interlock switch supplies power to the coil side of the starter
when the clutch pedal is depressed to crank the engine.

ECM

ECM controls the starter relay inside the IPDM E/R.
