17. Remove floor trim.

INSTALLATION

Installation is in the reverse order of removal.

INT-38

< REMOVAL AND INSTALLATION >

HEADLINING

HEADLINING

Exploded View

INFOID:0000000009756921

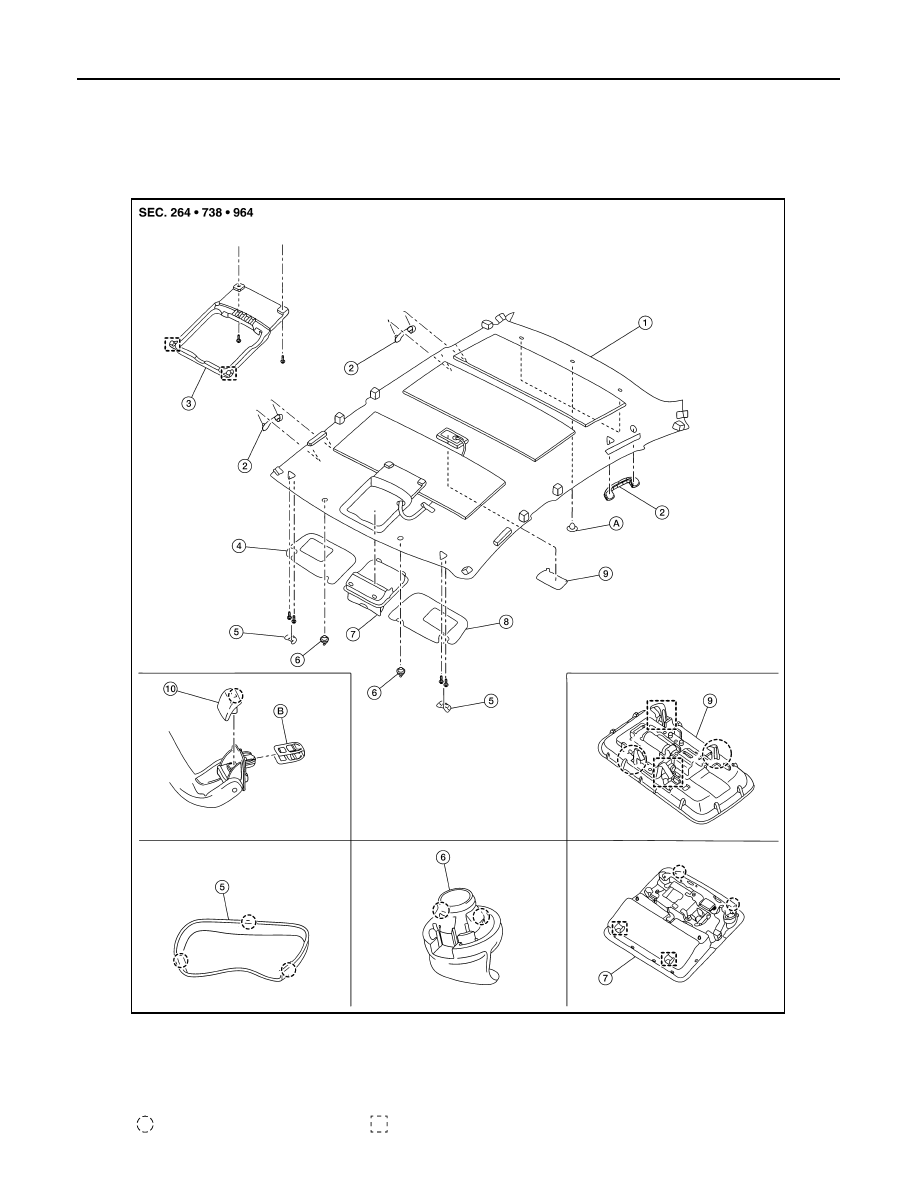

STANDARD ROOF

1.

Headlining

2.

Assist grip

3. Map lamp bracket

4.

Sun visor (RH)

5.

Sun visor cover

6. Sun visor holder

7.

Map lamp

8.

Sun visor (LH)

9. Interior room lamp

10. Assist grip cap

A.

Headlining clip

B. Metal clip

Pawl

Metal clip

ALJIA1132ZZ

HEADLINING

INT-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

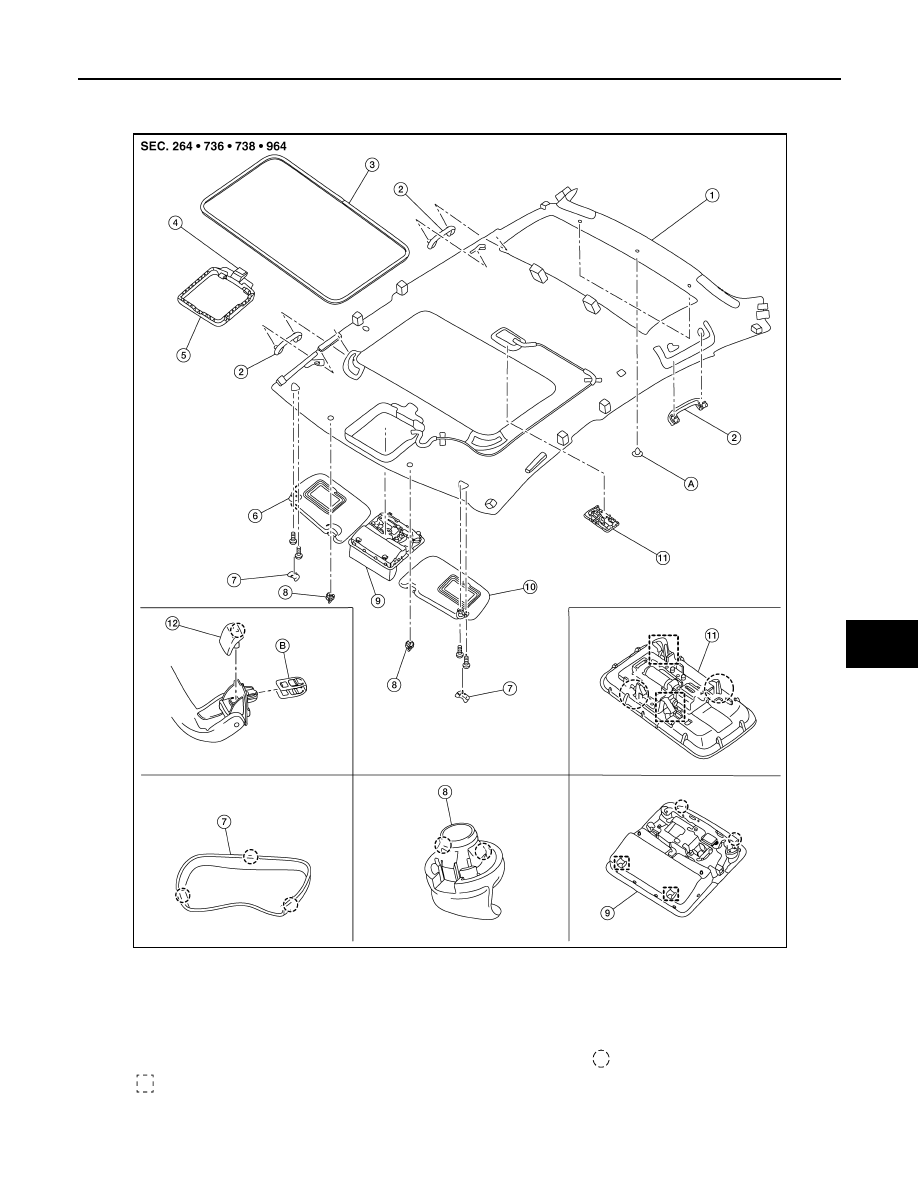

SUNROOF

1.

Headlining

2.

Assist grip

3.

Sunroof welt

4.

Dual lock fastener

5.

Map lamp bracket

6.

Sun visor (RH)

7.

Sun visor cover

8.

Sun visor holder

9.

Map lamp

10. Sun visor (LH)

11. Interior room lamp

12. Assist grip cap

A.

Headlining clip

B.

Metal clip

Pawl

Metal clip

ALJIA1133ZZ

INT-40

< REMOVAL AND INSTALLATION >

HEADLINING

Removal and Installation

INFOID:0000000009756922

REMOVAL

1. Remove front pillar finishers (LH/RH). Refer to

INT-24, "FRONT PILLAR FINISHER : Removal and Instal-

lation"

.

2. Remove front seat assemblies. Refer to the following.

• Refer  to

SE-18, "DRIVER SIDE : Removal and Installation - Seat Assembly"

 (Driver Seat).

• Refer  to

SE-20, "PASSENGER SIDE : Removal and Installation - Seat Assembly"

 (Passenger Seat).

3. Remove center pillar upper finishers (LH/RH). Refer to

INT-28, "CENTER PILLAR UPPER FINISHER :

Removal and Installation"

.

4. Remove rear seat back. Refer to

SE-23, "Removal and Installation - 60:40 Split Seatback"

.

5. Remove rear pillar finishers (LH/RH). Refer to

INT-29, "REAR PILLAR FINISHER : Removal and Installa-

tion"

.

6. Remove center console assembly. Refer to

IP-17, "Removal and Installation"

.

7. Remove shift selector assembly. Refer to

TM-253, "Removal and Installation"

.

8. Remove all assist grips.

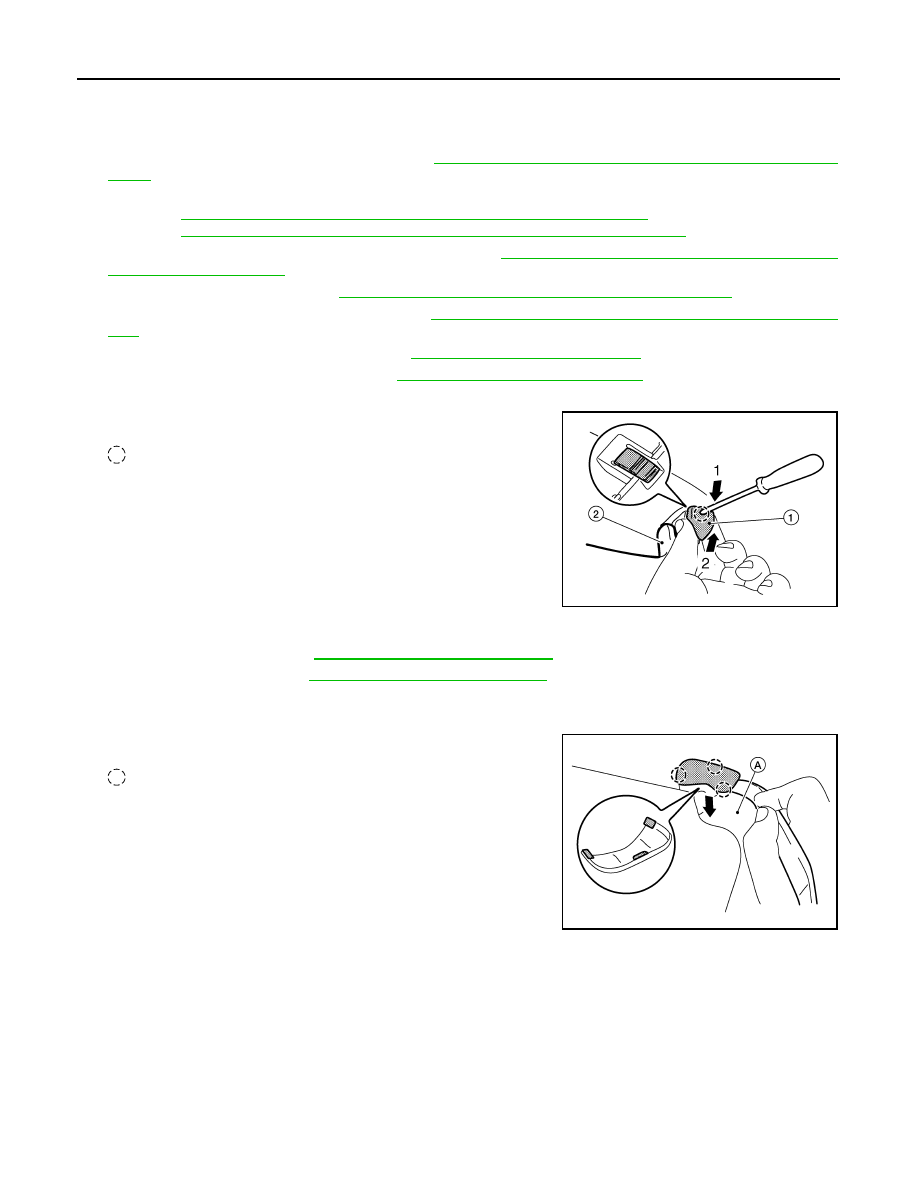

a. Release pawl of assist grip cap (1) using a suitable tool (A).

Slide assist grip cap forward and remove as shown.

: Pawl

b. Slide assist grip (2) forward and remove.

c.

Remove metal clips from body panel.

9. Remove room lamp. Refer to

INL-55, "Removal and Installation"

.

10. Remove map lamp. Refer to

INL-52, "Removal and Installation"

.

11. Remove sunroof welt (if equipped).
12. Remove sun visor.
a. Release sun visor cover pawls using a suitable tool (A), then

remove sun visor cover.

: Pawl

b. Remove screws and the sun visors (LH/RH).
13. Remove all sun visor holders.

ALJIA1134ZZ

ALJIA1135ZZ
