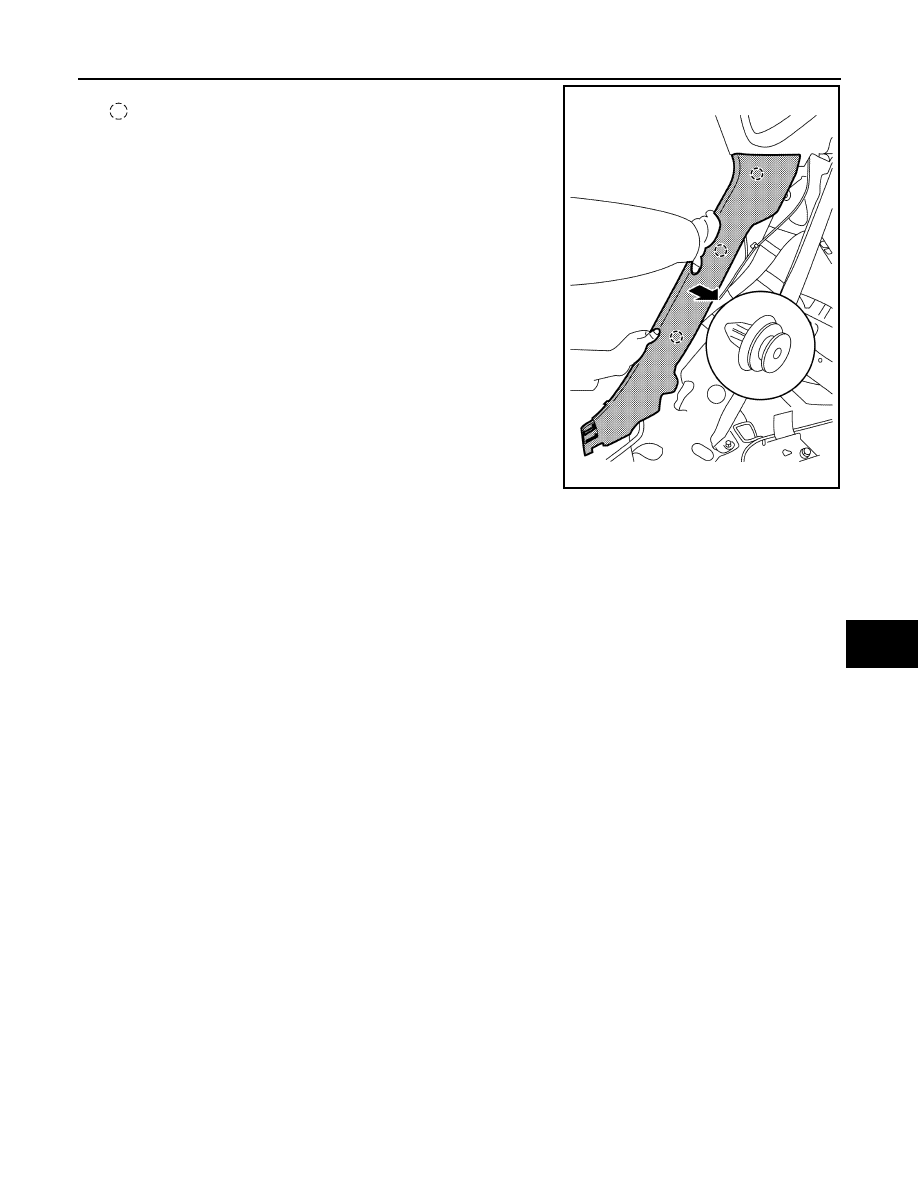

d. Release center pillar upper finisher lower clip using a suitable

tool (A) as shown and remove.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing, check that clips are accurately aligned with the holes on body panel, then press in.

REAR PILLAR FINISHER
REAR PILLAR FINISHER : Removal and Installation

INFOID:0000000009756914

REMOVAL

1. Remove rear pillar lower finisher. Refer to

INT-30, "REAR PILLAR FINISHER : Removal and Installation -

Rear Pillar Lower Finisher"

.

2. Remove rear pillar finisher.

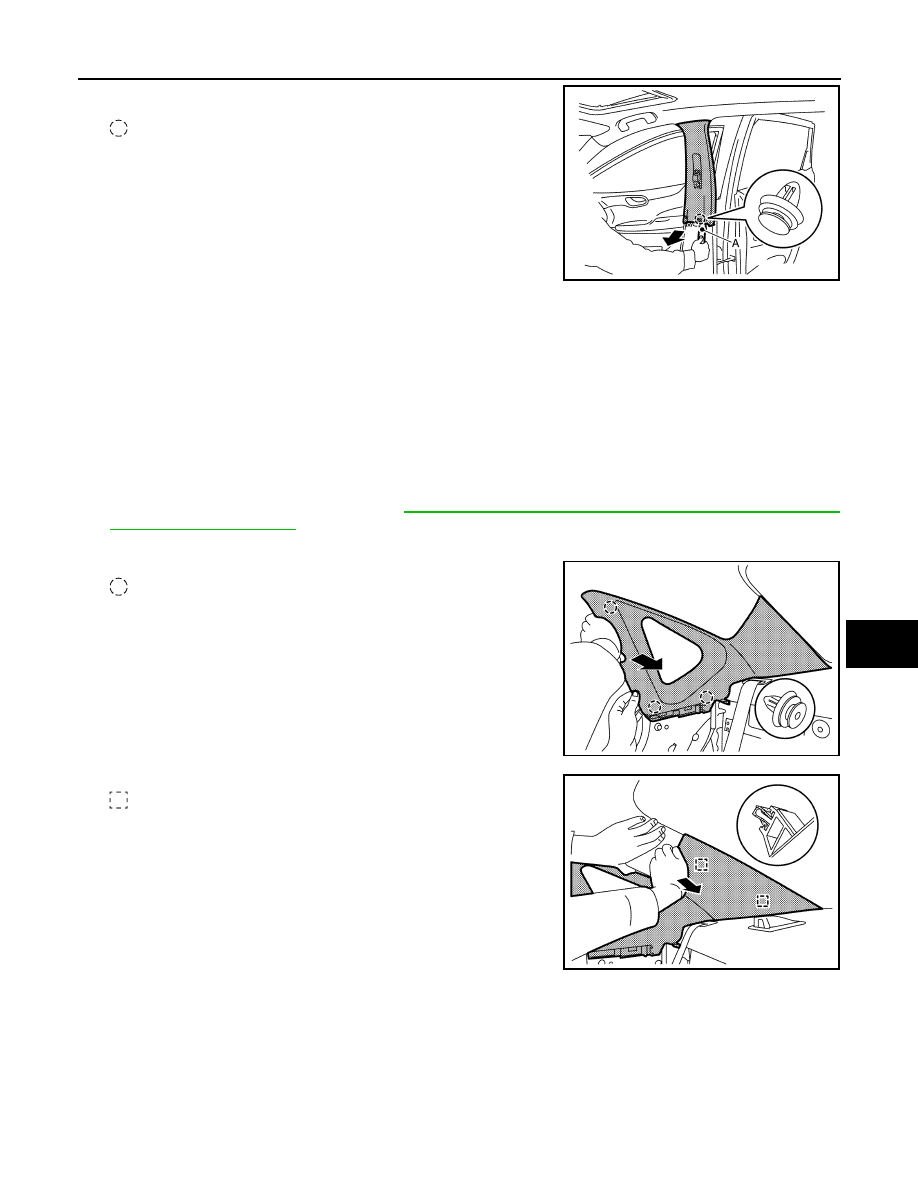

a. Release the clips as shown.

: Clip

b. Release the metal clips as shown.

: Metal clip

JMJIA7789ZZ

JMJIA7797ZZ

JMJIA7798ZZ

INT-30

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

c.

Pull rear pillar finisher forward and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing, check that all clips are accurately aligned with the holes on body panel, then press in.

REAR PILLAR FINISHER : Removal and Installation - Rear Pillar Lower Finisher

INFOID:0000000009756915

REMOVAL

1. Remove the rear seat bolster. Refer to

SE-24, "Removal and Installation - Rear Seat Bolster"

.

2. Remove the rear kicking plate inner. Refer to

INT-24, "KICKING PLATE INNER : Removal and Installa-

tion"

.

3. Remove the rear pillar lower finisher.

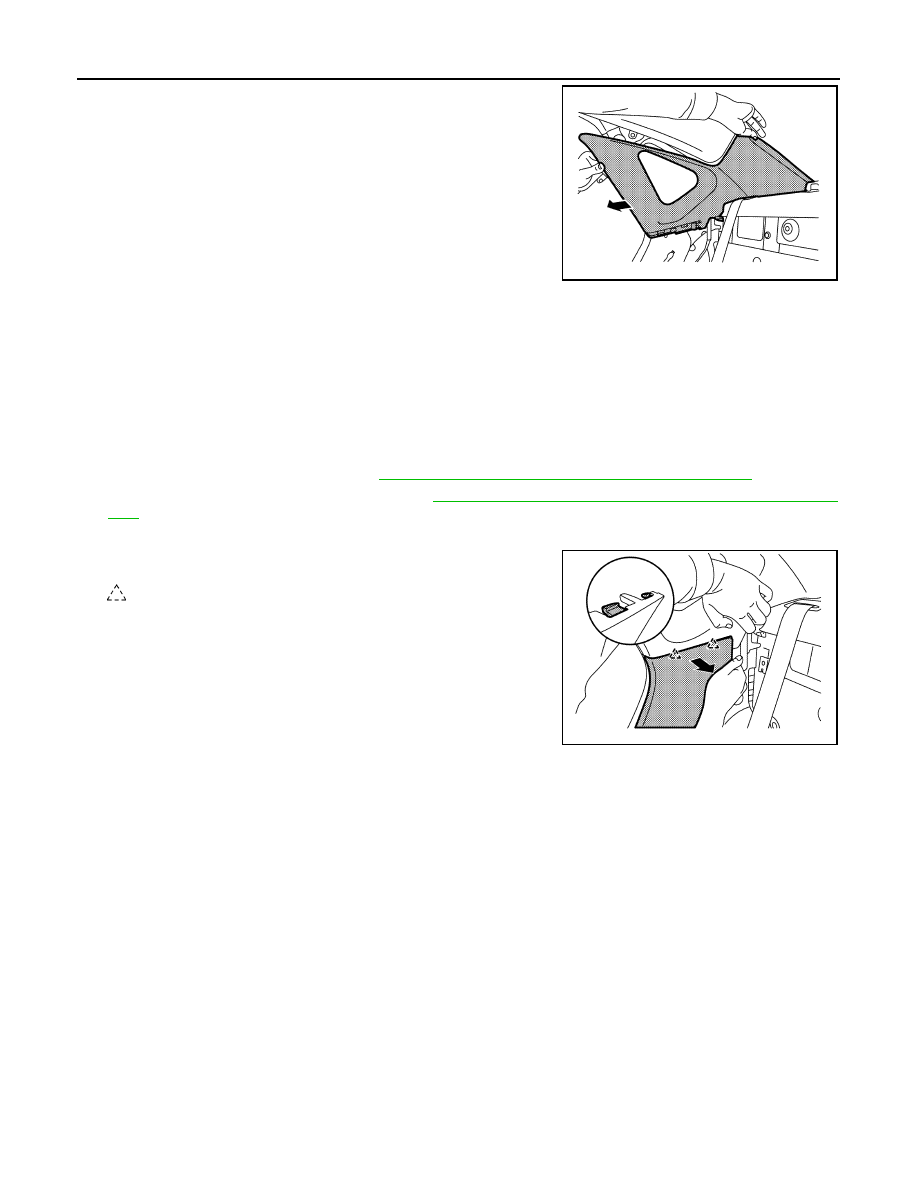

a. Release pawls at the upper portion of the rear pillar lower fin-

isher as shown.

: Pawl

JMJIA7799ZZ

JMJIA7795ZZ

BODY SIDE TRIM

INT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

b. Release clips and remove the rear pillar lower finisher as shown.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing, check that clips and pawls are accurately aligned with the holes on body panel, then

press in.

JMJIA7796ZZ

INT-32

< REMOVAL AND INSTALLATION >

REAR PARCEL SHELF FINISHER

REAR PARCEL SHELF FINISHER

Exploded View

INFOID:0000000009756916

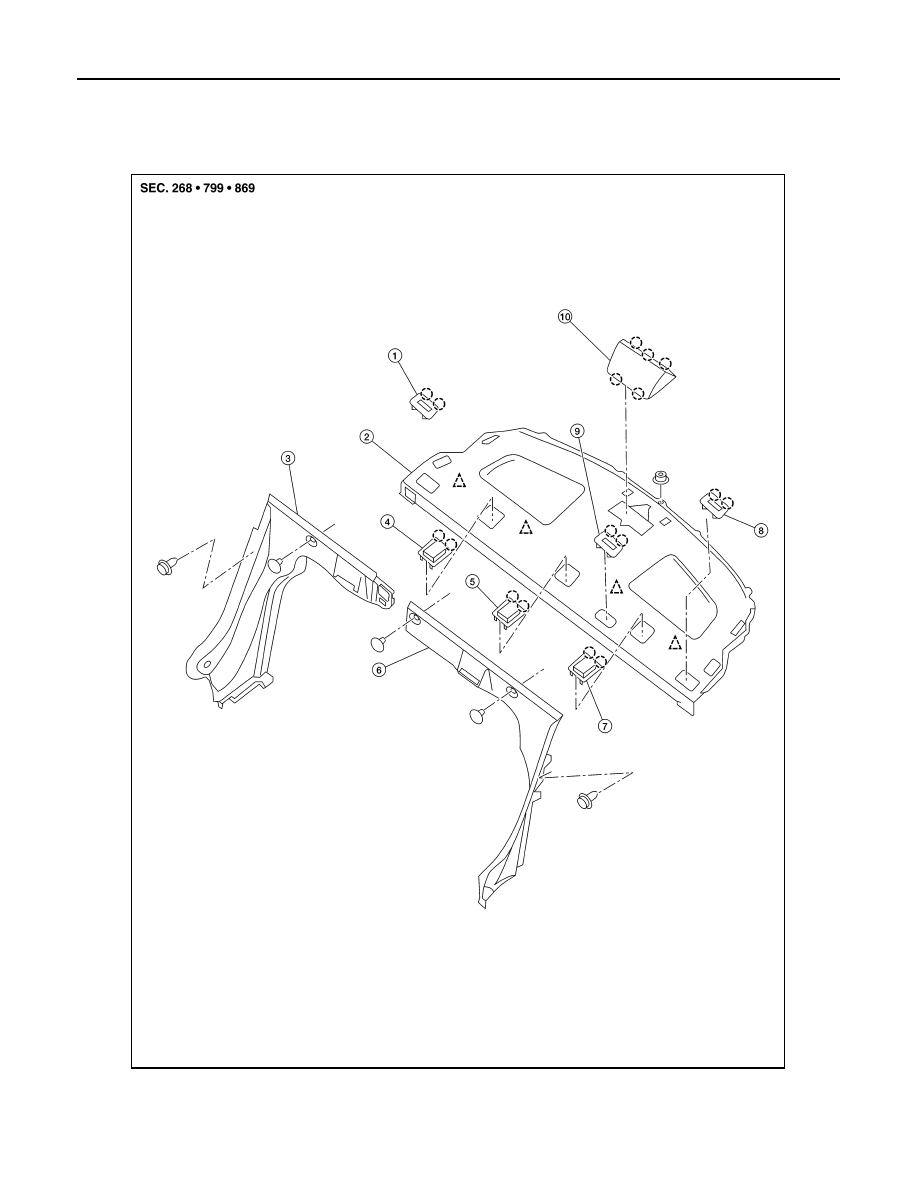

1.

Seat belt finisher (RH)

2.

Rear parcel shelf finisher

3.

Rear seatback finisher (RH)

4.

Top tether strap anchor finisher
(RH)

5.

Top tether strap anchor fin-
isher (center)

6.

Rear seatback finisher (LH)

ALJIA1127ZZ
