EXT-40

< REMOVAL AND INSTALLATION >

DOOR OUTSIDE MOLDING

DOOR OUTSIDE MOLDING

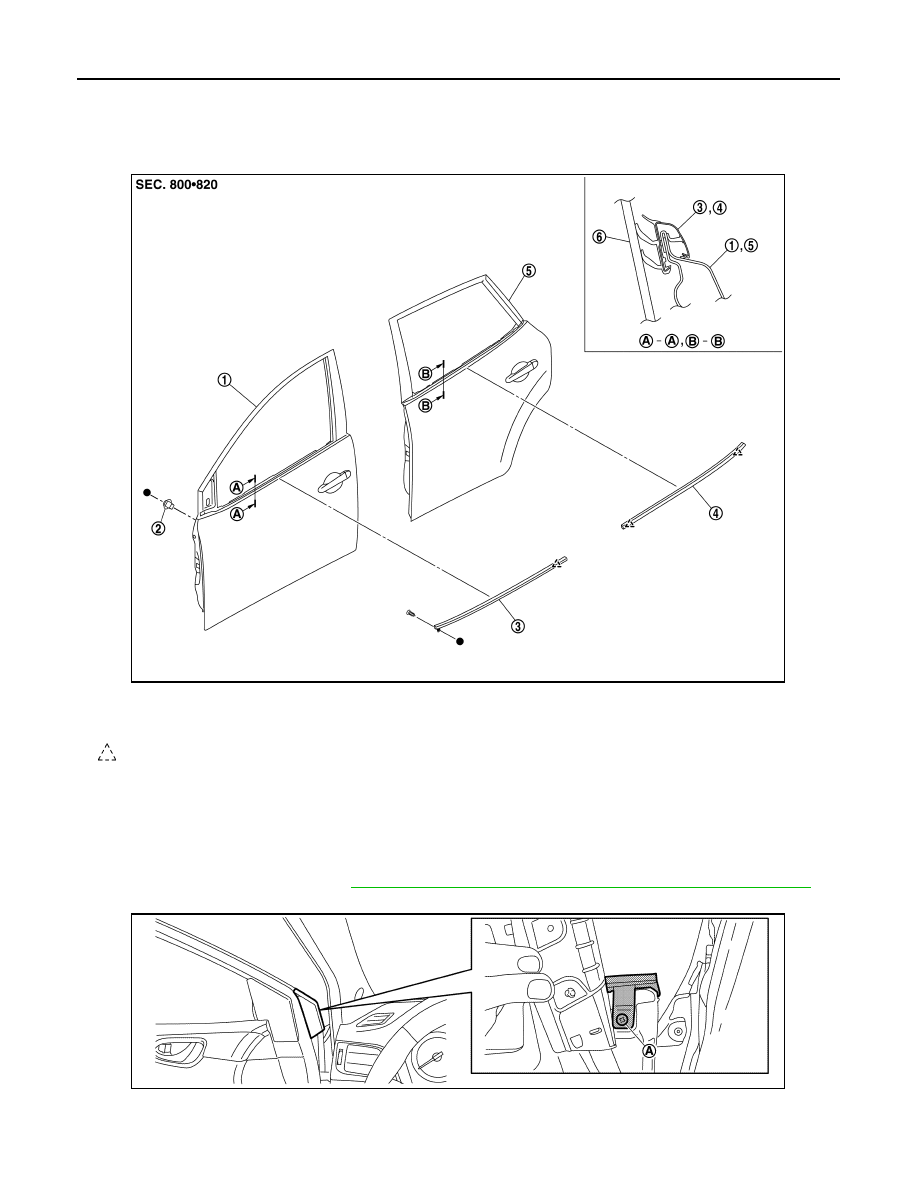

Exploded View

INFOID:0000000009758056

FRONT DOOR OUTSIDE MOLDING
FRONT DOOR OUTSIDE MOLDING : Removal and Installation

INFOID:0000000009758057

REMOVAL

1. Remove front door mirror. Refer to

MIR-18, "DOOR MIRROR ASSEMBLY : Removal and Installation"

.

2. Remove front door outside molding screw (A).

1.

Front door assembly

2.

Grommet

3.

Front door outside molding

4.

Rear door outside molding

5.

Rear door assembly

6.

Door glass

Clip

JMKIB0371ZZ

JMKIB0254ZZ

DOOR OUTSIDE MOLDING

EXT-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

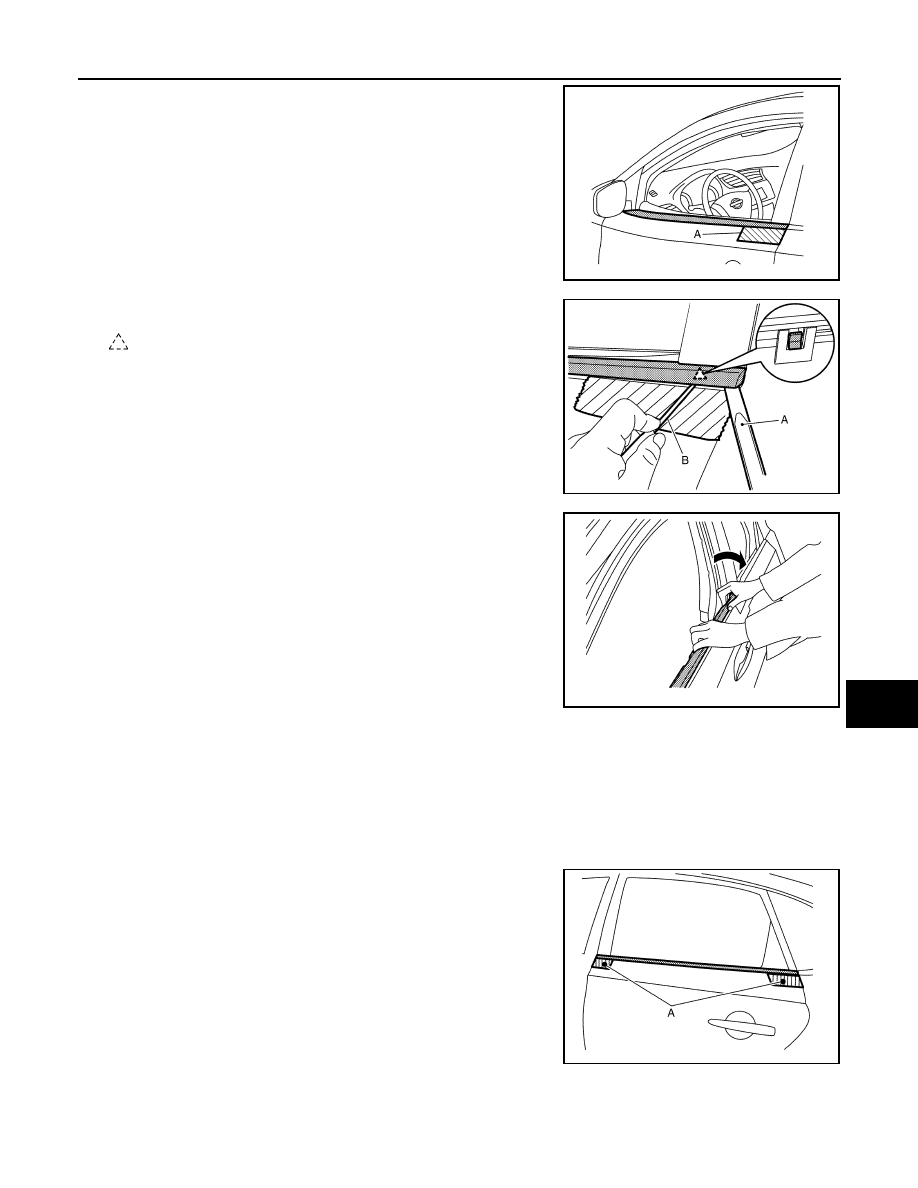

3. Apply protective tape (A) to protect the component from dam-

age.

4. Release rear end of front door outside molding clip using suit-

able tools (A,B).

: Clip

5. Rotate and lift as shown to remove the front door outside mold-

ing.

INSTALLATION

Installation is in the reverse order of removal.

REAR DOOR OUTSIDE MOLDING
REAR DOOR OUTSIDE MOLDING : Removal and Installation

INFOID:0000000009758058

REMOVAL

1. Apply protective tape (A) to protect the component from dam-

age.

JMKIB0255ZZ

JMKIB0256ZZ

JMKIB0257ZZ

JMKIB0258ZZ

EXT-42

< REMOVAL AND INSTALLATION >

DOOR OUTSIDE MOLDING

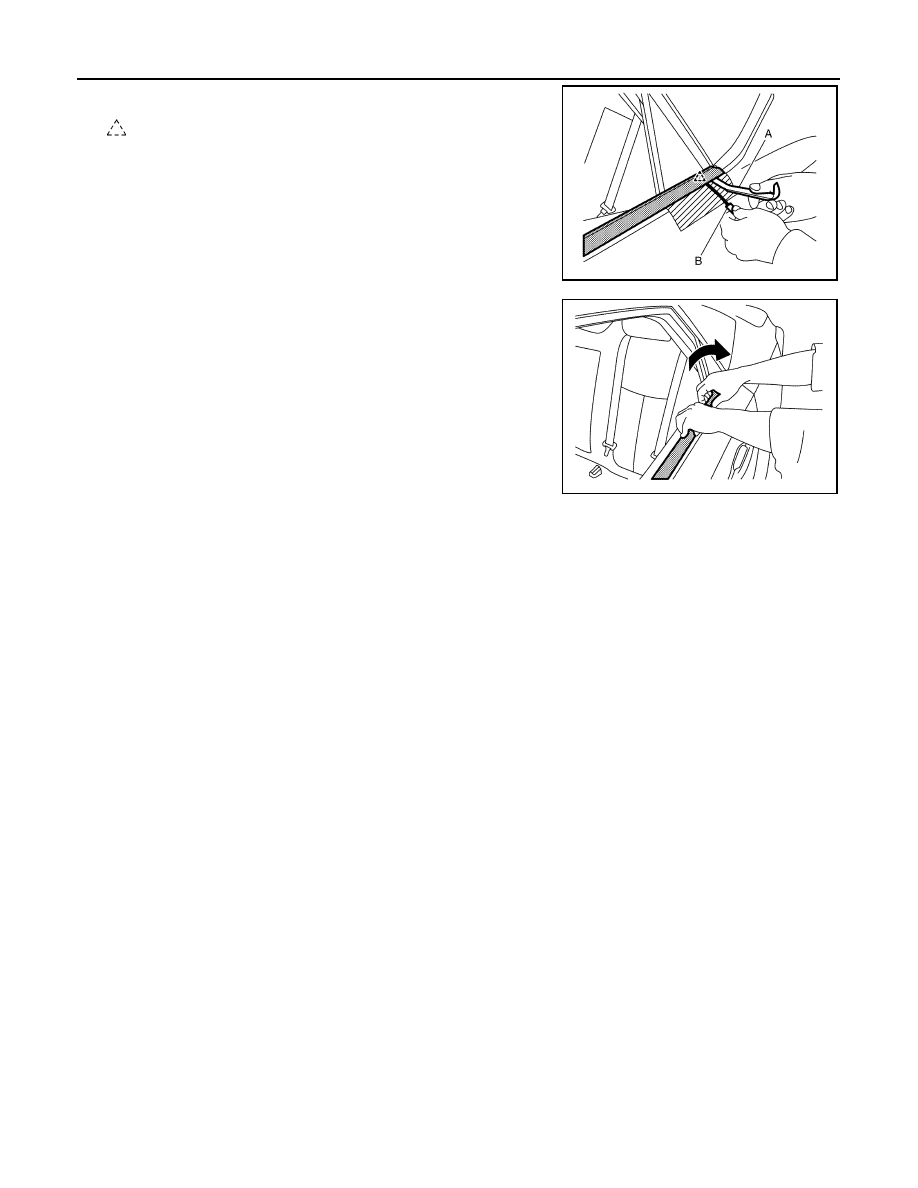

2. Release clip of rear door outside molding front and rear end,

using suitable tools (A, B).

: Clip

CAUTION:

Use care when lifting rear door outside molding to prevent

damage.

3. Rotate and lift as shown to remove the rear door outside mold-

ing.

INSTALLATION

Installation is in the reverse order of removal.

JMKIB0259ZZ

JMKIB0260ZZ

DOOR PARTING SEAL

EXT-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

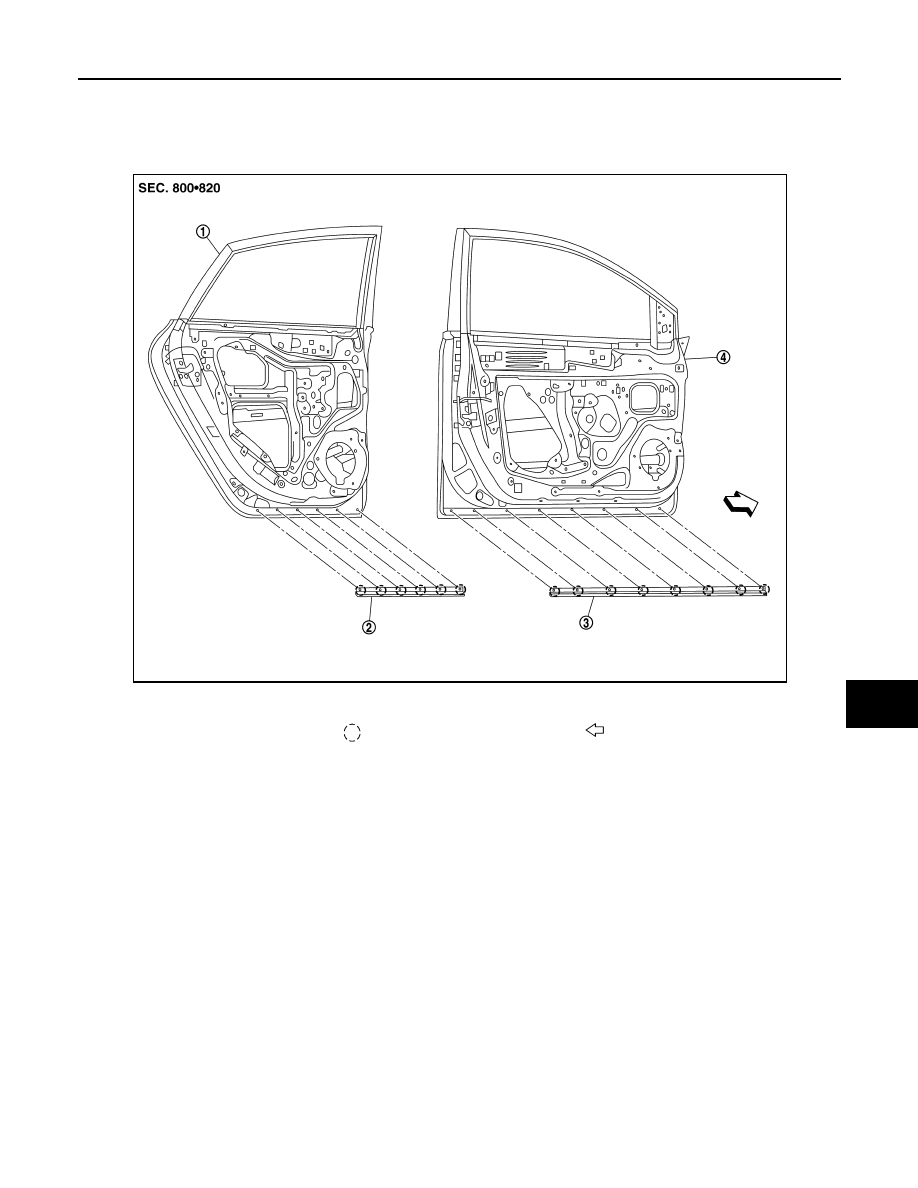

DOOR PARTING SEAL

Exploded View

INFOID:0000000009758059

Removal and Installation

INFOID:0000000009758060

REMOVAL

1. Release parting seal pawls, then remove parting seal.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear door panel

2.

Rear door parting seal

3.

Front door parting seal

4.

Front door panel

Pawl

Front

JMKIB0372ZZ
