DOOR SASH TAPE

CAUTION:

• Degrease front door assembly surface for sash tape.

• Grit or dust on surface of sash tape may spoil exterior appearance if not removed. Clean the surface

and check that no grit or dust remains before starting the operation.

• Do not reuse blackout tape.

1.

Front door assembly

2.

Front door sash tape

3.

Front door sash rear tape

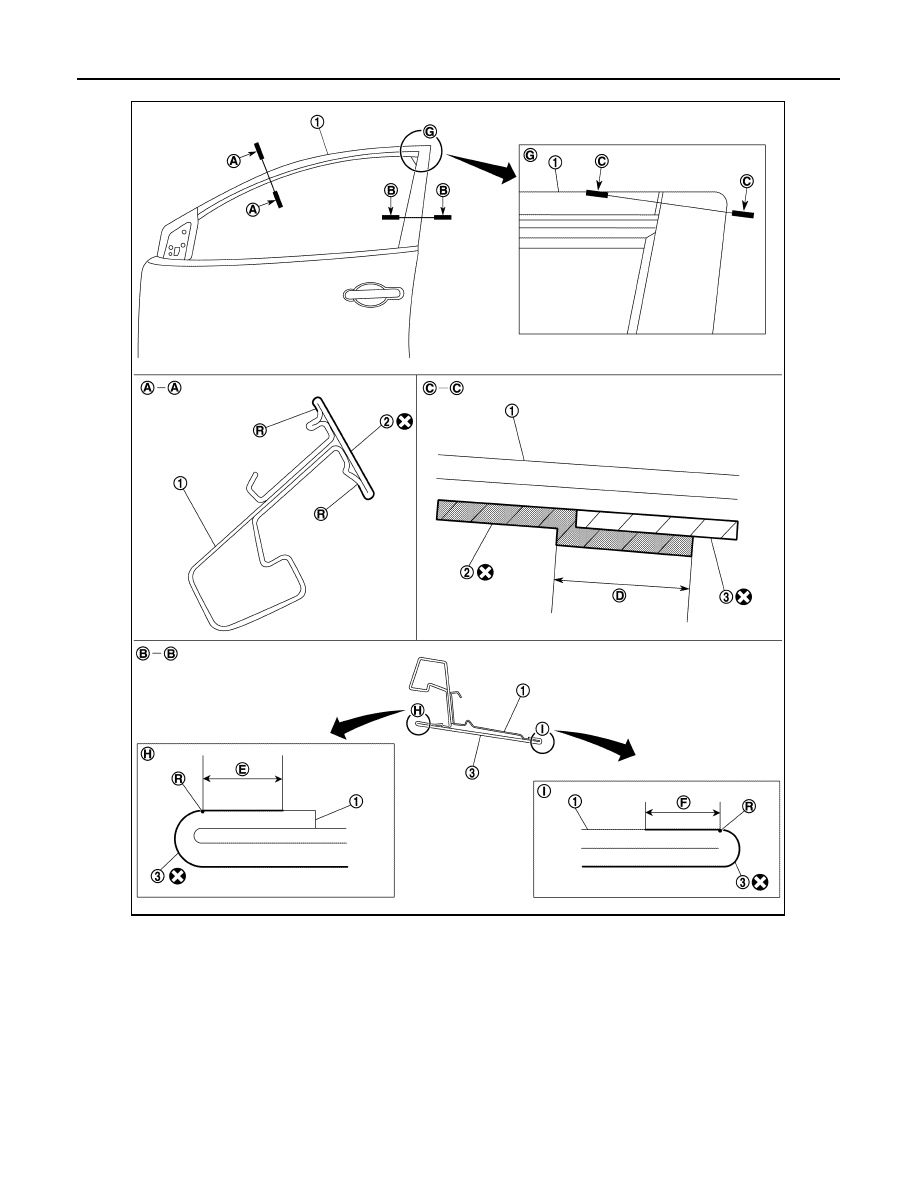

R. R end

D

: 1.0 – 3.0 mm (0.04 – 0.12 in)

E

: 3.5 mm (0.14 in)

F

: 3.5 mm (0.14 in)

JMKIB0431ZZ

DOOR SASH TAPE

EXT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

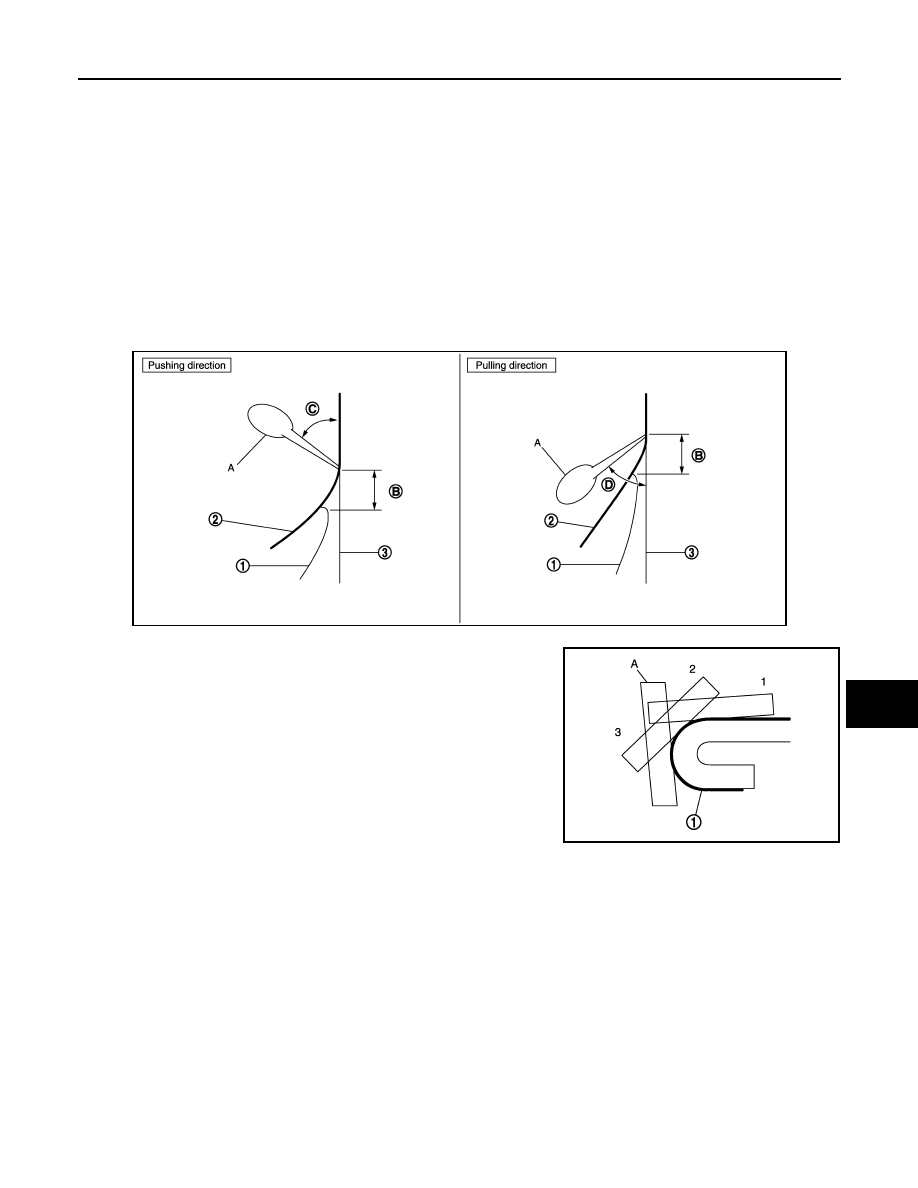

1. Affix door sash tape align blackout tape upper portion to rear door outer upper end.
2. Affix door sash tape (2) to door panel (3) by applying pressure using a squeegee (A) while peeling off

release coated paper (1).

NOTE:

• Peel release coated paper at distance of 10 – 20 mm (0.39 – 0.79 in) ahead (B) of squeegee and affix

blackout paper.

• To prevent any bubbles from forming, slightly lift the portion not yet affixed using a squeegee, so that

portion dose not contact with panel surface. Apply pressure and affix at a low and constant speed using

squeegee tilted at 40 – 50

° angle (pushing direction) (C) 30 – 45° angle (pulling direction) (D).

3. For small radius portion of hemming part, gradually apply pres-

sure and affix door sash tape   using squeegee (A) in 1

→ 3

steps.

CAUTION:

Do not wash the vehicle with in 24 hours so as to keep

adhesive dry.

REAR DOOR SASH TAPE
REAR DOOR SASH TAPE : Removal and Installation

INFOID:0000000009758055

REMOVAL

Heat door sash tape surface using a heat gun and peel door sash tape.

CAUTION:

Do not damage painted surface of door.

INSTALLATION

NOTE:

For installation position of door sash tape, refer to the position as shown.

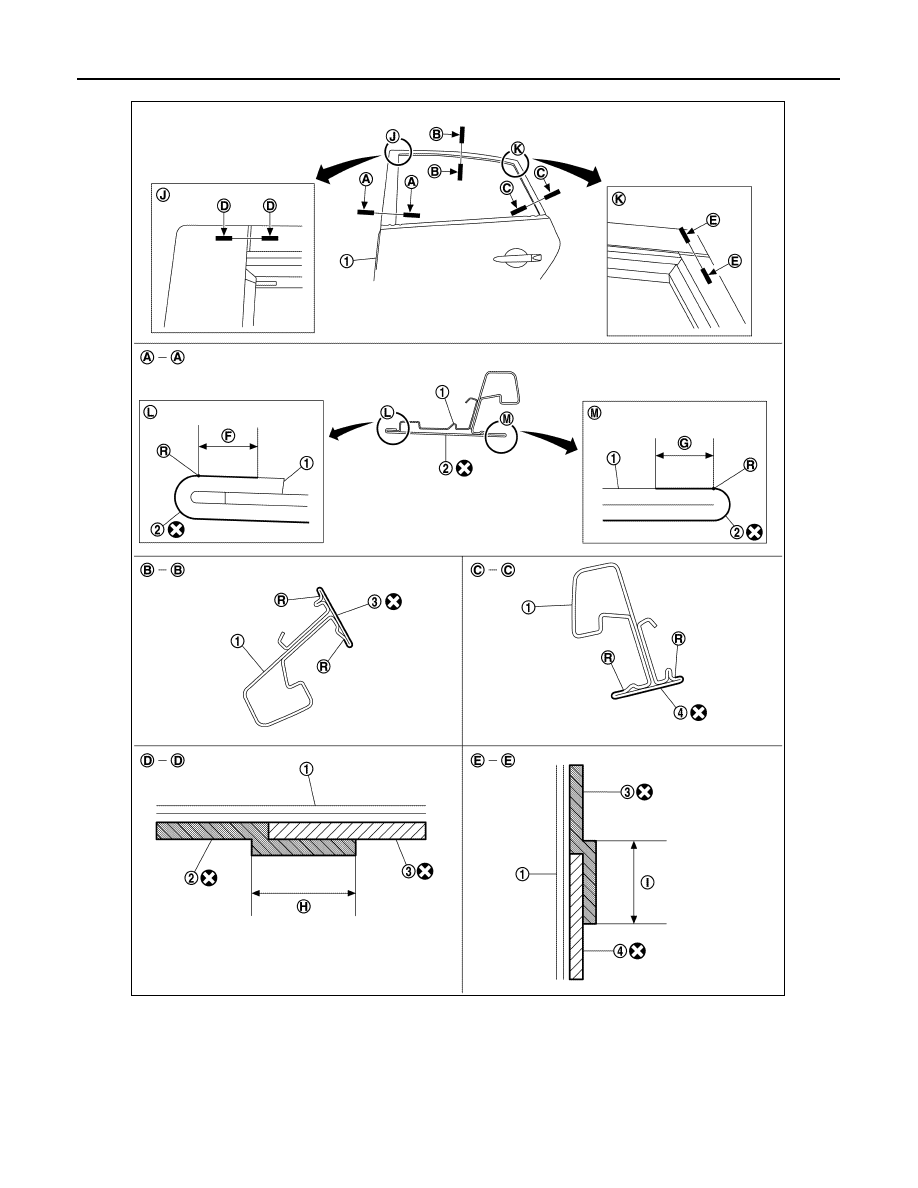

JMKIA4862GB

JMKIA4655ZZ

EXT-38

< REMOVAL AND INSTALLATION >

DOOR SASH TAPE

1.

Rear door assembly

2.

Rear door sash rear tape

3.

Rear door sash tape

4.

Rear door sash rear tape

R. R end

F

3.0 mm (0.12 in)

G

3.5 mm (0.14 in)

H

1.0 – 3.0 mm (0.04 – 0.12 in)

I

1.0 – 3.0 mm (0.04 – 0.12 in)

JMKIB0432ZZ

DOOR SASH TAPE

EXT-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

CAUTION:

• Degrease rear door assembly surface for door sash tape.

• Grit or dust on surface of door sash tape may spoil exterior appearance if not removed. Clean the

surface and check that no grit or dust remains before starting the operation.

• Do not reuse door sash tape.

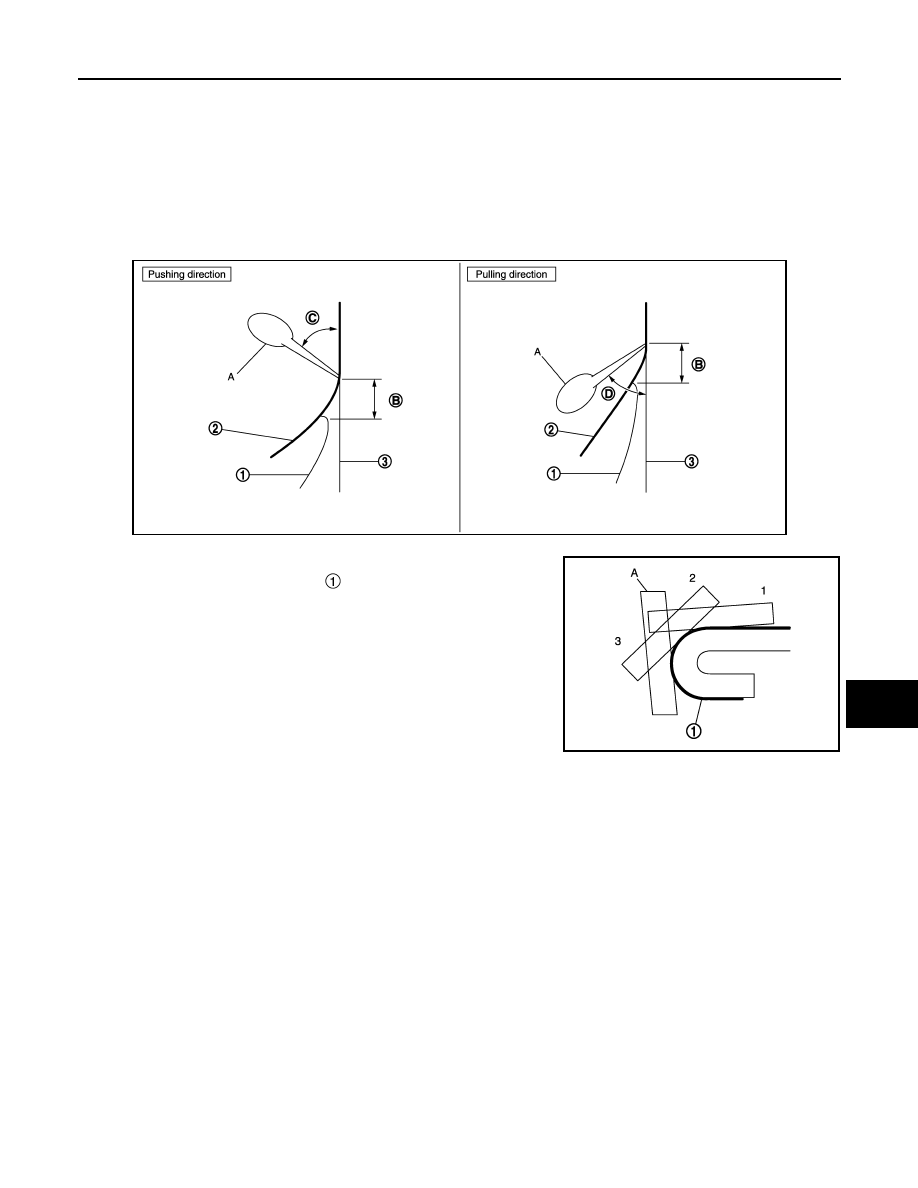

1. Affix door sash tape align door sash tape upper portion to rear door outer upper end.
2. Affix door sash tape (2) to door panel (3) by applying pressure using a squeegee (A) while peeling off

release coated paper (1).

NOTE:

• Peel release coated paper at distance of 10 – 20 mm (0.39 – 0.79 in) ahead (B) of squeegee and affix

blackout paper.

• To prevent any bubbles from forming, slightly lift the portion, not yet affixed using squeegee, so that por-

tion dose not contact with panel surface. Apply pressure and affix at a low and constant speed using

squeegee tilted at 40 – 50

° angle (pushing direction) (C) 30 – 45° angle (pulling direction) (D).

3. For small radius portion of hemming part, gradually apply pres-

sure and affix door sash tape (1) using squeegee (A) in 1

→ 3

steps.

CAUTION:

Do not wash the vehicle with in 24 hours so as to keep

adhesive dry.

JMKIA4862GB

JMKIA4655ZZ
