REAR COMBINATION LAMP

EXL-127

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Installation

Installation is the reverse order of removal.

Bulb Replacement

INFOID:0000000009757555

WARNING:

Do not touch bulb while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

REAR TURN SIGNAL LAMP BULB

Removal

1. Remove the rear combination lamp. Refer to

EXL-126, "Removal and Installation"

.

2. Rotate the rear turn signal lamp bulb socket counterclockwise and remove.
3. Remove the rear turn signal lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing, be sure to install the bulb socket securely to ensure watertightness.

STOP/TAIL LAMP

The stop/tail lamp is integrated into the rear combination lamp and is serviced as an assembly. Refer to

EXL-

126, "Removal and Installation"

.

BACK-UP LAMP BULB

Removal

1. Remove the rear combination lamp. Refer to

EXL-126, "Removal and Installation"

.

2. Rotate the back-up lamp bulb socket counterclockwise and remove.
3. Remove the back-up lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing, be sure to install the bulb socket securely to ensure watertightness.

EXL-128

< REMOVAL AND INSTALLATION >

COMBINATION SWITCH

COMBINATION SWITCH

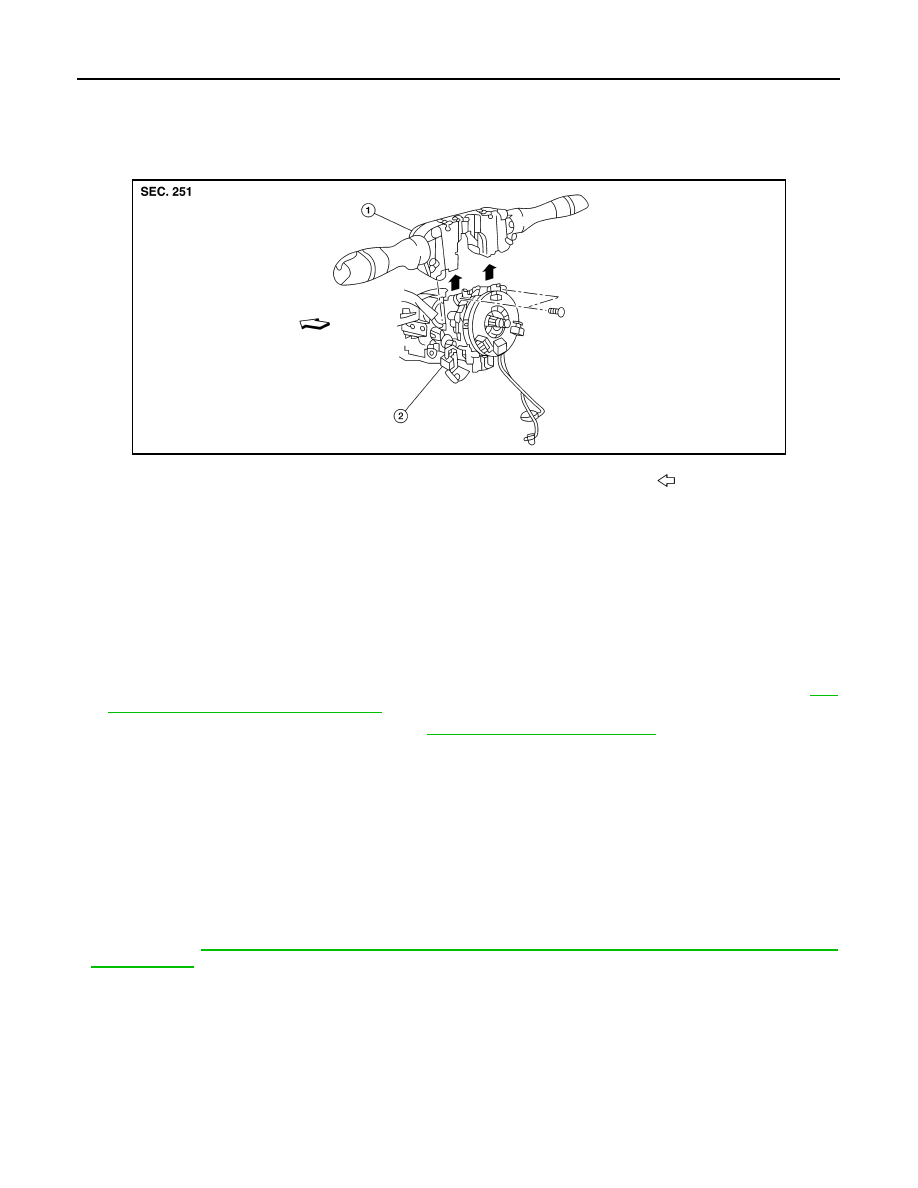

Exploded View

INFOID:0000000009757556

NOTE:

Shown with the steering wheel removed for clarity only.

Removal and Installation

INFOID:0000000009757557

REMOVAL

CAUTION:

• Before servicing, turn the ignition switch OFF, disconnect both battery terminals and wait at least

three minutes.

• Do not use air or electric tools when removing or installing the combination switch.
1. Disconnect both the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-

50, "Removal and Installation (Battery)"

.

2. Remove the steering column covers. Refer to

IP-16, "Removal and Installation"

.

3. Rotate steering wheel clockwise to access first combination switch bolt and remove.
4. Rotate steering wheel counter-clockwise to access second combination switch bolt and remove.
5. Disconnect the harness connector from the combination switch and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After the work is completed, make sure no system malfunction is detected by air bag warning lamp.

• In case a malfunction is detected by the air bag warning lamp, reset with the self-diagnosis function

and delete the memory with CONSULT.

• If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunc-

tions. Refer to

SRC-41, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair

Requirement"

.

AWMIA1293ZZ

1.

Combination switch

2.

Combination switch harness connector

Front

HAZARD SWITCH

EXL-129

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

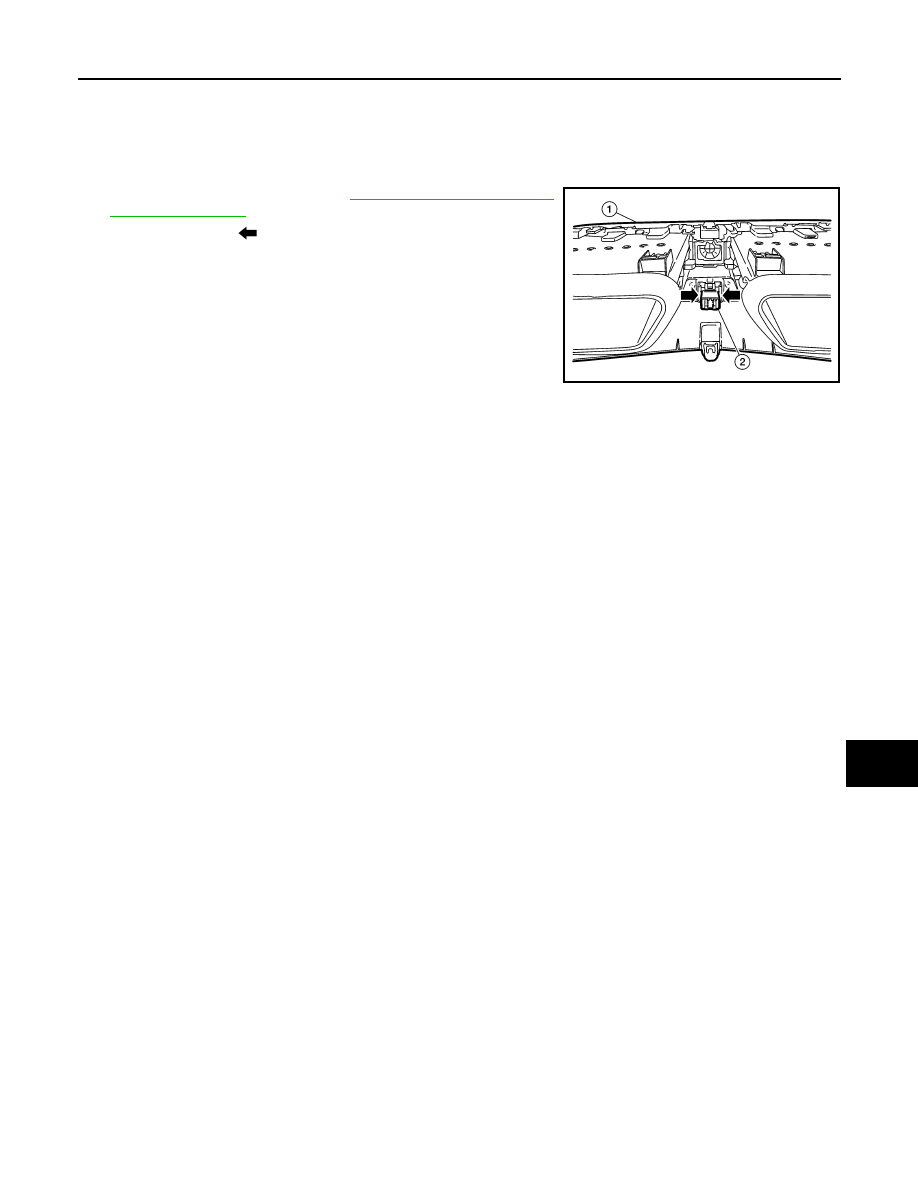

HAZARD SWITCH

Removal and Installation

INFOID:0000000009757558

REMOVAL

1. Remove cluster lid C (1). Refer to

IP-20, "Removal and Installa-

tion - Cluster Lid C"

.

2. Release pawls at (

) and remove hazard switch (2).

INSTALLATION

Installation is in the reverse order of removal.

ALLIA1140ZZ

EXL-130

< REMOVAL AND INSTALLATION >

OPTICAL SENSOR

OPTICAL SENSOR

Removal and Installation

INFOID:0000000009757559

REMOVAL

1. Remove the defroster grille (LH) using a suitable tool.
2. Disconnect the harness connector from the optical sensor.
3. Release the pawls and remove the optical sensor.

INSTALLATION

Installation is in the reverse order of removal.
