Nissan Sentra. Manual - part 480

DOOR MIRROR TURN SIGNAL LAMP

EXL-123

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DOOR MIRROR TURN SIGNAL LAMP

Removal and Installation

INFOID:0000000009757548

The door mirror side turn signal lamp is integrated into the door mirror assembly and is serviced as an assem-

bly. Refer to

MIR-18, "Exploded View"

.

EXL-124

< REMOVAL AND INSTALLATION >

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

Removal and Installation

INFOID:0000000009757549

HIGH-MOUNTED STOP LAMP - WITH REAR SPOILER

Removal

1. Remove the rear air spoiler. Refer to

EXT-46, "Removal and Installation"

.

2. Remove the screws and the high-mount stop lamp from the rear air spoiler.

Installation

Installation is in the reverse order of removal.

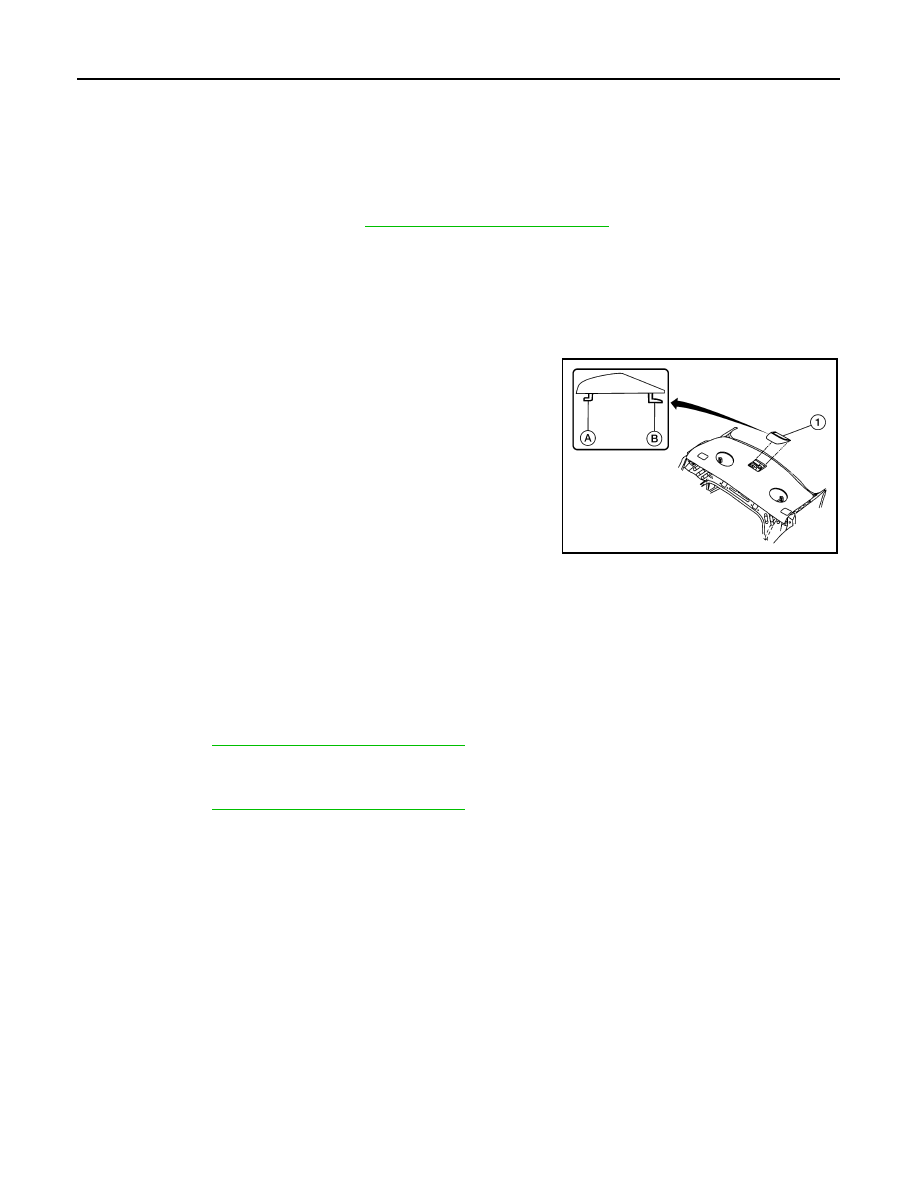

HIGH-MOUNTED STOP LAMP - WITHOUT REAR SPOILER

Removal

1. Slide high-mounted stop lamp (1) rearward on parcel shelf to

provide clearance for front tabs (A).

2. Lift front of lamp assembly up and pull forward to provide clear-

ance for rear tabs (B).

3. Disconnect the harness connector from the high-mounted stop lamp and remove.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000009757550

HIGH-MOUNTED STOP LAMP - WITH REAR SPOILER

The high-mounted stop lamp LED bulb is integrated into the high-mounted stop lamp and is serviced as an

assembly. Refer to

EXL-124, "Removal and Installation"

.

HIGH-MOUNTED STOP LAMP - WITHOUT REAR SPOILER

The high-mounted stop lamp LED bulb is integrated into the high-mounted stop lamp and is serviced as an

assembly. Refer to

EXL-124, "Removal and Installation"

.

ALLIA1135ZZ

LICENSE PLATE LAMP

EXL-125

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

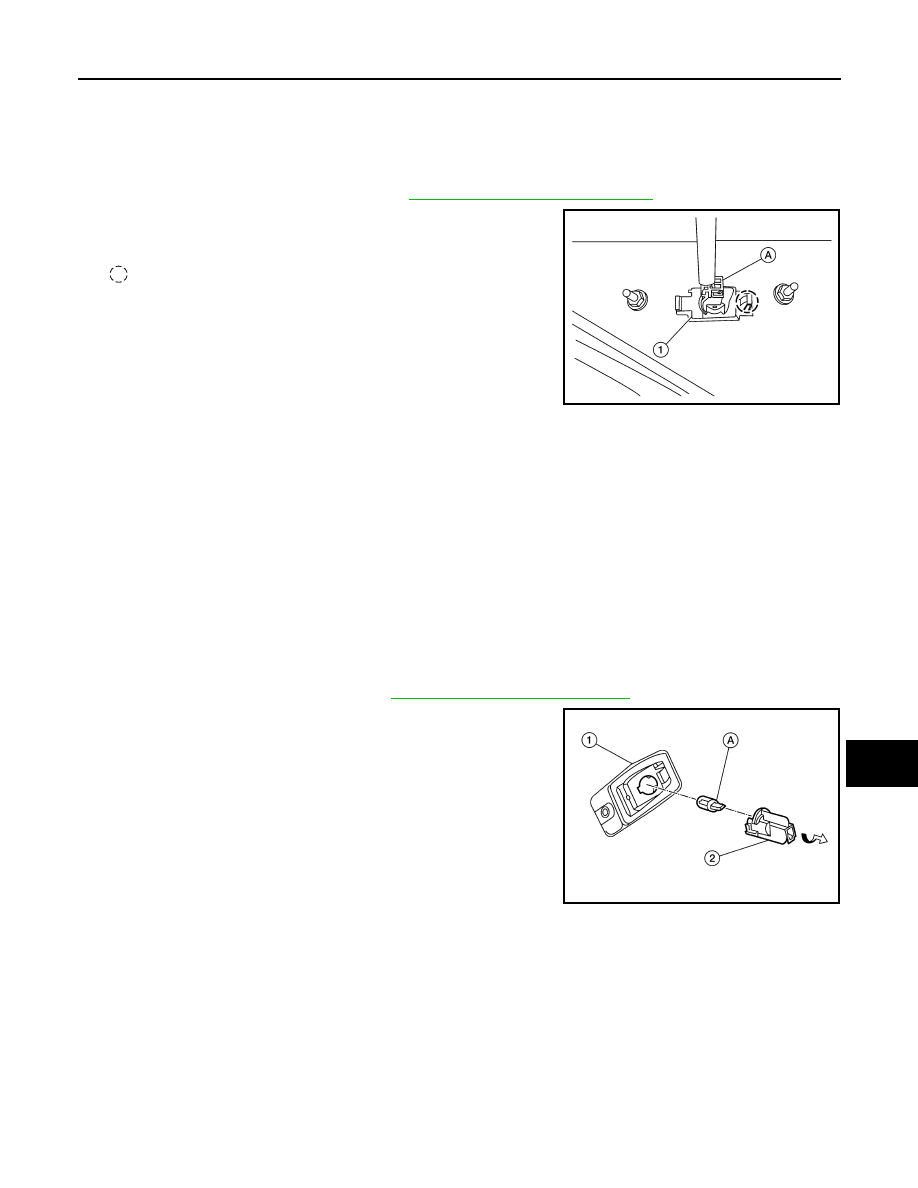

LICENSE PLATE LAMP

Removal and Installation

INFOID:0000000009757551

REMOVAL

1. Remove the license lamp finisher. Refer to

EXT-44, "Removal and Installation"

.

2. Disconnect the harness connector (A) from the license plate

lamp (1).

3. Release pawl and remove.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000009757552

WARNING:

Do not touch bulb while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

REMOVAL

1. Position trunk lid finisher aside. Refer to

INT-45, "Removal and Installation"

.

2. Rotate license plate lamp bulb socket (2) counterclockwise and

remove from license plate lamp (1).

3. Remove license plate lamp bulb (A) from license plate lamp bulb

socket (2).

INSTALLATION

Installation is in the reverse order of removal.

ALLIA1134ZZ

ALLIA1133ZZ

EXL-126

< REMOVAL AND INSTALLATION >

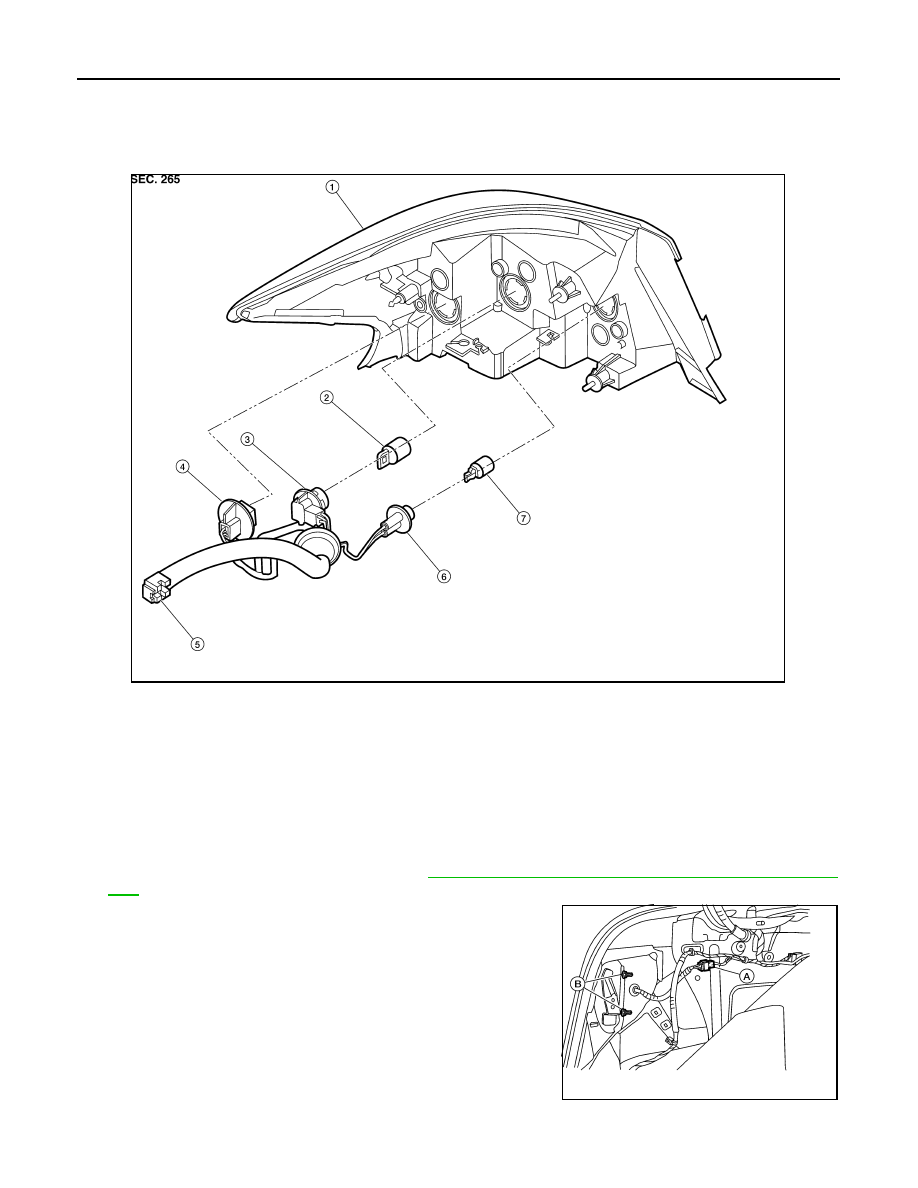

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Exploded View

INFOID:0000000009757553

Removal and Installation

INFOID:0000000009757554

Removal

1. Partially remove trunk side finisher. Refer to

INT-43, "TRUNK SIDE FINISHER : Removal and Installa-

tion"

.

2. Remove the rear combination lamp nuts (B).
3. Disconnect the harness connector (A) from the rear combination

lamp.

4. Pull the rear combination lamp rearward and remove.

1.

Rear combination lamp

2. Rear turn signal lamp bulb

3. Rear turn signal lamp socket

4.

LED lamp harness connector

5. Rear combination lamp harness

connector

6. Back-up lamp bulb socket

7.

Back-up lamp bulb

ALLIA1210ZZ

ALLIA1211ZZ
