PERIODIC MAINTENANCE

HEADLAMP

Aiming Adjustment

INFOID:0000000009757542

PREPARATION BEFORE ADJUSTING

Before performing aiming adjustment, check the following:

• Ensure all tires are inflated to correct pressure.

• Place vehicle and screen on level surface.

• Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).

• Coolant and engine oil filled to correct level, and fuel tank full.

• Remove cargo and/or luggage to maintain an unloaded vehicle condition.

• Confirm spare tire, jack and tools are properly stowed.

• Carefully wipe off any dirt from headlamp lens.

CAUTION:

Do not use organic solvent (thinner, gasoline etc.)

• Place a driver or equivalent weight of 68.5 kg (150 lb) on the driver seat.

• By hand, bounce the front and rear of the vehicle to settle the suspension and eliminate any static load.

• Place the front tires in the straight ahead position.

• Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.

NOTE:

• For headlamp aiming details, refer to regulations in your area.

• By regulation, no means for horizontal aim adjustment is provided from the factory; only vertical aim is

adjustable.

• Use adjusting screw to perform aiming adjustment.

• Perform headlamp aiming if:

- The vehicle front body has been repaired.

- The front combination lamp has been removed or replaced.

- Any outfitting has been installed.

- The vehicle’s standard load condition has been substantially increased.

Aiming Adjustment procedure

1. Position the screen.

NOTE:

• Stop the vehicle facing the screen.

• Place the screen on a plain road vertically.

2. Face the screen with the vehicle. Maintain 10 m (33 ft) between the headlamp bulb center and the screen.
3. Start the engine. Turn the headlamp (LO) ON.

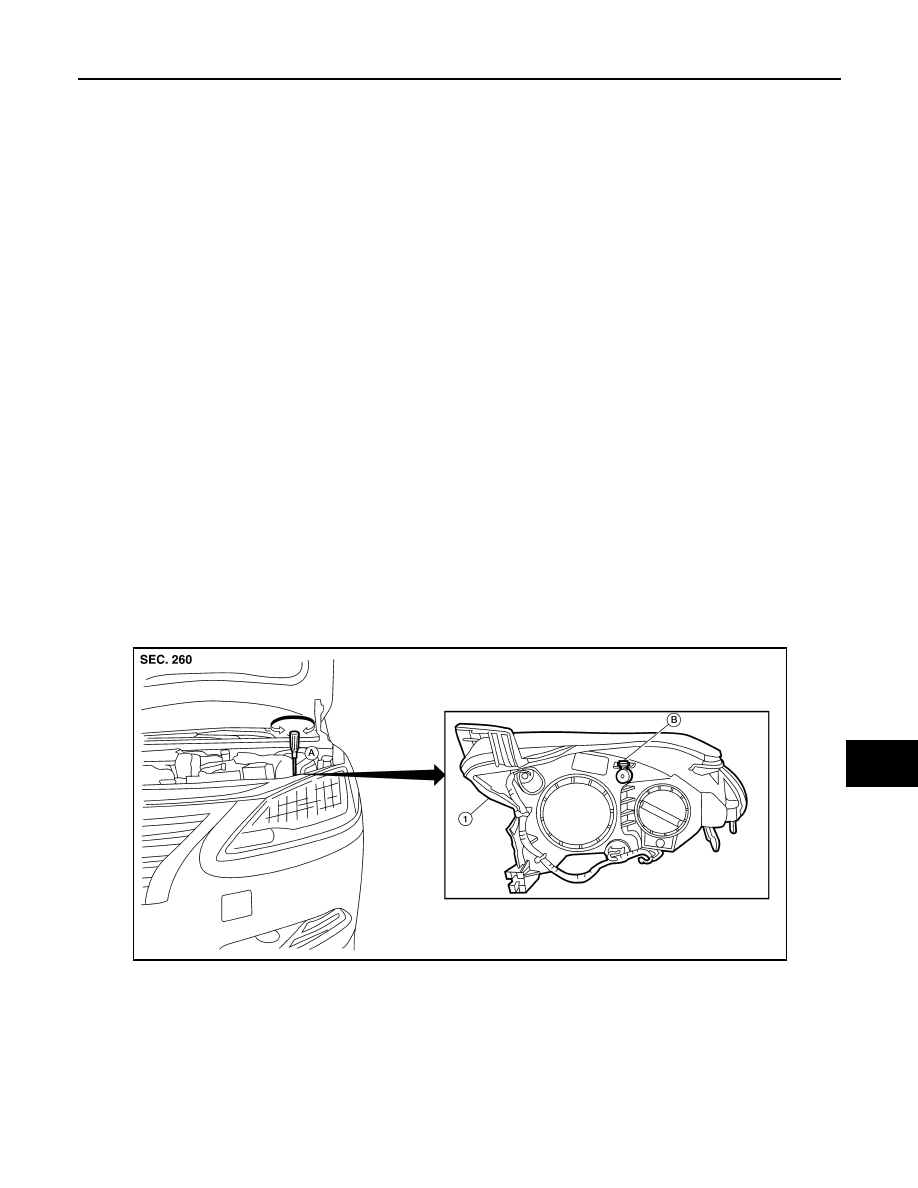

1.

Front combination lamp

A.

Suitable tool (for aiming adjustment) B.

Adjusting screw

ALLIA1212ZZ

EXL-116

< PERIODIC MAINTENANCE >

HEADLAMP

CAUTION:

Do not cover the lens surface with tape, etc. The lens is made of resin.

NOTE:

• Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.

• For horizontal aiming, adjust headlamp until beam pattern is at horizontal center point.

• Basic illuminating area for adjustment should be within the range shown on the aiming chart. Adjust

headlamps accordingly.

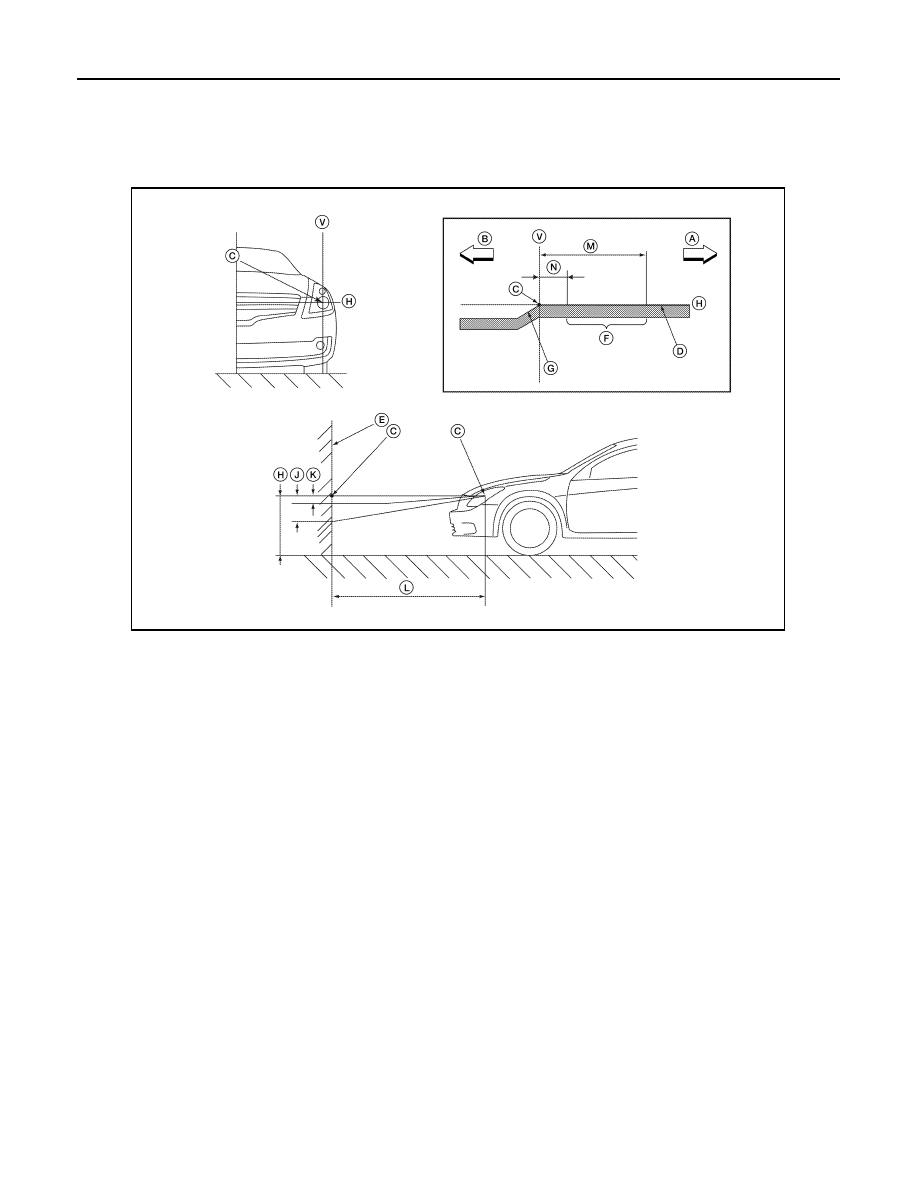

A. Right

B. Left

C. Center of headlamp bulb (H-V point)

D. Cutoff line

E. Screen

F.

Aim evaluation segment

G. Step

H. Horizontal center line of head lamp

J.

30 mm (1.18 in)

K. 4 mm (0.16 in)

L.

10 m (33 ft)

M. 480 mm (18.90 in)

N. 160 mm (6.30 in)

V.

Vertical center line of headlamp

AWLIA1498ZZ

FRONT FOG LAMP

EXL-117

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP

Aiming Adjustment

INFOID:0000000009757543

PREPARATION BEFORE ADJUSTING

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming

adjustment procedure, check the following:

• Ensure all tires are inflated to correct pressure.

• Place vehicle and screen on level surface.

• Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).

• Coolant and engine oil filled to correct level, and fuel tank full.

• Remove cargo and/or luggage to maintain an unloaded vehicle condition.

• Confirm spare tire, jack and tools are properly stowed.

• Carefully wipe off any dirt from headlamp lens.

CAUTION:

Do not use organic solvent (thinner, gasoline etc.)

• Place a driver or equivalent weight of 68.5 kg (150 lb) on the driver seat.

• By hand, bounce the front and rear of the vehicle to settle the suspension and eliminate any static load.

• Place the front tires in the straight ahead position.

• Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.

NOTE:

• For headlamp aiming details, refer to regulations in your area.

• By regulation, no means for horizontal aim adjustment is provided from the factory; only vertical aim is

adjustable.

• Use adjusting screw to perform aiming adjustment.

• Perform headlamp aiming if:

- The vehicle front body has been repaired.

- The front combination lamp has been removed or replaced.

- Any outfitting has been installed.

- The vehicle’s standard load condition has been substantially increased.

Aiming Adjustment Procedure

1. Place the screen.

NOTE:

• Stop the vehicle facing the wall.

• Place the board on a plain road vertically.

2. Face the vehicle with the screen. Maintain 7.62 m (25.0 ft) between the front fog lamp center and the

screen.

3. Start the engine. Turn the front fog lamp ON.

NOTE:

Shut off the headlamp light with the board to prevent from illuminating the adjustment screen.

CAUTION:

Do not cover the lens surface with tape etc. The lens is made of resin.

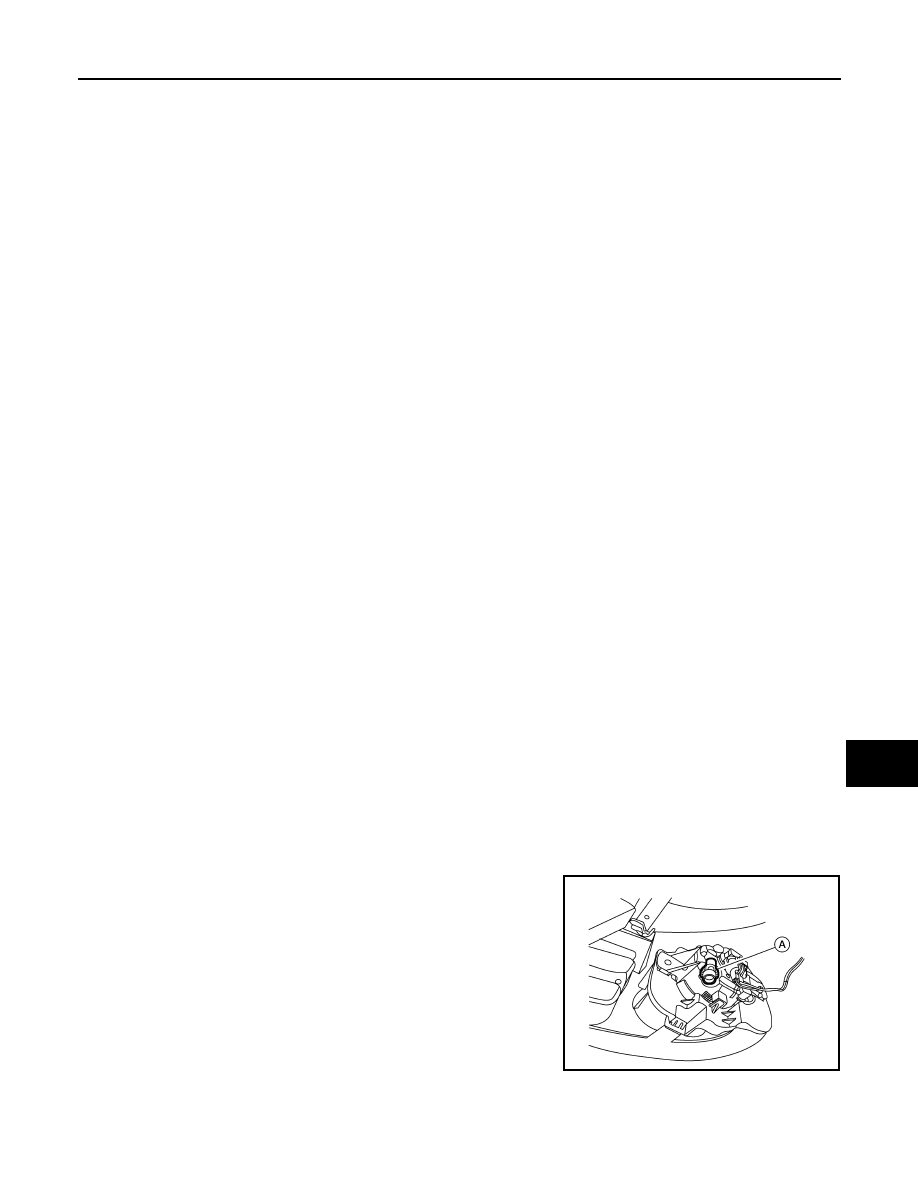

4. Adjust aiming in the vertical direction by turning the adjusting

screw (A).

ALLIA0035ZZ

EXL-118

< PERIODIC MAINTENANCE >

FRONT FOG LAMP

5. Adjust the cutoff line height (A) with the aiming adjustment

screw so that the distance (X) between the horizontal center line

of front fog lamp (H) and (A) becomes 100 mm (4 in).

A

: Cutoff line

B

: High illuminance area

H

: Horizontal center line of front fog lamp

V

: Vertical center line of front fog lamp

X

: Cutoff line height

JPLIA0008ZZ
