BRM-38

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

1. Check the dimensions and fit.
2. Use clamping pliers to retain the roof panel to the front and rear window flanges.
3. Plug weld as necessary.
4. Dress welds as necessary to allow proper glass fit.
5. Refer to NISSAN approved panel refinishing.
6. Install the headlining. Refer to

INT-40, "Removal and Installation"

.

7. Install rear window glass. Refer to

GW-26, "Removal and Installation"

.

8. Install windshield glass. Refer to

GW-12, "Removal and Installation"

.

9. Install roof side moldings (RH/LH). Refer to

EXT-32, "Removal and Installation"

.

1.

Body side upper spot welds

2.

Plug welds

A. Clamping pliers

Front

ALKIA2826ZZ

REPLACEMENT OPERATIONS

BRM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Outer Sill

INFOID:0000000009758082

Work after the front pillar reinforcement, center pillar reinforcement, and rear fender have been removed.

Change parts

z

Outer sill reinforcement

Front

ALKIA2795ZZ

BRM-40

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

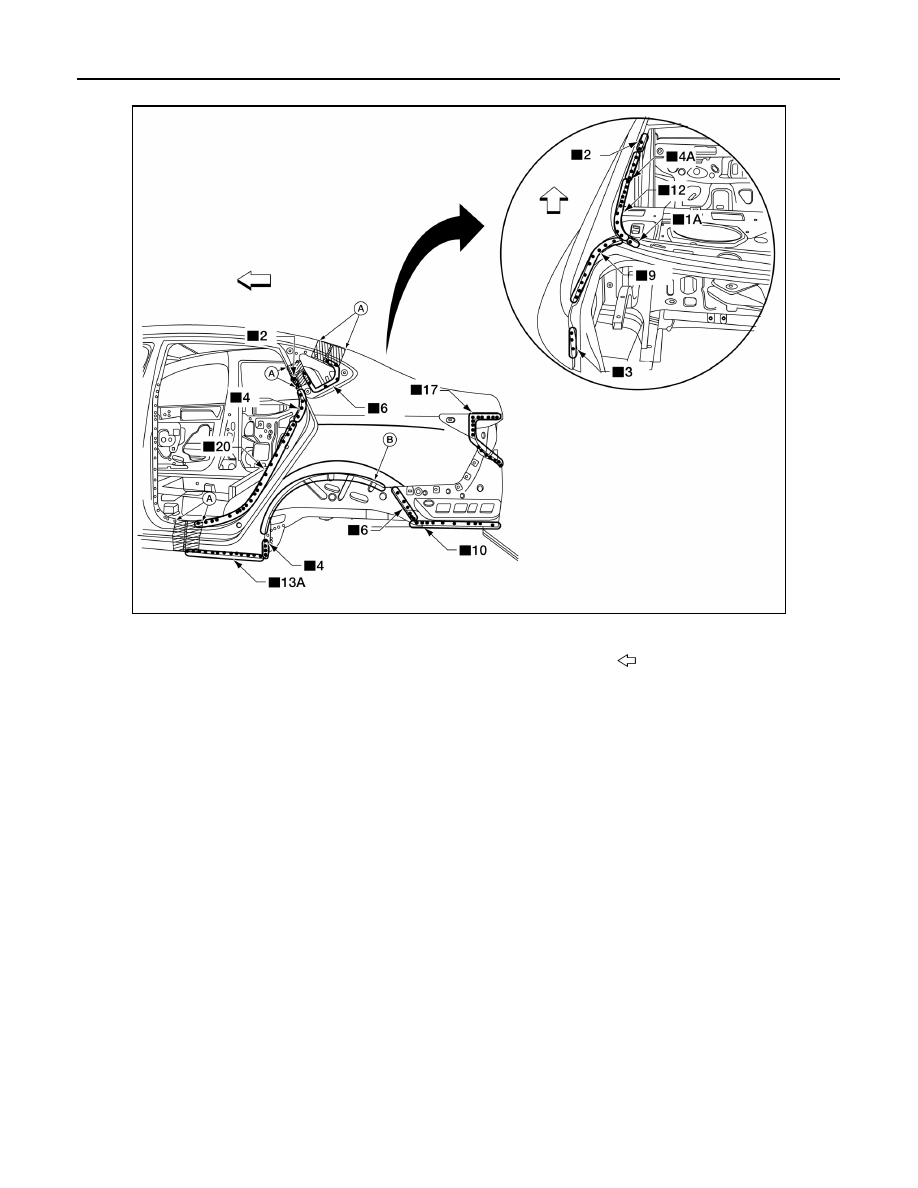

Rear Fender

INFOID:0000000009758083

ALKIA2778ZZ

Change parts

A.

Recommended cut zone

B. Bonded hem flange

Front

REPLACEMENT OPERATIONS

BRM-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

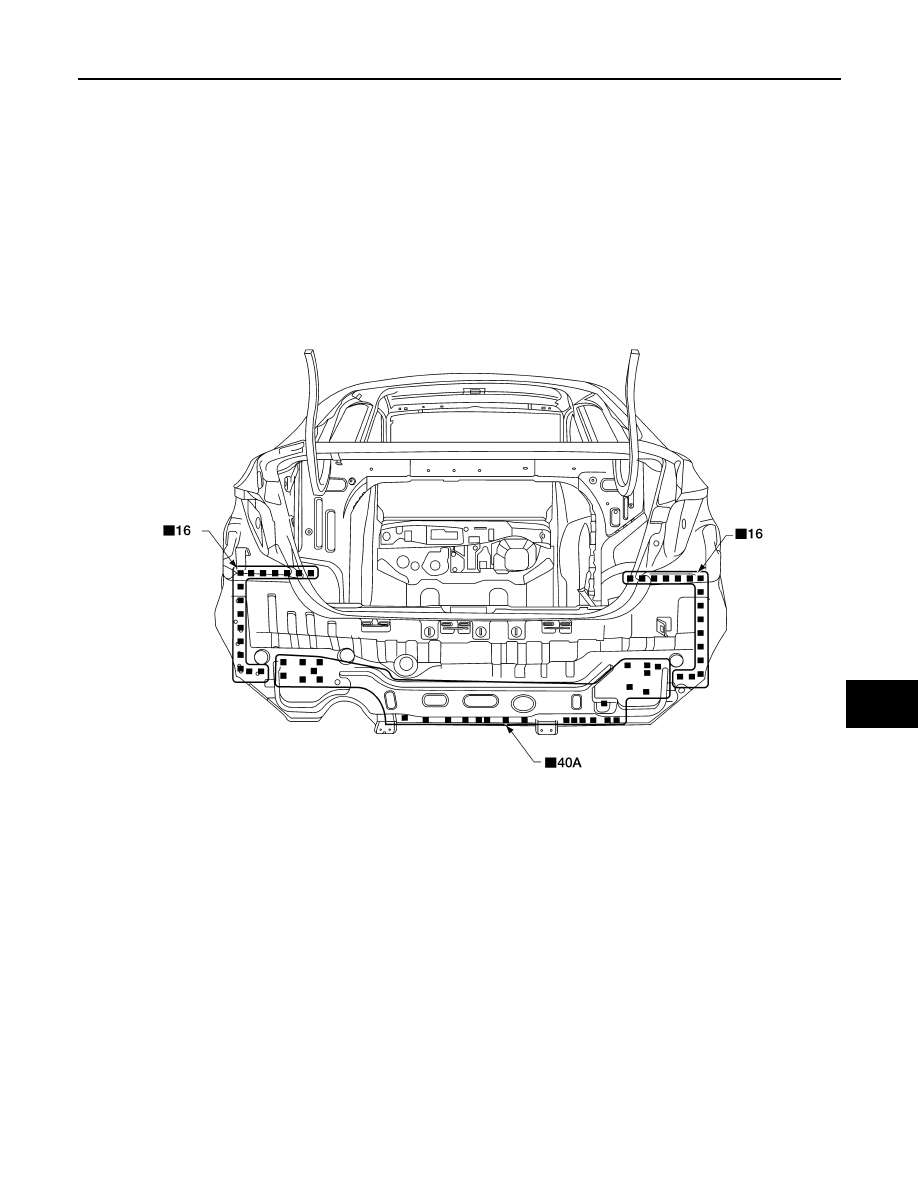

Rear Panel

INFOID:0000000009758084

Rear Floor Rear

INFOID:0000000009758085

• Work after rear panel assembly has been removed.

Change parts

z

Rear panel assembly

ALKIA2775ZZ
