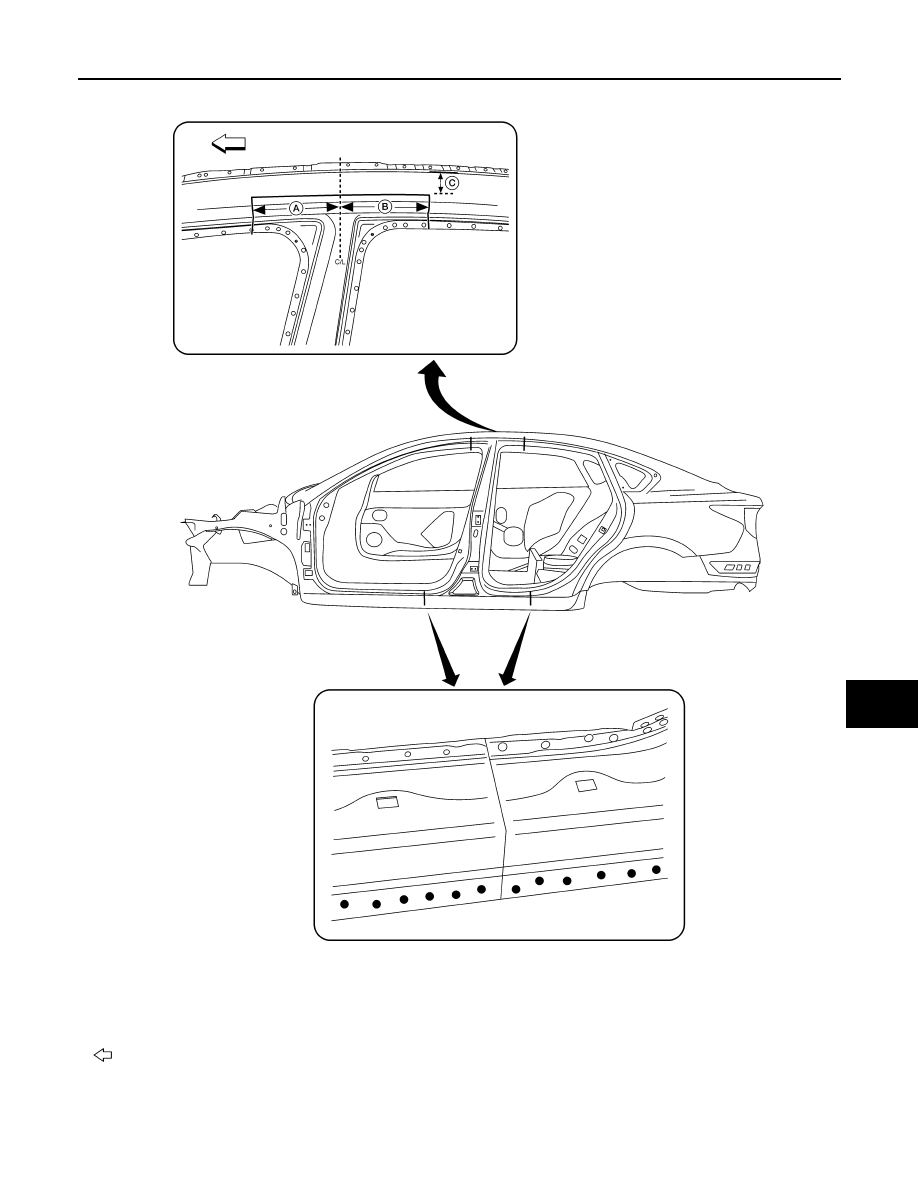

A. Center pillar portion of body side outer

recommended sectioning area.

ALKIA2789ZZ

REPLACEMENT OPERATIONS

BRM-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Removal

Change parts

A. 165 mm (6.5 in)

B. 140 mm (5.5 in)

C.

45 mm (1.8 in)

Front

ALKIA2790ZZ

BRM-32

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

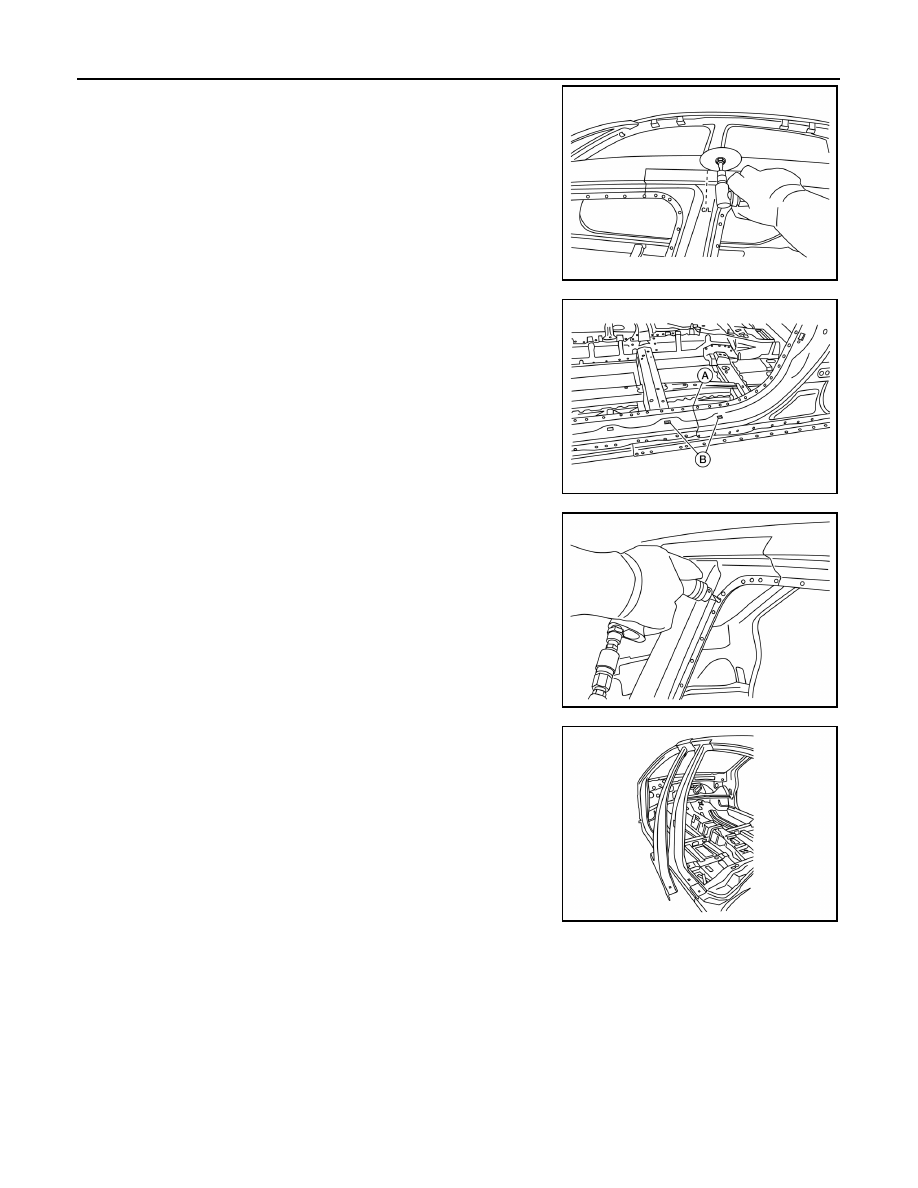

1. Use a cut off wheel to make pre-measured cut in upper center

pillar outer body side.

2. Cut the sill area (A) between the sill plate holes (B) on the lower

center pillar outer body side.

3. Drill spot welds that attach the center pillar outer body side. Only

drill through the outer panel.

4. Remove the center pillar outer body side.

Installation

Match welds locations from removed part onto new panel and weld into place.

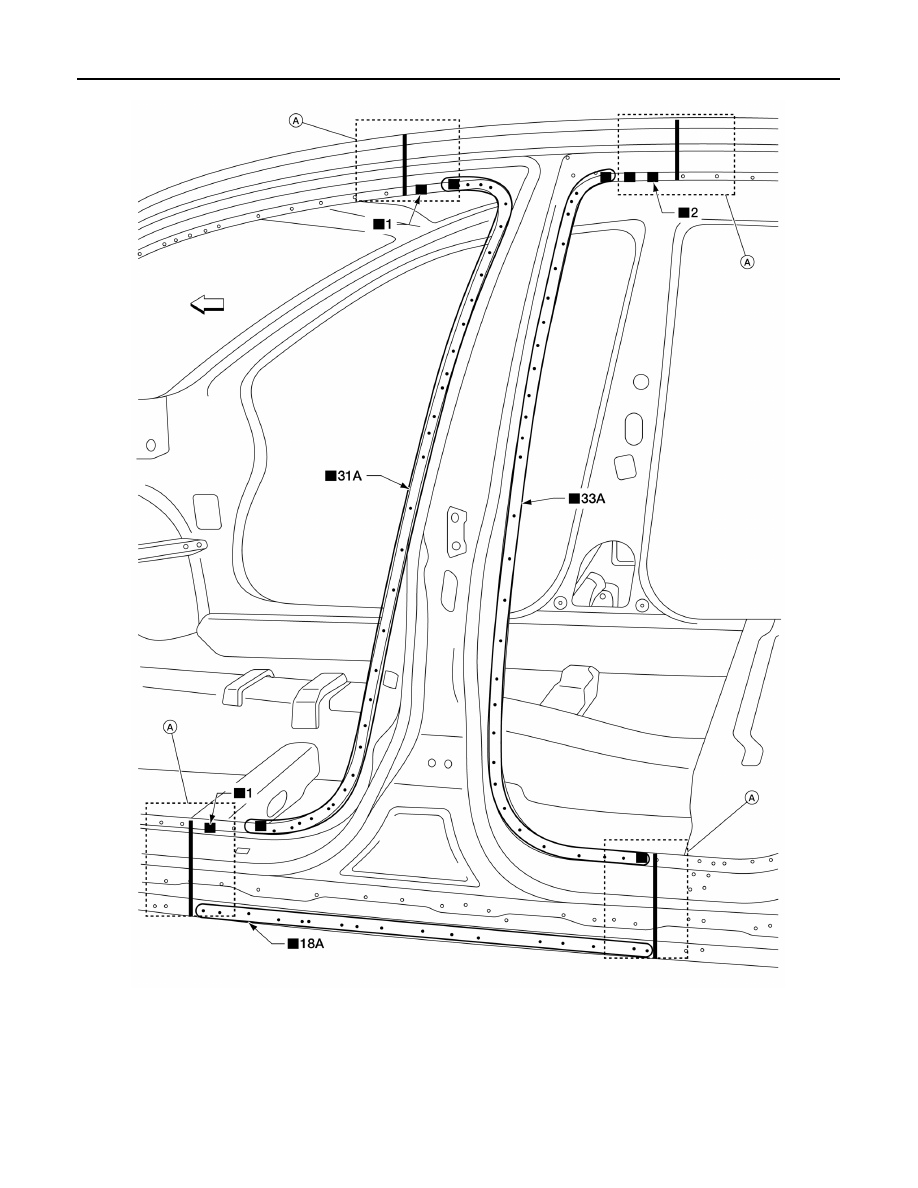

REINFORCEMENT

Work after center pillar outer has been removed.

ALKIA2570ZZ

ALKIA2578ZZ

ALKIA2571ZZ

ALKIA2572ZZ

REPLACEMENT OPERATIONS

BRM-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

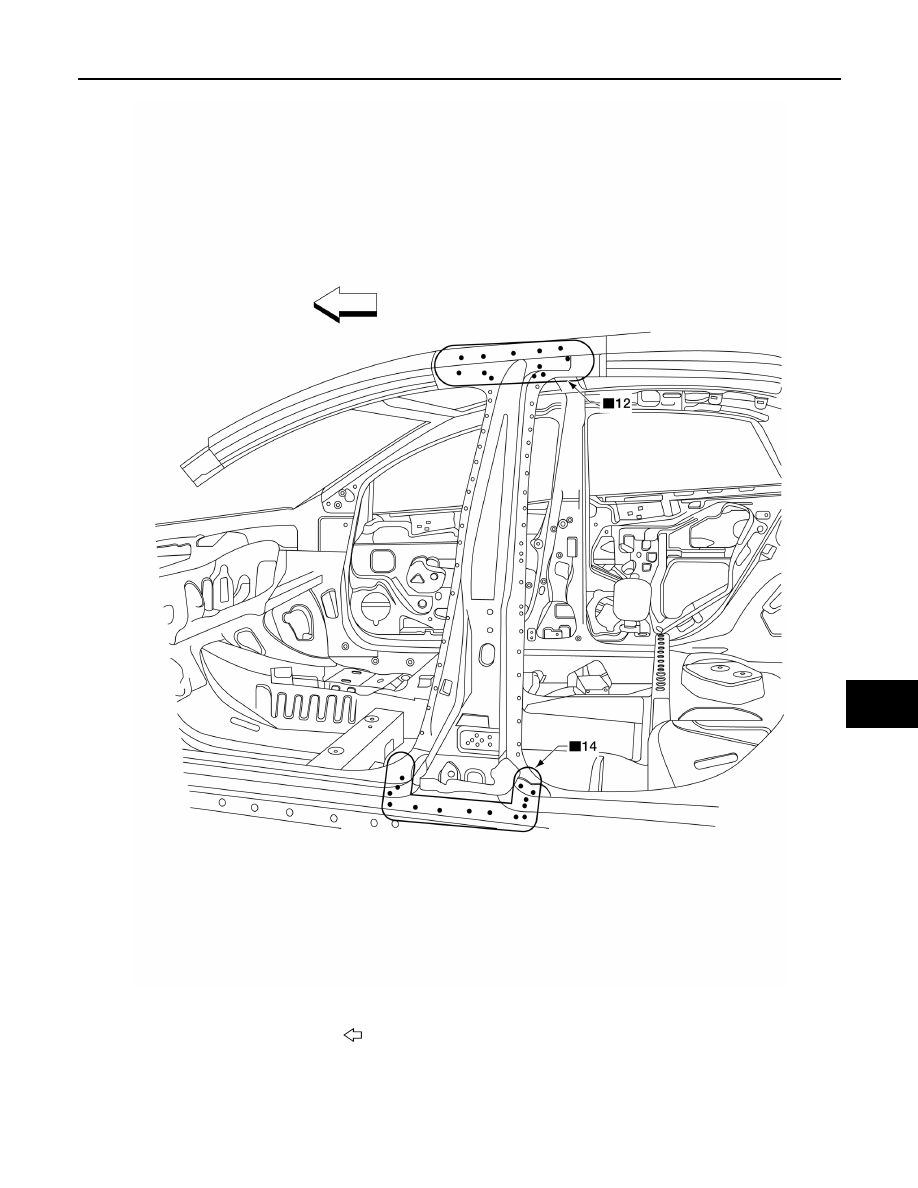

Change parts

z

Center pillar reinforcement

Front

ALKIA2791ZZ
