Nissan Sentra. Manual - part 188

BRM-26

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

REINFORCEMENT

• Work after front pillar outer has been removed.

Change parts

z

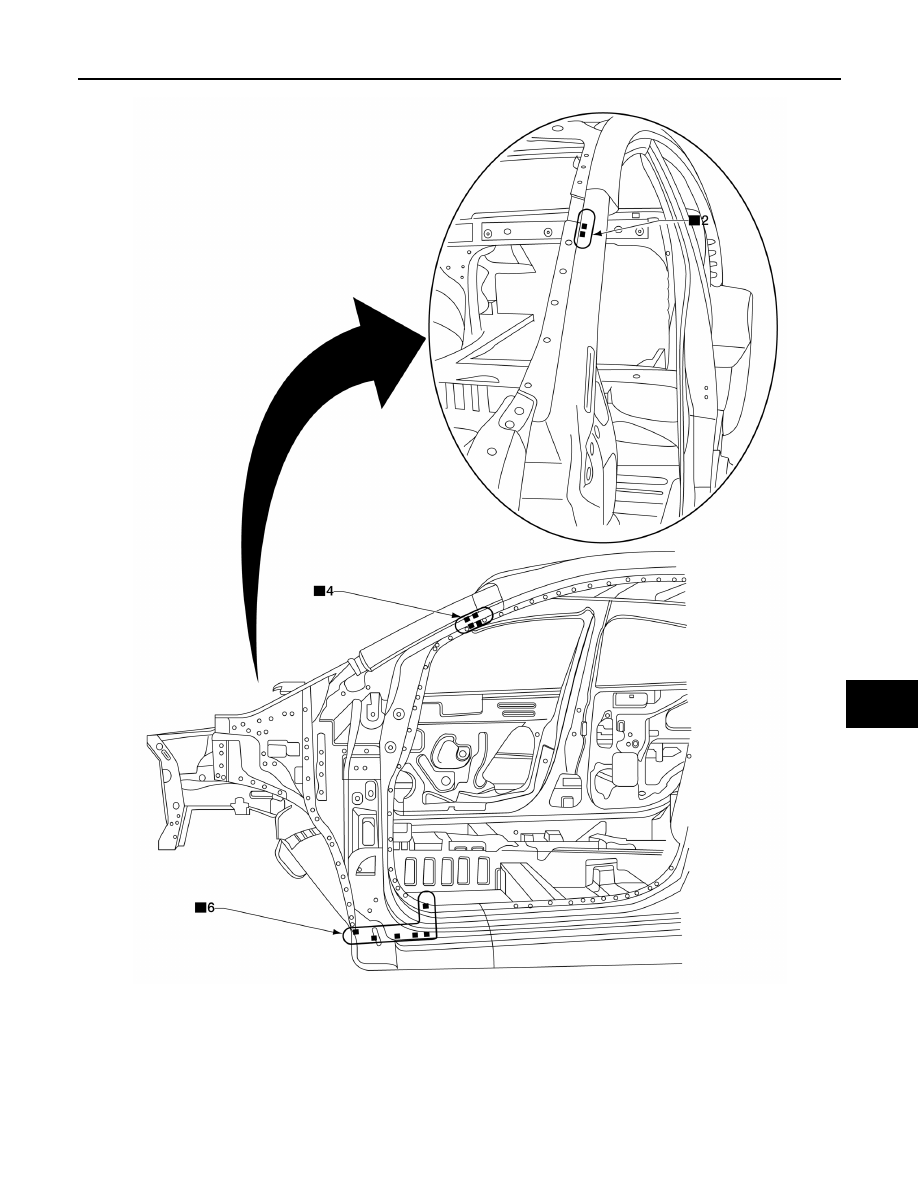

Front pillar section of body side outer

A. Recommended sectioning location

ALKIA2781ZZ

REPLACEMENT OPERATIONS

BRM-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

INNER

Change parts

z

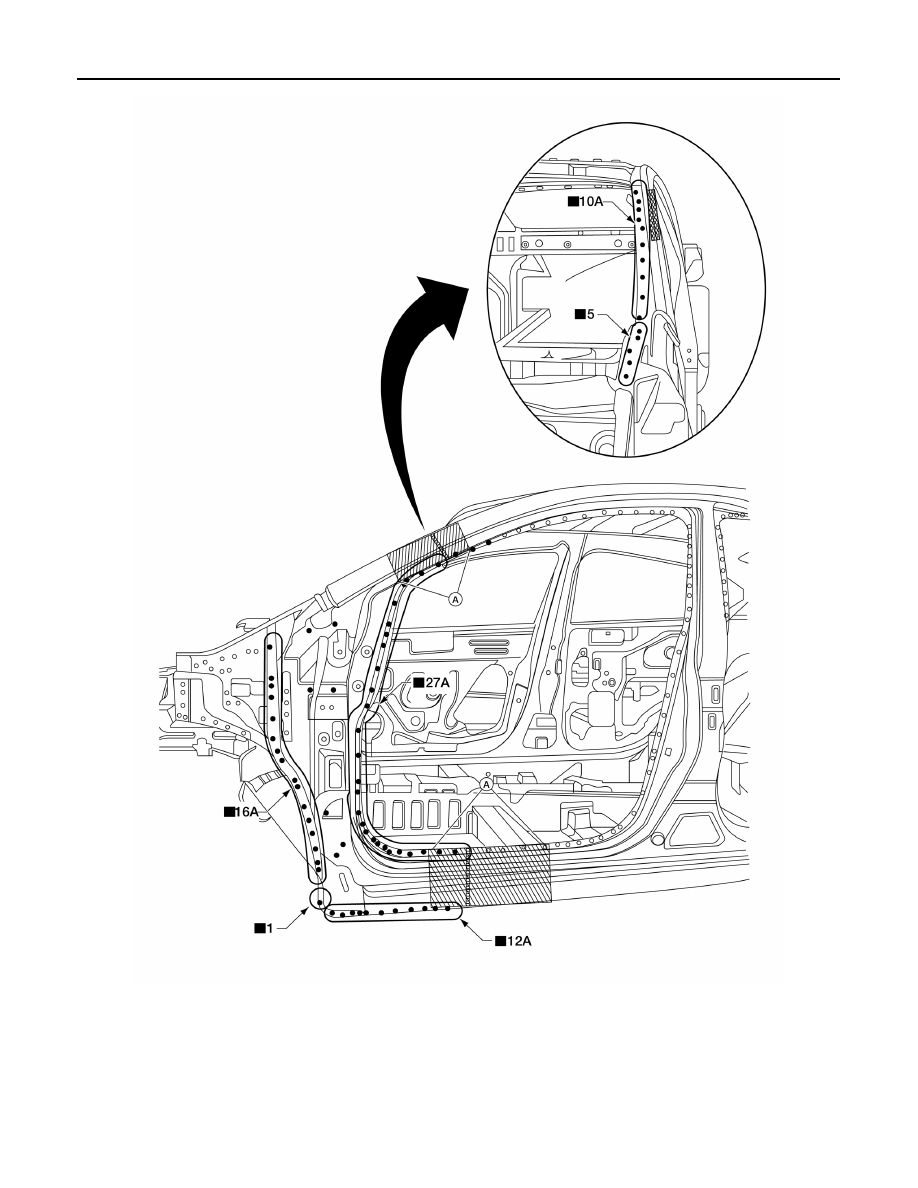

Front pillar reinforcement

ALKIA2783ZZ

BRM-28

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

• Work after front pillar reinforcement has been removed.

Dash Side

INFOID:0000000009758079

Work with front pillar reinforcement removed.

Change parts

z

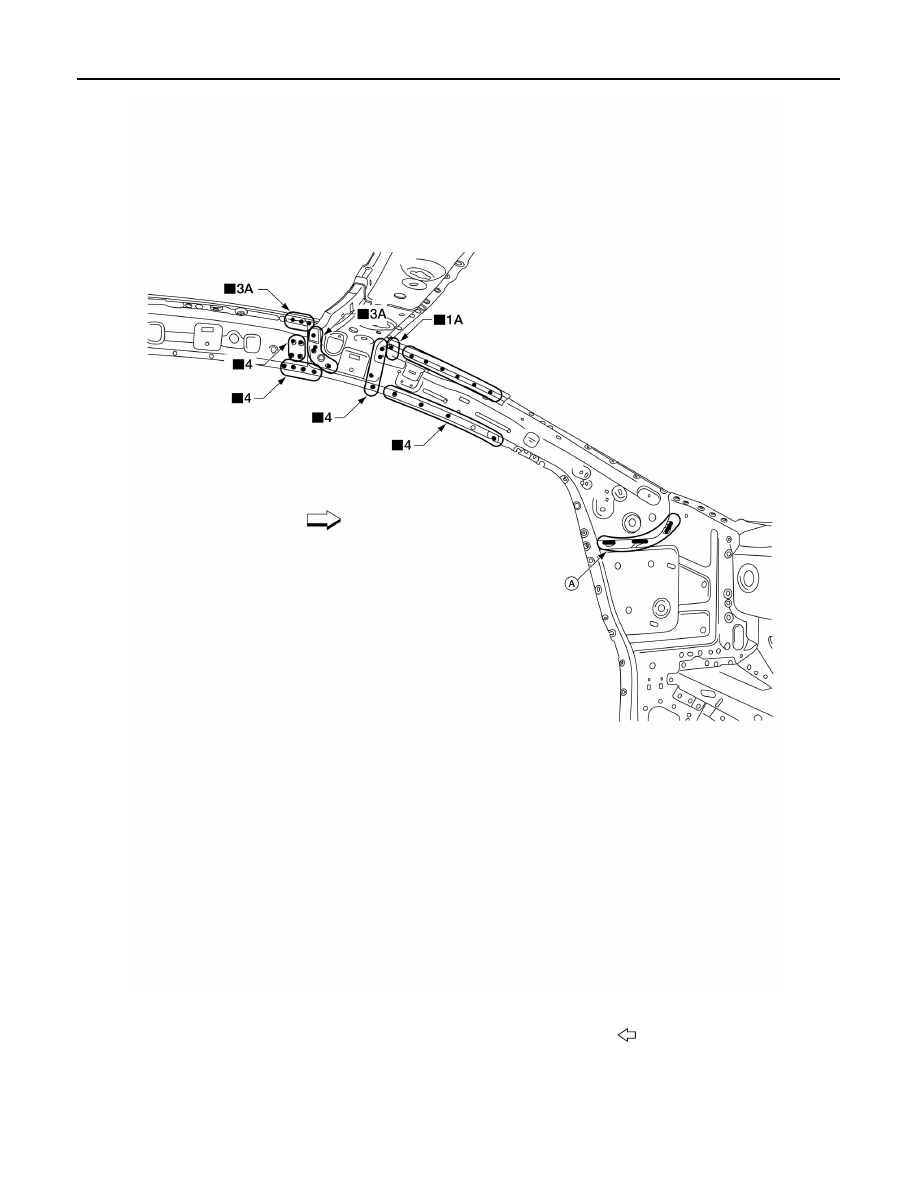

Front pillar inner reinforcement

A. Stitch mig welds

Front

ALKIA2786ZZ

REPLACEMENT OPERATIONS

BRM-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Center Pillar

INFOID:0000000009758080

OUTER

Change parts
z

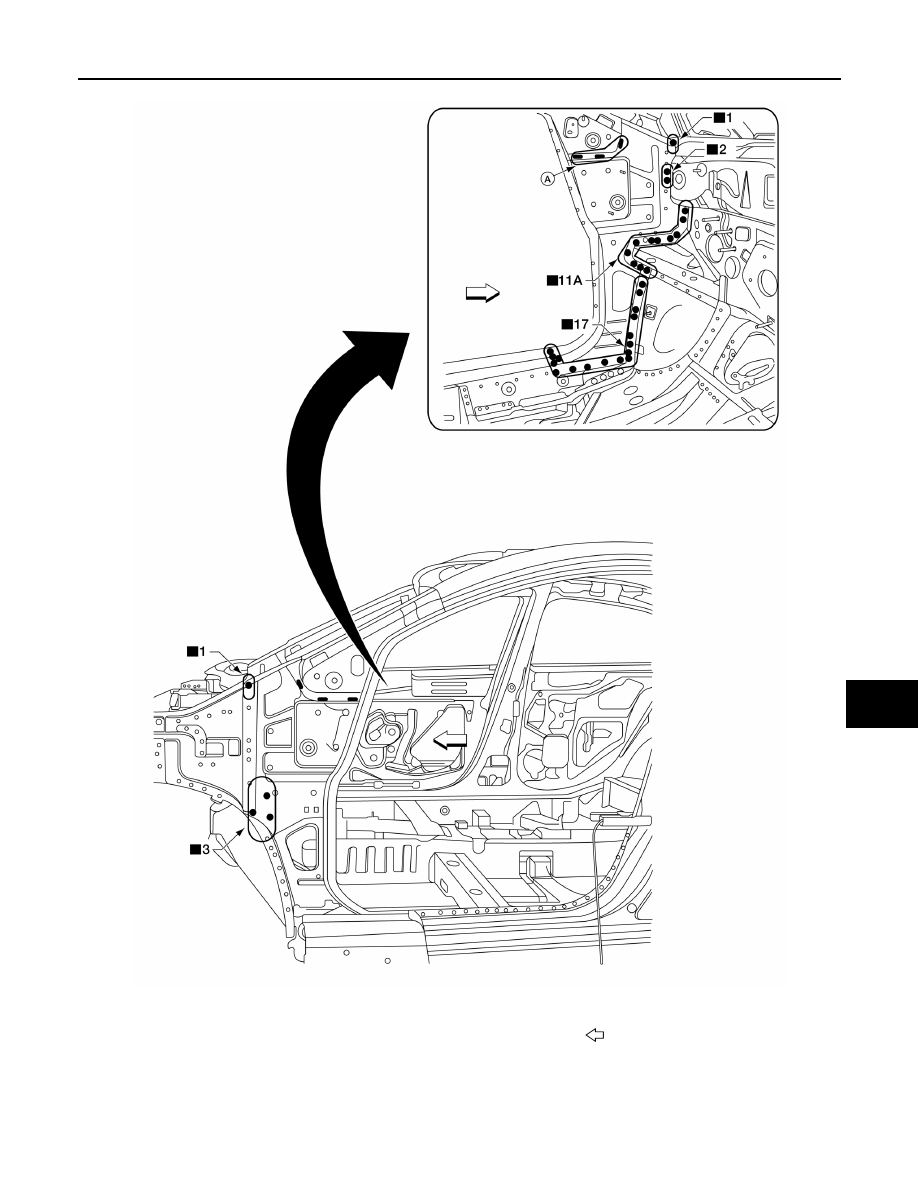

Dash side

A

Stitch mig weld

Front

ALKIA2787ZZ
