Nissan Sentra. Manual - part 192

BRM-42

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

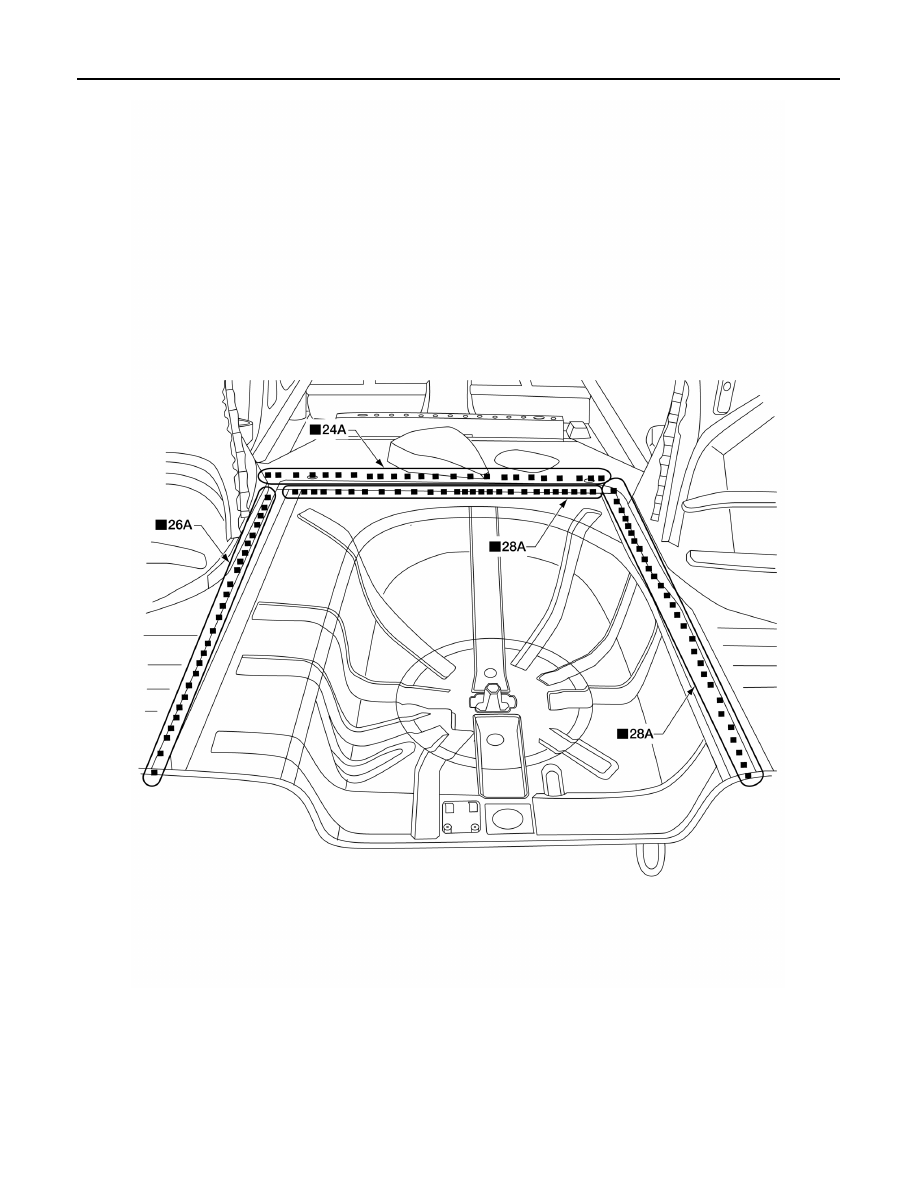

Change parts

z

Rear floor rear

ALKIA2776ZZ

REPLACEMENT OPERATIONS

BRM-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

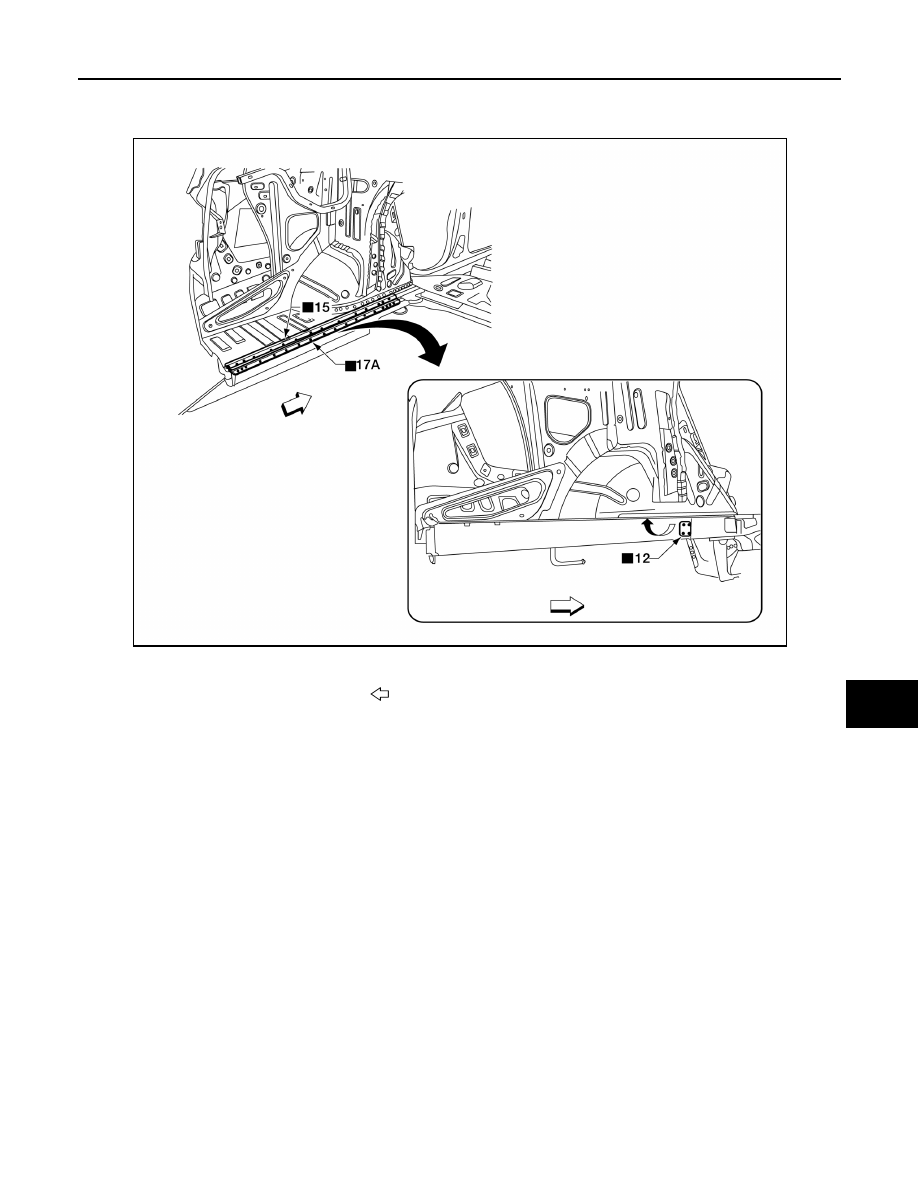

Rear Side Member Extension

INFOID:0000000009758086

• Work after rear panel assembly and rear floor rear have been removed.

Change parts

z

Rear side member extension

Front

ALKIA2777ZZ

BRM-44

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

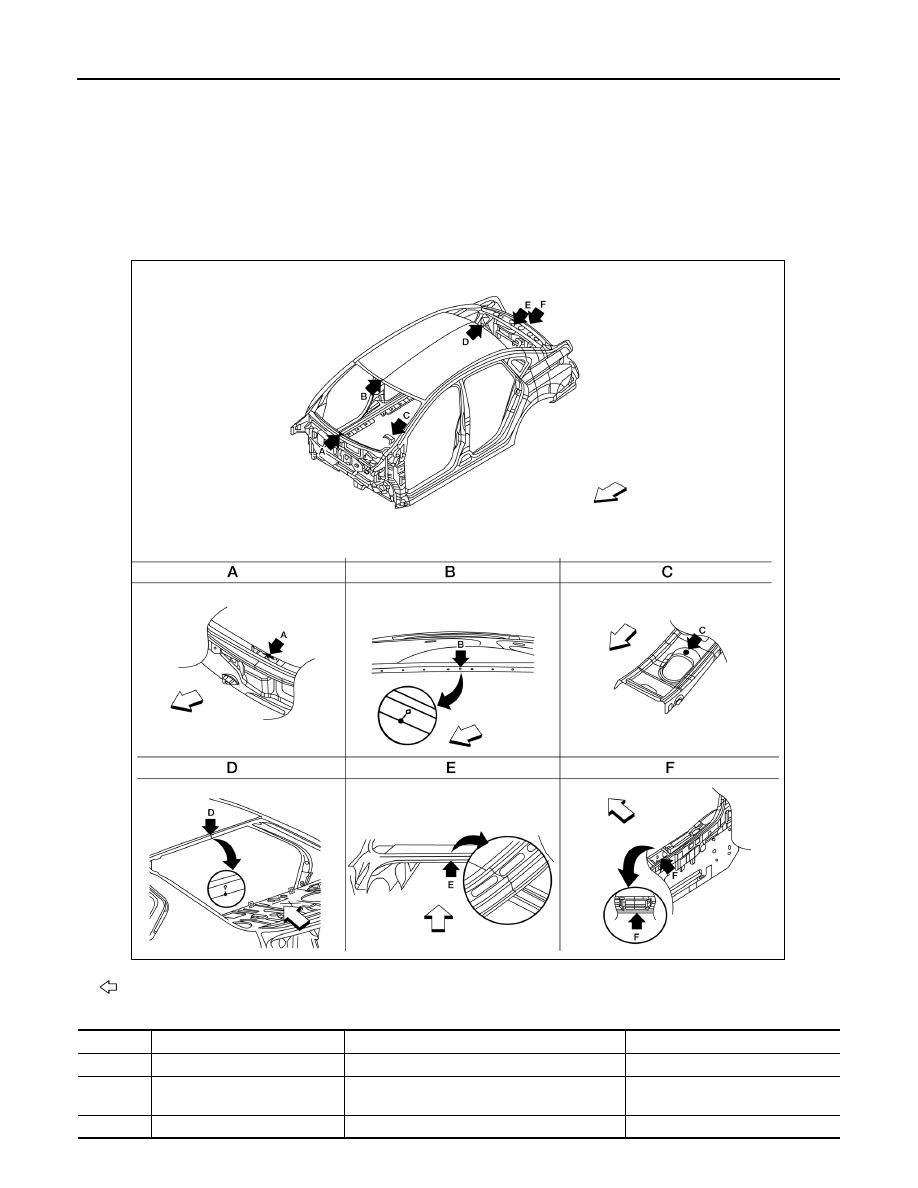

Body Center Marks

INFOID:0000000009758087

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-

aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective

repair will be possible by using these marks together with body alignment specifications.

Unit: mm (in)

Front

ALKIA2761ZZ

Position

Portion

Mark

Measurement

A

Cowl top extension

 Raised dimple

7 (0.3)

B

Front roof position mark for
alignment

Raised dimple

—

C

Shift selector bracket center

 Hole

 14 (0.6)

BODY ALIGNMENT

BRM-45

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Description

INFOID:0000000009758088

• All dimensions indicated in the figures are actual.

• When using a tram gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to

make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

• Measurements should be taken at the center of the mounting holes.

• The value at the measuring point indicates that the measuring point on the other side is symmetrically the

same value.

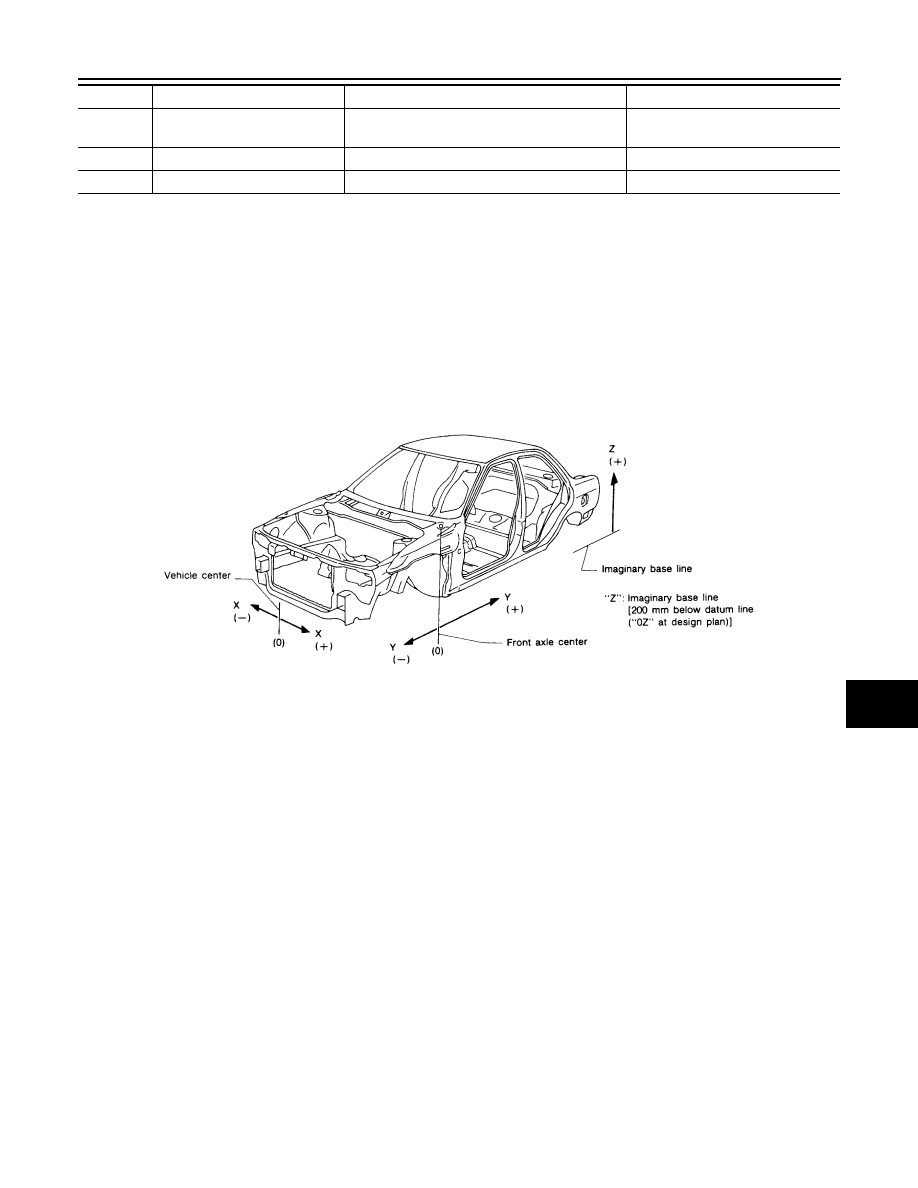

• The coordinates of the measurement points are the distances measured from the standard line of

″X″, ″Y″

and

″Z″.

Engine Compartment

INFOID:0000000009758089

Measurement

D

Rear roof position mark for
alignment

Raised dimple

—

E

Rear waist flange

Raised dimple

—

F

Rear panel upper

 Notch

—

Position

Portion

Mark

Measurement

PIIA0104E
