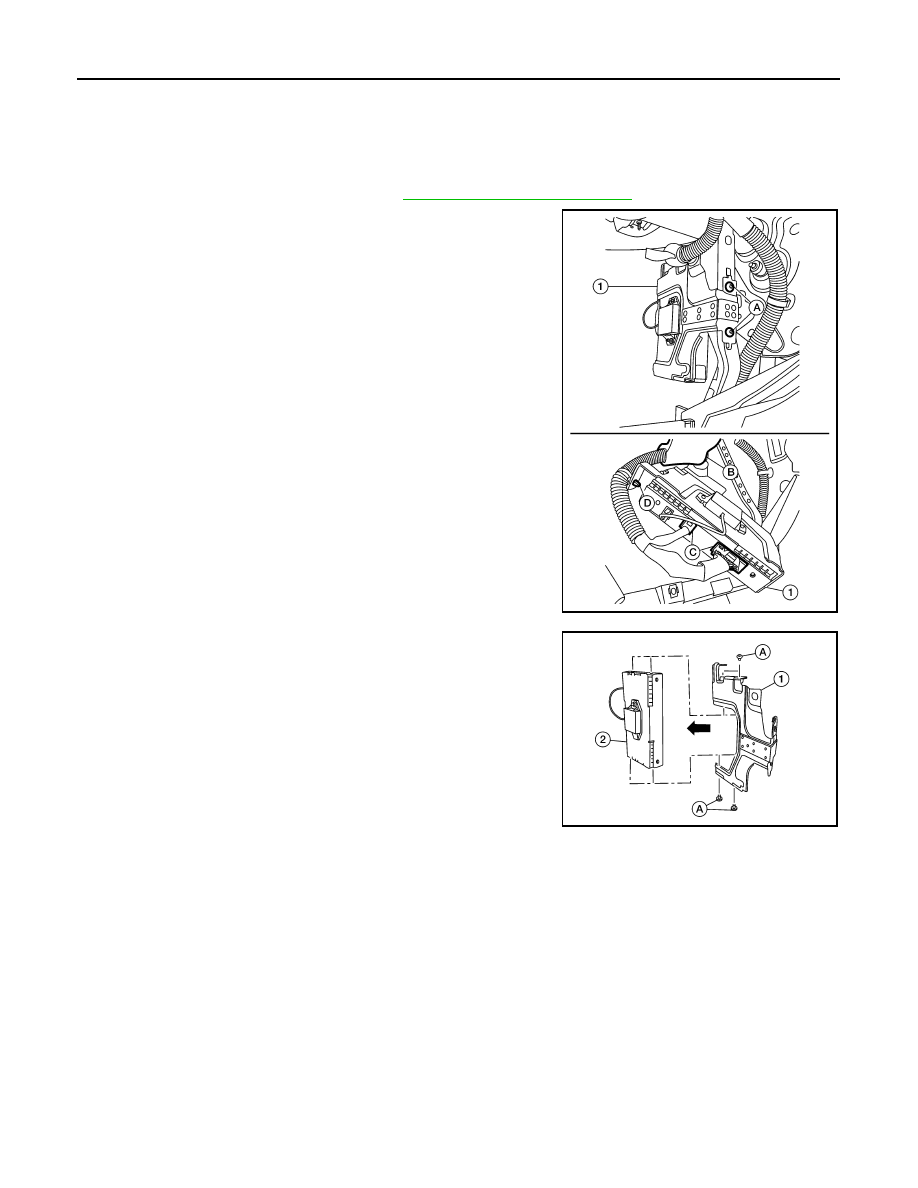

AV-68 < REMOVAL AND INSTALLATION > [BASE AUDIO] BLUETOOTH CONTROL UNIT BLUETOOTH CONTROL UNIT Removal and Installation INFOID:0000000009758831 REMOVAL 1. Remove the glove box assembly. Refer to IP-22, "Removal and Installation" 2. Remove the Bluetooth control unit screws (A) and position aside the Bluetooth control unit assembly (1). 3. Disconnect the Bluetooth control unit connectors (C) and release the harness retainer (B) from the Bluetooth control unit bracket. 4. Release the harness clip (D) from the Bluetooth control unit bracket and remove the Bluetooth control unit (1). 5. Remove the Bluetooth control unit bracket screws (A), then remove the Bluetooth control unit (2) from the Bluetooth control unit bracket (1). INSTALLATION Installation is in the reverse order of removal. ALNIA1417ZZ ALNIA1418ZZ |
