FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000009758824

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

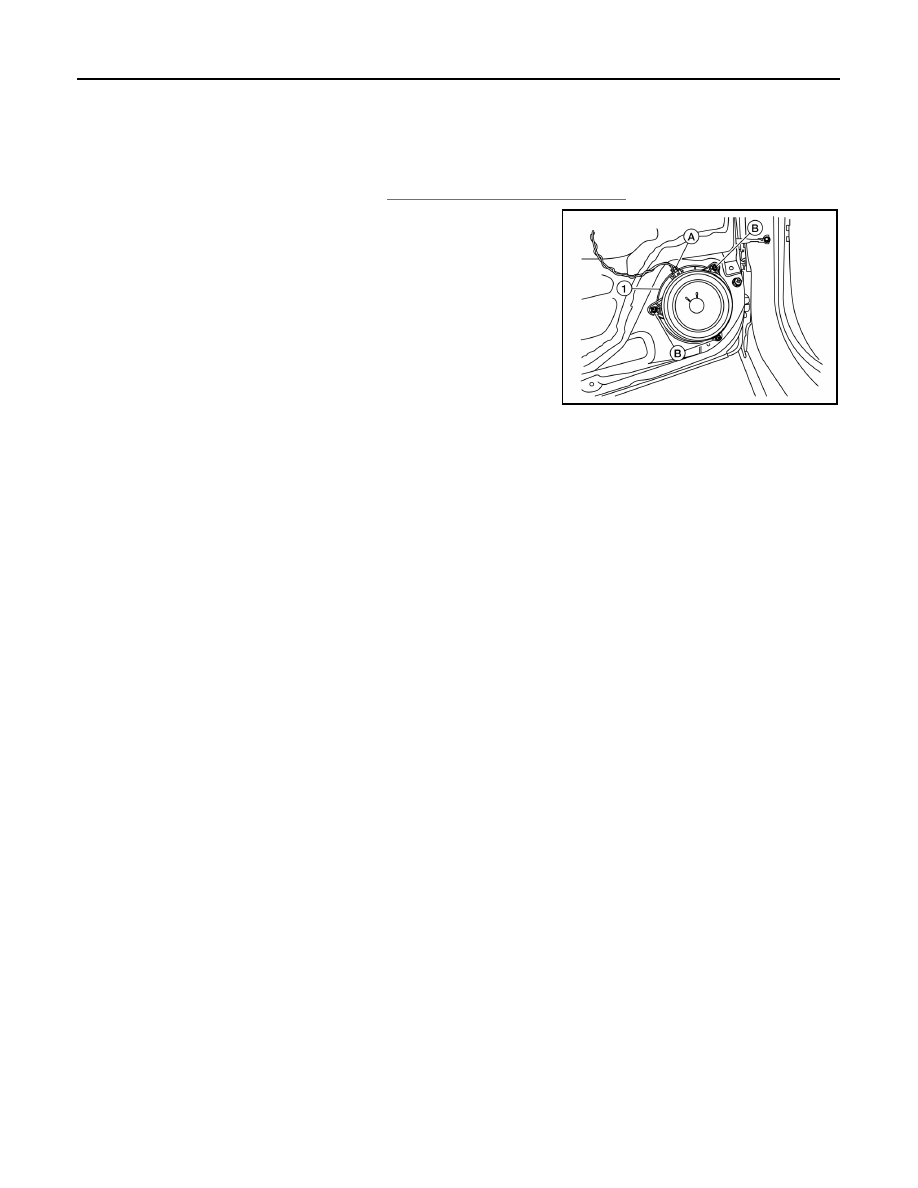

2. Remove the front door speaker screws (B).
3. Disconnect the harness connector (A) from the front door

speaker (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1406ZZ

AV

REAR SPEAKER

AV-61

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR SPEAKER

Removal and Installation

INFOID:0000000009758825

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-33, "Removal and Installation"

.

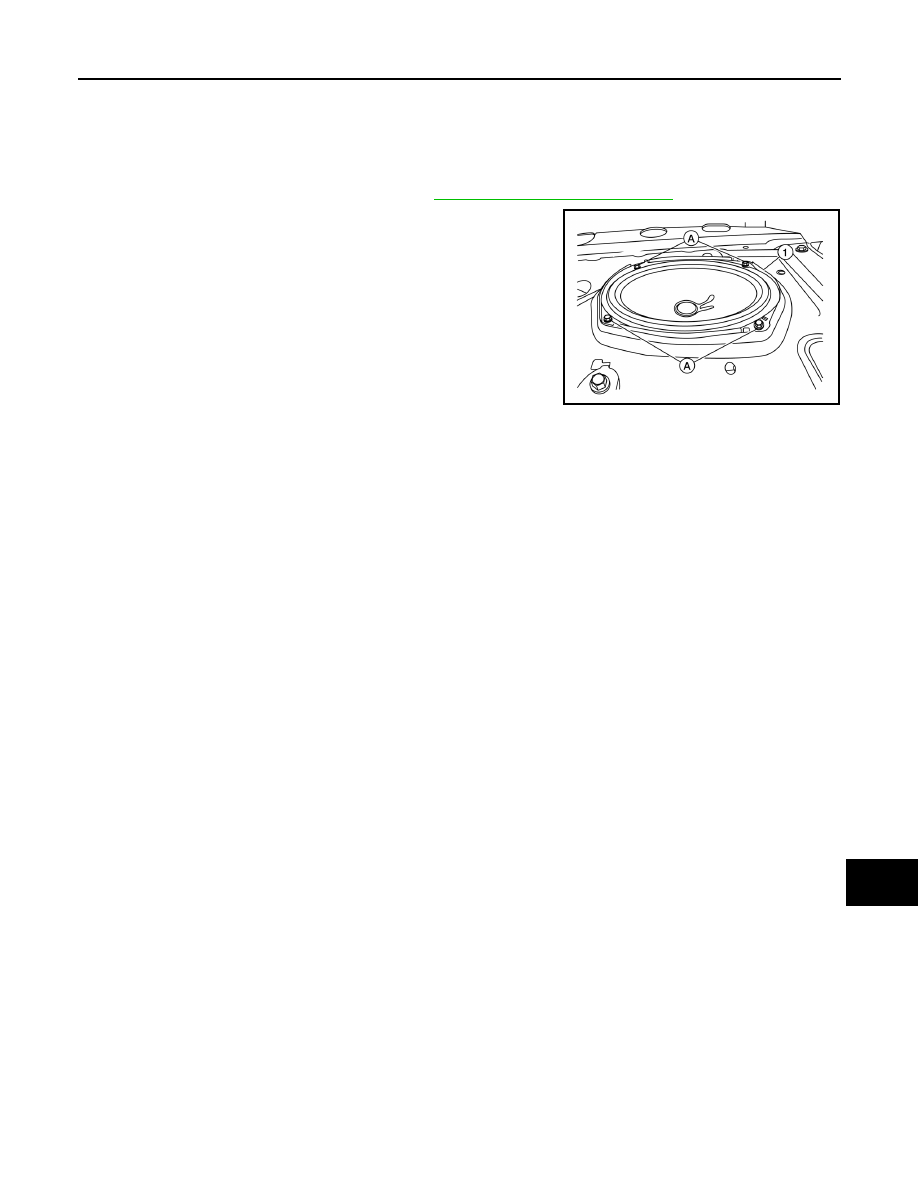

2. Remove the rear speaker screws (A).
3. Disconnect the harness connector from the rear speaker (1) and

remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1407ZZ

AV-62

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

STEERING SWITCH

STEERING SWITCH

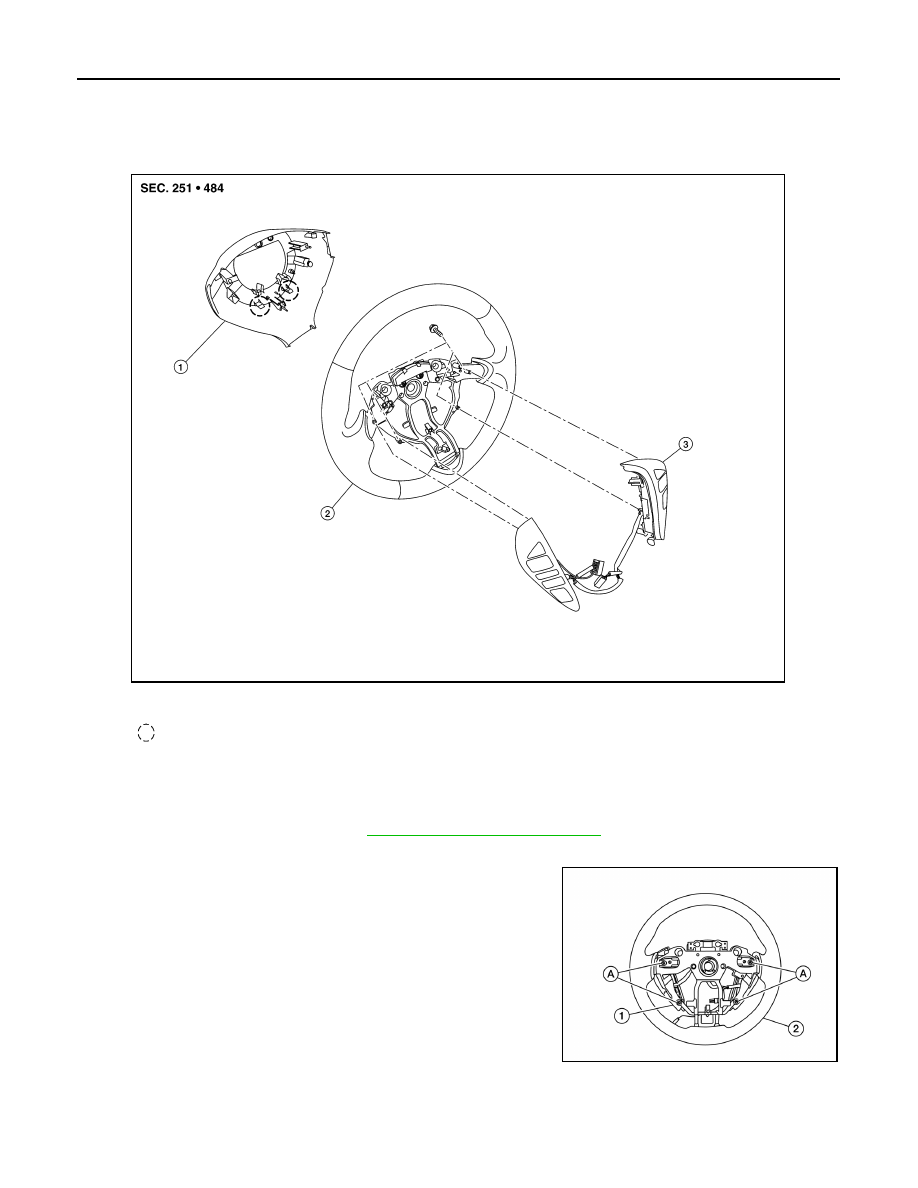

Exploded View

INFOID:0000000009758826

Removal and Installation

INFOID:0000000009758827

REMOVAL

1. Remove the steering wheel. Refer to

ST-10, "Removal and Installation"

.

2. Release the pawls on the steering wheel rear finisher and remove.
3. Remove the steering switches screws (A).
4. Remove the steering switches (1) from steering wheel (2).

INSTALLATION

Installation is in the reverse order of removal.

1.

Steering wheel rear finisher

2.

Steering wheel

3.

Steering switches

Pawl

AWNIA2816ZZ

ALNIA1409ZZ

AV

ANTENNA FEEDER

AV-63

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA FEEDER

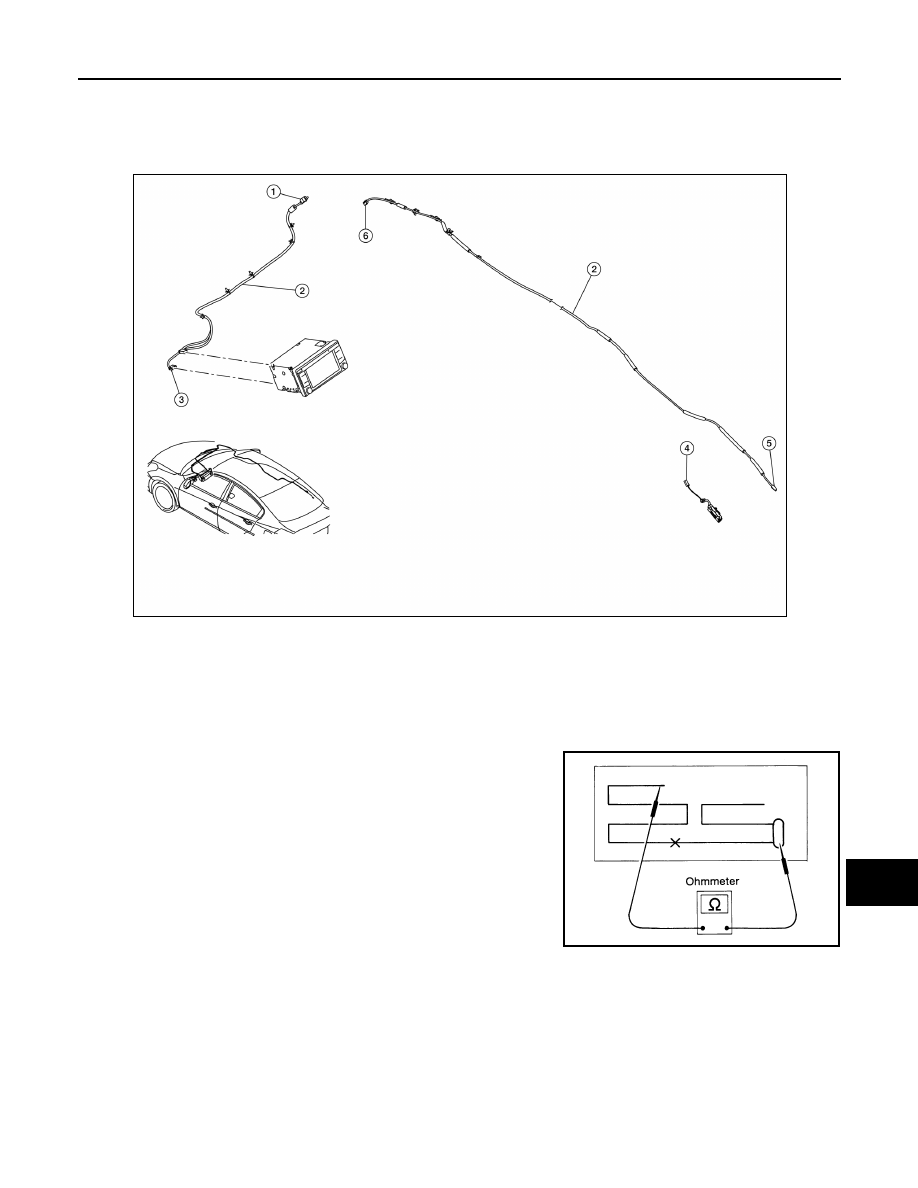

Location of Antenna

INFOID:0000000009758828

Window Antenna Repair

INFOID:0000000009758829

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

ALNIA1456ZZ

1.

M107

2.

Antenna feeder

3.

M138

4.

M503

5.

M502

6.

M501
