< PREPARATION >

[DISPLAY AUDIO WITHOUT BOSE]

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000009758837

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000009758838

Tool number
(TechMate No.)
Tool name

Description

—

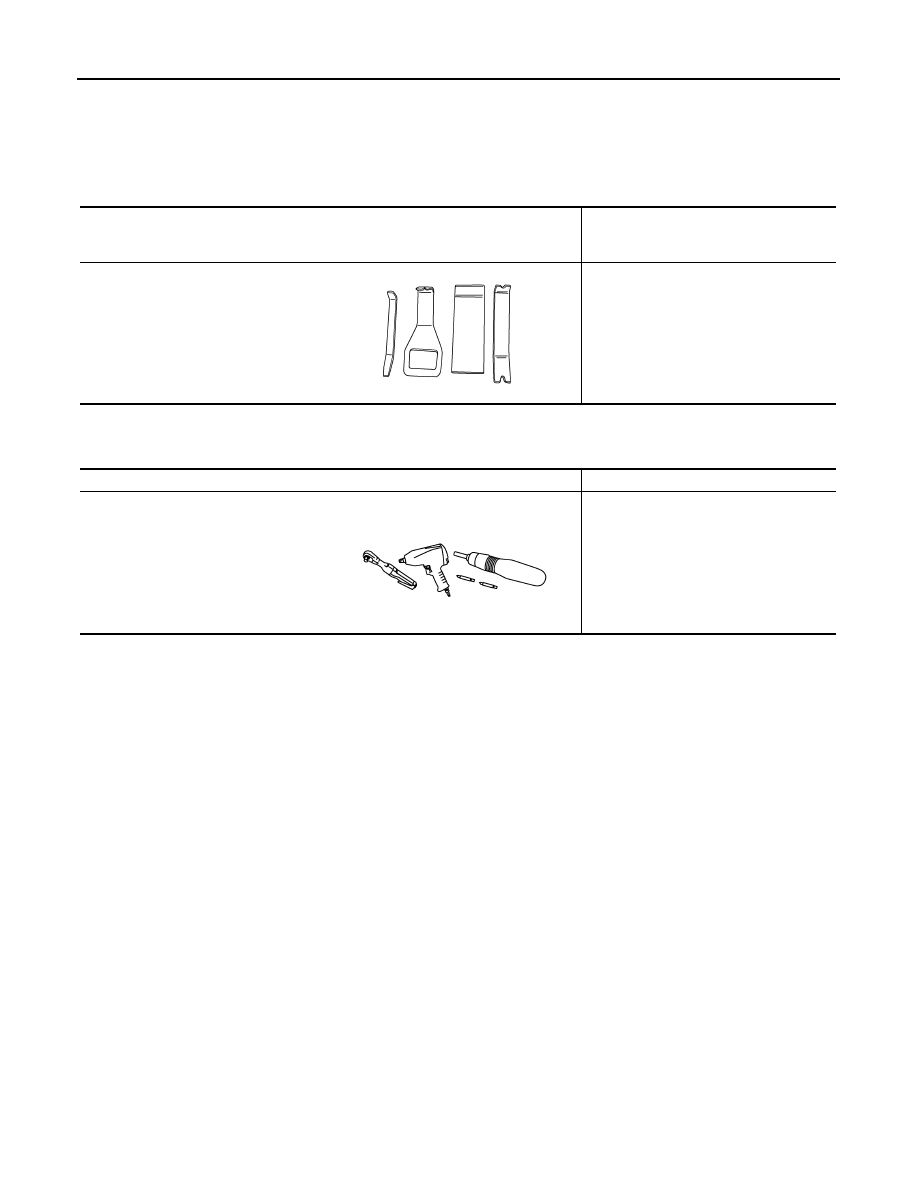

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

COMPONENT PARTS

AV-73

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITHOUT BOSE]

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000009758839

Component Description

INFOID:0000000009758840

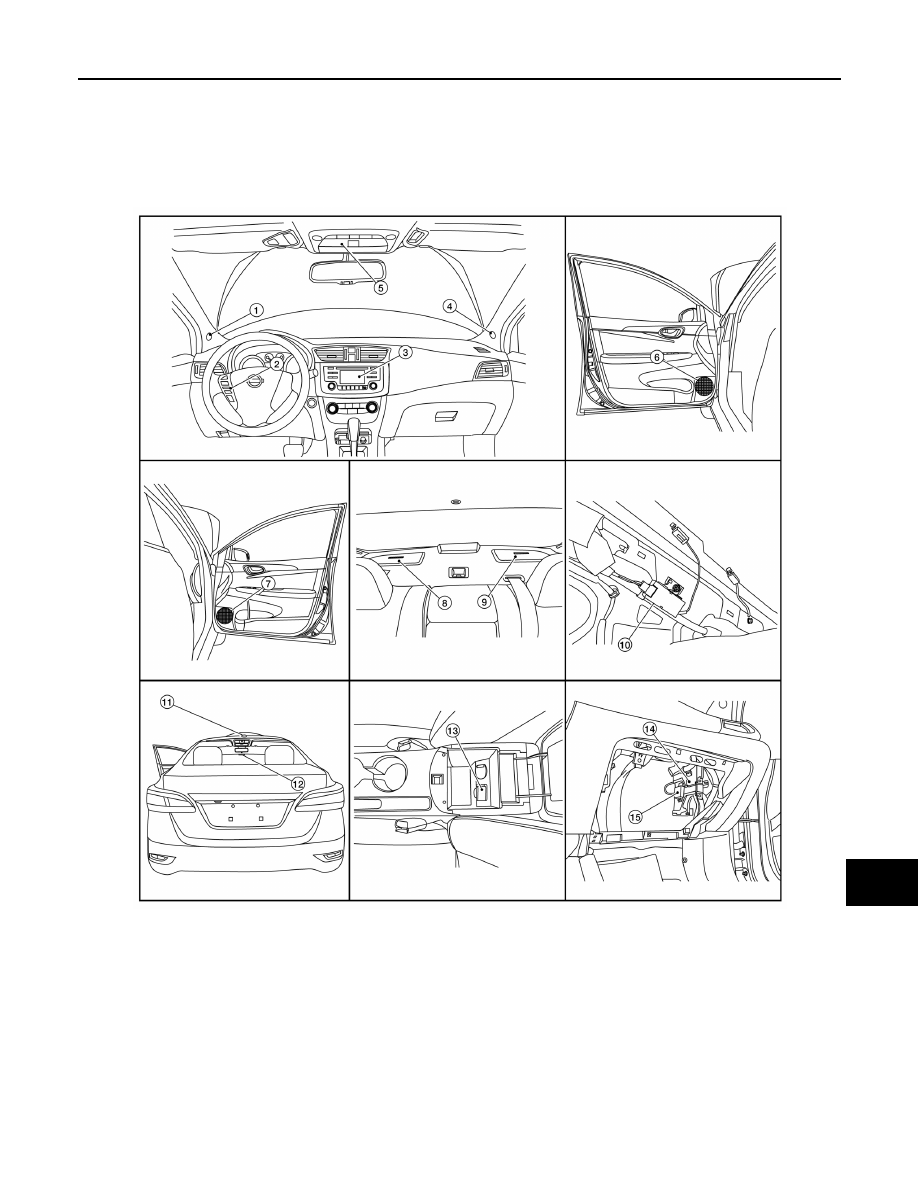

1. Front tweeter LH

2. Steering switches

3. Audio unit

4. Front tweeter RH

5. Microphone

6. Front door speaker LH

7. Front door speaker RH

8. Rear speaker RH

9. Rear speaker LH

10. Antenna amp.

11. Satellite antenna

12. Window antenna

13. USB interface

14. Bluetooth

control unit

15. Bluetooth

antenna

AWNIA2831ZZ

AV-74

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITHOUT BOSE]

COMPONENT PARTS

Part name

Description

Audio unit

• Controls audio, USB connection, AUX IN connection and satellite radio functions.
• Display unit is built in to audio unit.

Front door speakers

Outputs high, mid and low range audio signals from audio unit.

Front tweeters

Rear speakers

Steering switches

• Operations for audio, hands-free phone and voice recognition are possible.
• Steering switch signal is output to Bluetooth

control unit.

• Bluetooth

control unit outputs steering switch signal to audio unit.

Microphone

• Used for hands-free phone operations.
• Microphone signal is transmitted to Bluetooth

control unit.

• Power is supplied from Bluetooth

control unit.

USB interface

USB sound and data input signals are transmitted to audio unit.

Bluetooth

control unit

• Inputs TEL voice signal from Bluetooth

antenna and outputs it to audio unit.

• Controlled via AV communication by audio unit.

Bluetooth

antenna

Receives TEL voice signal and outputs it to Bluetooth

control unit.

Satellite antenna

Satellite radio signal is received and transmitted to audio unit.

Antenna amp.

• AM/FM signal received by window antenna is amplified and transmitted to audio unit.
• Power is supplied from audio unit.

Window antenna

AM/FM signal is received and transmitted to antenna amp.

SYSTEM

AV-75

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITHOUT BOSE]

SYSTEM

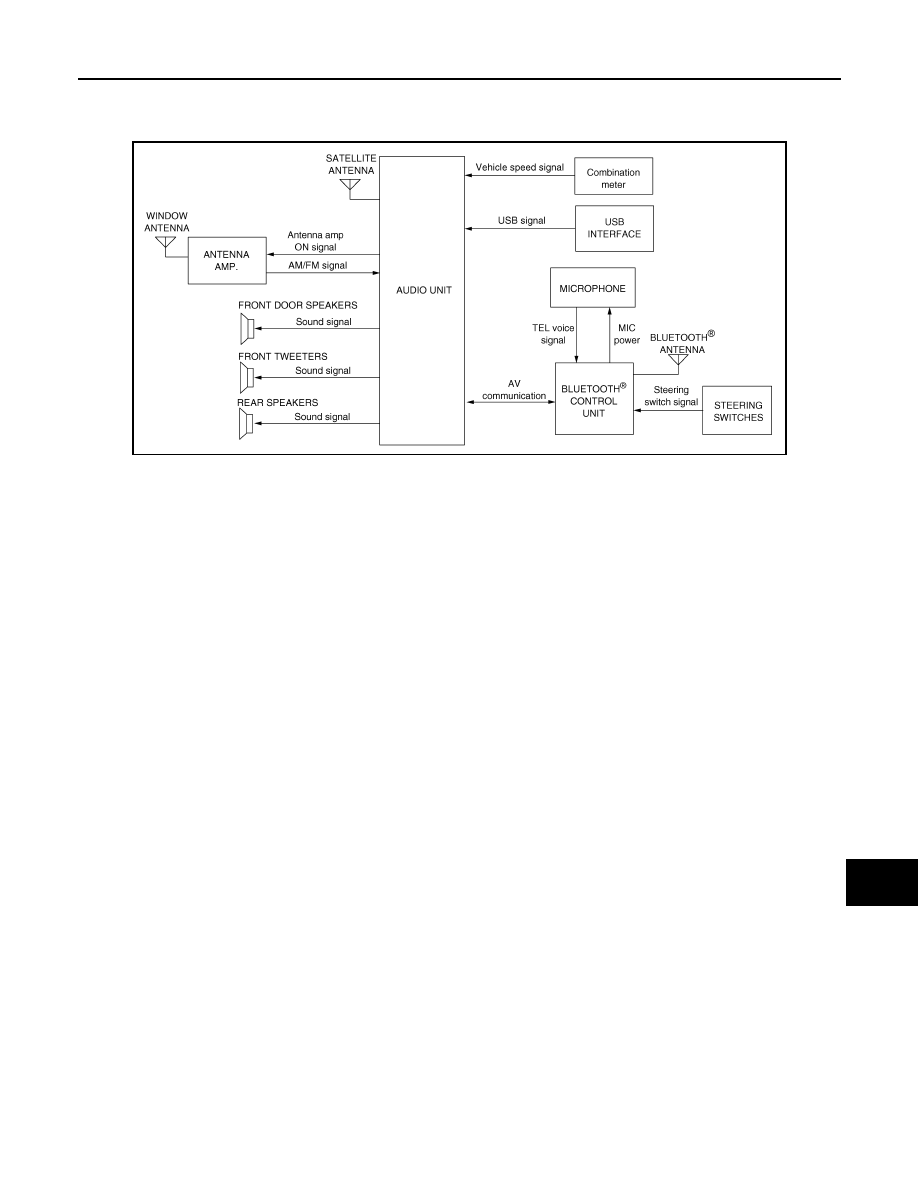

System Diagram

INFOID:0000000009758841

System Description

INFOID:0000000009758842

AUDIO SYSTEM

The audio system consists of the following components

• Audio unit

• Front door speakers

• Front tweeters

• Rear speakers

• Steering switches

• USB interface

• Satellite antenna

• Antenna amp.

• Window antenna

When the audio system is on, AM/FM signals received by the window antenna are amplified by the antenna

amp. and sent to the audio unit. The audio unit then sends audio signals to the front door speakers, front

tweeters and rear speakers.

Refer to Owner's Manual for audio system operating instructions.

HANDS-FREE PHONE SYSTEM

System Operation

NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth

telephone

system.
The Bluetooth

telephone system allows users who have a Bluetooth

cellular telephone to make a wireless

connection between their cellular telephone and the Bluetooth

control unit. Hands-free cellular telephone

calls can be sent and received. Some Bluetooth

cellular telephones may not be recognized by the Bluetooth

control unit. When a cellular telephone or the Bluetooth

control unit is replaced, the telephone must be paired

with the Bluetooth

control unit. Different cellular telephones may have different pairing procedures, refer to

the cellular telephone operating manual.
Refer to the Owner's Manual for Bluetooth

telephone system operating instructions.

Bluetooth

Control Unit

When the ignition switch is turned to ACC or ON, the Bluetooth

control unit will power up. During power up,

the Bluetooth

control unit is initialized and performs various self-checks. Initialization may take up to 20 sec-

onds. If a phone is present in the vehicle and paired with the Bluetooth

control unit, Nissan Voice Recognition

AWNIA3367GB
