SUNLOAD SENSOR

HAC-191

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITH HEAT PUMP)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000010121896

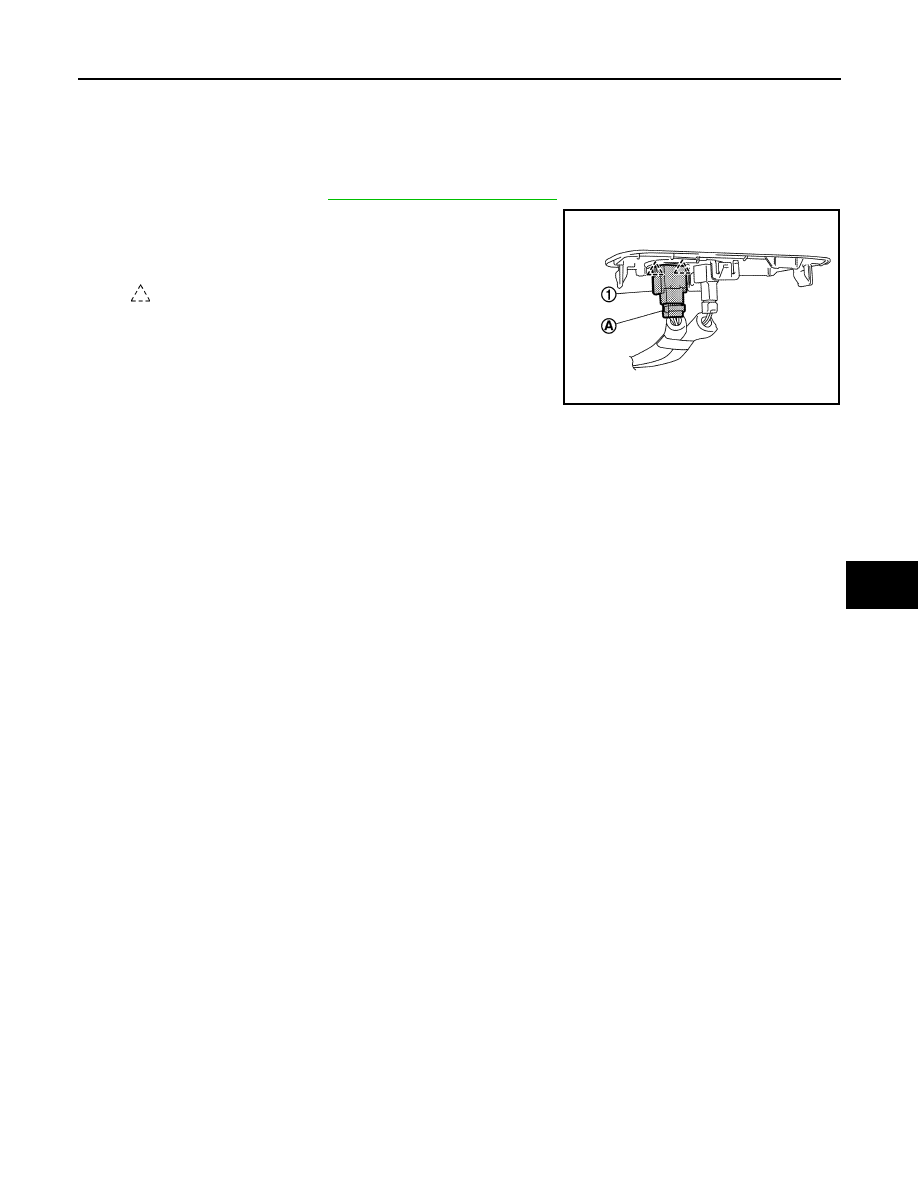

REMOVAL

1. Remove switch panel. Refer to

IP-17, "Removal and Installation"

.

2. Disconnect sunload sensor connector (A).
3. Disengage pawls, and then remove sunload sensor (1) from

switch panel.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JPIIA1831ZZ

HAC-192

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITH HEAT PUMP)]

INTAKE SENSOR

INTAKE SENSOR

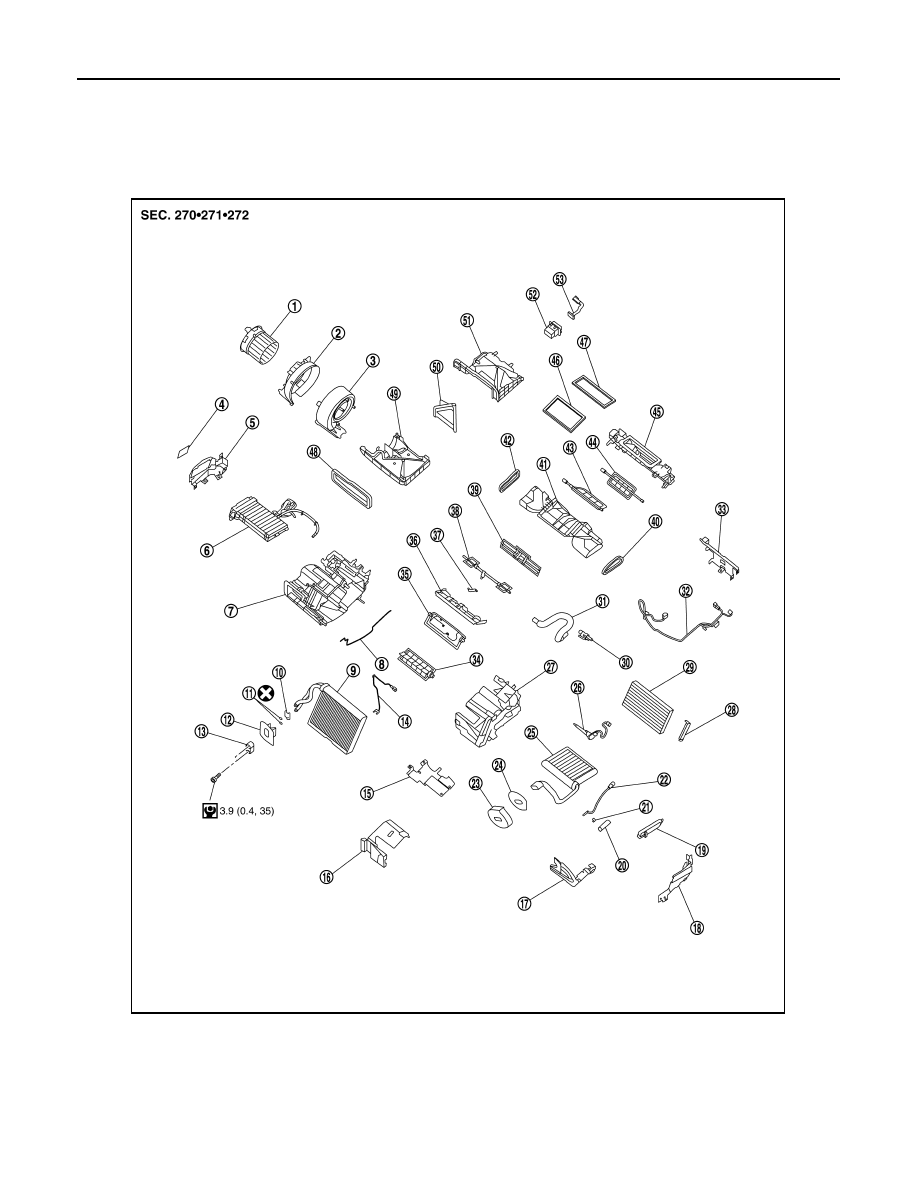

Exploded View

INFOID:0000000010121897

1.

Blower motor

2.

Blower case RH

3.

Blower case LH

4.

High voltage warning label

5.

PTC heater shield RH

6.

PTC heater

7.

Heating and cooling unit assembly
case RH

8.

Case packing

9.

Evaporator

10. Plate

11. O-rings

12. Grommet

13. Low pressure pipe flange

14. Intake sensor

15. PTC heater shield lower

JMIIA2600GB

INTAKE SENSOR

HAC-193

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITH HEAT PUMP)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Removal and Installation

INFOID:0000000010121898

REMOVAL

1. Remove evaporator assembly. Refer to

HA-60, "EVAPORATOR : Removal and Installation"

.

2. Remove intake sensor from evaporator.

INSTALLATION

Note the following items, and then install in the order of removal.

CAUTION:

• Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor

can be located in the same position.

• When removing or installing the intake sensor, be sure not to rotate the bracket insertion part. Fail-

ure to do this may cause damage to the evaporator.

16. Evaporator cover

17. Inner condenser pipe cover

18. PTC heater shield LH

19. Inner condenser cover

20. Sleeve

21. Clip

22. Compressor discharge refrigerant

temperature sensor

23. Grommet

24. Gasket

25. Inner condenser

26. PTC heater outlet and A/C unit

case air temperature sensor as-
sembly

27. Heating and cooling unit

assembly case LH

28. Filter cover

29. Filter

30. Aspirator

31. Aspirator hose

32. Harness

33. PTC heater shield

34. Lower air mix door

35. Upper air mix door

36. Air mix door guide

37. Front door rod

38. Side ventilator door

39. Foot door

40. Side ventilator seal LH

41. Lower attachment case

42. Side ventilator seal RH

43. Center ventilator and defroster door 44. Sub defroster door

45. Upper attachment case

46. Defroster seal

47. Ventilator seal

48. Intake seal

49. Lower intake case

50. Intake door

51. Upper intake seal

52. Power transistor

53. Sub harness

 : Always replace after every disassembly.

 : N·m (kg-m, in-lb)

HAC-194

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITH HEAT PUMP)]

COMPRESSOR DISCHARGE REFRIGERANT TEMPERATURE SENSOR

COMPRESSOR DISCHARGE REFRIGERANT TEMPERATURE SENSOR

Exploded View

INFOID:0000000010121899

1.

Blower motor

2.

Blower case RH

3.

Blower case LH

4.

High voltage warning label

5.

PTC heater shield RH

6.

PTC heater

7.

Heating and cooling unit assembly
case RH

8.

Case packing

9.

Evaporator

10. Plate

11. O-rings

12. Grommet

13. Low pressure pipe flange

14. Intake sensor

15. PTC heater shield lower

JMIIA2600GB
