A/C CONTROL (A/C AUTO AMP.)

HAC-187

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITH HEAT PUMP)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REMOVAL AND INSTALLATION

A/C CONTROL (A/C AUTO AMP.)

Removal and Installation

INFOID:0000000010121892

REMOVAL

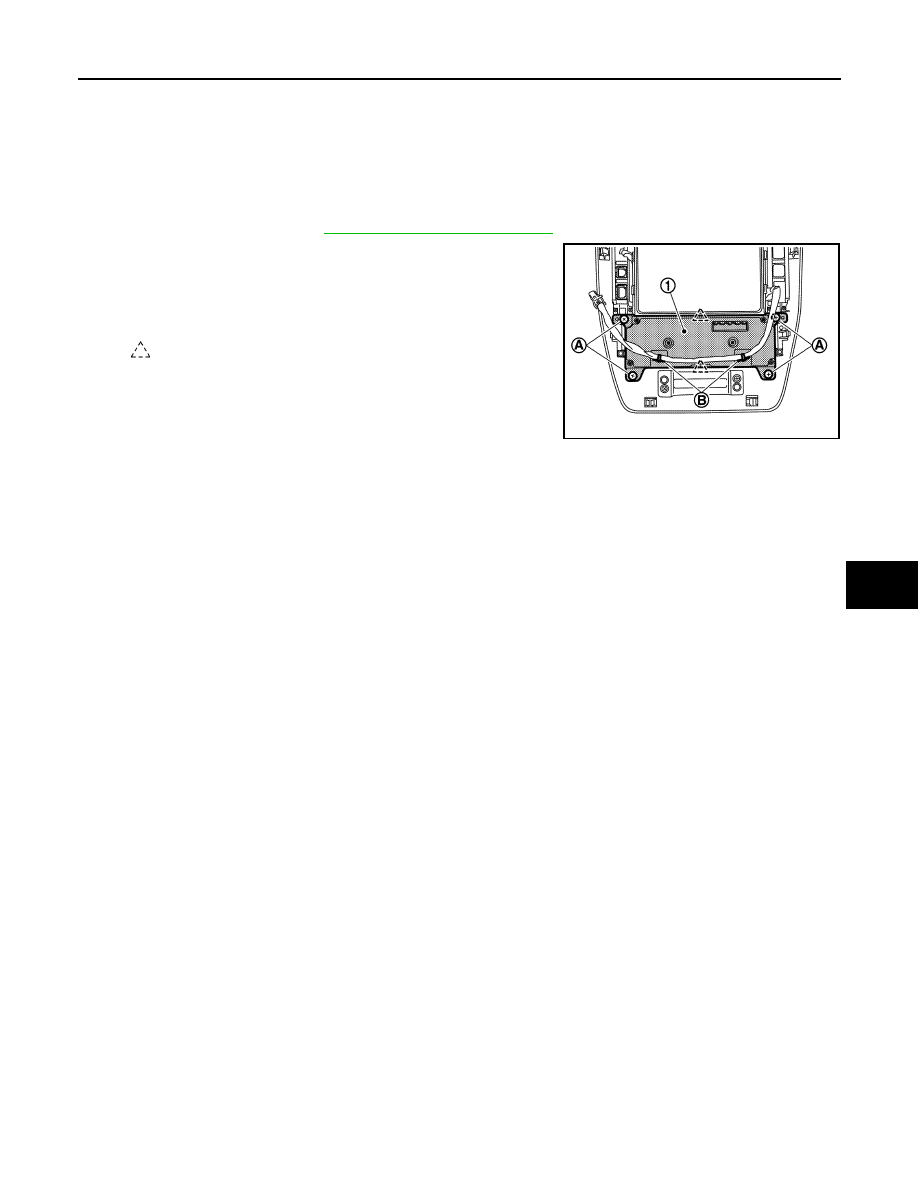

1. Remove cluster lid C. Refer to

IP-17, "Removal and Installation"

.

2. Release harness clips (B) (if equipped).
3. Remove screws (A).
4. Disengage pawls, and then remove A/C auto amp. (1) from clus-

ter lid C.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JPIIA1819ZZ

HAC-188

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITH HEAT PUMP)]

HEAT PUMP CONTROL UNIT

HEAT PUMP CONTROL UNIT

Removal and Installation

INFOID:0000000010121893

REMOVAL

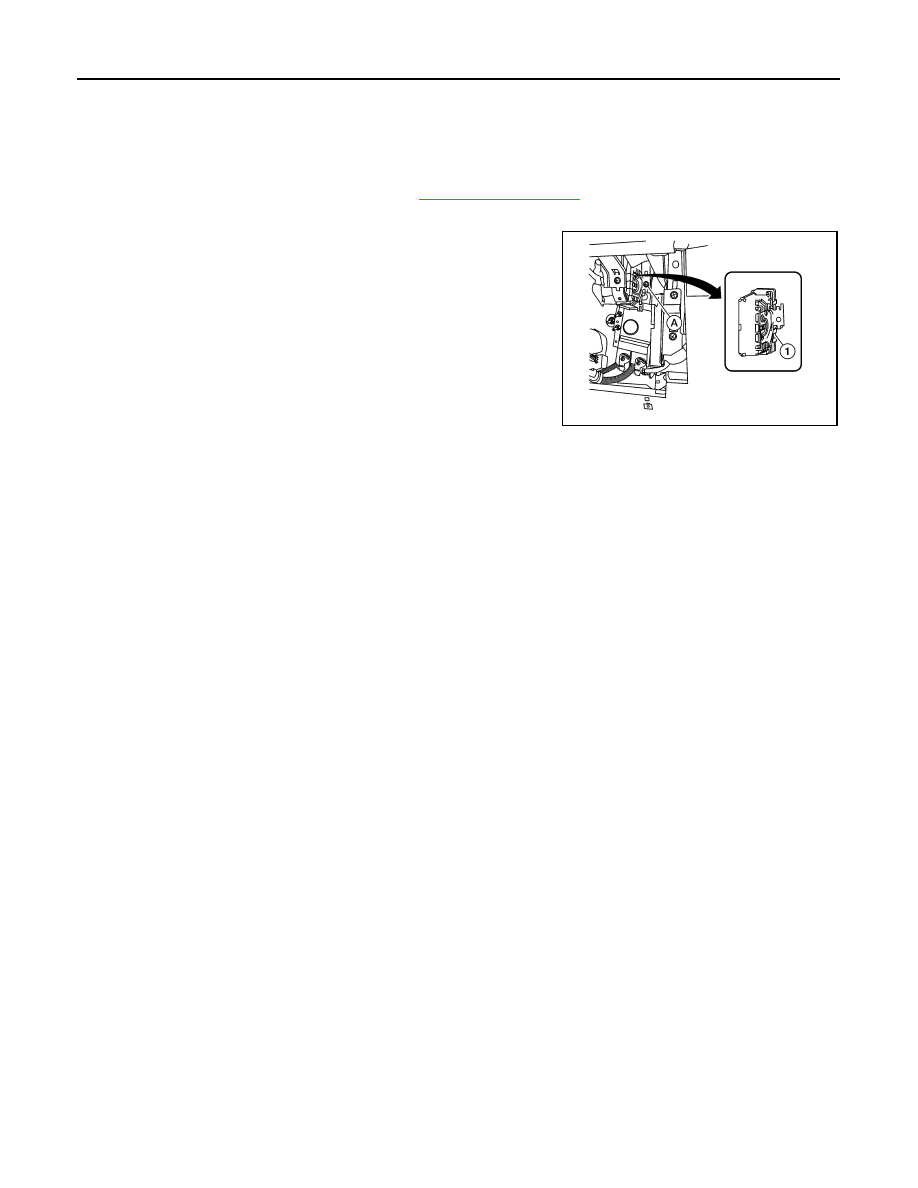

1. Remove glove box cover assembly. Refer to

IP-16, "Exploded View"

.

2. Disconnect heat pump control unit connector.
3. Remove screw (A) and heat pump control unit (1) from vehicle.

INSTALLATION

Install in the reverse order of removal.

ALIIA0801ZZ

AMBIENT SENSOR

HAC-189

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITH HEAT PUMP)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

AMBIENT SENSOR

Removal and Installation

INFOID:0000000010121894

REMOVAL

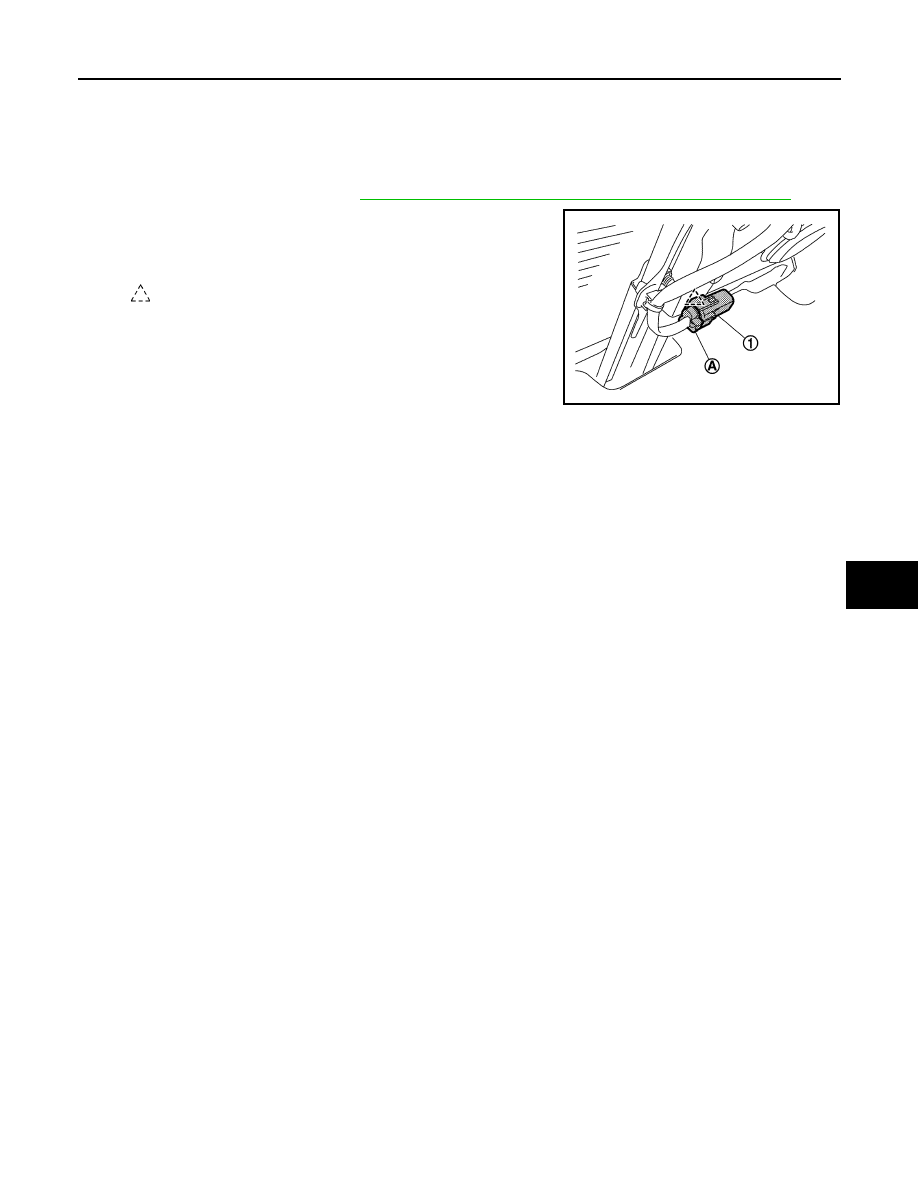

1. Remove front under cover. Refer to

EXT-23, "FRONT UNDER COVER : Removal and Installation"

.

2. Disconnect ambient sensor connector (A).
3. Disengage pawl, and then remove ambient sensor (1) from the

vehicle.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JPIIA1820ZZ

HAC-190

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITH HEAT PUMP)]

IN-VEHICLE SENSOR

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000010121895

REMOVAL

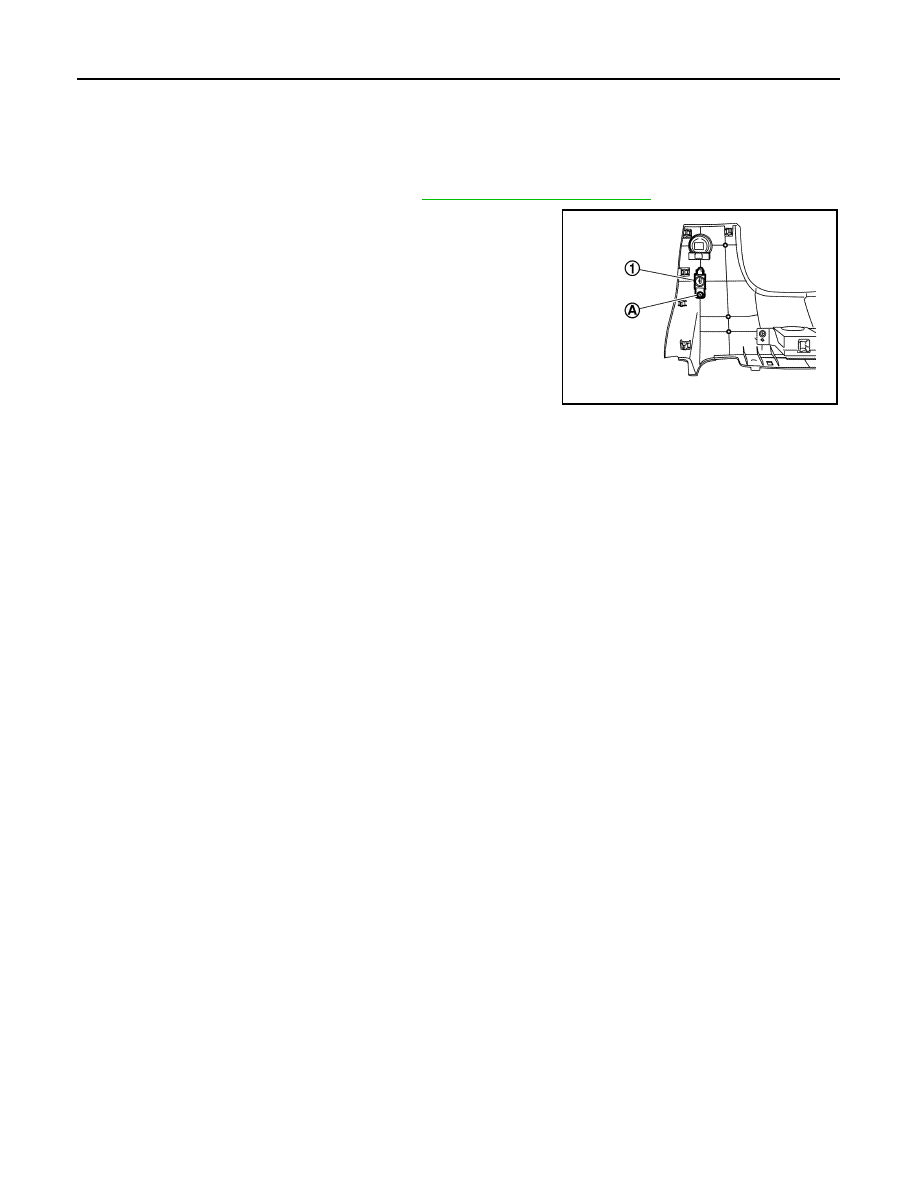

1. Remove instrument lower panel LH. Refer to

IP-17, "Removal and Installation"

.

2. Remove screw (A), and then remove in-vehicle sensor (1) from

instrument lower panel LH.

INSTALLATION

Install in the reverse order of removal.

JPIIA1838ZZ
