Nissan Leaf. Manual - part 798





COMPRESSOR DISCHARGE REFRIGERANT TEMPERATURE SENSOR

HAC-195

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITH HEAT PUMP)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Removal and Installation

INFOID:0000000010121900

REMOVAL

1. Remove the inner condenser assembly. Refer to

HA-61, "INNER CONDENSER : Removal and Installa-

tion"

.

2. Remove compressor discharge refrigerant temperature sensor from the inner condenser assembly.

INSTALLATION

Note the following items, and then install in the order of removal.

CAUTION:

• Mark the mounting position of compressor discharge refrigerant temperature sensor prior to

removal so that the reinstalled sensor can be located in the same position.

16. Evaporator cover

17. Inner condenser pipe cover

18. PTC heater shield LH

19. Inner condenser cover

20. Sleeve

21. Clip

22. Compressor discharge refrigerant

temperature sensor

23. Grommet

24. Gasket

25. Inner condenser

26. PTC heater outlet and A/C unit

case air temperature sensor as-
sembly

27. Heating and cooling unit

assembly case LH

28. Filter cover

29. Filter

30. Aspirator

31. Aspirator hose

32. Harness

33. PTC heater shield

34. Lower air mix door

35. Upper air mix door

36. Air mix door guide

37. Front door rod

38. Side ventilator door

39. Foot door

40. Side ventilator seal LH

41. Lower attachment case

42. Side ventilator seal RH

43. Center ventilator and defroster door 44. Sub defroster door

45. Upper attachment case

46. Defroster seal

47. Ventilator seal

48. Intake seal

49. Lower intake case

50. Intake door

51. Upper intake seal

52. Power transistor

53. Sub harness

 : Always replace after every disassembly.

 : N·m (kg-m, in-lb)

HAC-196

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITH HEAT PUMP)]

COMPRESSOR SUCTION REFRIGERANT TEMPERATURE SENSOR

COMPRESSOR SUCTION REFRIGERANT TEMPERATURE SENSOR

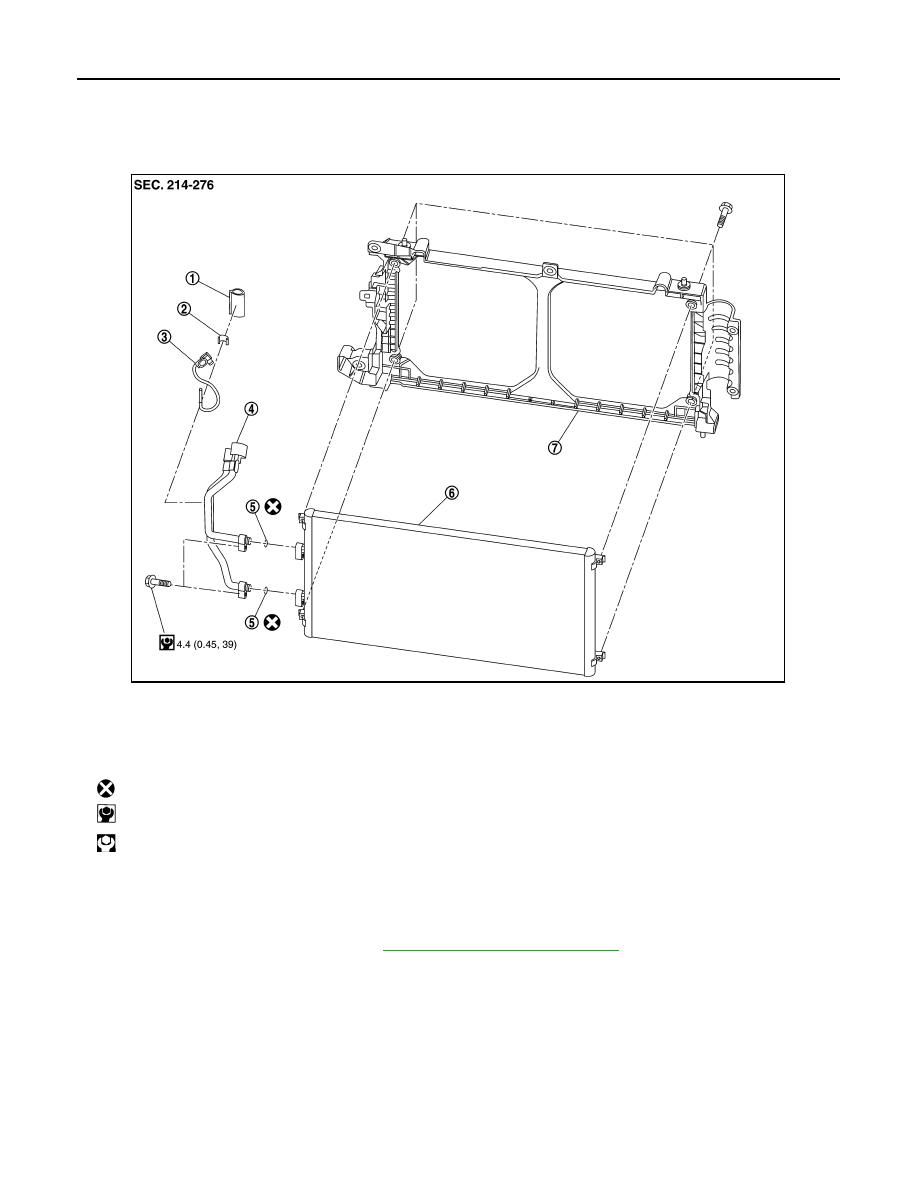

Exploded View

INFOID:0000000010121901

Removal and Installation

INFOID:0000000010121902

REMOVAL

1. Remove condenser assembly. Refer to

HA-52, "Removal and Installation"

.

2. Remove compressor suction refrigerant temperature sensor from the condenser assembly.

INSTALLATION

Note the following items, and then install in the order of removal.

CAUTION:

• Mark the mounting position of compressor suction refrigerant temperature sensor prior to removal

so that the reinstalled sensor can be located in the same position.

1.

Sleeve

2.

Clip

3.

Compressor suction refrigerant
temperature sensor

4.

Condenser pipe assembly

5.

O-ring

6.

Condenser

7.

Condenser support assembly

 : Always replace after every disassembly.

 : N·m (kg-m, in-lb)

 : N·m (kg-m, ft-lb)

JMIIA2636GB

PTC HEATER OUTLET AND A/C UNIT CASE AIR TEMPERATURE SENSOR AS-

SEMBLY

HAC-197

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITH HEAT PUMP)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

PTC HEATER OUTLET AND A/C UNIT CASE  AIR TEMPERATURE SEN-
SOR ASSEMBLY

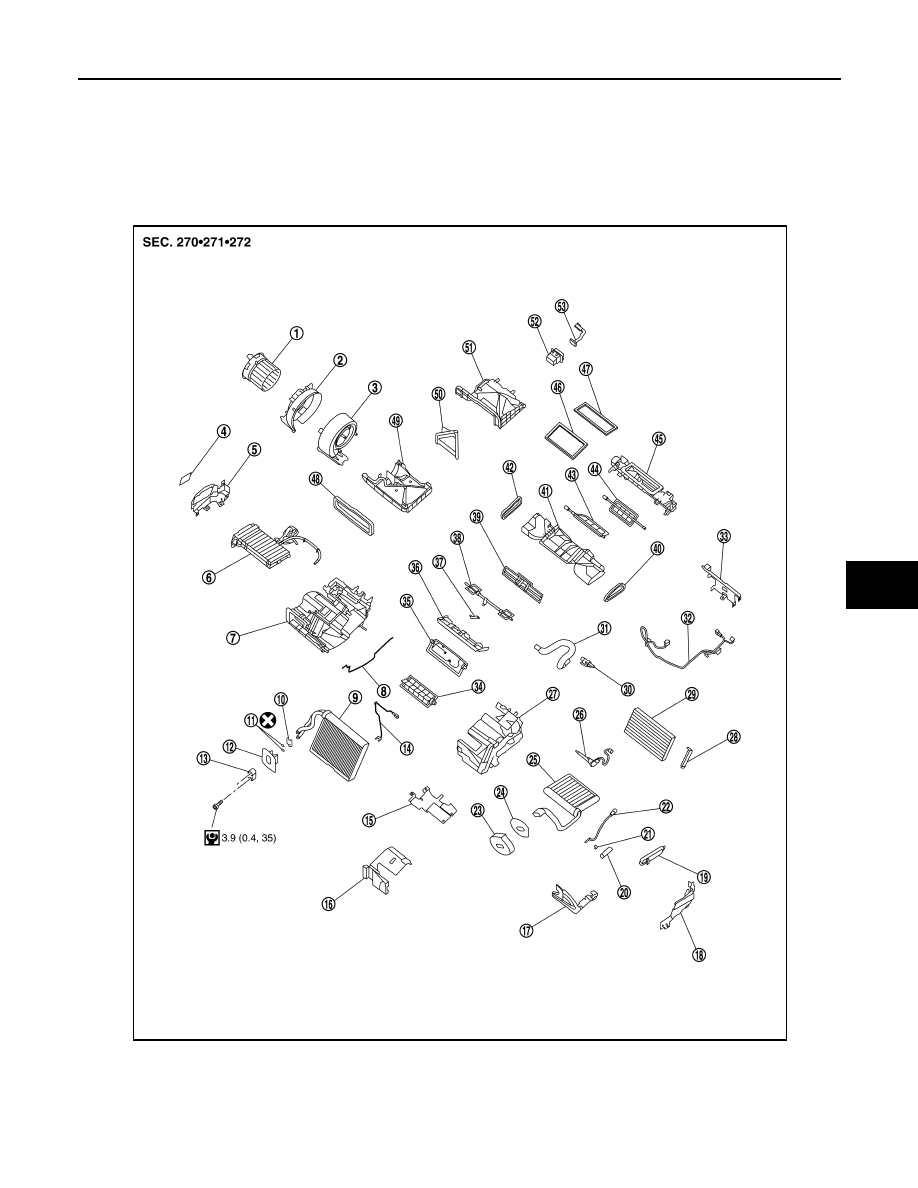

Exploded View

INFOID:0000000010121903

1.

Blower motor

2.

Blower case RH

3.

Blower case LH

4.

High voltage warning label

5.

PTC heater shield RH

6.

PTC heater

7.

Heating and cooling unit assembly
case RH

8.

Case packing

9.

Evaporator

JMIIA2600GB

HAC-198

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITH HEAT PUMP)]

PTC HEATER OUTLET AND A/C UNIT CASE AIR TEMPERATURE SENSOR AS-

SEMBLY

Removal and Installation

INFOID:0000000010121904

REMOVAL

1. Remove the heating and cooling unit assembly. Refer to

HA-57, "HEATING AND COOLING UNIT

ASSEMBLY : Removal and Installation"

.

2. Remove PTC heater outlet and A/C unit case air temperature sensor assembly from the heating and cool-

ing unit assembly.

INSTALLATION

Install in the reverse order of removal.

10. Plate

11. O-rings

12. Grommet

13. Low pressure pipe flange

14. Intake sensor

15. PTC heater shield lower

16. Evaporator cover

17. Inner condenser pipe cover

18. PTC heater shield LH

19. Inner condenser cover

20. Sleeve

21. Clip

22. Compressor discharge refrigerant

temperature sensor

23. Grommet

24. Gasket

25. Inner condenser

26. PTC heater outlet and A/C unit

case air temperature sensor as-
sembly

27. Heating and cooling unit

assembly case LH

28. Filter cover

29. Filter

30. Aspirator

31. Aspirator hose

32. Harness

33. PTC heater shield

34. Lower air mix door

35. Upper air mix door

36. Air mix door guide

37. Front door rod

38. Side ventilator door

39. Foot door

40. Side ventilator seal LH

41. Lower attachment case

42. Side ventilator seal RH

43. Center ventilator and defroster door 44. Sub defroster door

45. Upper attachment case

46. Defroster seal

47. Ventilator seal

48. Intake seal

49. Lower intake case

50. Intake door

51. Upper intake seal

52. Power transistor

53. Sub harness

 : Always replace after every disassembly.

 : N·m (kg-m, in-lb)
