5. Tape clips after press fit, and temporarily hold it for specified time based on the following.

6. Install from roof side molding rear end to front end in this order after temporarily holding.

CAUTION:

• Use double-faced adhesive tape after hardening for clips.

• Securely insert molding rear end cap onto roof rear end cutout (installation standard).

• When installing roof side molding of windshield portion, check that molding fastener is securely

inserted and then press in.

• Never wash the vehicle with in 24 hours so as to keep adhesive.

Press-fit limit : 19.6 N (2.0 Kg - 4.41 lb)

× 2 seconds

 5 to 10

°C (41 to 50 °F)

: 1 hour or more

11 to 23

°C (52 to 73 °F)

: 30 minutes or more

24

°C or more (75 °F or more) : 15 minutes or more

EXT-28

< REMOVAL AND INSTALLATION >

DOOR SASH MOLDING

DOOR SASH MOLDING

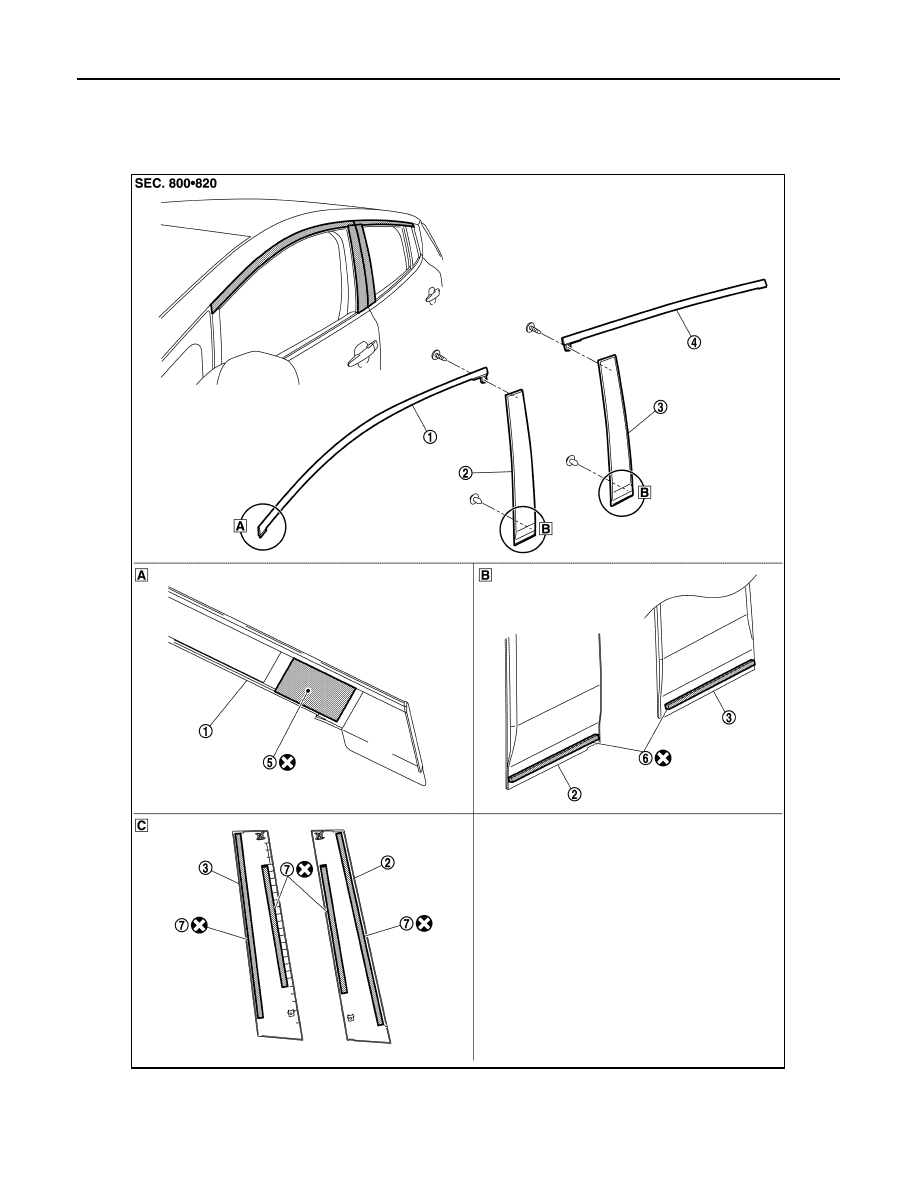

Exploded View

INFOID:0000000010120000

1.

Front door sash molding

2.

Front door sash cover

3.

Rear door sash cover

4.

Rear door sash molding

5.

Double-sided tape
[t: 1.2 mm (0.047 in)]

6.

EPT sealer [t: 3.0 mm (0.118 in)]

JMKIA6462ZZ

DOOR SASH MOLDING

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000010120001

FRONT DOOR SASH MOLDING

Removal

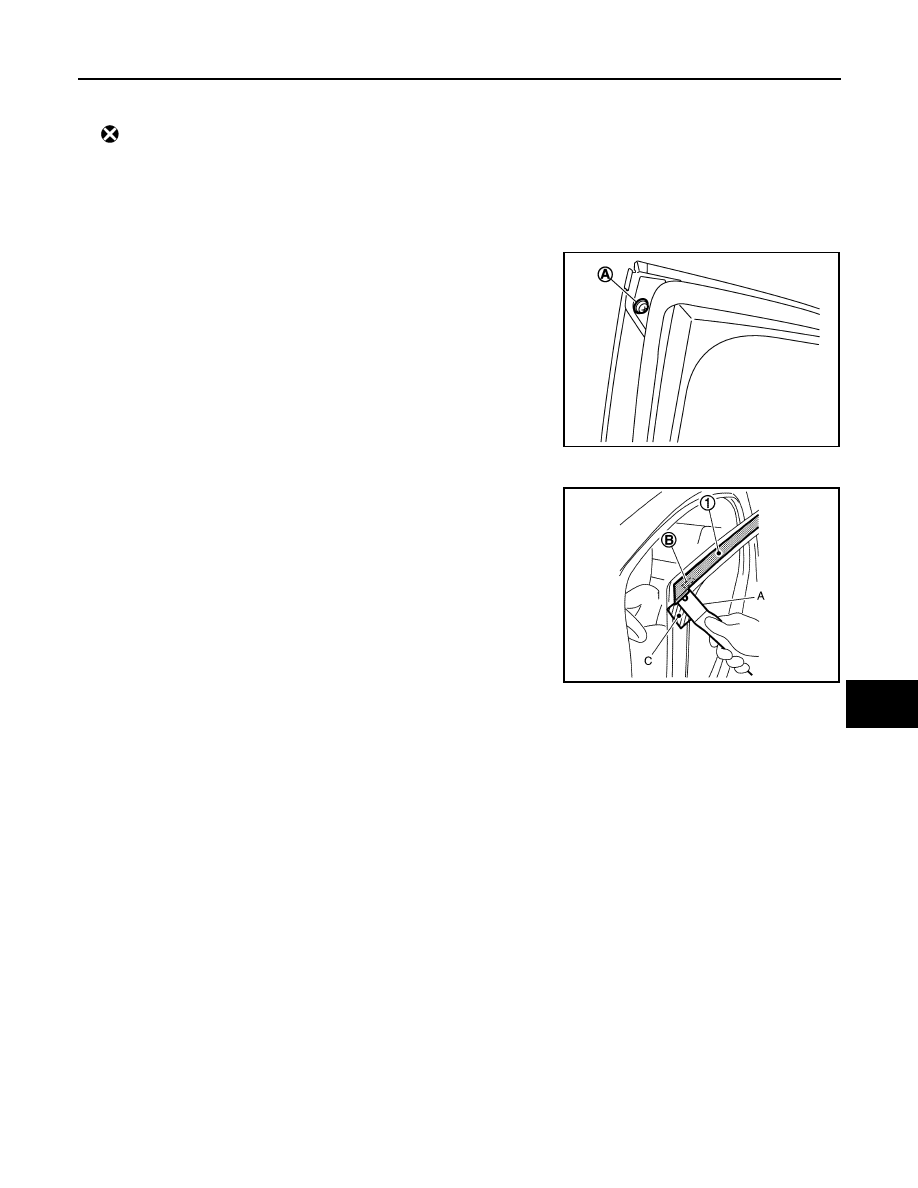

1. Remove front door sash molding fixing screw (A).

2. Release front door weather-strip and glass run rubber.
3. Insert a suitable tool (A) between front door panel and front door

sash molding (1), and then take off double-sided tape (B) with

cutter knife.

CAUTION:

• Apply protective tape (C) on door sash panel to protect

damage.

• Never lift front door sash molding with excessive force to

prevent damage to the parts.

4. Remove front door sash molding connection between door panel and molding from glass run side, using a

suitable tool.

Installation

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace double-sided tape on back of molding with a new tape if front door sash molding is reused.

• Remove double-sided tape remaining on body and back of molding using double-sided tape remover

when removing front door sash molding.

• Install after cleaning adhesive parts of door side and back of front door sash molding.

• To secure contact, never wash vehicle within 24 hours after installation.

REAR DOOR SASH MOLDING

Removal

1. Remove rear door sash molding fixing screw.
2. Remove rear door weather-strip.
3. Release roof portion of rear door glass run.

7.

Double-sided tape
[t: 0.8 mm (0.031 in)]

: Always replace after every disassembly.

JMKIA5002ZZ

JMKIA6490ZZ

EXT-30

< REMOVAL AND INSTALLATION >

DOOR SASH MOLDING

4. Remove rear door sash molding (1) connection between door

panel and molding from glass run side, using a suitable tool (A).

CAUTION:

Never use a material for suitable tool which could damage

door panel to prevent damage to the parts.

Installation

Install in the reverse order of removal.

FRONT DOOR SASH COVER

Removal

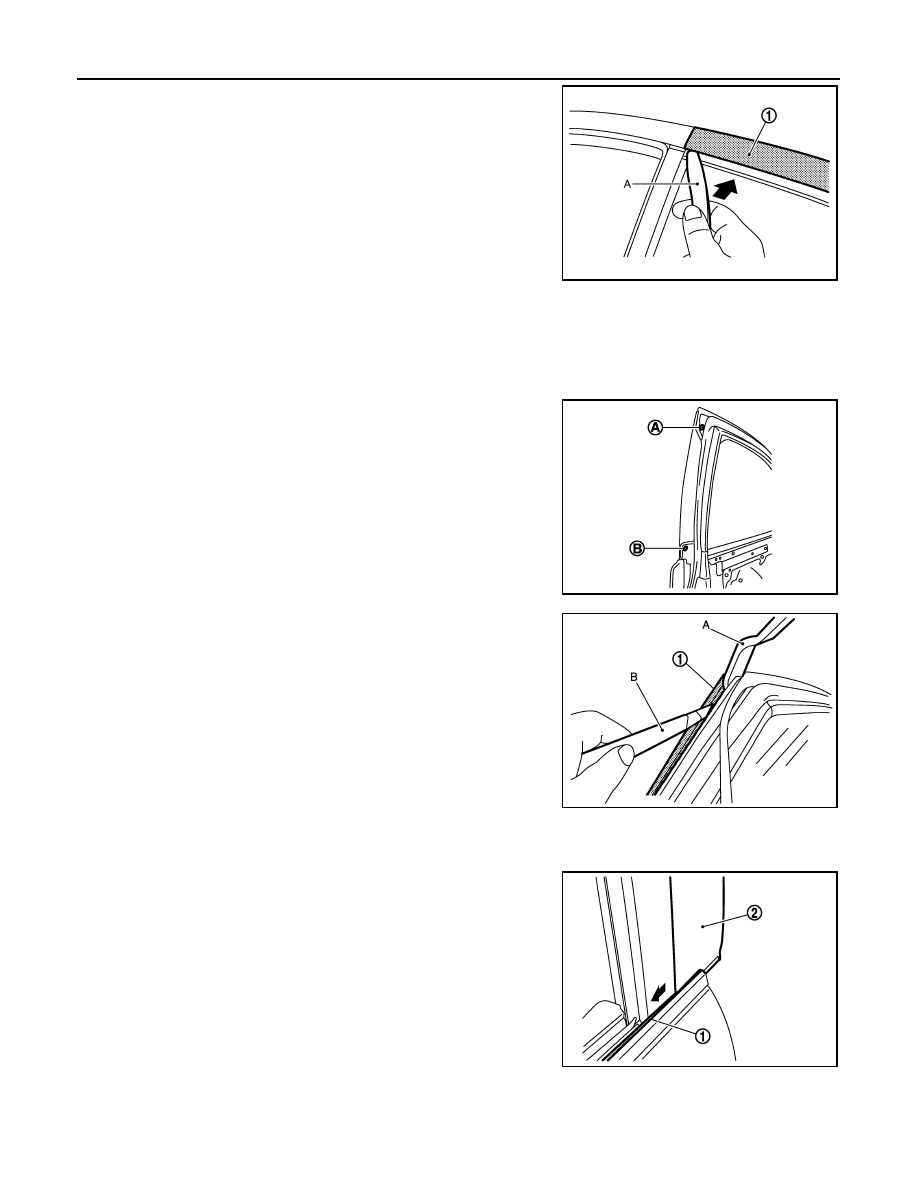

1. Remove front door sash cover mounting screw (A) and clip (B).

2. Insert a suitable tool (A) between front door sash cover (1) and

door panel, cut double-sided tape using a cutter (B) while lifting

front door sash cover, and remove front door sash cover.

CAUTION:

• Use a suitable tool which is made of a material that does

not damage door panel to prevent damage to the parts.

• Never lift front door sash cover with excessive force to

prevent damage to the parts.

Installation

Note the following items, and install in the reverse order of removal.

CAUTION:

• When installing, slide and install front door sash cover (2)

from door rear side, so that front door outside molding (1) is

not deformed.

• Replace double-sided tape on back of front door sash cover with a new double-sided tape if front

door sash cover is reused.

JMKIA0114GB

JMKIA2746ZZ

JMKIA2034ZZ

JMKIA5005ZZ
