COWL TOP

EXT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

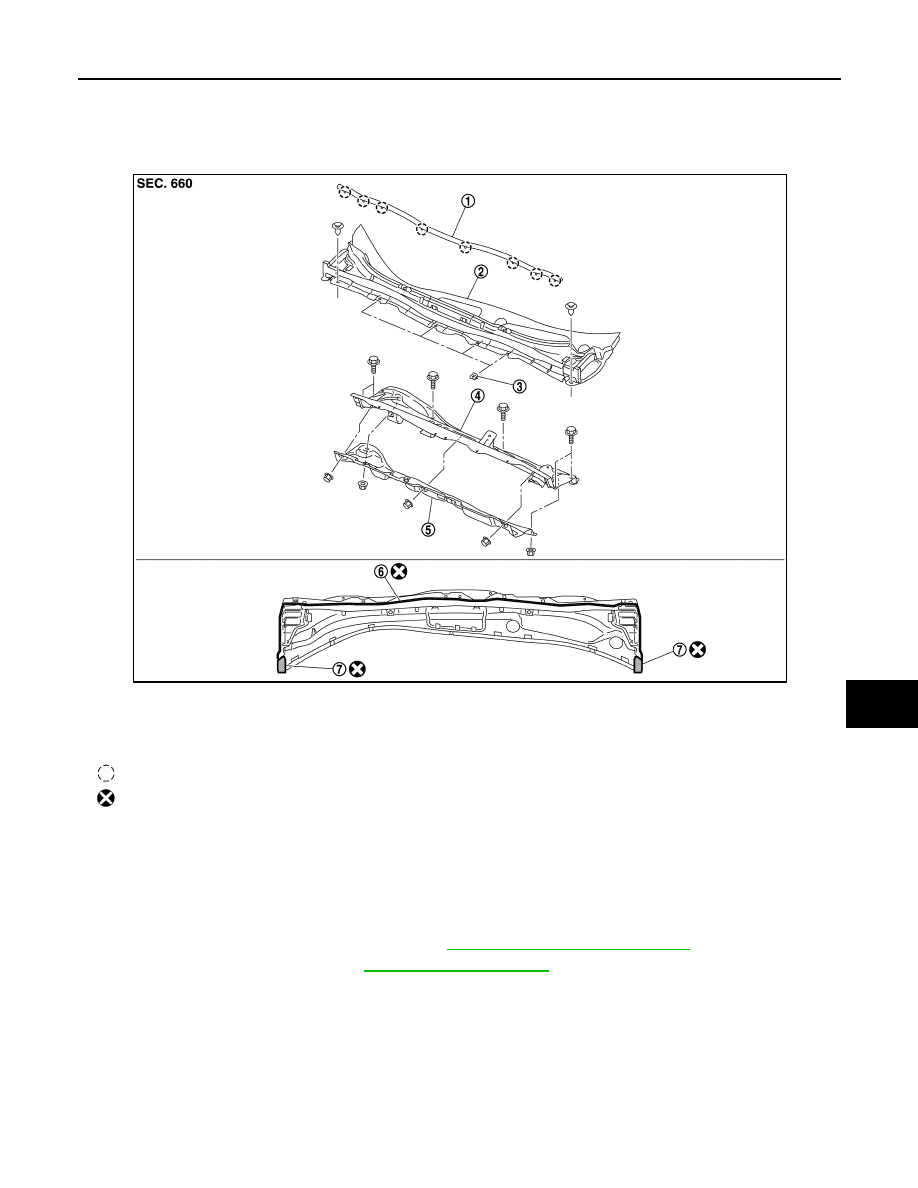

COWL TOP

Exploded View

INFOID:0000000010119990

Removal and Installation

INFOID:0000000010119991

COWL TOP COVER

Removal

1. Fully open hood assembly.
2. Remove front wiper arms (LH and RH). Refer to

WW-49, "Removal and Installation"

.

3. Remove front fender cover. Refer to

DLK-168, "Exploded View"

.

4. Disconnect washer tube joint on cowl top cover right side.

1.

Cowl top cover seal

2.

Cowl top cover

3.

Cowl top cover clip

4.

Cowl top extension

5.

Cowl top insulator

6.

EPT sealer [3.0 mm (0.118 in)]

7.

EPT sealer [20.0 mm (0.787 in)]

: Clip

: Always replace after every disassembly.

JMKIA6446ZZ

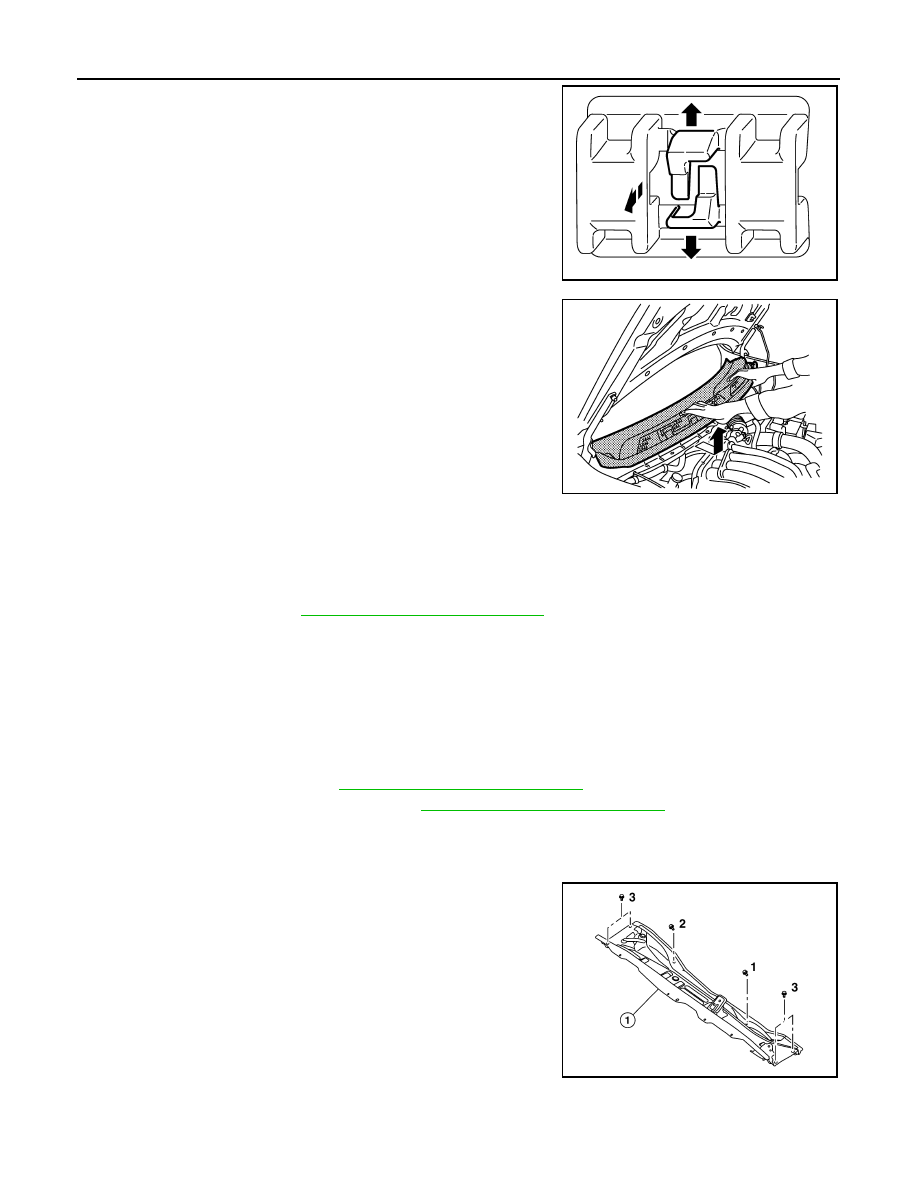

EXT-20

< REMOVAL AND INSTALLATION >

COWL TOP

5. Expand center portion of clip that is fixing clip of cowl top cover

and cowl top extension in the upper and lower direction indi-

cated by arrows as shown in the figure, and then pull out clip

toward vehicle front.

6. Pull forward to release cowl top cover from windshield glass.

CAUTION:

When performing the procedure after removing cowl top

cover, cover the lower end of windshield glass with ure-

thane etc to prevent damage to windshield.

7. Remove cowl top cover.
8. Remove the following parts after removing cowl top cover.

• EPT sealer

• Cowl top cover seal

• Washer tube

• Washer nozzles. Refer to

WW-46, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

CAUTION:

Always replace cowl top cover EPT sealer on rear of vehicle with a new one when installing old cowl

top cover.

COWL TOP EXTENTION

Removal

1. Remove cowl top cover. Refer to

EXT-19, "Removal and Installation"

.

2. Remove front wiper drive assembly. Refer to

WW-54, "Removal and Installation"

.

3. Remove cowl top extension mounting bolts, and then cowl top extension.

Installation

Installation is in the reverse order of removal.

When installing the cowl top extension, tighten the bolts in the order

shown.

PIIB2815J

JMKIA3819ZZ

ALKIA3126ZZ

FENDER PROTECTOR

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

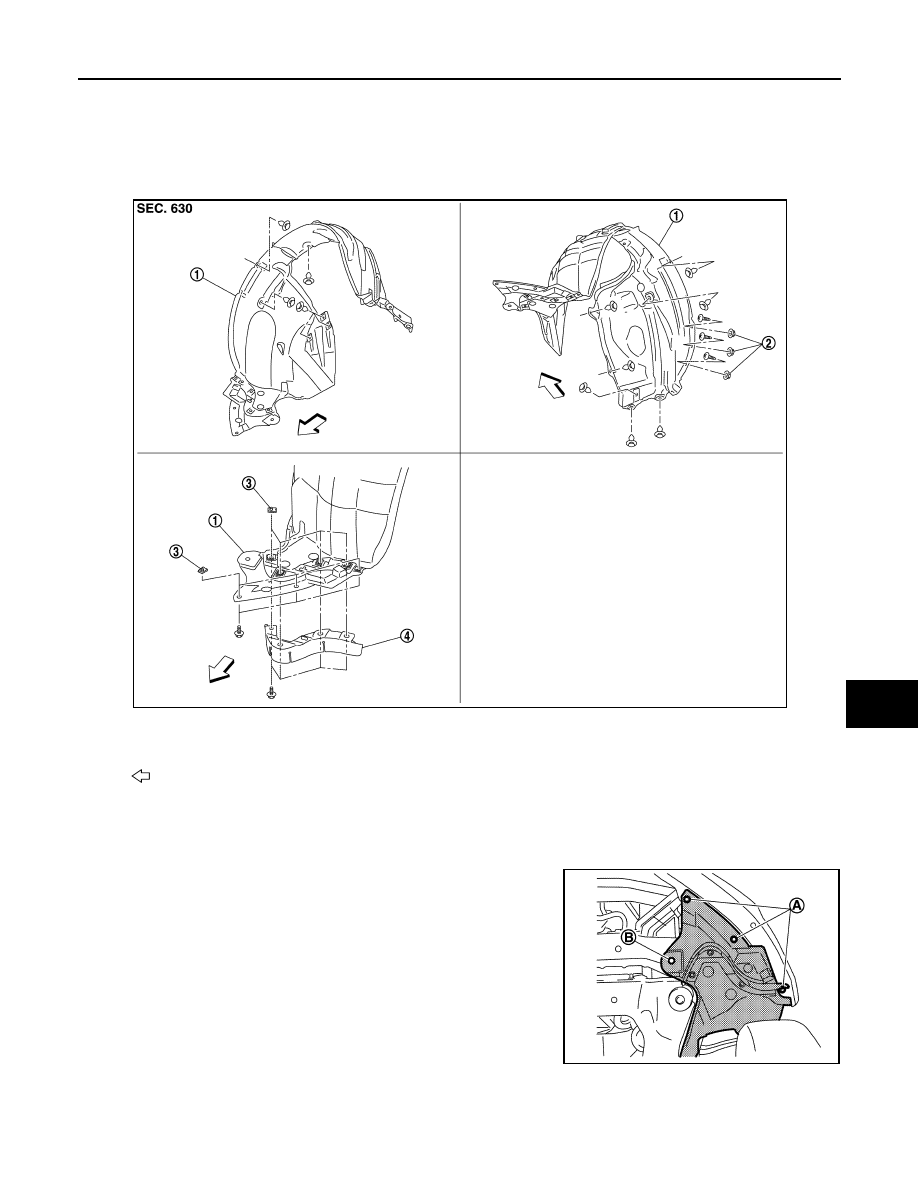

FENDER PROTECTOR

FENDER PROTECTOR
FENDER PROTECTOR : Exploded View

INFOID:0000000010119992

FENDER PROTECTOR : Removal and Installation

INFOID:0000000010119993

REMOVAL

1. Remove front fender protector front end fixing bolts (A) and clip

(B).

1.

Fender protector

2.

Grommet

3.

J nut

4.

Wind deflector

: Vehicle front

JMKIA6447ZZ

JMKIA6488ZZ

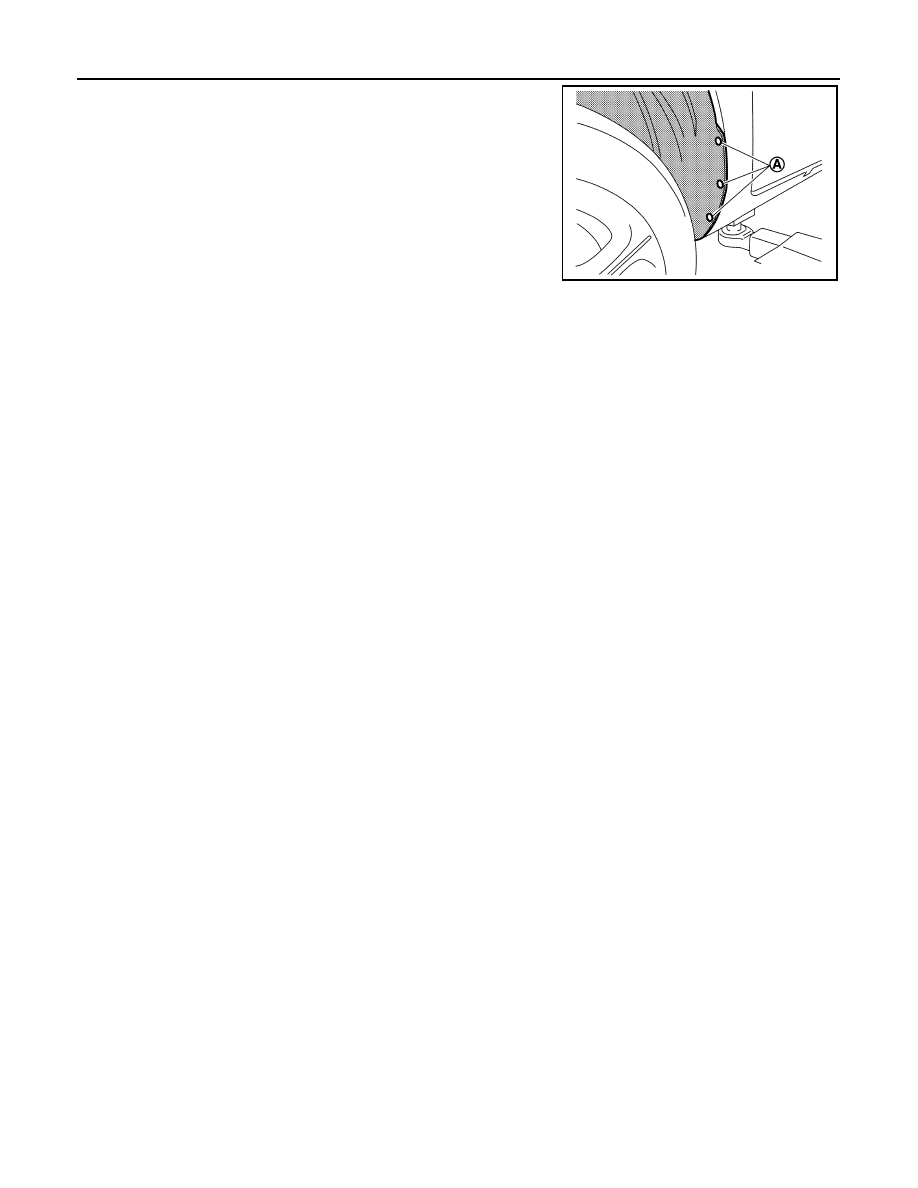

EXT-22

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

2. Remove front fender protector fixing screws (A).

3. Remove front fender protector fixing clips, and then remove front fender protector.

INSTALLATION

Install in the reverse order of removal.

JMKIA6489ZZ
