FRONT BUMPER

EXT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Bumper fascia assembly – Hood

C – C

2.3 – 7.7 mm

(0.012 – 0.130 in)

[(

−1.0) – (+3.0) mm]

[(

−0.039 – (+0.118) in]

Bumper fascia assembly – Front
combination lamp

D – D

0.2 – 3.8 mm

(0.008 – 0.150 in)

—

Front bumper – Front fender

E – E

0.3 – 1.0 mm

(0.012 – 0.039 in)

[(

−0.3) – (+1.7) mm]

[(

−0.012) – (+0.067) in]

Portion

Clearance

Surface height difference

EXT-16

< REMOVAL AND INSTALLATION >

REAR BUMPER

REAR BUMPER

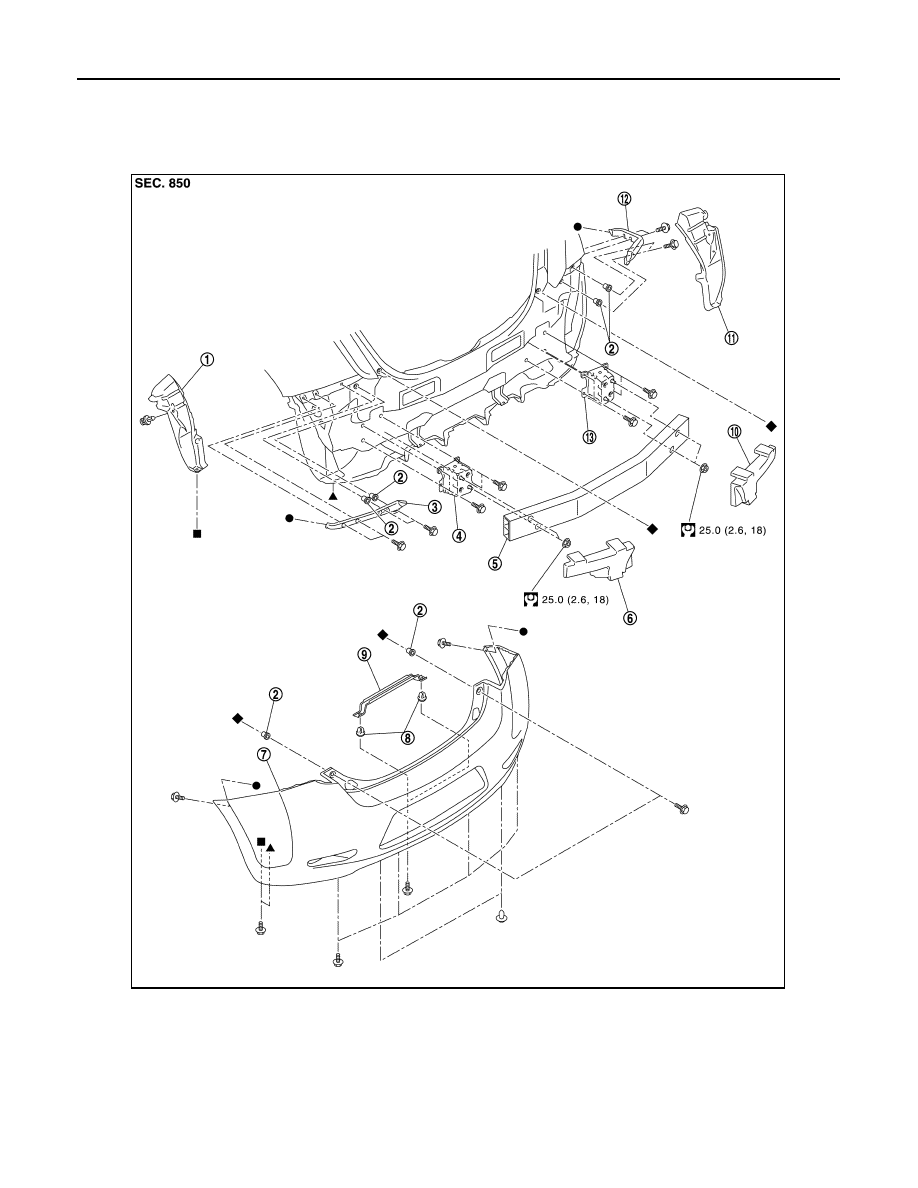

Exploded View

INFOID:0000000010119988

1.

Bumper closing LH

2.

Grommet

3.

Rear side bracket LH

4.

Bumper stay LH

5.

Bumper reinforcement

6.

Bumper energy absorber LH

7.

Bumper fascia

8.

Grommet

9.

License lamp bracket

10. Bumper energy absorber RH

11. Bumper closing RH

12. Rear side bracket RH

13. Bumper stay RH

JMKIA6461GB

REAR BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

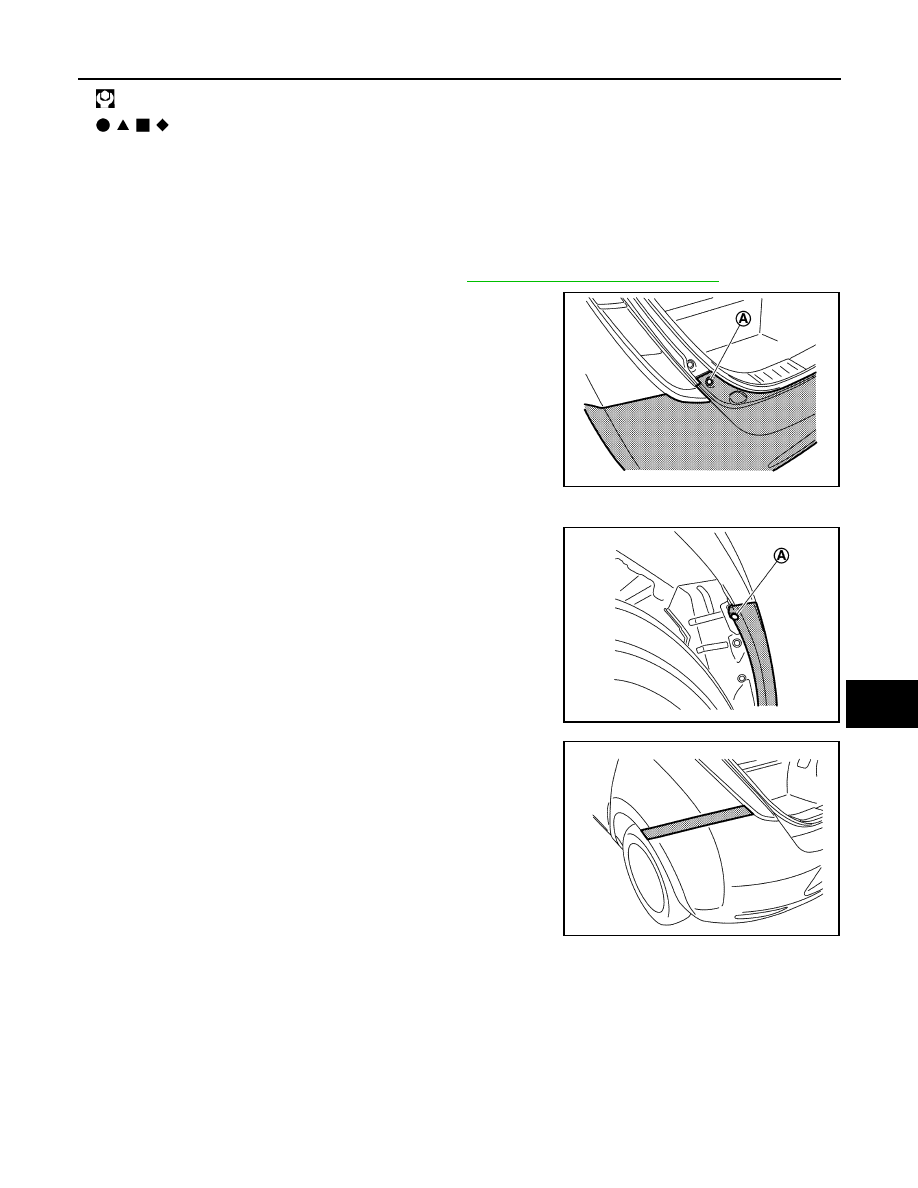

Removal and Installation

INFOID:0000000010119989

REMOVAL

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with

oil.
1. Remove rear combination lamps (RH/LH). Refer to

EXL-140, "Removal and Installation"

.

2. Remove bumper fascia upper side fixing screws (A) (LH/RH).

3. Remove bumper fascia lower side fixing bolts and clips.
4. Remove bumper fascia side fixing screws (A) (LH/RH).

5. Apply protective tape on the part to protect it from damage.

: N·m (kg-m, ft-lb)

,  ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA6442ZZ

JMKIA6443ZZ

JMKIA9374ZZ

EXT-18

< REMOVAL AND INSTALLATION >

REAR BUMPER

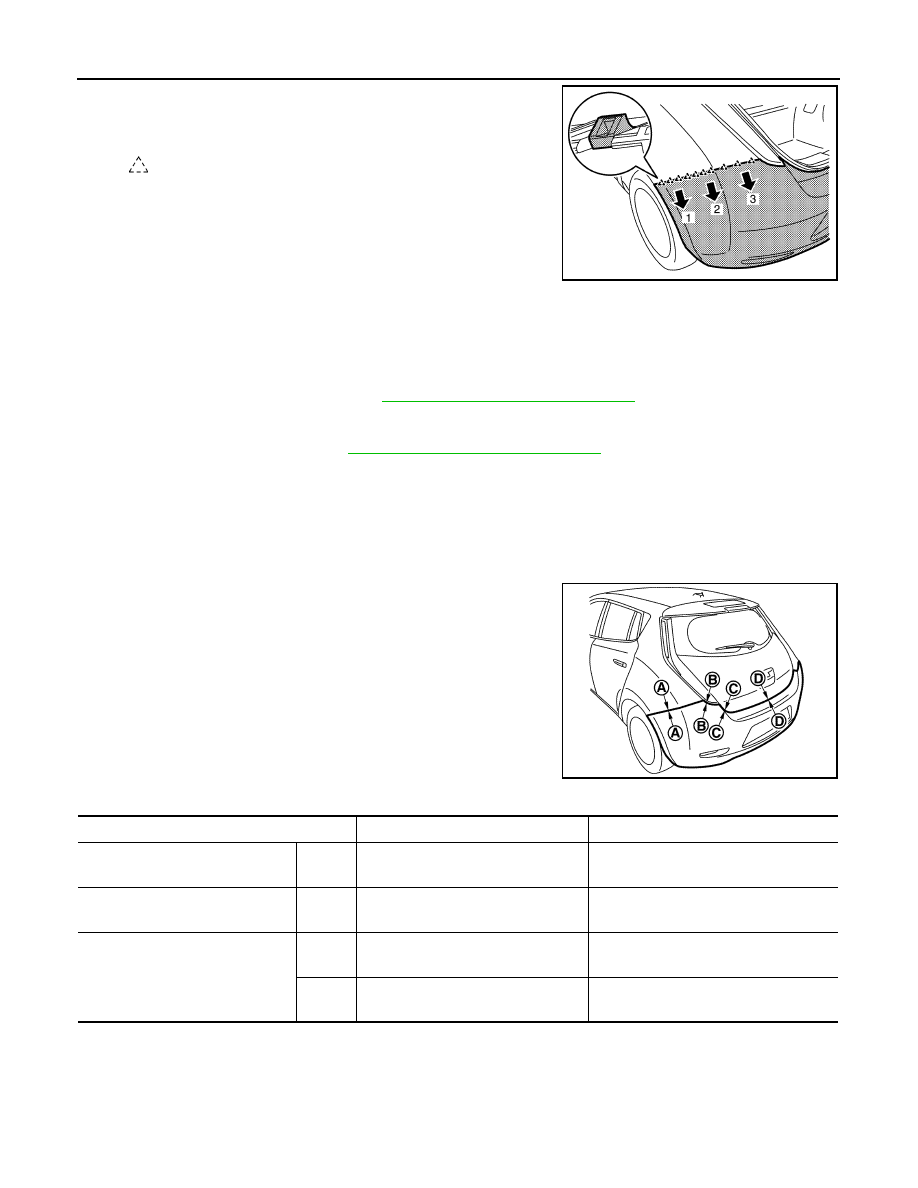

6. Pull bumper fascia side toward the vehicle side to disengage the

fitting of bumper side bracket and bumper fascia side as shown

by the arrow in the figure.

7. Disengage license lamp harness connectors.
8. Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

9. Remove the following parts after removing bumper fascia.

• License lamps (LH and RH). Refer to

EXL-146, "Removal and Installation"

.

• Bumper closings (LH and RH)

• Bumper side brackets (LH and RH)

• Reflectors (LH and RH) Refer to

EXL-148, "Removal and Installation"

.

10. Remove bumper energy absorbers (LH and RH).
11. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

NOTE:

• The following table shows the specified values for checking normal installation status.

• Fitting adjustment cannot be performed.

: Pawl

JMKIA6444ZZ

JMKIA6445ZZ

Portion

Clearance

Surface height difference

Bumper fascia assembly –
Rear fender

A – A

0.3 – 1.0 mm

(0.012 – 0.039 in)

[(

−0.3) – (+1.7) mm]

[(

−0.012 – (+0.067) in]

Bumper fascia assembly –
Rear combination lamp

B – B

0.4 – 3.6 mm

(0.016 – 0.142 in)

—

Bumper fascia assembly –
Back door

C – C

3.3 – 7.3 mm

(0.130 – 0.287 in)

—

D – D

6.0 – 10.0 mm

(0.236 – 0.394 in)

—
