SQUEAK AND RATTLE TROUBLE DIAGNOSES

EXT-11

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

PIIB8742E

EXT-12

< REMOVAL AND INSTALLATION >

FRONT BUMPER

REMOVAL AND INSTALLATION

FRONT BUMPER

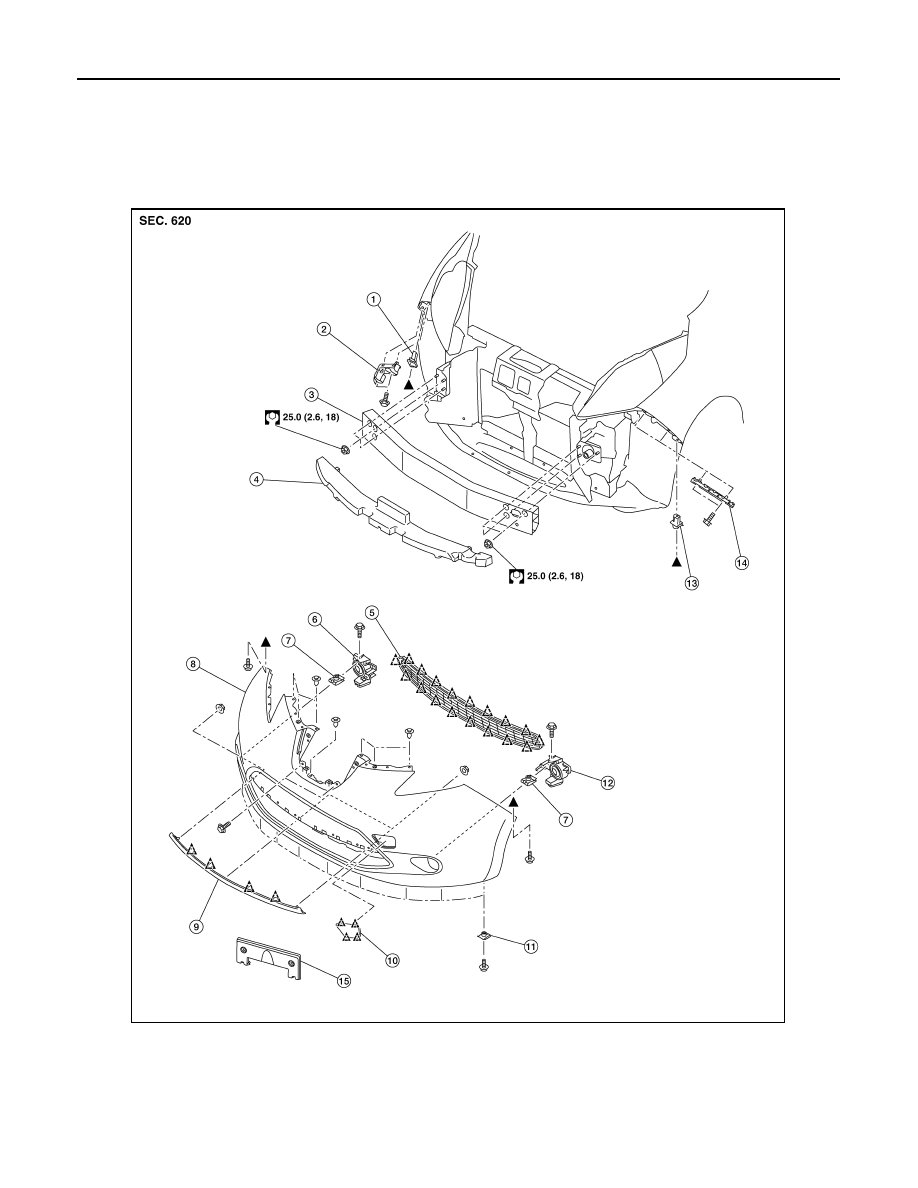

Exploded View

INFOID:0000000010119986

1.

Screw grommet (RH)

2.

Bumper side bracket (RH)

3.

Bumper reinforcement

4.

Bumper energy absorber

5.

Bumper grille

6.

Front fog lamp (RH) (if equipped)

7.

Spring nut

8.

Bumper fascia

9.

Bumper moulding

10. Bumper cover

11.

J nut

12. Front fog lamp (LH) (if equipped)

13. Screw grommet (LH)

14. Bumper side bracket (LH)

15. Front license plate bracket (Mexico only)

AWKIA2988ZZ

FRONT BUMPER

EXT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000010119987

REMOVAL

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with

oil.
1. Remove radiator upper grille. Refer to

DLK-165, "RADIATOR UPPER GRILLE : Removal and Installa-

tion"

.

2. Remove charge port cover. Refer to

DLK-158, "CHARGE PORT LID ASSEMBLY : Removal and Installa-

tion"

.

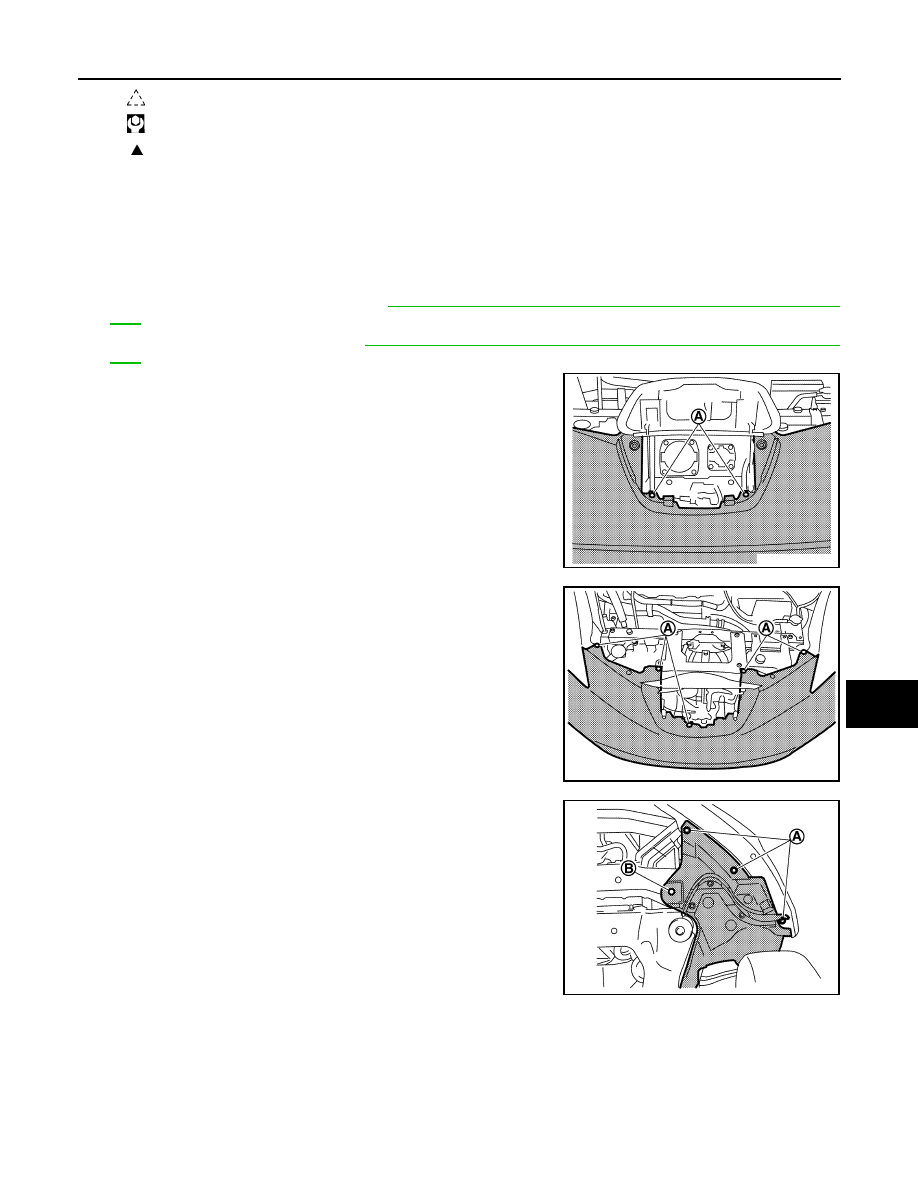

3. Remove bumper fascia upper side mounting bolts (A).

4. Remove bumper fascia upper side fixing clips (A).

5. Remove fender protector mounting bolts (A) and clip (B) (LH/

RH).

6. Remove bumper fascia lower mounting screws.
7. Remove fender protector fixing clips and screws to access bumper fascia assembly fixing screw, and then

remove bumper fascia assembly fixing screws (LH and RH).

: Pawl

: N·m (kg-m, ft-lb)

  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA9382ZZ

JMKIA6438ZZ

JMKIA6488ZZ

EXT-14

< REMOVAL AND INSTALLATION >

FRONT BUMPER

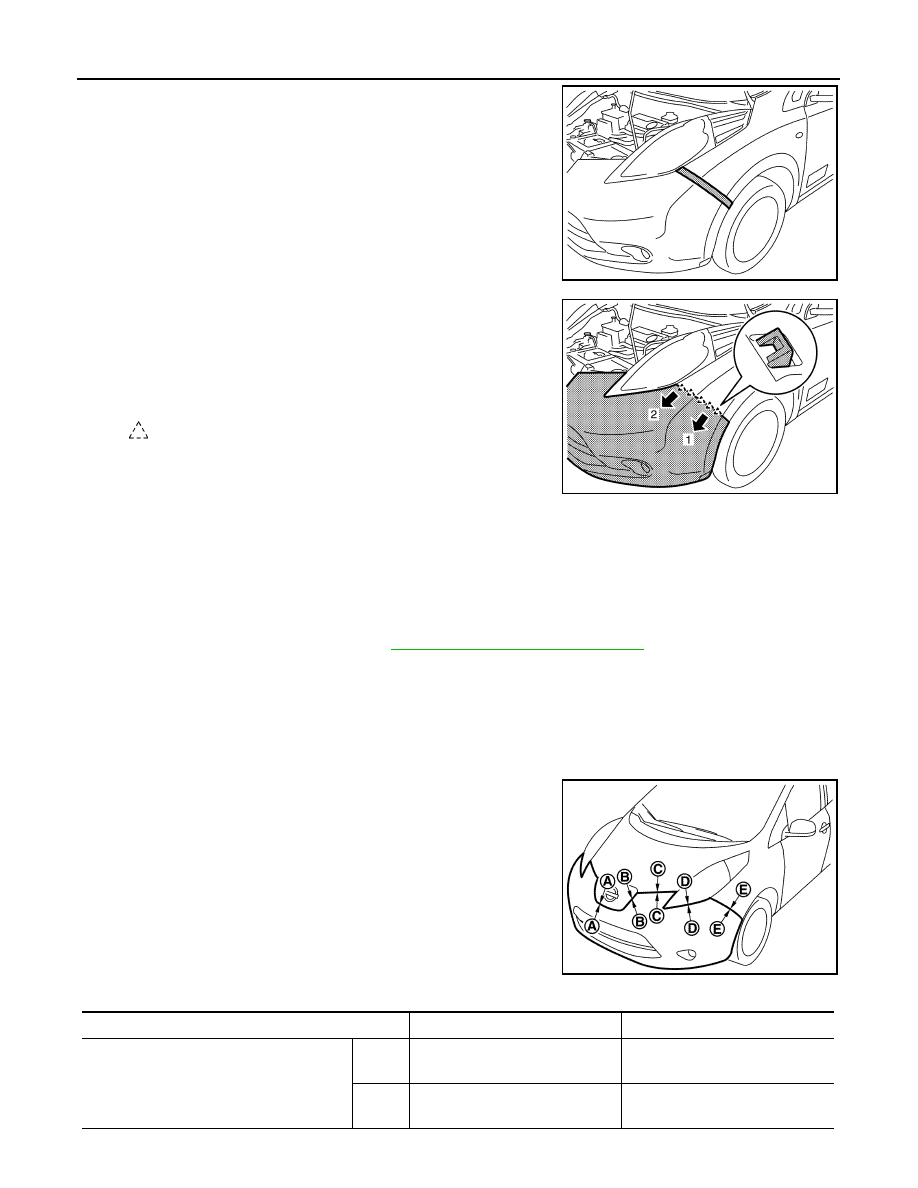

8. Apply protective tape on the part to protect it from damage.

9. Pull bumper fascia assembly side toward the vehicle outside as

shown by the arrows in the figure, and then disengage bumper

fascia assembly from bumper side brackets (LH and RH).

CAUTION:

When removing bumper fascia, 2 workers are required so

as to prevent it from dropping.

10. Disconnect front fog lamp harness connectors (LH and RH) (if equipped).
11. Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

12. Remove the following parts after removing bumper fascia.

• License plate bracket

• Front bumper grille

• Front fog lamps (LH and RH). Refer to

EXL-135, "Removal and Installation"

.

13. Remove bumper energy absorber.
14. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

NOTE:

• The following table shows the specified values for checking normal installation status.

• Fitting adjustment cannot be performed.

JMKIA9373ZZ

: Pawl

JMKIA6440ZZ

JMKIA6441ZZ

Portion

Clearance

Surface height difference

Bumper fascia assembly – Charge
port lid

A – A

2.1 – 4.5 mm

(0.083 – 0.177 in)

2.0 – 5.0 mm

(0.079 – 0.197 in)

B – B

1.4 – 3.8 mm

(0.091 – 0.303 in)

0.0 – 3.0 mm

(0.000 – 0.118 in)
