Nissan Leaf. Manual - part 676





FLOOR SIDE FAIRING

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

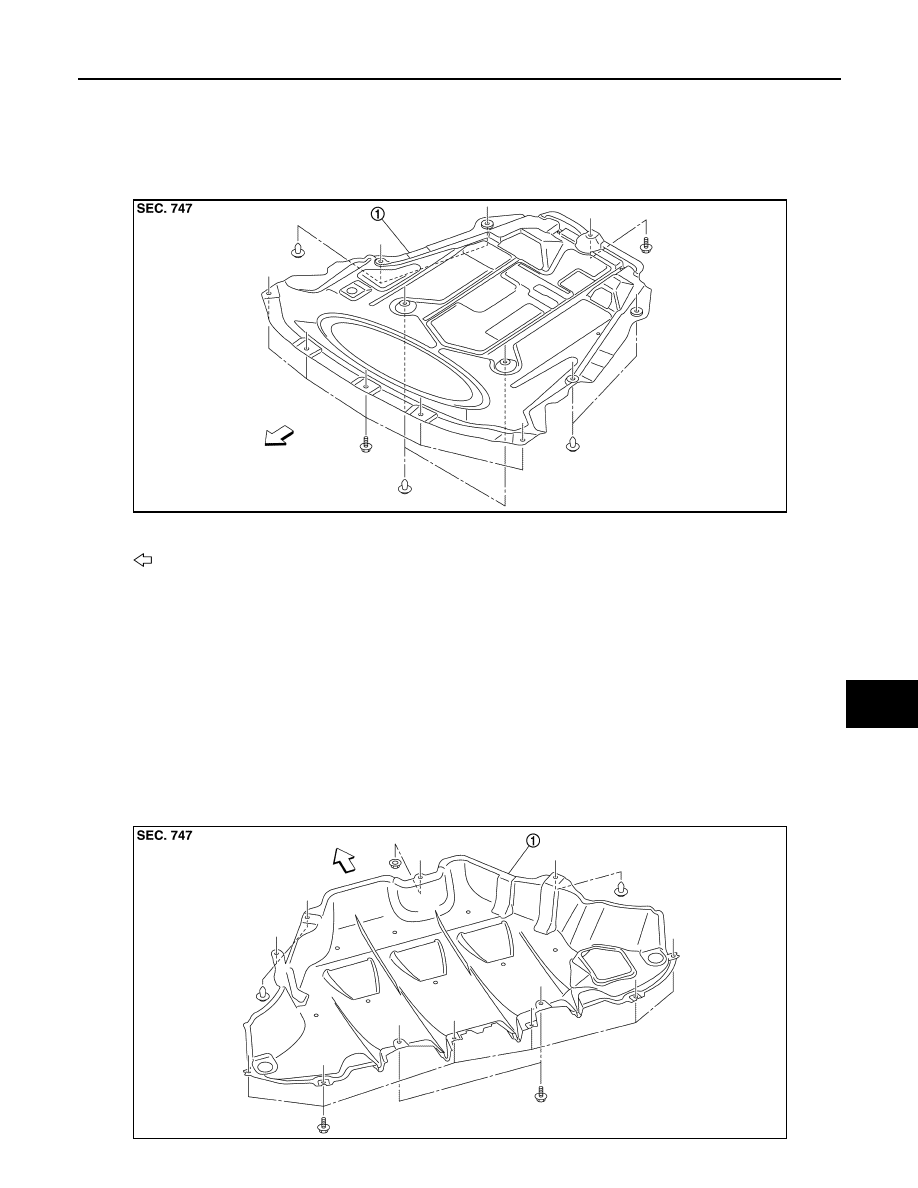

FLOOR SIDE FAIRING

FRONT UNDER COVER
FRONT UNDER COVER : Exploded View

INFOID:0000000010119994

FRONT UNDER COVER : Removal and Installation

INFOID:0000000010119995

REMOVAL

1. Remove front under cover front mounting bolts.
2. Remove front under cover fixing clips and then remove front under cover.

INSTALLATION

Install in the reverse order of removal.

REAR DIFFUSER
REAR DIFFUSER : Exploded View

INFOID:0000000010119996

1.

Front under cover

: Vehicle front

JMKIA6448ZZ

JMKIA6449ZZ

EXT-24

< REMOVAL AND INSTALLATION >

FLOOR SIDE FAIRING

REAR DIFFUSER : Removal and Installation

INFOID:0000000010119997

REMOVAL

1. Remove rear diffuser mounting bolts, clips and nut.
2. Remove rear diffuser.

INSTALLATION

Install in the reverse order of removal.

1.

Rear diffuser

: Vehicle front

ROOF SIDE MOLDING

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

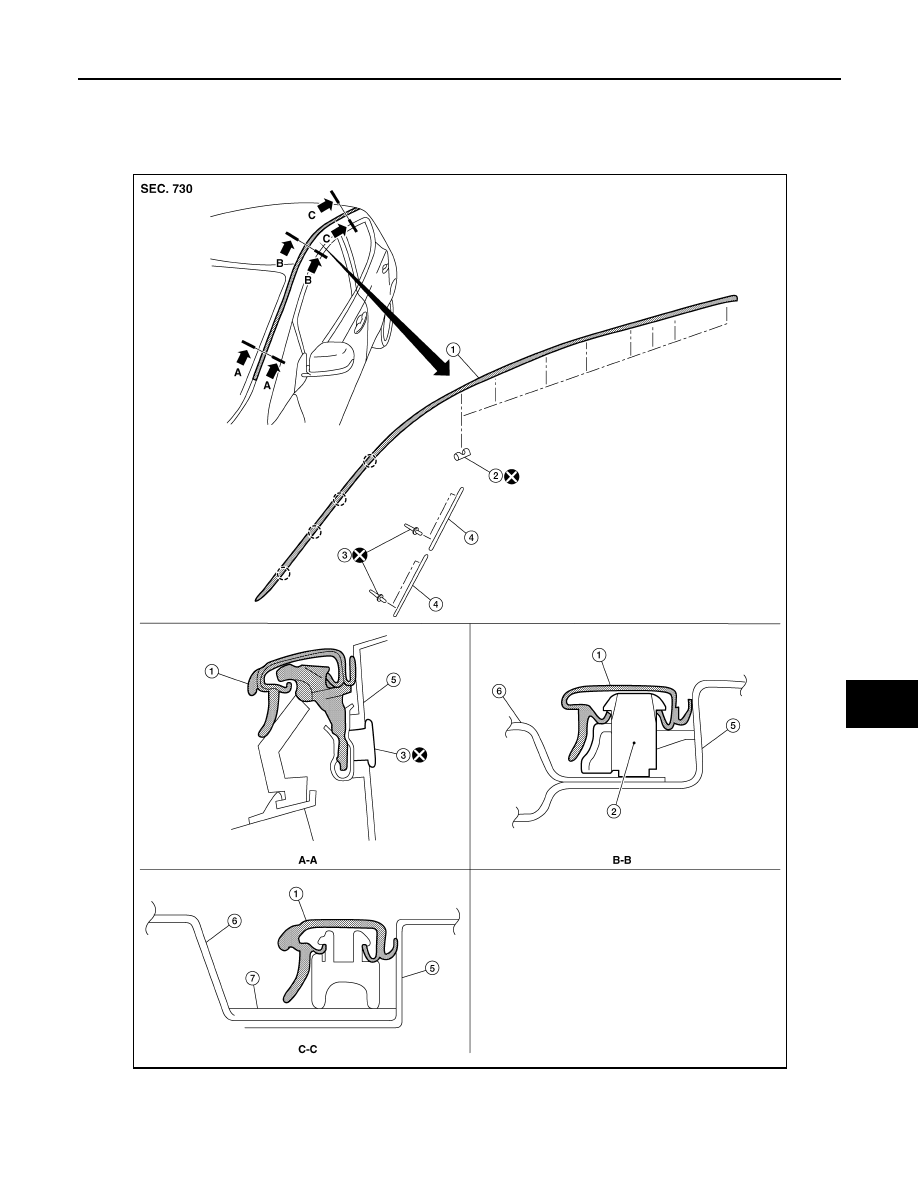

ROOF SIDE MOLDING

Exploded View

INFOID:0000000010119998

1.

Roof side molding

2.

Roof side molding clip

3.

Rivet

4.

Molding fastener

5.

Body side outer panel

6.

Roof panel

7.

Paint seal

ALKIA3125ZZ

EXT-26

< REMOVAL AND INSTALLATION >

ROOF SIDE MOLDING

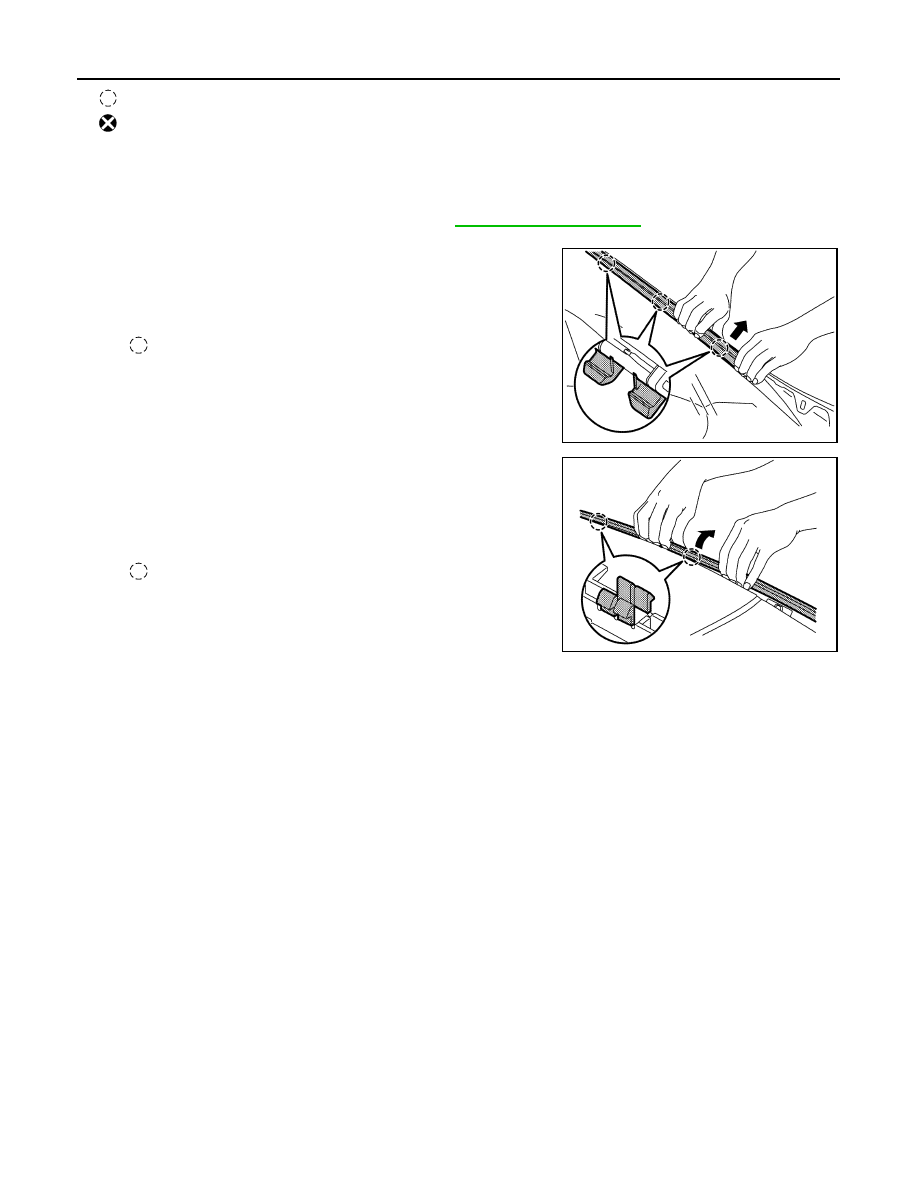

Removal and Installation

INFOID:0000000010119999

REMOVAL

1. Remove front fender cover (LH and RH). Refer to

DLK-168, "Exploded View"

2. Disengage roof side molding fixing clips form front end.

CAUTION:

Never pull the roof side molding strongly to prevent dam-

age to the parts.

3. Twist roof side molding toward vehicle outside, lift it up and

remove it while disengaging clips.

CAUTION:

Never pull the roof side molding strongly to prevent dam-

age to the parts.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Install spacer roof molding between rear end of roof molding fixing clips.

REMOVAL AND INSTALLATION OF ROOF SIDE MOLDING CLIP

Removal

1. Remove roof side molding.
2. Heat adhesive tape interface using a dryer, and then peel roof side molding clips (body side) using long-

nose pliers.

CAUTION:

Be careful not to damage the body.

Installation

1. Clean tape removed surface with a shop cloth soaked in white gasoline or IPA.
2. Use two-part epoxy adhesive.

3. Apply adhesive evenly to clip tape surface.

4. Position applied parts to the proper location, and then sufficiently press-fit until the adhesive protrudes to

tape side.

: Clip

: Always replace after every disassembly.

: Clip

JMKIA7740ZZ

: Clip

JMKIA7741ZZ

Adhesive

: 3M-weld DP–100 or equivalent

Thickness

: Approximately 0.5 mm (0.020 in)
