DOOR SWITCH

Removal and Installation

INFOID:0000000010119904

REMOVAL

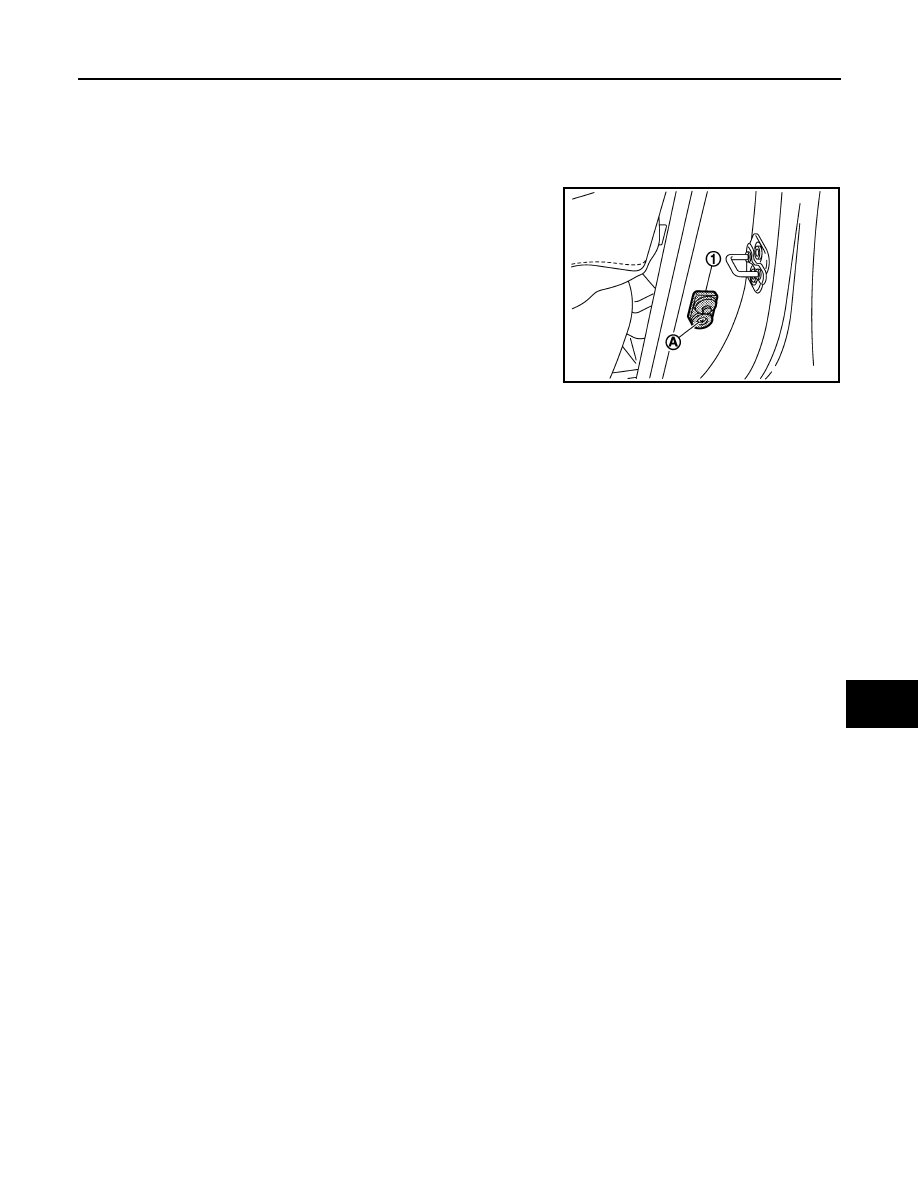

1. Remove the door switch bolt (A).
2. Disconnect the harness connector and remove the door switch

(1).

INSTALLATION

Installation is in the reverse order of removal.

JMKIA2173ZZ

DLK-204

< REMOVAL AND INSTALLATION >

DOOR REQUEST SWITCH

DOOR REQUEST SWITCH

DRIVER SIDE
DRIVER SIDE : Removal and Installation

INFOID:0000000010119905

The door request switch (driver side) is serviced as an assembly with the outside handle. Refer to

DLK-193,

"OUTSIDE HANDLE : Removal and Installation"

.

PASSENGER SIDE
PASSENGER SIDE : Removal and Installation

INFOID:0000000010119906

The door request switch (passenger side) is serviced as an assembly with the outside handle. Refer to

DLK-

193, "OUTSIDE HANDLE : Removal and Installation"

BACK DOOR
BACK DOOR : Removal and Installation

INFOID:0000000010119907

The back door request switch is serviced as an assembly with the back door opener switch. Refer to

DLK-212,

"Removal and Installation"

.

INSIDE KEY ANTENNA

DLK-205

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSIDE KEY ANTENNA

INSTRUMENT CENTER
INSTRUMENT CENTER : Removal and Installation

INFOID:0000000010119908

REMOVAL

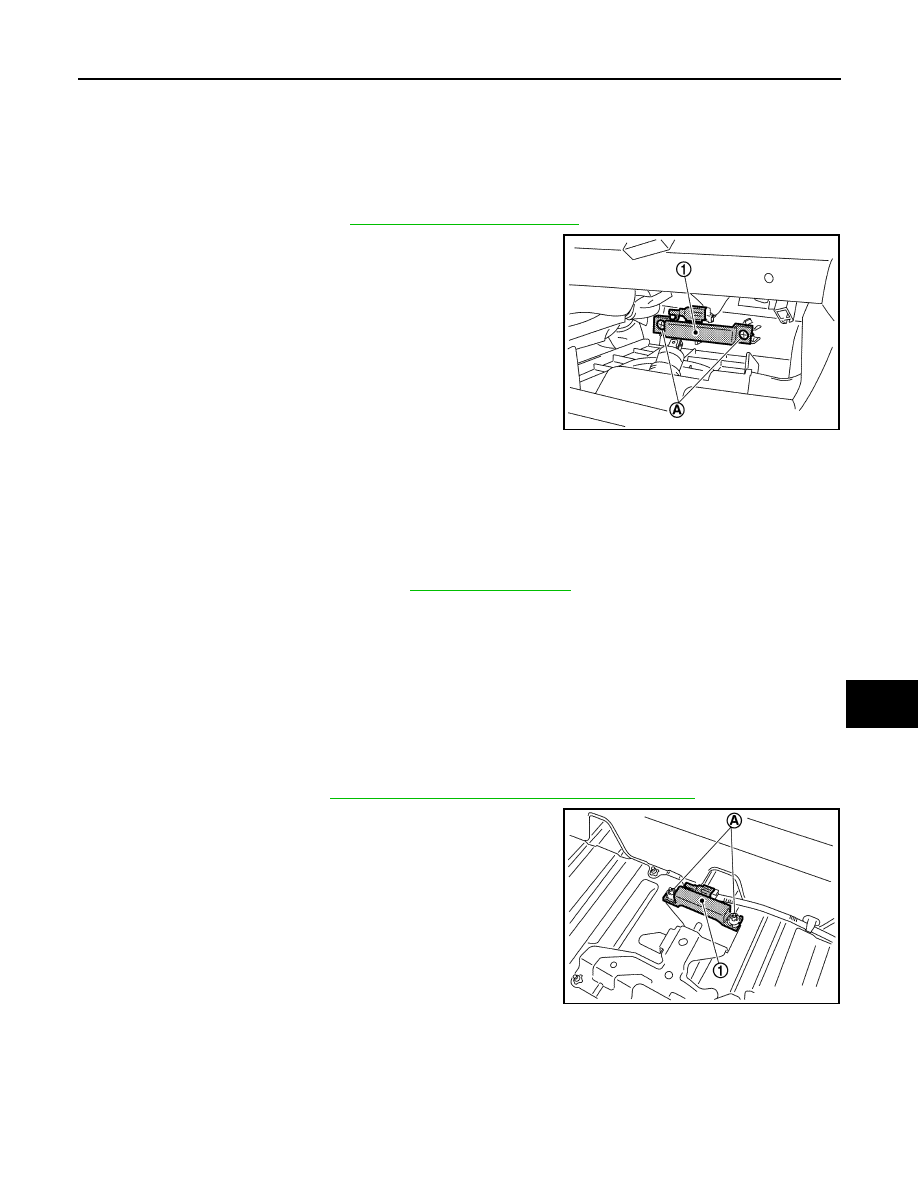

1. Remove the cluster lid C. Refer to

IP-17, "Removal and Installation"

.

2. Remove the inside key antenna (instrument center) screw (A).

CAUTION:

Be careful not to drop mounting screw (A) into instrument

panel.

3. Disconnect the harness connector and remove the inside key

antenna (instrument center) (1).

INSTALLATION

Installation is in the reverse order of removal.

CENTER CONSOLE
CENTER CONSOLE : Removal and Installation

INFOID:0000000010119909

REMOVAL

1. Remove the shift selector finisher. Refer to

IP-28, "Exploded View"

.

2. Disconnect the harness connector from the inside key antenna (center console).
3. Remove the inside key antenna (center console) screws and inside key antenna.

INSTALLATION

Installation is in the reverse order of removal.

REAR SEAT
REAR SEAT : Removal and Installation

INFOID:0000000010119910

REMOVAL

1. Remove the rear seat. Refer to

SE-40, "SEAT CUSHION : Removal and Installation"

.

2. Release the inside key antenna (rear seat) clip (A) using a suit-

able tool.

3. Disconnect the harness connector and remove the inside key

antenna (rear seat) (1).

INSTALLATION

Installation is in the reverse order of removal.

LUGGAGE ROOM
LUGGAGE ROOM : Removal and Installation

INFOID:0000000010119911

REMOVAL

JMKIA6340ZZ

JMKIA6341ZZ

DLK-206

< REMOVAL AND INSTALLATION >

INSIDE KEY ANTENNA

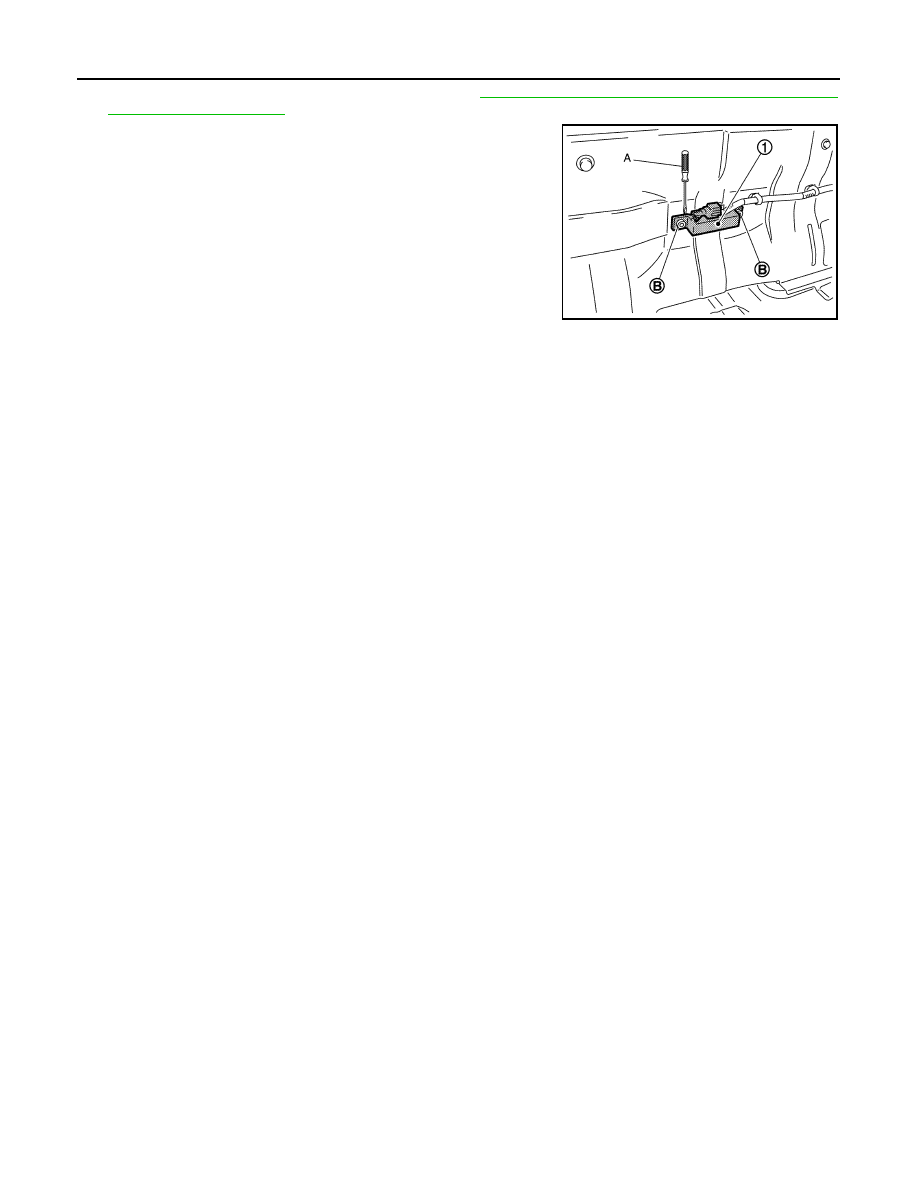

1. Remove the luggage floor upper finisher. Refer to

INT-42, "LUGGAGE FLOOR UPPER FINISHER :

Removal and Installation"

.

2. Disconnect the harness connector and remove the inside key

antenna (luggage room) (1) using a suitable tool (A).

CAUTION:

• When removing and installing, use shop cloths to protect the

inside key antenna (luggage room) from damage.

• Be aware that mounting clips (B) may pop put.

INSTALLATION

Installation is in the reverse order of removal.

JMKIA6342ZZ
