OUTSIDE KEY ANTENNA

DLK-207

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OUTSIDE KEY ANTENNA

DRIVER SIDE
DRIVER SIDE : Removal and Installation

INFOID:0000000010119912

The outside key antenna (driver side) is serviced as an assembly with the outside handle. Refer to

DLK-193,

"OUTSIDE HANDLE : Removal and Installation"

.

PASSENGER SIDE
PASSENGER SIDE : Removal and Installation

INFOID:0000000010119913

The outside key antenna (passenger side) is serviced as an assembly with the outside handle. Refer to

DLK-

193, "OUTSIDE HANDLE : Removal and Installation"

.

REAR BUMPER
REAR BUMPER : Removal and Installation

INFOID:0000000010119914

REMOVAL

1. Remove the rear bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

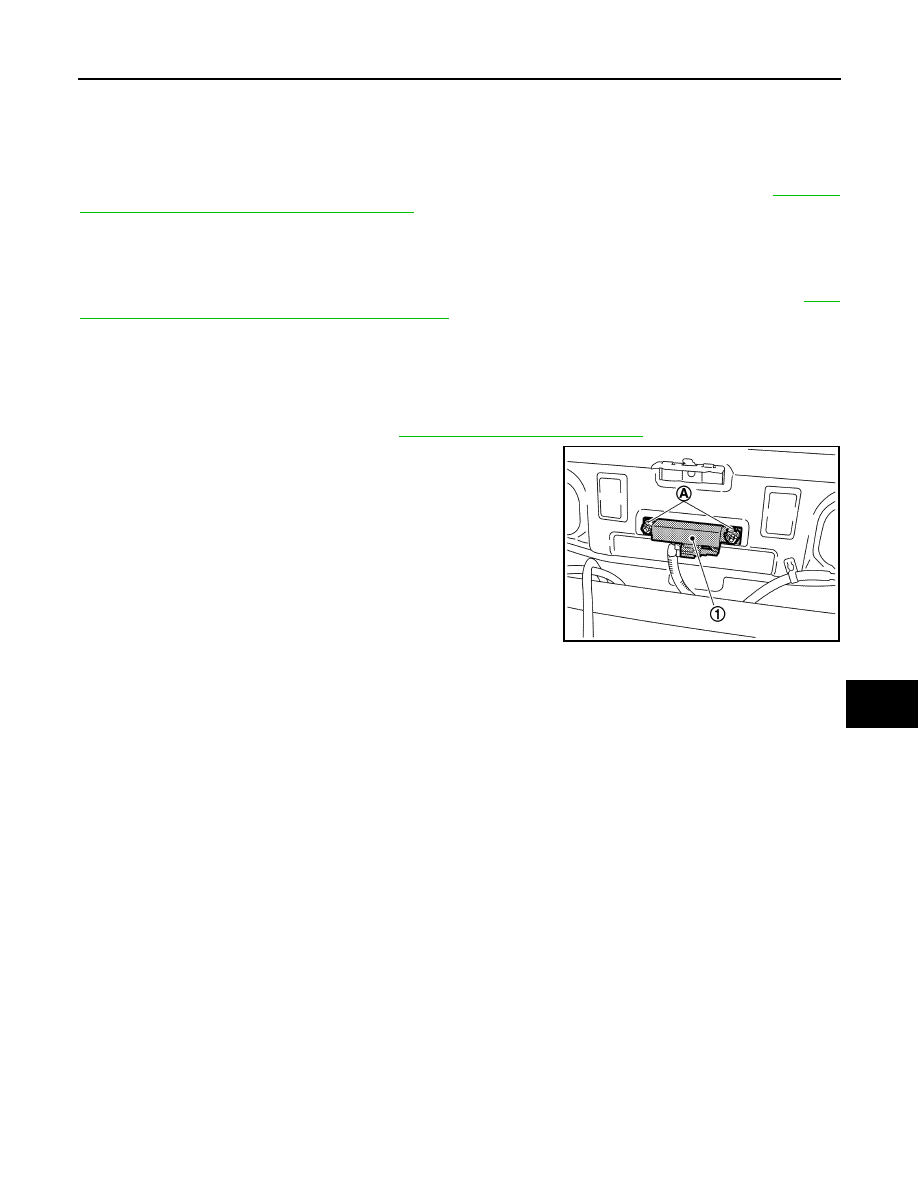

2. Release the outside key antenna (rear bumper) clip (A) using a

suitable tool.

3. Disconnect the harness connector and remove the outside key

antenna (rear bumper) (1).

INSTALLATION

Installation is in the reverse order of removal.

JMKIA6343ZZ

DLK-208

< REMOVAL AND INSTALLATION >

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Removal and Installation

INFOID:0000000010119915

REMOVAL

1. Remove the front bumper fascia. Refer to

EXT-13, "Removal and Installation"

.

2. Disconnect the harness connector from the Intelligent Key warning buzzer.

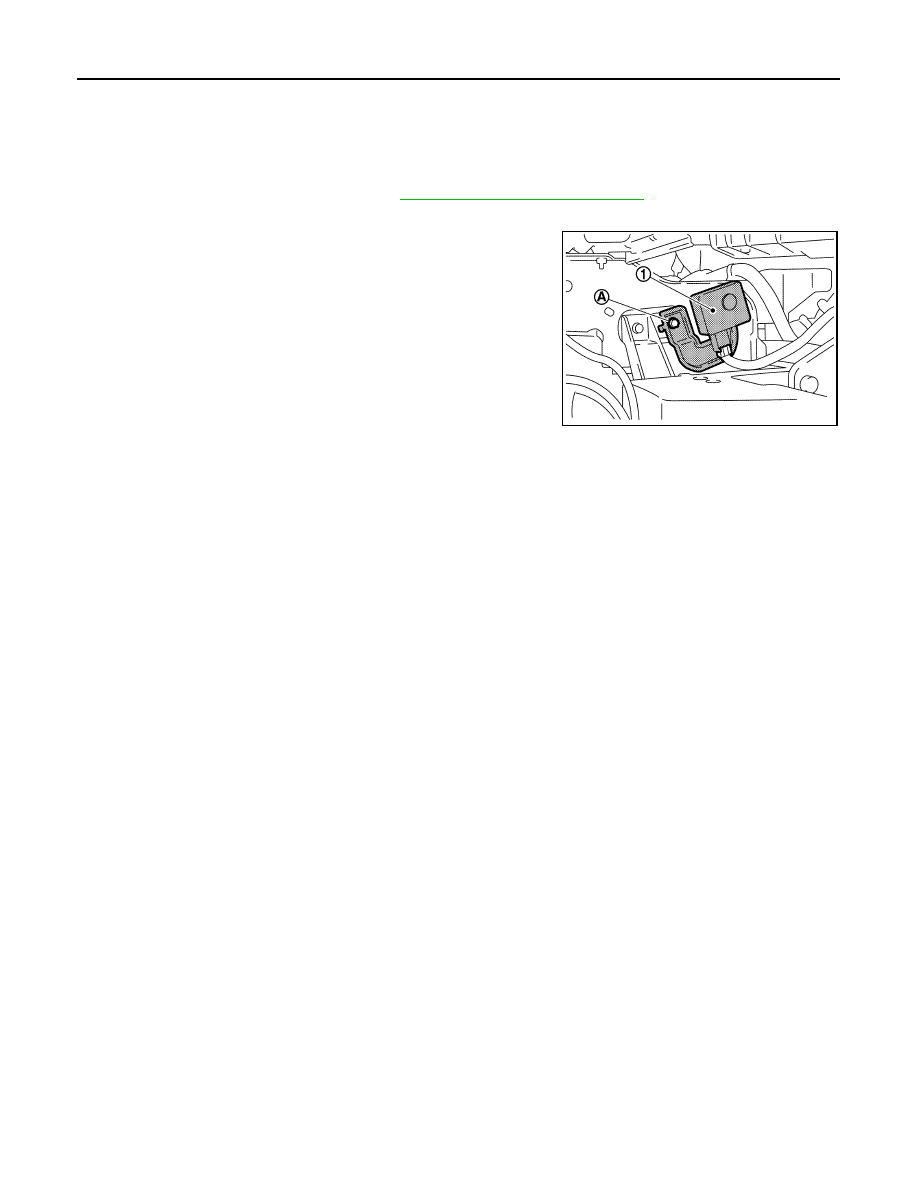

3. Remove the Intelligent Key warning buzzer bolt (A) and Intelli-

gent Key warning buzzer (1).

INSTALLATION

Installation is in the reverse order of removal.

JMKIA6339ZZ

REMOTE KEYLESS ENTRY RECEIVER

DLK-209

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY RECEIVER

Removal and Installation

INFOID:0000000010119916

REMOVAL

1. Remove the glove box lid. Refer to

IP-17, "Removal and Installation"

2. Disconnect the harness connector from the remote keyless entry receiver.

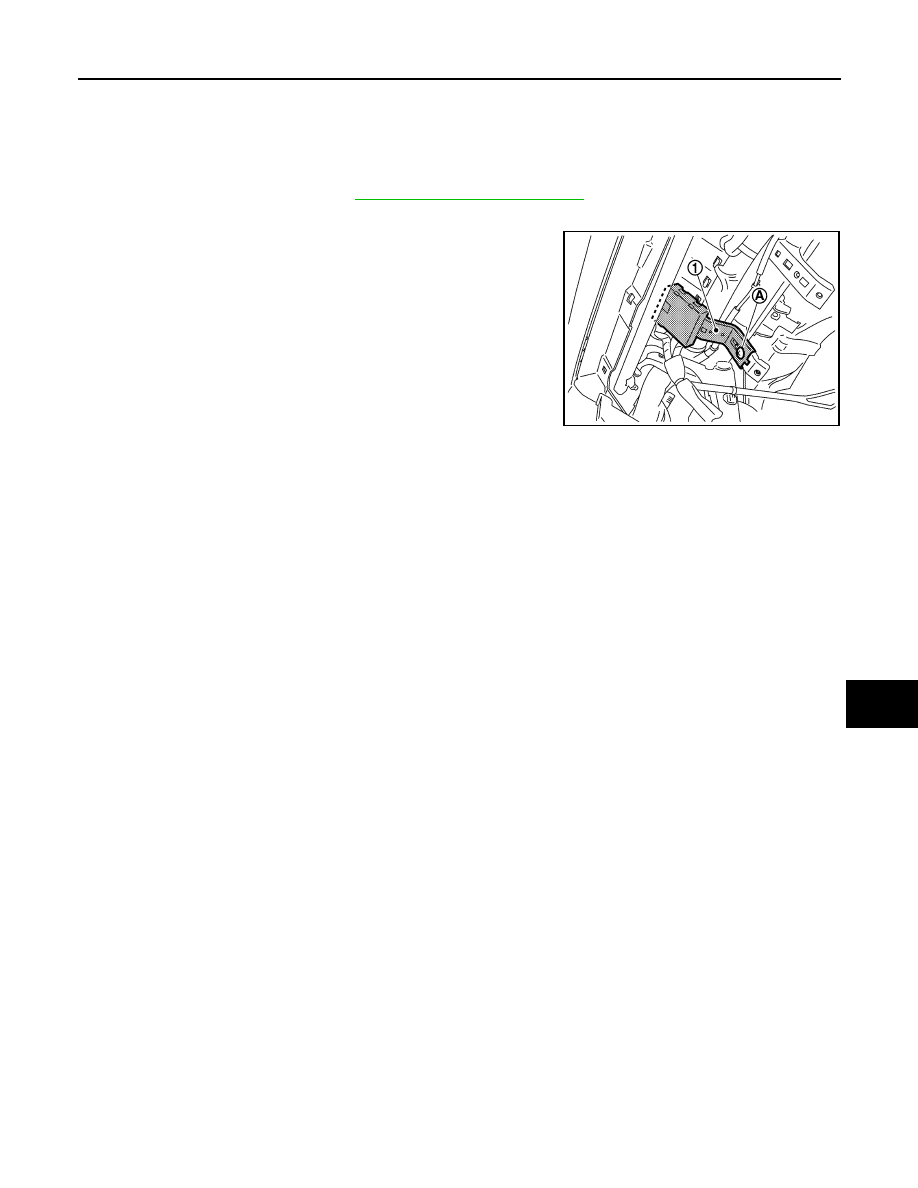

3. Remove the remote keyless entry receiver bolt (A) and remote

keyless entry receiver (1).

INSTALLATION

Installation is in the reverse order of removal.

JMKIA6338ZZ

DLK-210

< REMOVAL AND INSTALLATION >

INTELLIGENT KEY BATTERY

INTELLIGENT KEY BATTERY

Removal and Installation

INFOID:0000000010119917

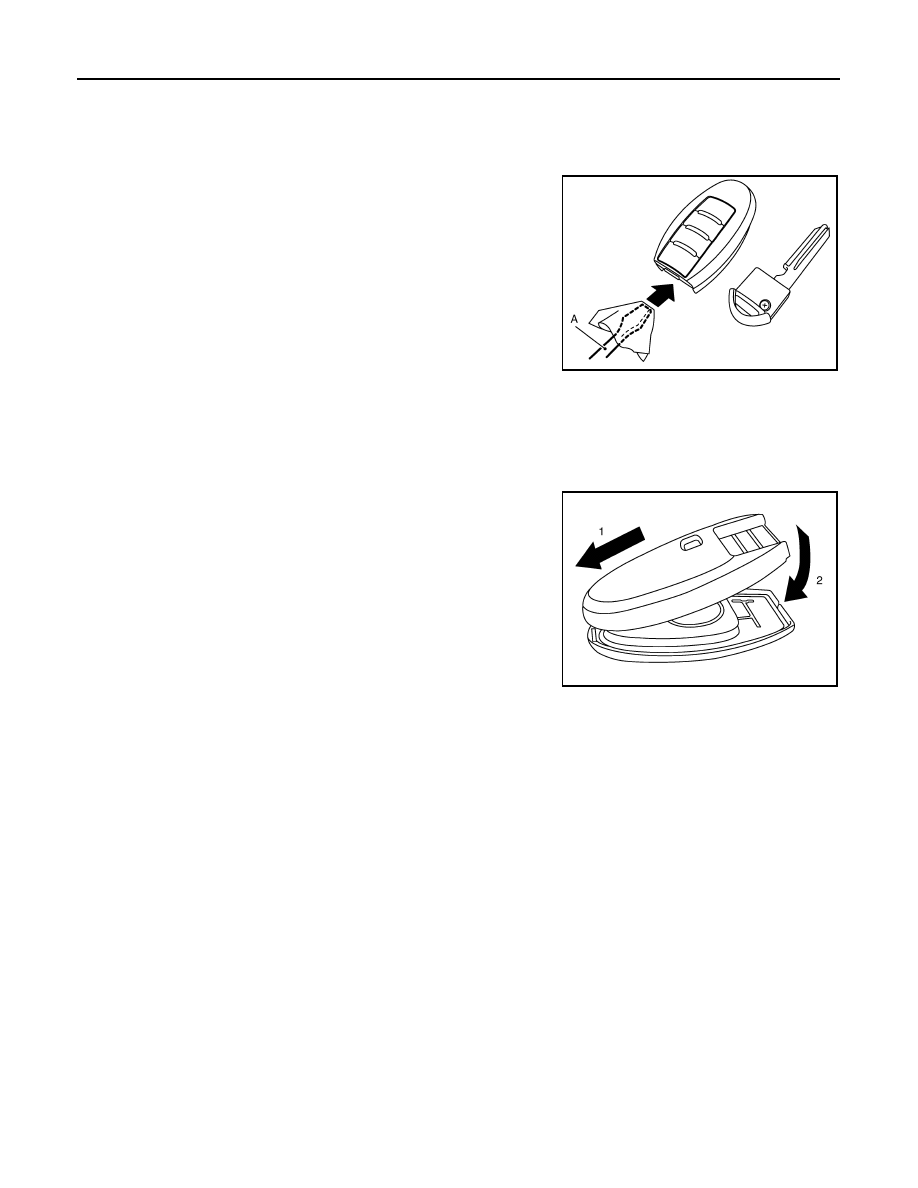

1. Release the lock knob at the back of the Intelligent Key and remove the mechanical key.

2. Insert a suitable tool (A) wrapped with a cloth into the slit of the

corner and twist it to separate the upper part from the lower part.

CAUTION:

• Do not touch the circuit board or battery terminal.

• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3. Replace the battery with new one.

4. Align the tips of the upper and lower parts, and then push them

together until it is securely closed.

CAUTION:

• When replacing battery, keep dirt, grease, and other for-

eign materials off the electrode contact area.

• After replacing the battery, check that all Intelligent Key

functions work normally.

PIIB6221E

Battery replacement

:Coin-type lithium battery
(CR2025)

PIIB6222E
