FRONT DOOR LOCK

DLK-195

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

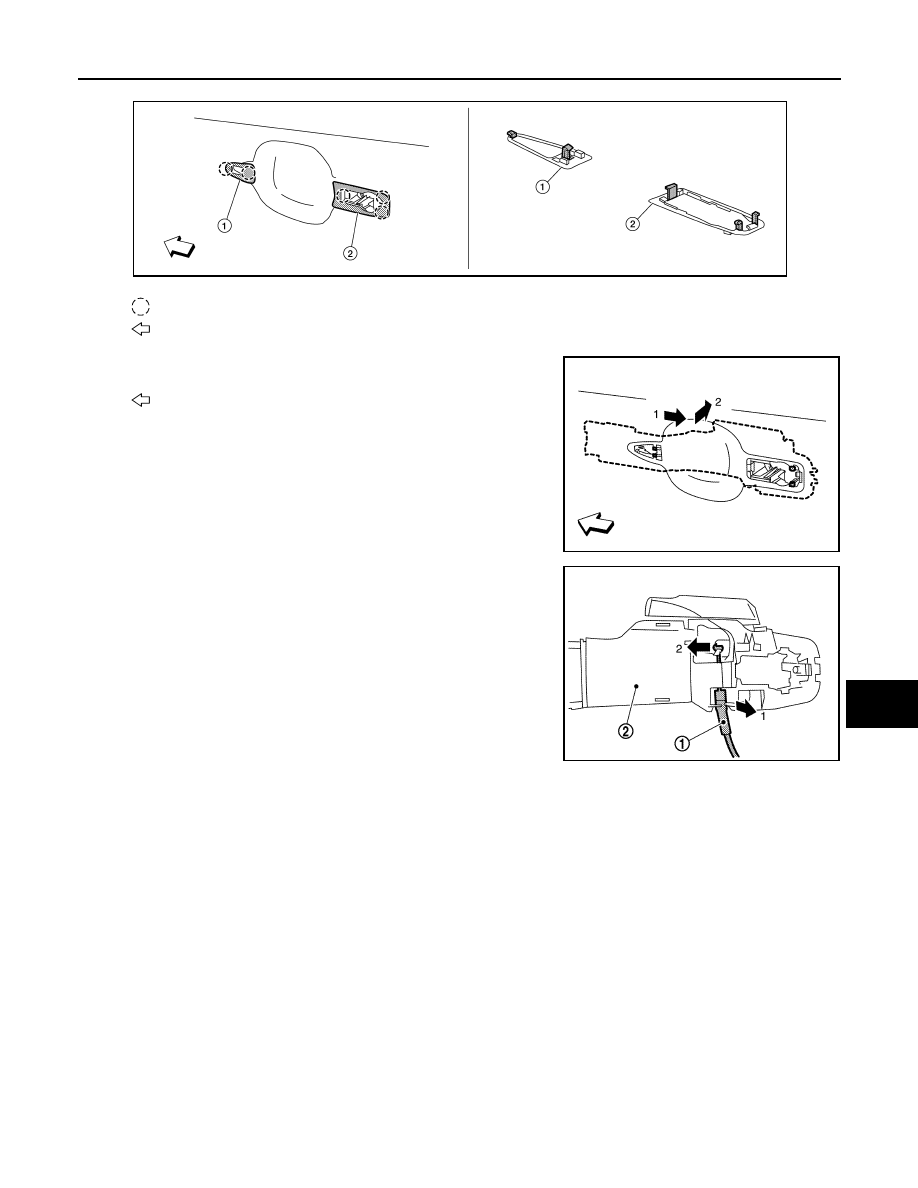

9. Remove front gasket (1) and rear gasket (2).

10. Slide outside handle bracket toward rear of vehicle to remove.

11. Disconnect outside handle cable (1) from outside handle bracket

(2).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing key rod, rotate key rod holder until a click is felt (driver side only).

• Check that door lock cables are properly engaged with inside handle and outside handle.

• After installation, check door open/close and lock/unlock operation.

Pawl

Front

AWKIA2412ZZ

Front

JMKIA6416ZZ

JMKIA6417ZZ

DLK-196

< REMOVAL AND INSTALLATION >

REAR DOOR LOCK

REAR DOOR LOCK

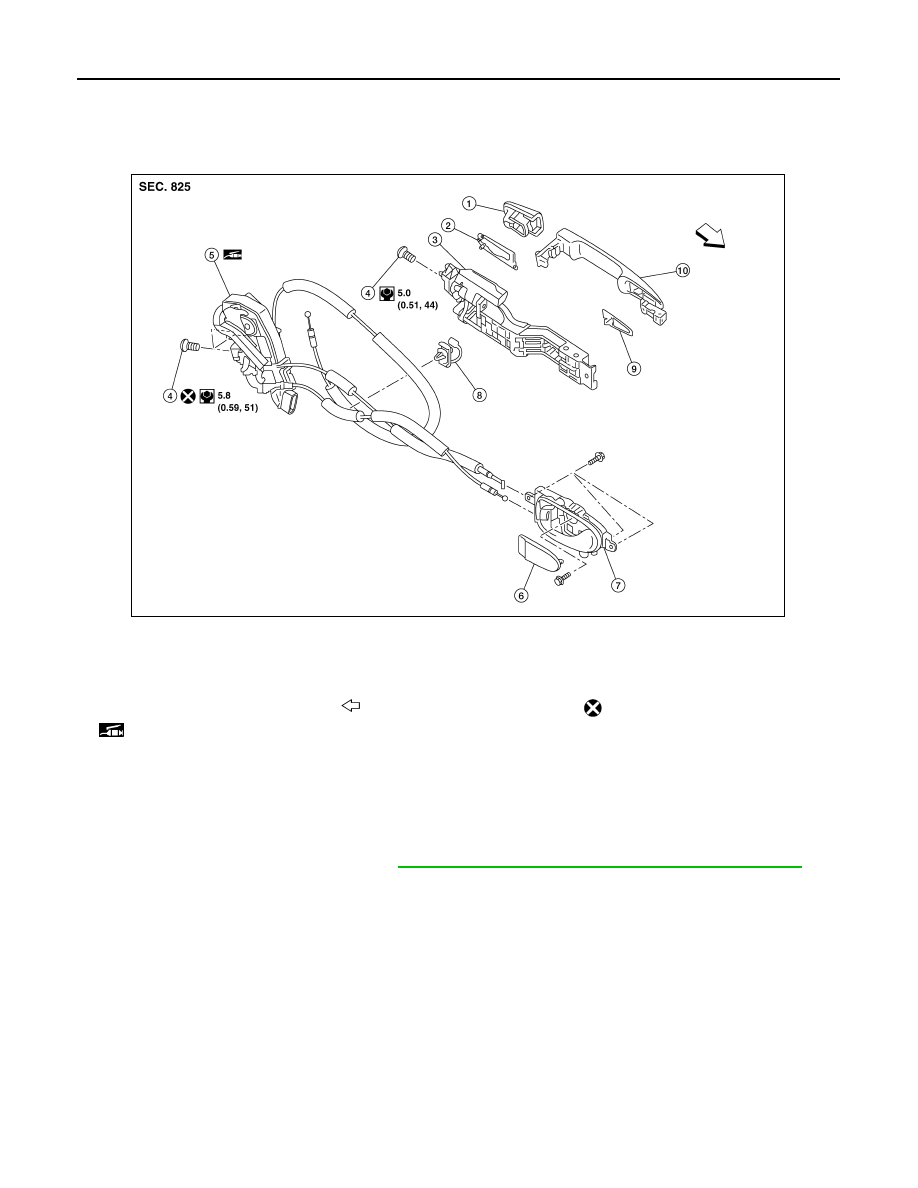

Exploded View

INFOID:0000000010119897

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000010119898

REMOVAL

1. Remove outside handle bracket. Refer to

DLK-197, "OUTSIDE HANDLE : Removal and Installation"

.

1.

Outside handle escutcheon

2.

Rear gasket

3.

Outside handle bracket

4.

Bolt

5.

Door lock assembly

6.

Inside handle escutcheon

7.

Inside handle

8.

Cable clip

9.

Front gasket

10. Outside handle

Front

Do not reuse

Grease

AWKIA2932ZZ

REAR DOOR LOCK

DLK-197

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

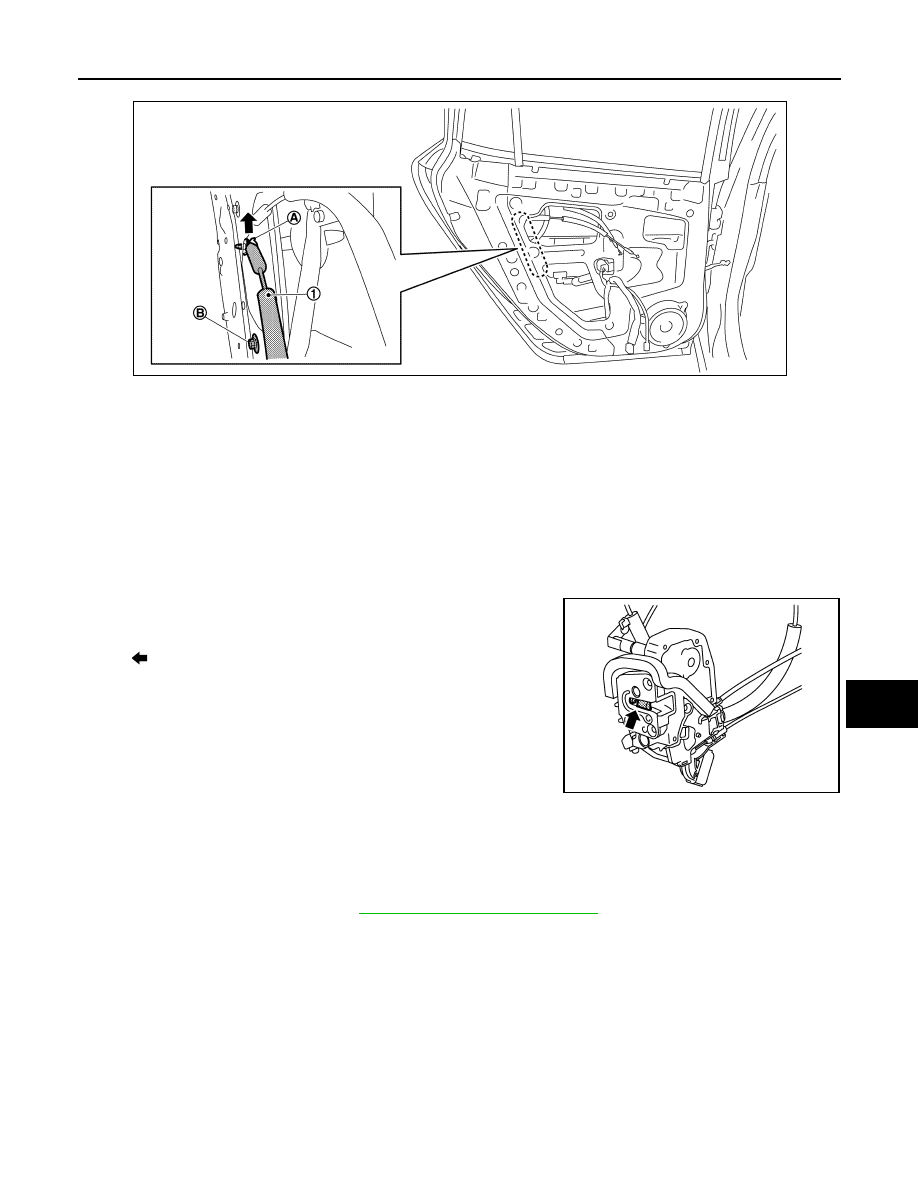

2. Disengage inside handle cable (1) from cable clip (A).

3. Remove lower bolt (B) of partition sash.
4. Disconnect the harness connector from the door lock actuator.
5. Remove door lock assembly bolts.
6. Remove door lock assembly while locating Inside handle cable and door lock cable to the bottom side of

rear partition sash.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse door lock assembly bolts.

• After installation, check the door open/close and lock/unlock operation.

• After installation, check door lock cable is properly engaged with outside handle bracket.

• Check door lock assembly for poor lubrication. If necessary,

apply a suitable multi-purpose grease.

INSIDE HANDLE
INSIDE HANDLE : Removal and Installation

INFOID:0000000010119899

REMOVAL

1. Remove rear door finisher. Refer to

INT-22, "Removal and Installation"

.

2. Remove inside handle screws and inside handle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check door open/close and lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010119900

REMOVAL

1. Fully close rear door glass.

JMKIA9363ZZ

: Grease point

JMKIA5892ZZ

DLK-198

< REMOVAL AND INSTALLATION >

REAR DOOR LOCK

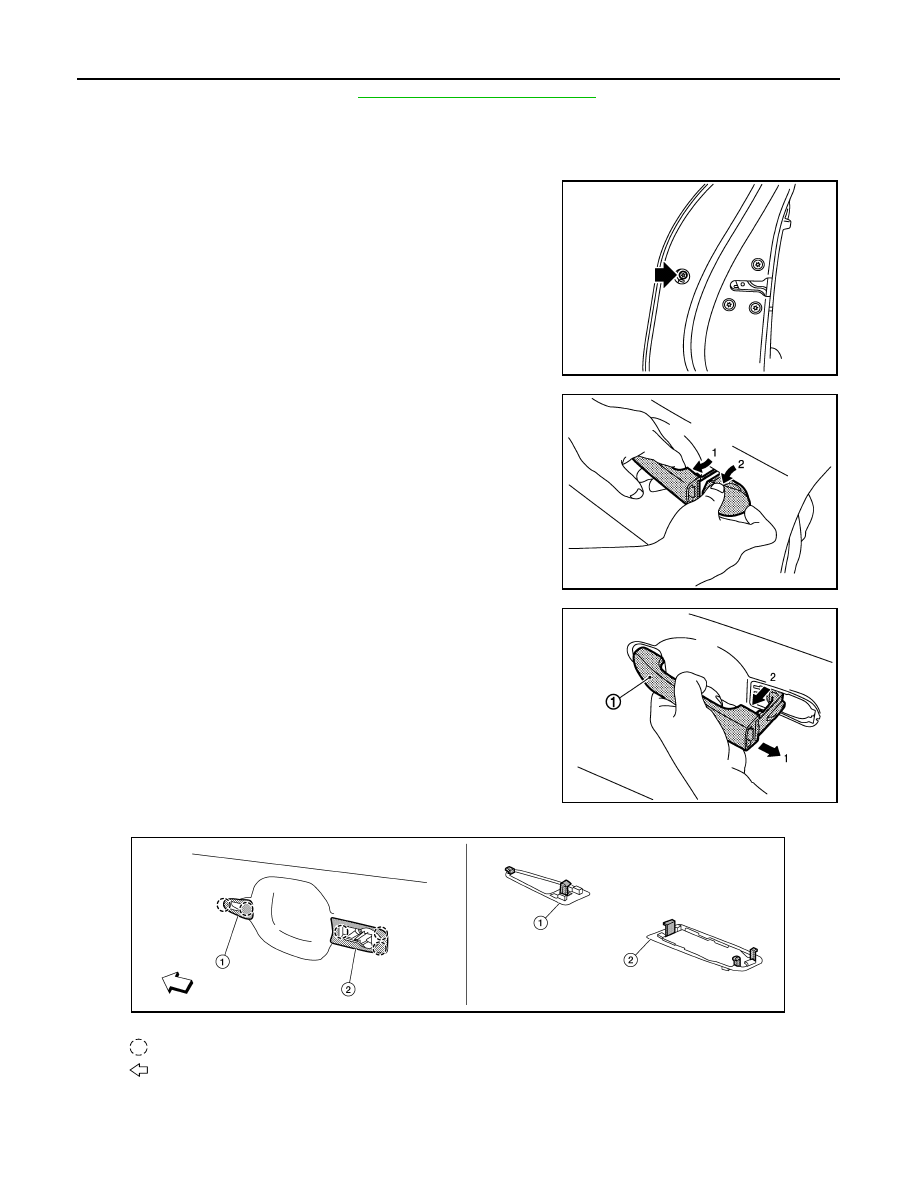

2. Remove rear door finisher. Refer to

INT-22, "Removal and Installation"

.

3. Remove sealing screen.

NOTE:

Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing

screen is reused.

4. Remove door side grommet and loosen bolt from grommet hole.

5. While pulling outside handle, remove outside handle escutch-

eon.

6. While pulling outside handle (1), slide toward rear of vehicle to

remove outside handle.

7. Remove front gasket (1) and rear gasket (2).

JMKIA1467ZZ

JMKIA5342ZZ

JMKIA0524ZZ

Pawl

Front

AWKIA2412ZZ
