CHARGE PORT LID LOCK

DLK-191

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Check that charge port lid lock control cable is properly engaged with charge port lid lock.

• After installation, perform charge port lid fitting adjustment. Refer to

DLK-159, "CHARGE PORT LID

ASSEMBLY : Adjustment"

.

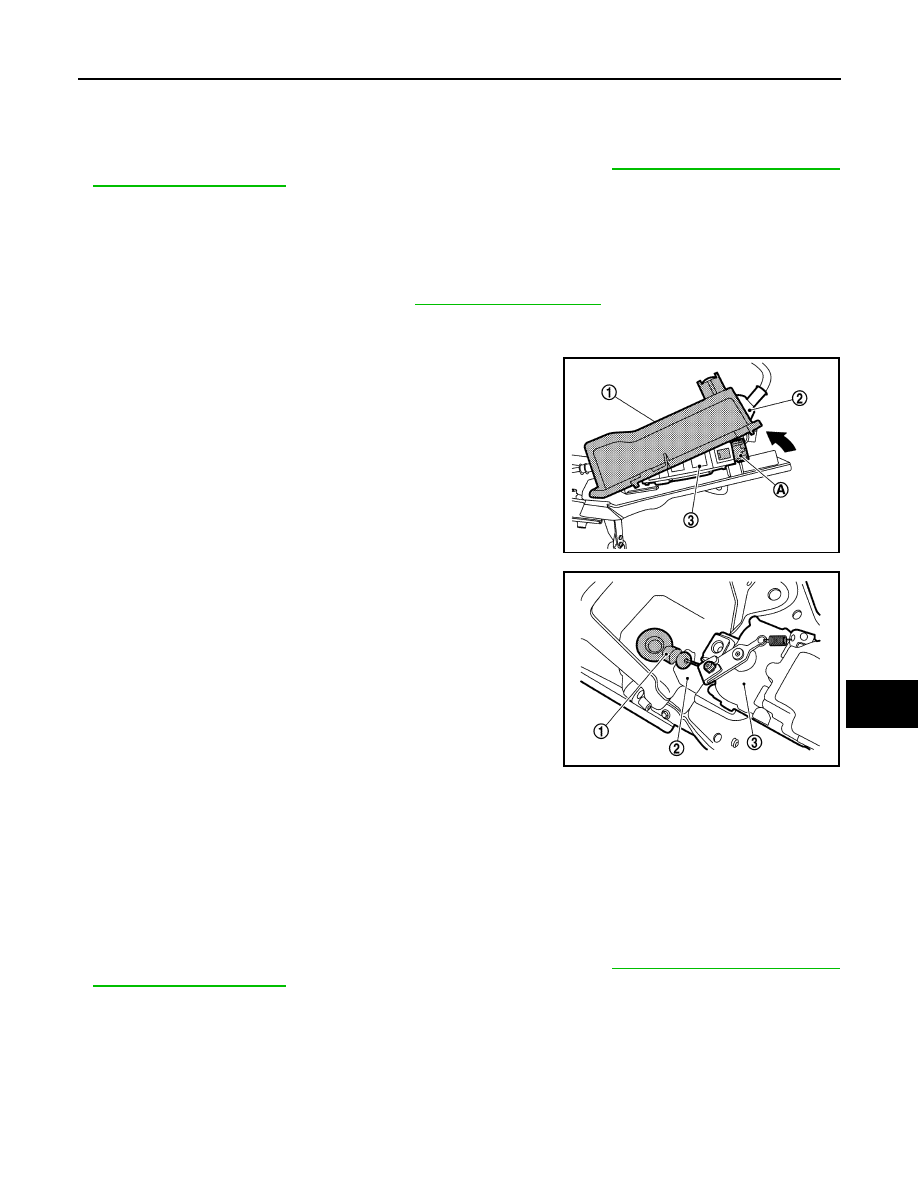

CHARGE PORT LID OPENER ACTUATOR
CHARGE PORT LID OPENER ACTUATOR : Removal and Installation

INFOID:0000000010119892

REMOVAL

1. Remove charge port lid rear cover. Refer to

DLK-158, "Exploded View"

.

2. Remove actuator cover.
a. Remove actuator cover screws.
b. Pull up actuator cover (1) from harness grommet (2) side, and

the disconnect harness connector (A) from charge port lid

opener actuator (3).

c. Remove charge port lid control cable (1) from charge port lid

hinge assembly (2) and charge port lid opener actuator (3).

d. Remove actuator cover, charge port lid control cable and harness at the same time.
3. Remove charge port lid opener actuator bolts and charge port lid opener actuator.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Check that charge port lid lock control cable is properly engaged with charge port lid opener actua-

tor.

• When replace charge port lid control cable and charge port lid opener actuator, replace with actuator

cover.

• After installation, perform charge port lid fitting adjustment. Refer to

DLK-159, "CHARGE PORT LID

ASSEMBLY : Adjustment"

.

• Check charge port lid assembly lock/unlock operation after installation.

JMKIB1177ZZ

JMKIB1178ZZ

DLK-192

< REMOVAL AND INSTALLATION >

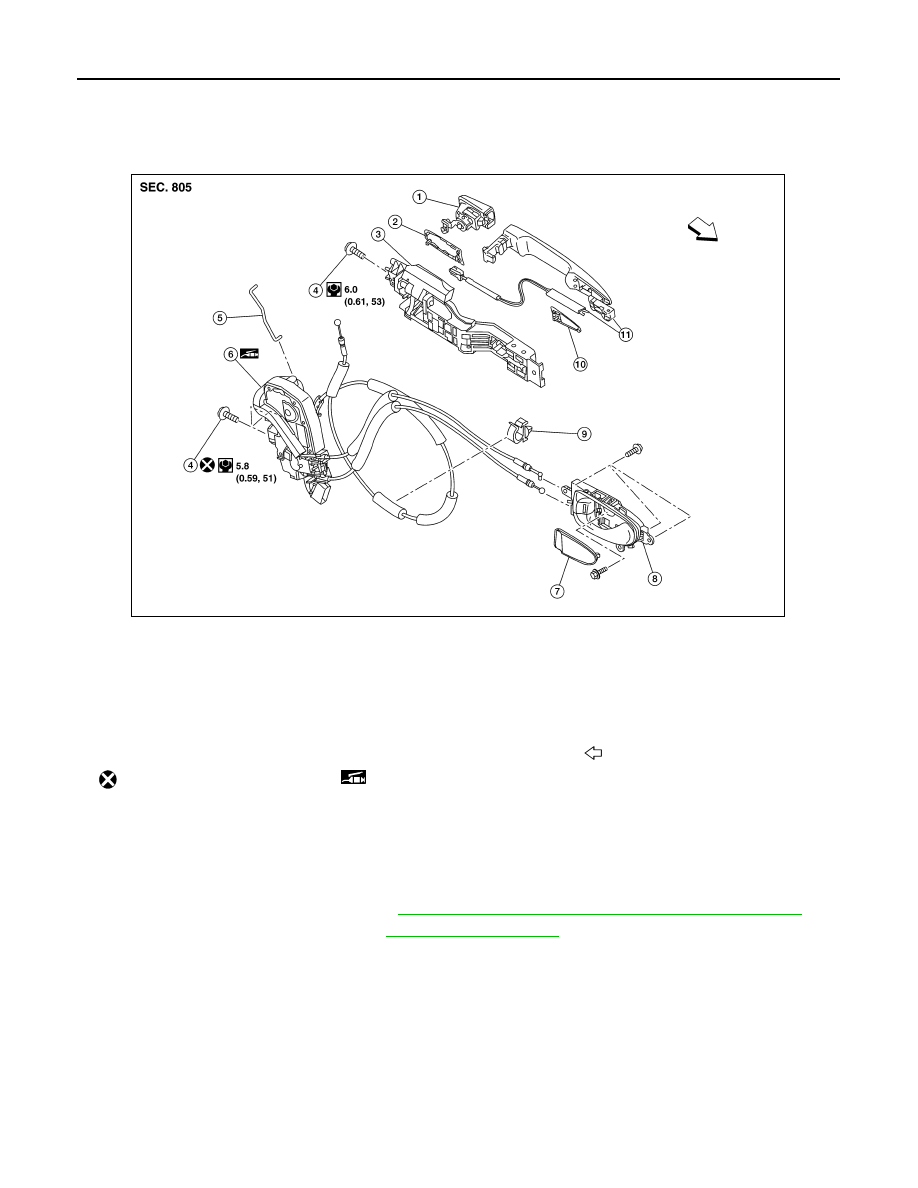

FRONT DOOR LOCK

FRONT DOOR LOCK

Exploded View

INFOID:0000000010119893

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000010119894

REMOVAL

1. Remove outside handle bracket. Refer to

DLK-193, "OUTSIDE HANDLE : Removal and Installation"

.

2. Remove front door lower sash. Refer to

GW-19, "Exploded View"

.

3. Remove door lock assembly bolts.
4. Disconnect the harness connector from the door lock actuator and remove door lock assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse door lock assembly bolts.

• After installation, check the door open/close and lock/unlock operation.

• After installation, check door lock cable is properly engaged with outside handle bracket.

1.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

2.

Rear gasket

3.

Outside handle bracket

4.

Bolt

5.

Key rod (driver side)

6.

Door lock assembly

7.

Inside handle escutcheon

8.

Inside handle

9.

Cable clip

10. Front gasket

11. Outside handle

Front

Do not reuse

Grease

AWKIA2411ZZ

FRONT DOOR LOCK

DLK-193

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

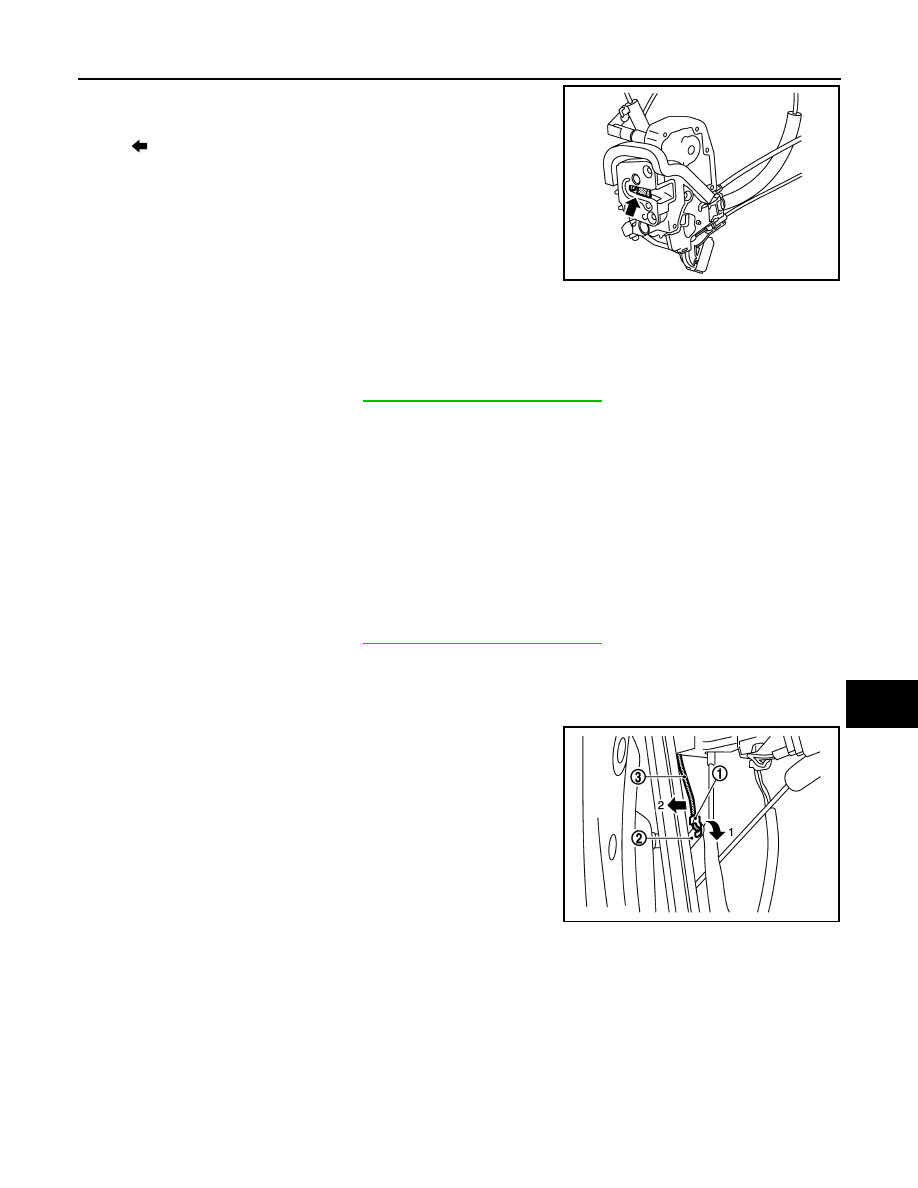

• Check door lock assembly for poor lubrication. If necessary,

apply a suitable multi-purpose grease.

INSIDE HANDLE
INSIDE HANDLE : Removal and Installation

INFOID:0000000010119895

REMOVAL

1. Remove front door finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove inside handle screws and inside handle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check the door open/close and lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010119896

REMOVAL

1. Fully close the front door glass.
2. Remove front door finisher. Refer to

INT-19, "Removal and Installation"

.

3. Remove sealing screen.

NOTE:

Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing

screen is reused.

4. Disengage rod holder (1), and then separate key rod (3) from

door lock assembly (2) (driver side).

: Grease point

JMKIA5892ZZ

JMKIA5886ZZ

DLK-194

< REMOVAL AND INSTALLATION >

FRONT DOOR LOCK

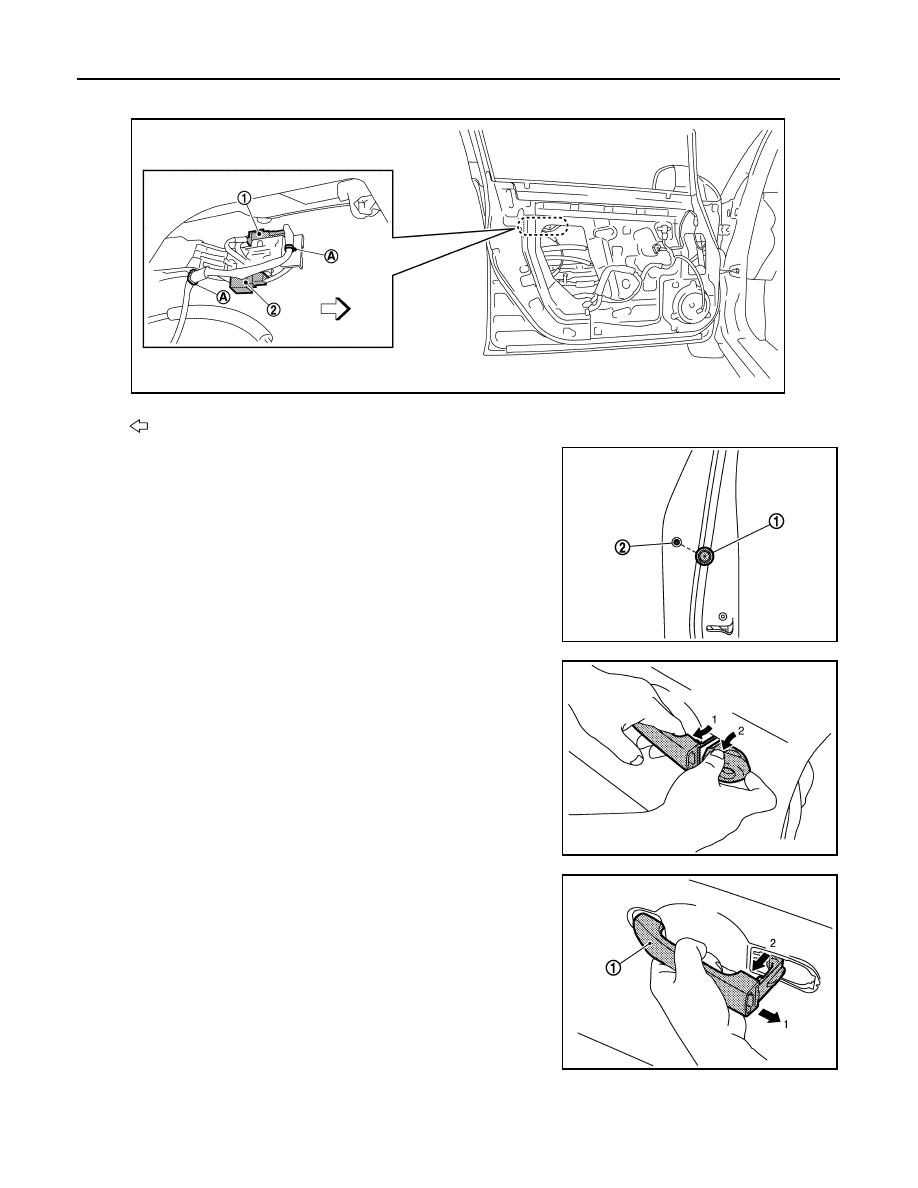

5. Disconnect harness connector from door antenna (1) and door request switch (2) and remove harness

clamps (A).

6. Remove grommet (1) (door side). Loosen bolt (2) that retains

door lock cylinder. (For passenger side, bolt fixes outside handle

escutcheon.)

7. While pulling outside handle, remove door key cylinder assem-

bly (diver side) or outside handle escutcheon (passenger side).

8. While pulling outside handle (1), slide toward rear of vehicle to

remove outside handle.

Front

JMKIA9362ZZ

JMKIA5888ZZ

JMKIA0560ZZ

JMKIA0524ZZ
