BODY ALIGNMENT

Unit: mm (in)

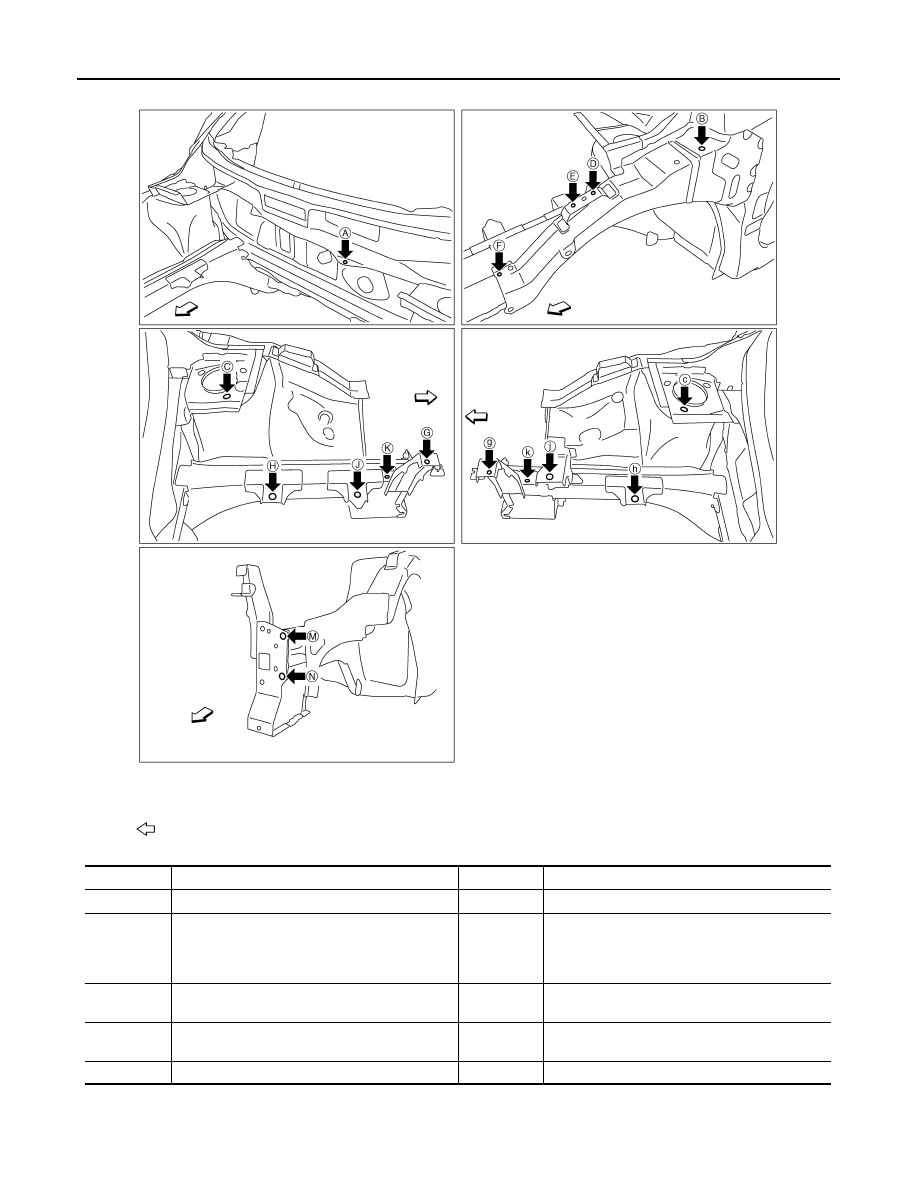

 Front

Portion

Description

Portion

Description

A

Upper dash hole center

φ7 (0.28)

G, g

Side radiator core support hole center

φ9 (0.35)

B, b

Hood hinge installing hole center

φ11 (0.43)

H, h, J, j

Traction motor inverter member mounting hole
center
H, h, J:

φ18 (0.71)

j: 20

×18 (0.79×0.71)

C, c

Front strut installing hole center 18

×13

(0.71

×0.51)

K, k

Front side member hole center 12

×7 (0.47×0.28)

D, d, E, e

Front fender installing hole center

φ7 (0.28)

M, m, N, n

Front bumper stay installing hole center

φ15

(0.59)

F, f

Hoodledge reinforcement hole center

φ12 (0.47)

JSKIA2278ZZ

BODY ALIGNMENT

BRM-65

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Underbody

INFOID:0000000010121715

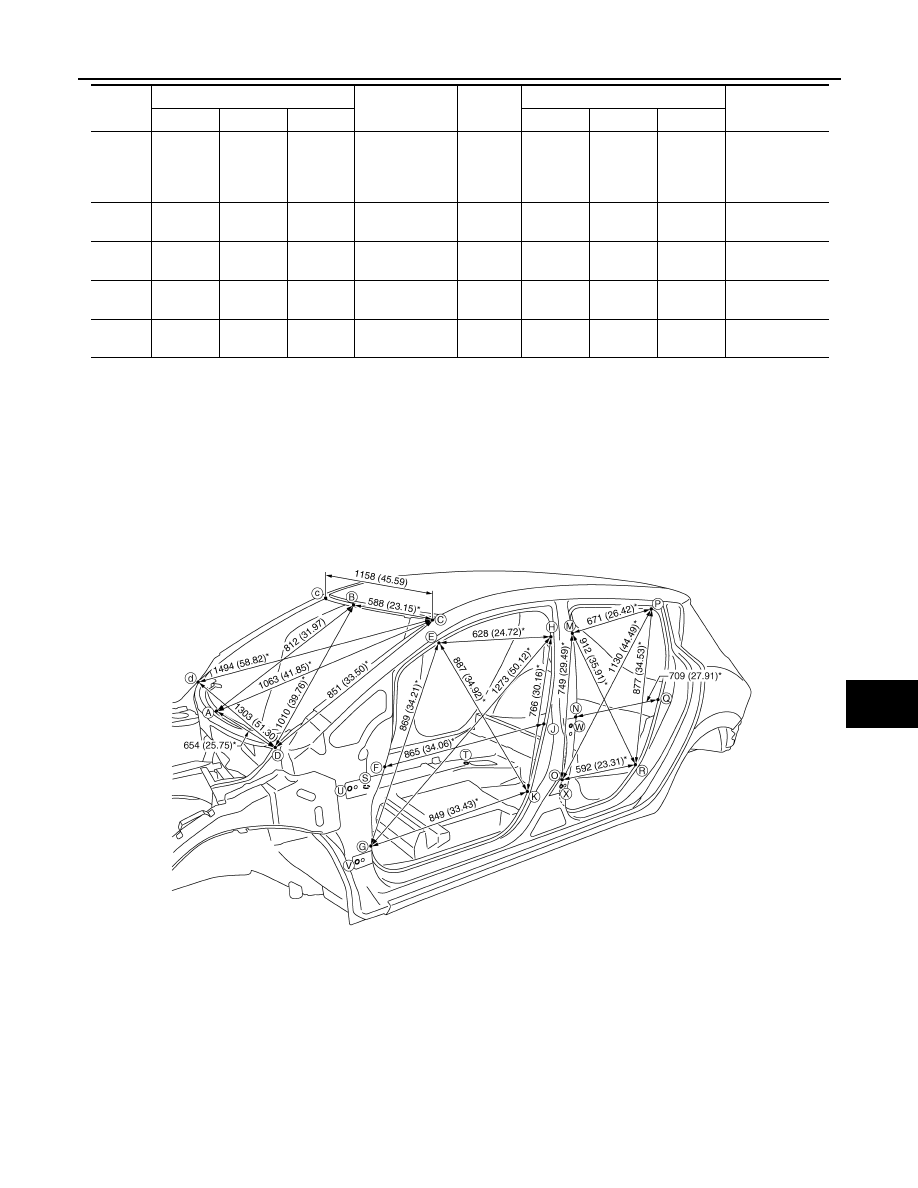

MEASUREMENT

Dimensions marked with

″*″ indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

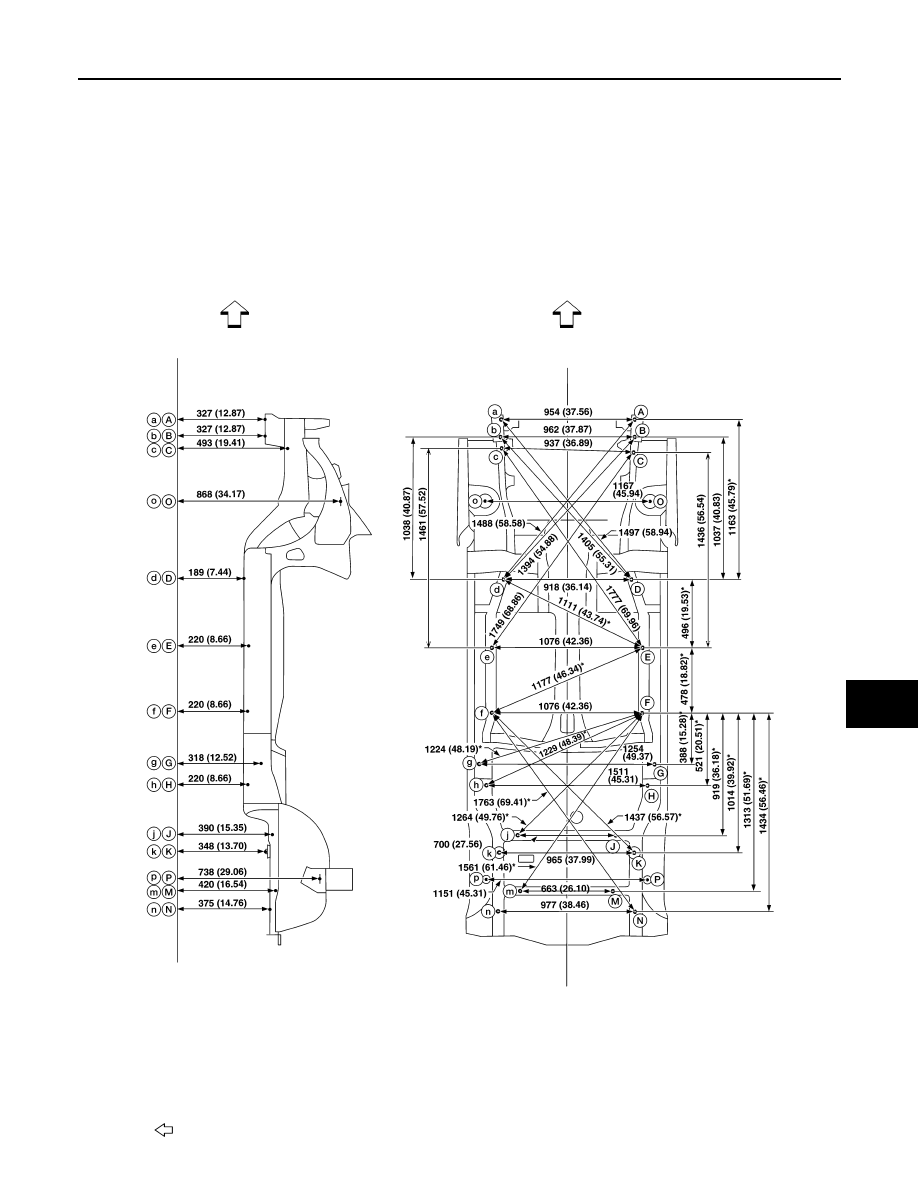

The following figure shows a bottom view and a side view of the vehicle.

Unit: mm (in)

Front

AWKIA2314ZZ

BRM-66

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

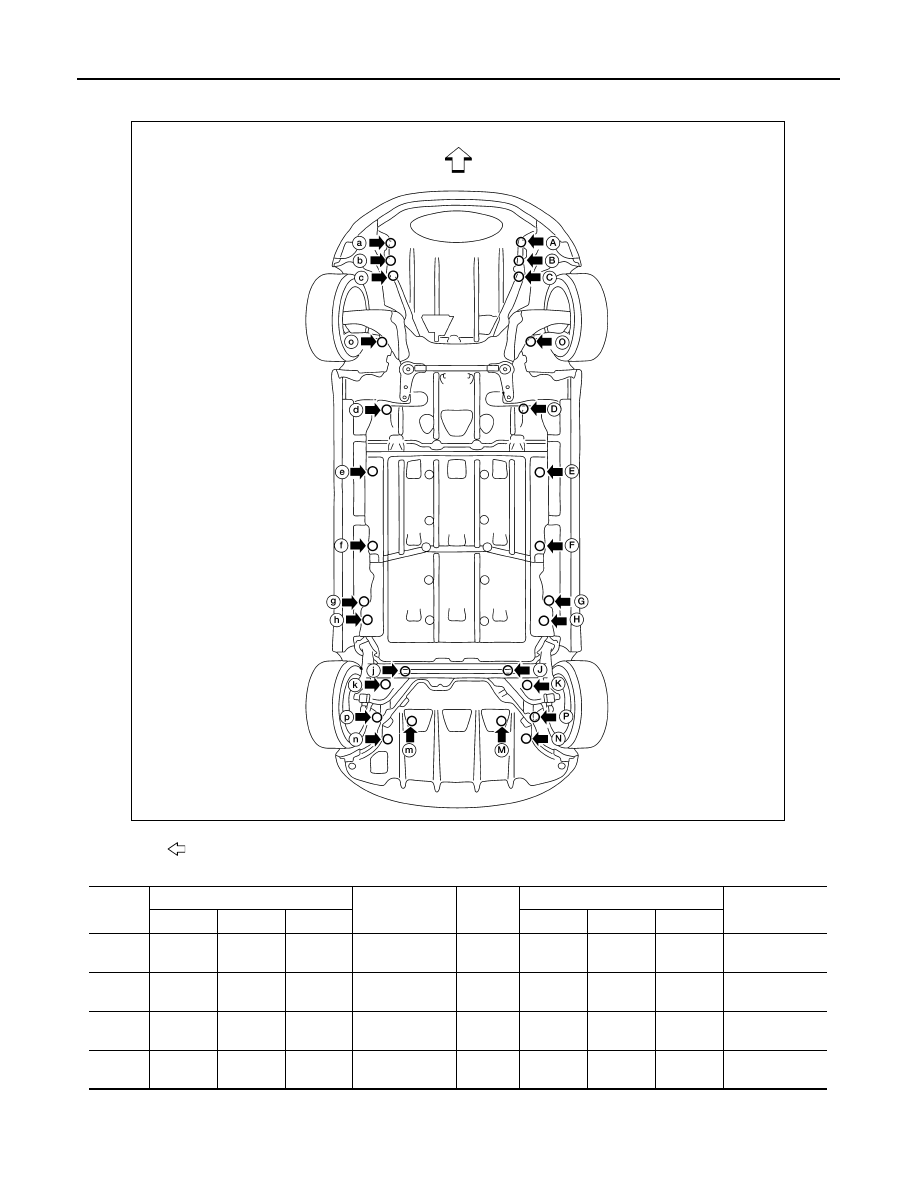

MEASUREMENT POINTS

Unit: mm (in)

 Front

Position

Measurement

Description

Position

Measurement

Description

X

Y

Z

X

Y

Z

A

470.0

(18.504)

−582.0

(

−22.913)

327.3

(12.886)

Hole

φ11 (0.43)

G, g

±626.8

(

±24.677)

1904.4

(74.976)

318.0

(12.520)

Hole

φ16 (0.63)

a

−484.0

(

−19.055)

−582.0

(

−22.913)

327.3

(12.886)

Hole

φ11 (0.43)

H, h

±575.4

(

±22.653)

2060.0

(81.102)

220.0

(8.661)

Hole

φ13 (0.51)

B

472.4

(18.598)

−455.0

(

−17.913)

327.3

(12.886)

Hole

φ20 (0.79)

J, j

±350.0

(

±13.780)

2423.0

(95.394)

390.4

(15.370)

Hole

φ16 (0.63)

b

−489.7

(

−19.279)

−455.0

(

−17.913)

327.3

(12.886)

Hole

φ20 (0.79)

K, k

±482.3

(

±18.988)

2544.2

(100.165)

348.3

(13.713)

Hole

φ12 (0.47)

AWKIA2386ZZ

BODY ALIGNMENT

BRM-67

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Passenger Compartment

INFOID:0000000010121716

MEASUREMENT

Dimensions marked with

″*″ indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

«The others»

C

462.4

(18.205)

−346.0

(

−13.622)

492.8

(19.402)

Hole

φ16 (0.63)

M, m

±331.3

(

±13.043)

2821.5

(111.082)

419.8

(16.528)

M: Hole

φ16

(0.63)
m: Hole 18

×16

(0.71

×0.63)

c

−474.7

(

−18.689)

−372.0

(

−14.646)

492.8

(19.402)

Hole

φ16 (0.63)

N, n

±488.5

(

±19.232)

2964.4

(116.708)

375.4

(14.779)

Hole 17

×16

(0.67

×0.63)

D, d

±458.8

(

±18.063)

572.9

(22.555)

189.2

(7.449)

Hole 18

×16

(0.71

×0.63)

O, o

±583.6

(

±22.976)

6.6

(0.260)

868.2

(34.181)

Hole

φ98 (3.86)

E, e

±538.0

(

±21.181)

1062.0

(41.811)

220.0

(8.661)

Hole

φ15 (0.59)

P, p

±575.4

(

±22.653)

2739.3

(107.846)

737.6

(29.039)

Hole

φ20 (0.79)

F, f

±538.0

(

±21.181)

1540.0

(60.630)

220.0

(8.661)

Hole

φ15 (0.59)

Position

Measurement

Description

Position

Measurement

Description

X

Y

Z

X

Y

Z

JSKIA2281GB
