BRM-60

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

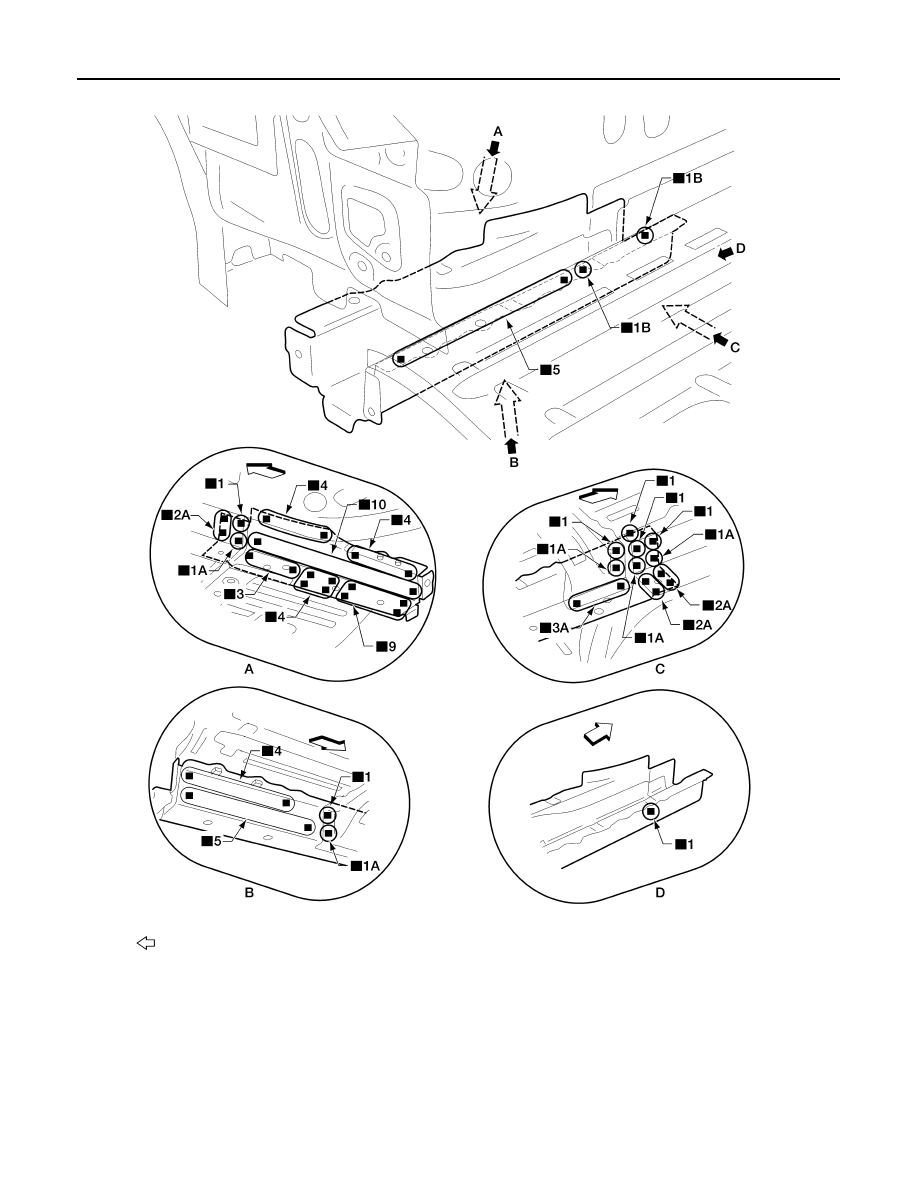

View D: Before installing replacement parts (Weld the rear side member extension and rear side member

extension reinforcement assembly)

 Front

Replacement parts

z

Rear side member extension
(LH)

z

Rear side member extension re-
inforcement assembly (LH)

AWKIA2347ZZ

BODY ALIGNMENT

BRM-61

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

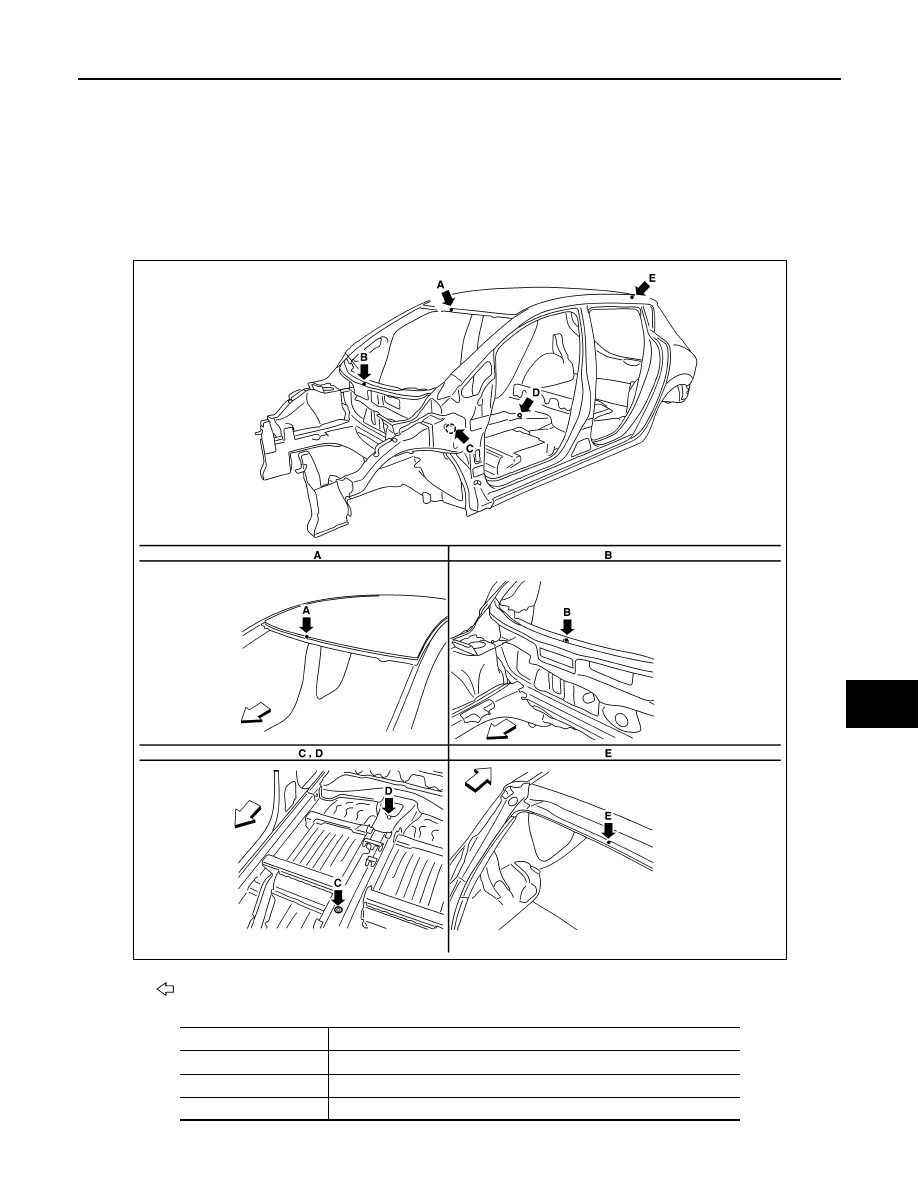

Body Center Marks

INFOID:0000000010121712

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame

(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using

these marks together with body alignment specifications.

Unit: mm (in)

 Front

Portion

Description

A

Front roof embossment

B

Cowl top embossment

C

Trans control reinforcement hole

φ31 (1.22)

AWKIA2324ZZ

BRM-62

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Description

INFOID:0000000010121713

• All dimensions indicated in the figures are actual.

• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

• Measurements should be taken at the center of the mounting holes.

• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

• The coordinates of the measurement points are the distances measured from the standard line of

″X″, ″Y″

and

″Z″.

•

″Z″: Imaginary base line [200 mm (7.87 in) below datum line (″0Z″ at design plan)]

Motor Room

INFOID:0000000010121714

MEASUREMENT

Dimensions marked with

″*″ indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

D

Center front floor hole

φ11 (0.43)

E

Rear roof embossment

Portion

Description

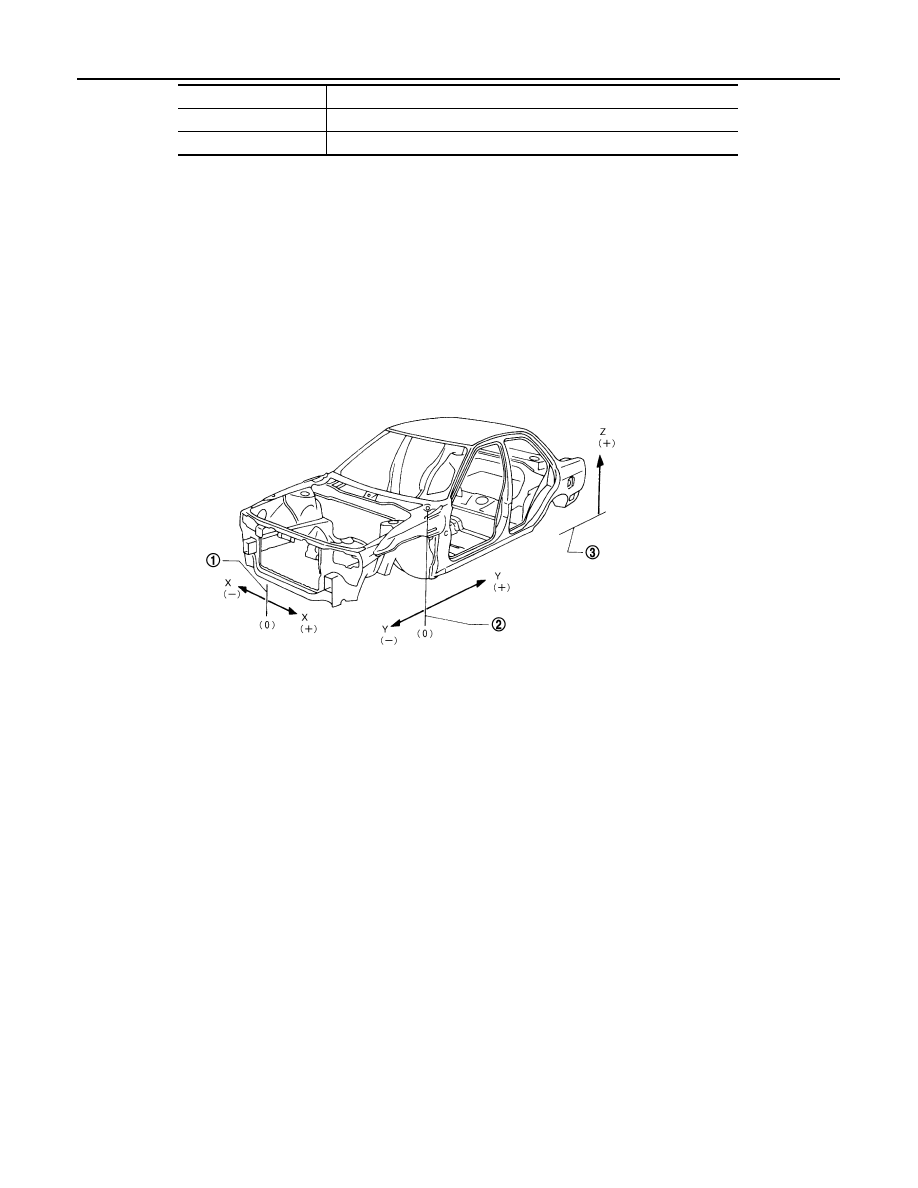

1. Vehicle center

2. Front axle center

3. Imaginary base line

JSKIA0073GB

BODY ALIGNMENT

BRM-63

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

«The others»

Unit: mm (in)

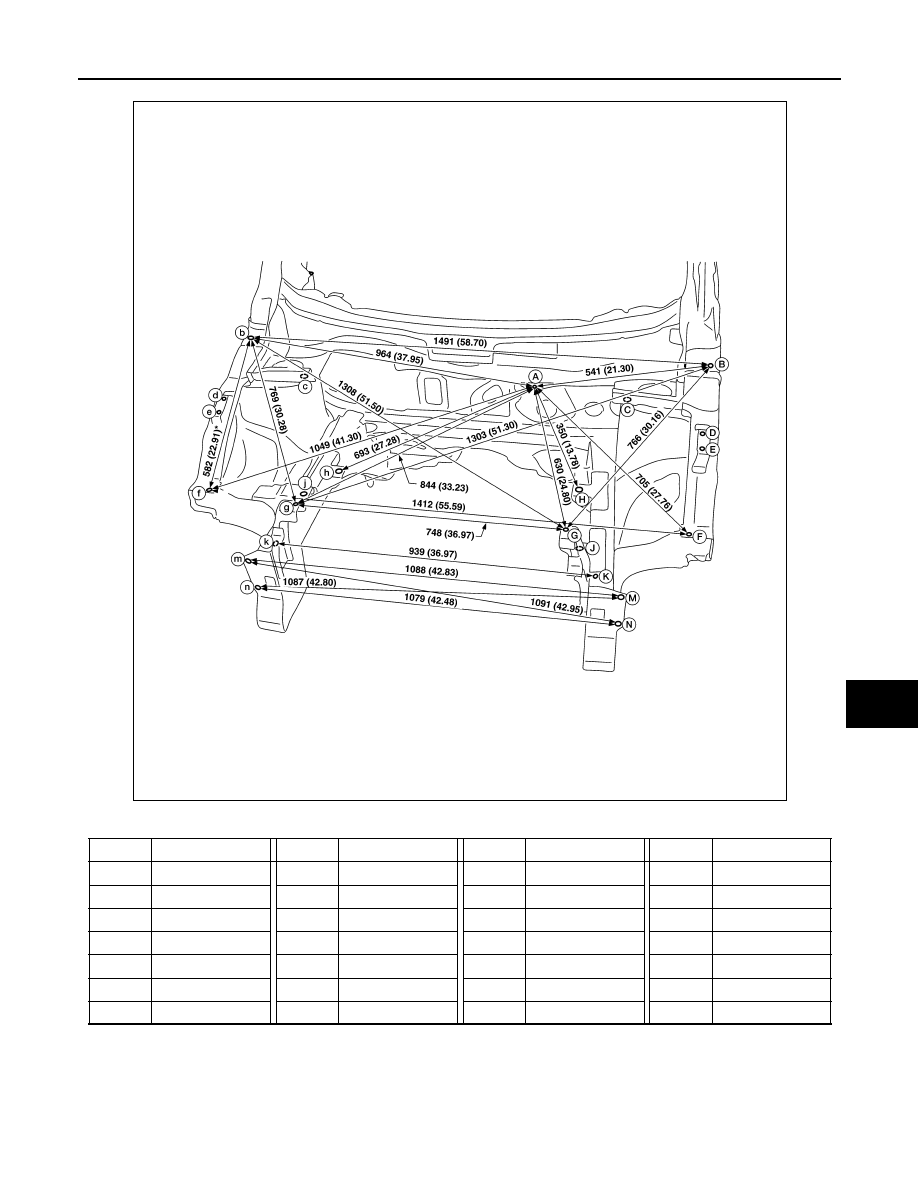

MEASUREMENT POINTS

AWKIA2385ZZ

Portion

Dimension

Portion

Dimension

Portion

Dimension

Portion

Dimension

A - C

319 (12.56)

A - j

790 (31.10)

D - d

1447 (56.97)

H - j

843 (33.19)

A - c

738 (29.06)

A - K

659 (25.94)

E - e

1447 (56.97)

h - J

840 (33.07)

A - D

565 (22.24)

A - k

914 (35.98)

F - G

358 (14.09)

H - k

923 (36.34)

A - d

968 (38.11)

B - C

268 (10.55)*

f - g

363 (14.29)

h - K

937 (36.89)

A - E

588 (23.15)

B - c

1272 (50.08)*

F - g

1086 (42.76)

J - j

822 (32.36)

A - e

982 (38.66)

B - f

1563 (61.54)*

f - G

1092 (42.99)

J - k

878 (34.57)

A - J

550 (21.65)

C - c

1037 (40.83)

H - h

782 (30.79)

j - K

893 (35.16)
