Nissan Leaf. Manual - part 357

BRM-52

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

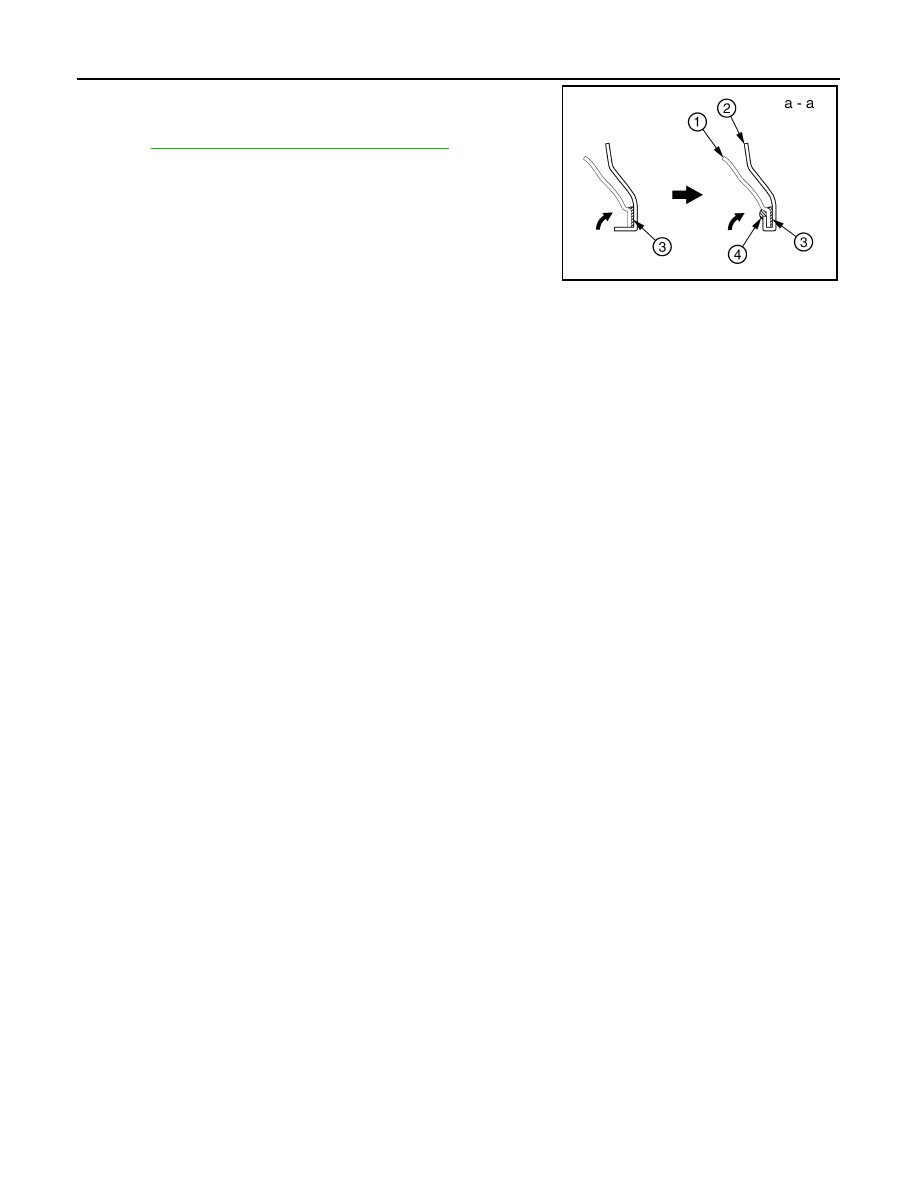

• Perform the hemming to the flange of wheel arch after applying the

adhesive.

• Apply the sealing to the flange end.

• Refer to

BRM-32, "Rear Fender Hemming Process"

.

1. Outer rear wheelhouse
2. Rear fender
3. Adhesive
4. Sealant

JSKIA0204GB

REPLACEMENT OPERATIONS

BRM-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Fender

INFOID:0000000010121707

Unit: mm (in)

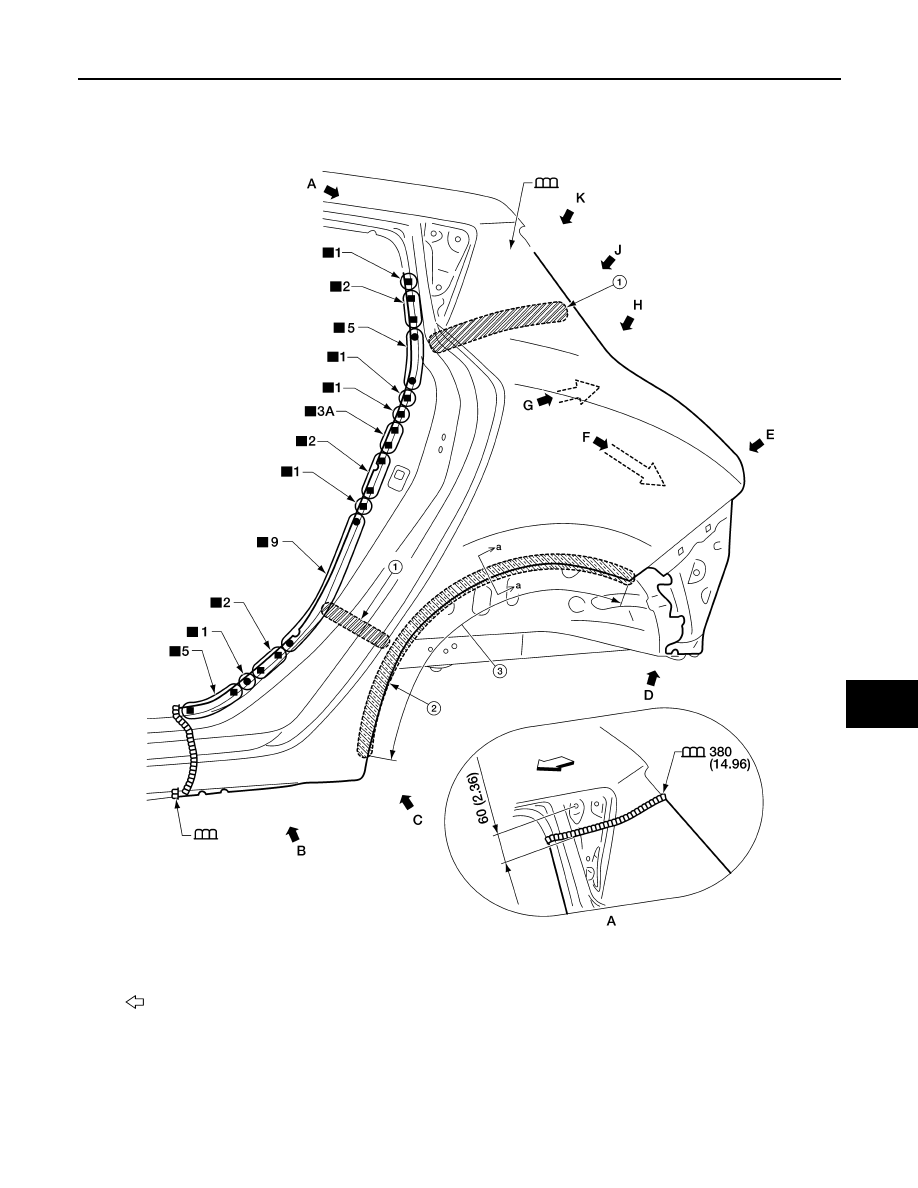

1. Urethane foam

2. Adhesive

3. Hemming portion

Front

Replacement parts

z

Rear fender (LH)

AWKIA2352ZZ

BRM-54

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Unit: mm (in)

1. Body sealing

 Front

AWKIA2397ZZ

REPLACEMENT OPERATIONS

BRM-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

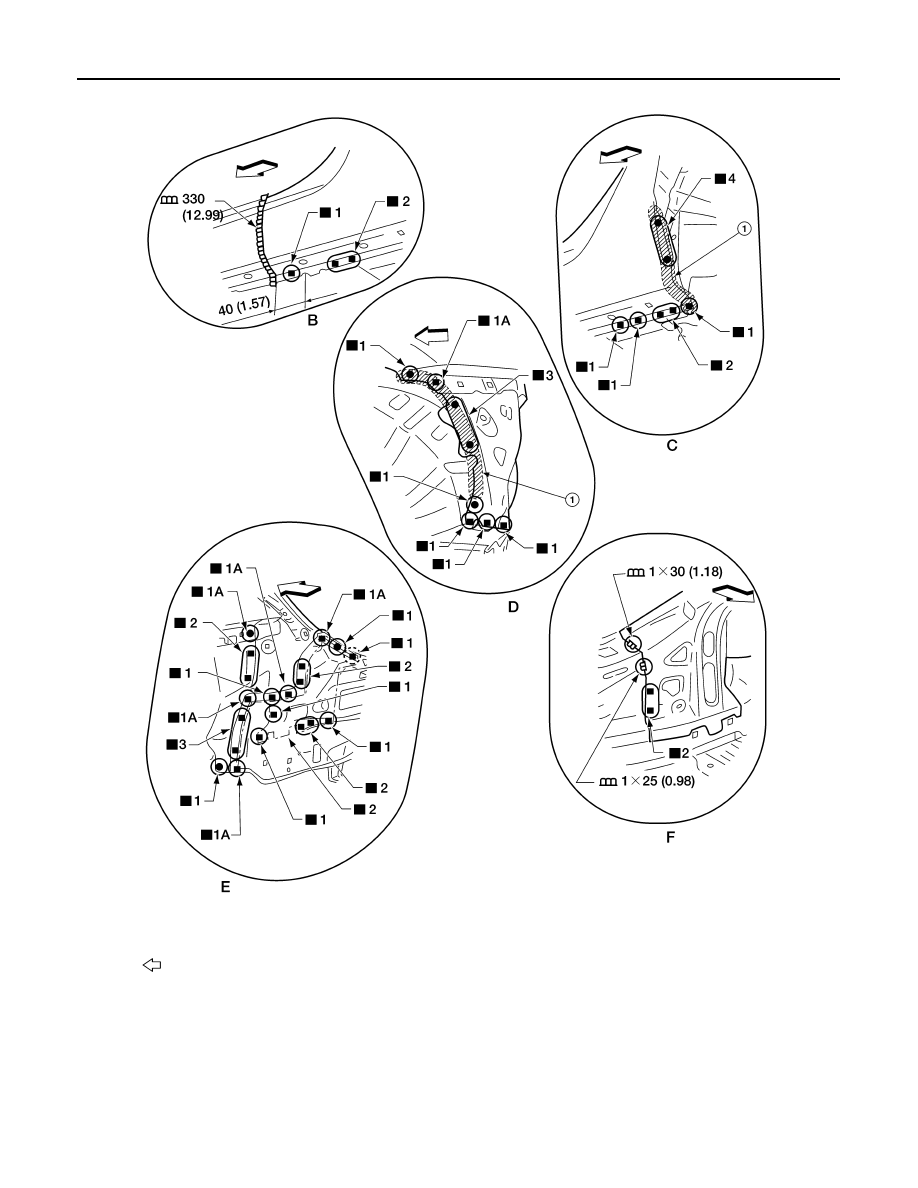

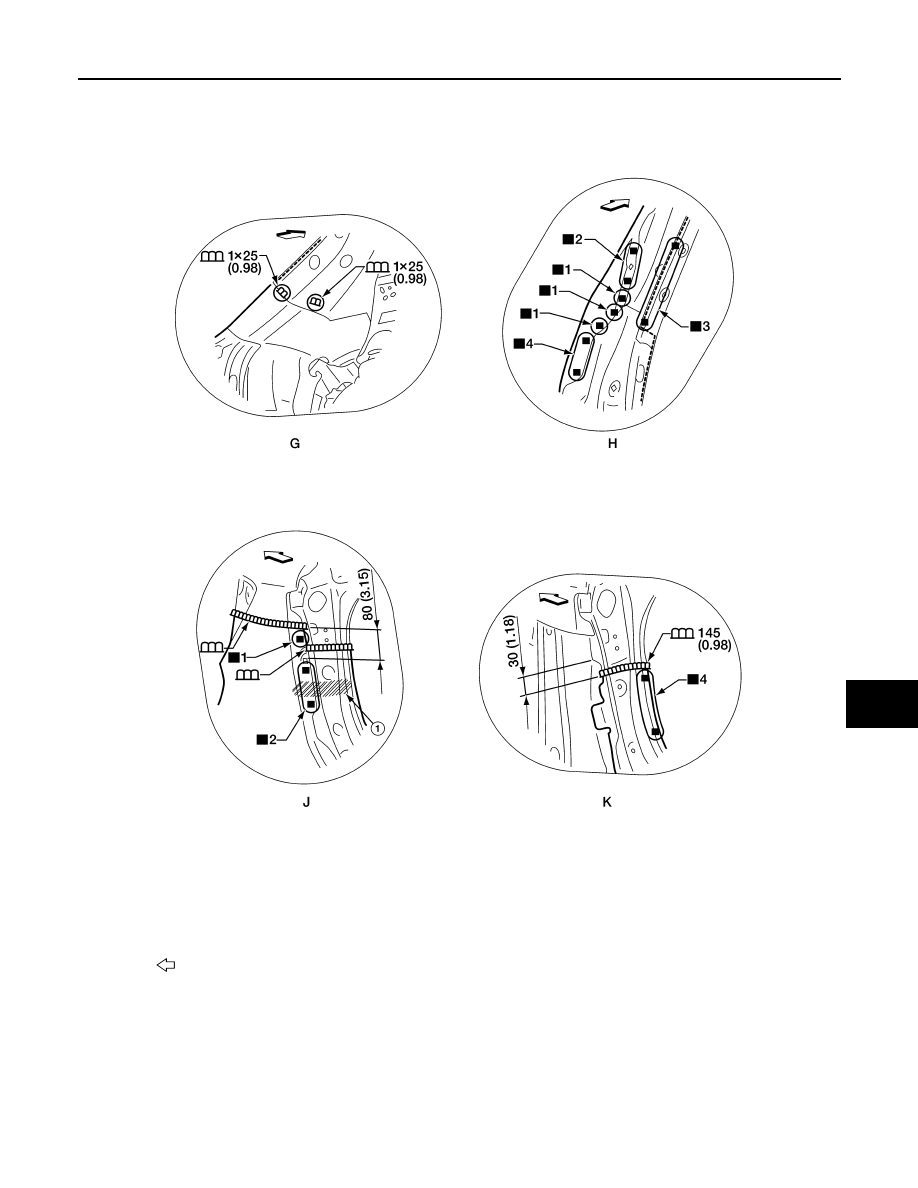

Unit: mm (in)

View K: Before installing rear fender

POINT

1. Urethane foam

Front

AWKIA2398ZZ
