BRM-56

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

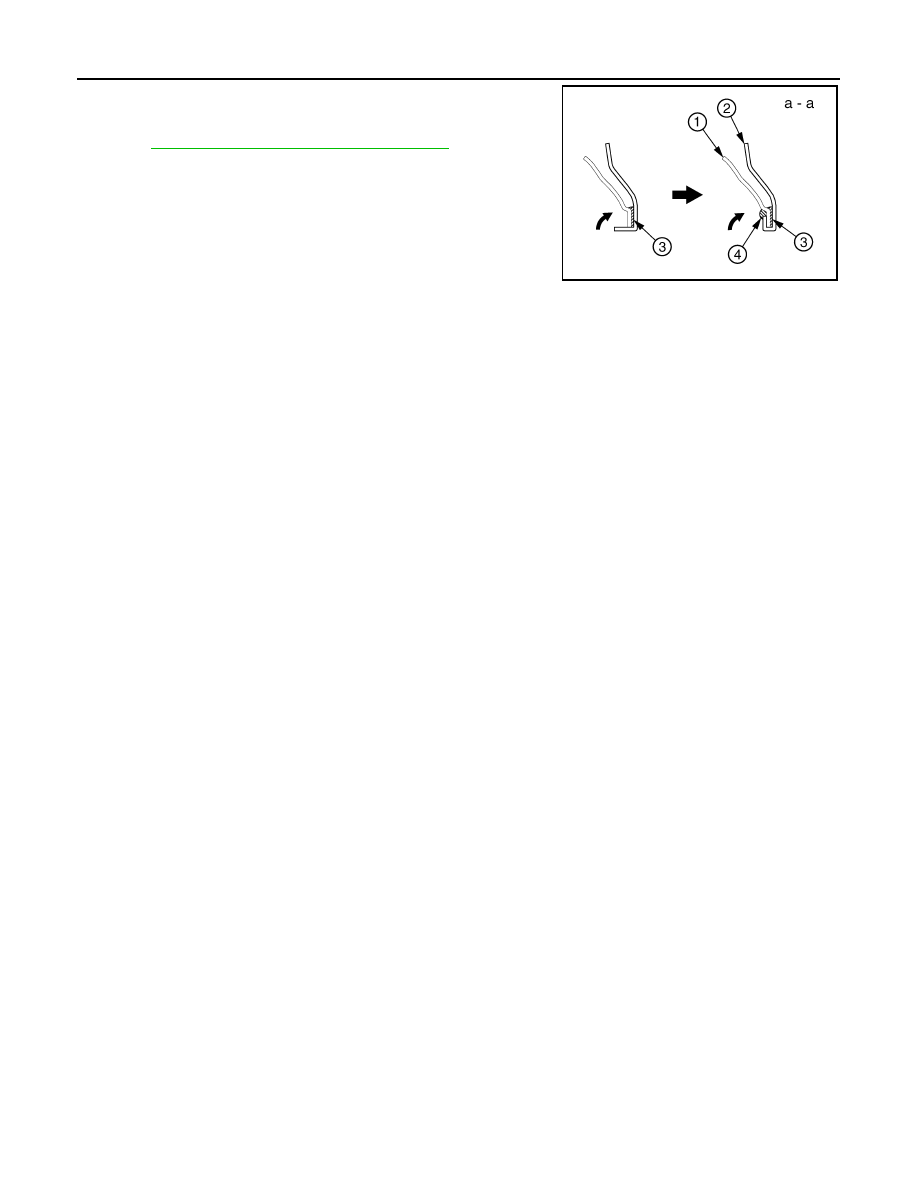

• Perform the hemming to the flange of wheel arch after applying the

adhesive.

• Apply the sealing to the flange end.

• Refer to

BRM-32, "Rear Fender Hemming Process"

.

1. Outer rear wheelhouse
2. Rear fender
3. Adhesive
4. Sealant

JSKIA0204GB

REPLACEMENT OPERATIONS

BRM-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Fender Extension

INFOID:0000000010121708

1. Body sealing

 Front

Replacement parts

z

Rear fender corner (LH)

AWKIA2399ZZ

BRM-58

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

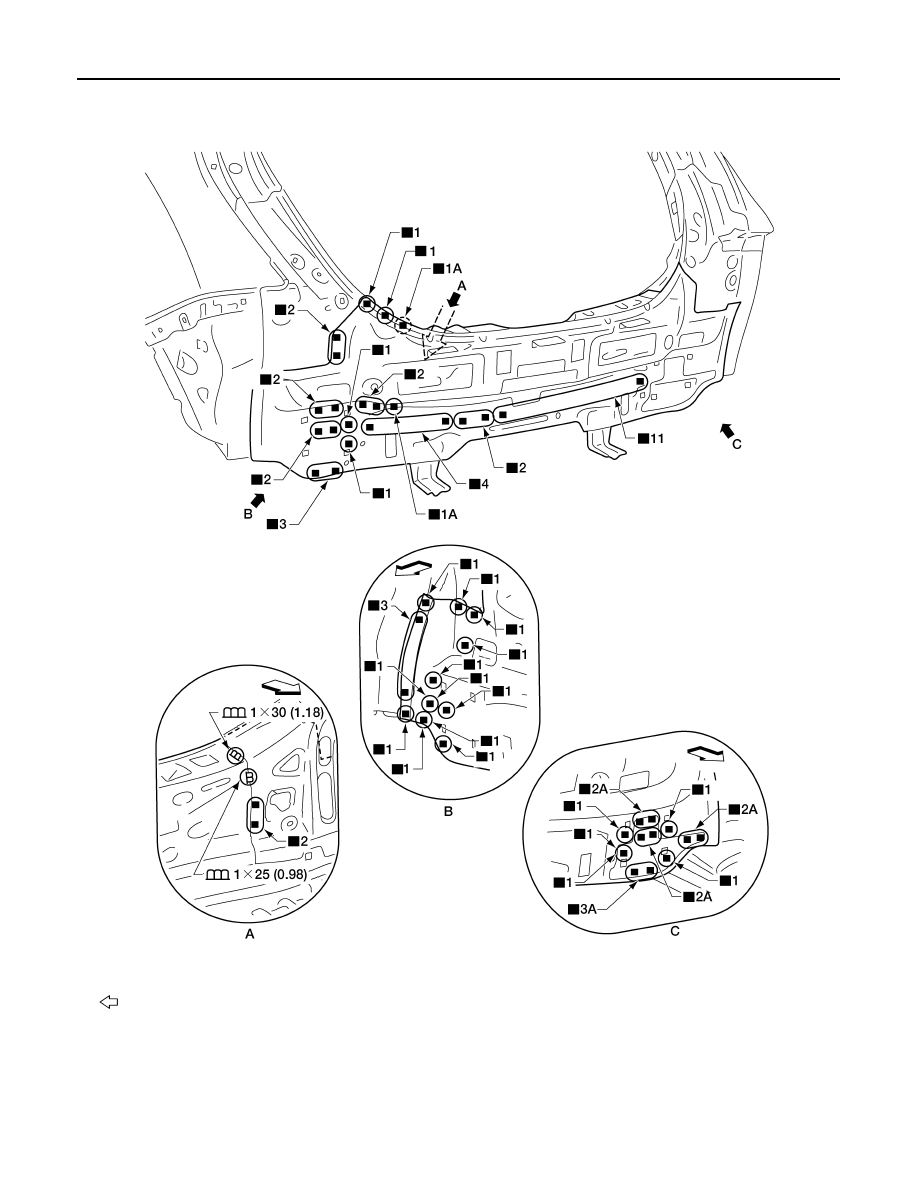

Rear Panel

INFOID:0000000010121709

Unit: mm (in)

Rear Floor Rear

INFOID:0000000010121710

Work after rear panel is removed.

Replacement parts

 Front

z

Upper rear panel

AWKIA2354ZZ

REPLACEMENT OPERATIONS

BRM-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Side Member Extension

INFOID:0000000010121711

Work after rear panel is removed.

Front

1. LH side

2. RH side

Replacement parts

z

Rear floor rear

z

Rear floor rear side (LH)

High voltage system parts (Removal required depending on damage)

z

Service plug

z

Front side Li-ion battery high voltage harness connector

z

On board charger

AWKIA2355ZZ
