GPS ANTENNA

Removal and Installation

INFOID:0000000010502692

REMOVAL

1. Remove the instrument panel assembly. Refer to

IP-17,

"Removal and Installation"

.

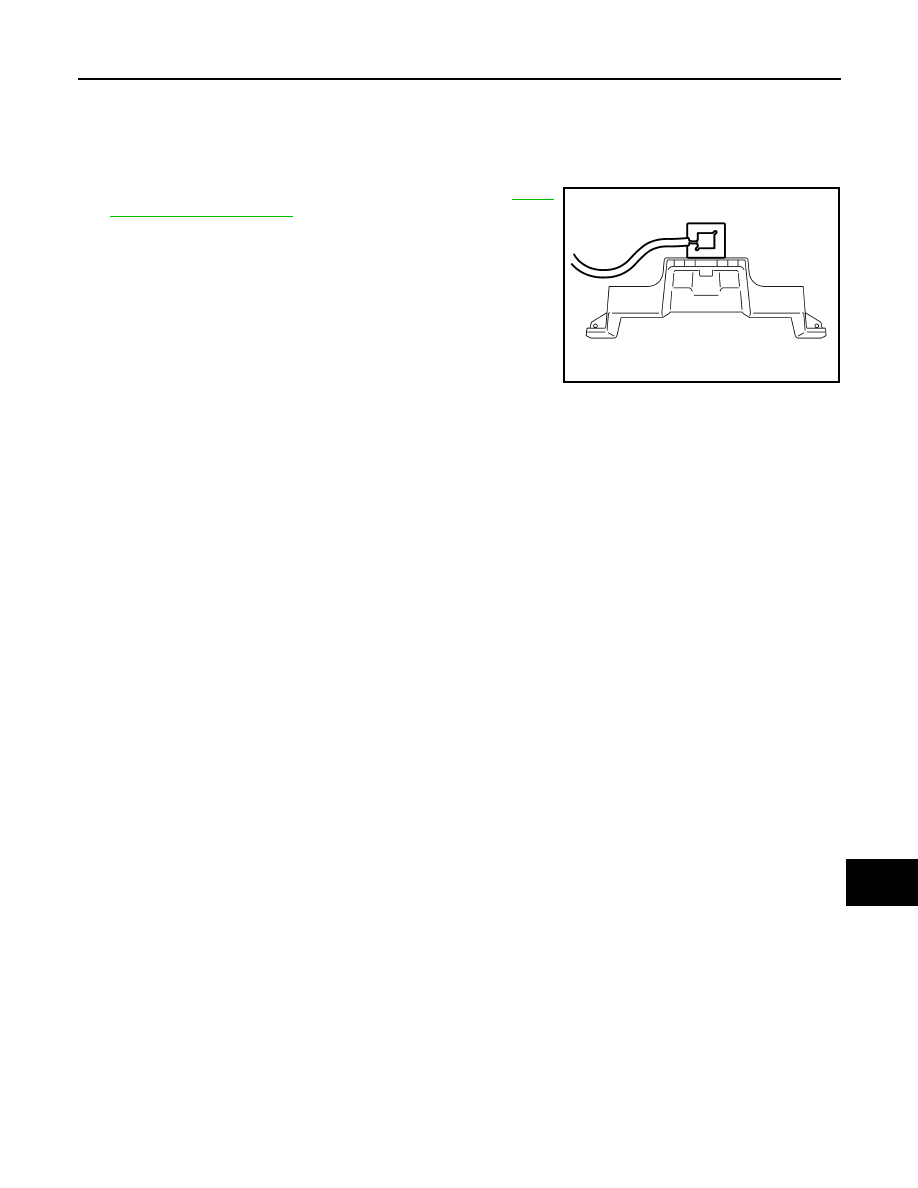

2. Remove the screws, clips and the GPS antenna.

INSTALLATION

Install in the reverse order of removal.

JSNIA3580ZZ

AV-200

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

ANTENNA BASE

ANTENNA BASE

Removal and Installation

INFOID:0000000010385246

REMOVAL

1. Partially remove the headlining (rear side) to obtain space to work between vehicle and headlining. Refer

to

INT-37, "Removal and Installation"

.

2. Disconnect the antenna feeder connector.

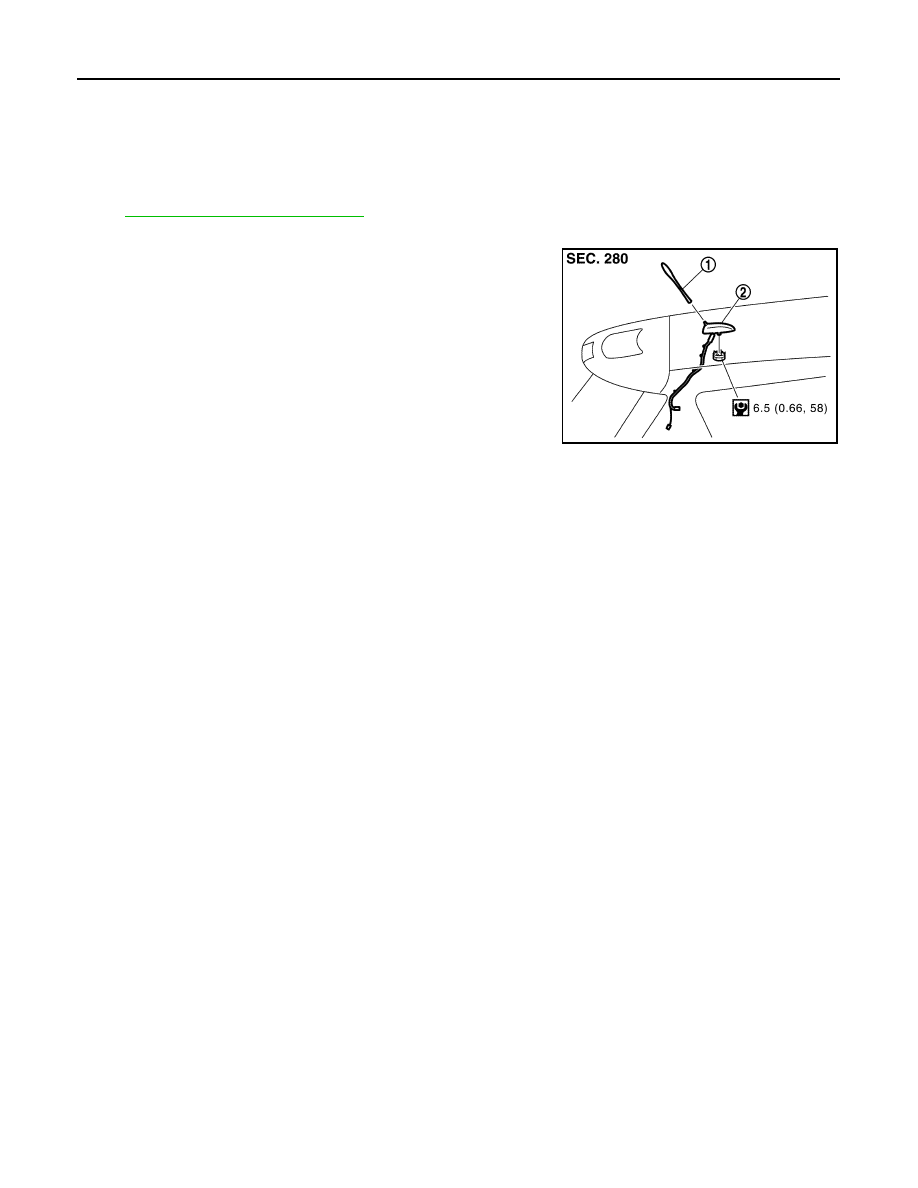

3. Remove the nut and the antenna base (2) from the vehicle.

(1): Antenna rod

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Do not bend headlining when pulling down.

• Tighten the antenna base nut to specification.

- If the antenna base nut is less than the specified torque, it could affect the performance of the

antenna sensitivity.

- If the antenna base nut is greater than the specified torque, it could damage the roof panel.

JSNIA3850GB

AV

STEERING SWITCH

AV-201

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Exploded View

INFOID:0000000010385247

Refer to

SR-20, "Exploded View"

.

Removal and Installation

INFOID:0000000010385248

REMOVAL

Refer to

SR-20, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

AV-202

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

AUXILIARY INPUT JACK

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000010385249

REMOVAL

1. Remove the instrument lower center cover. Refer to

IP-17, "Removal and Installation"

.

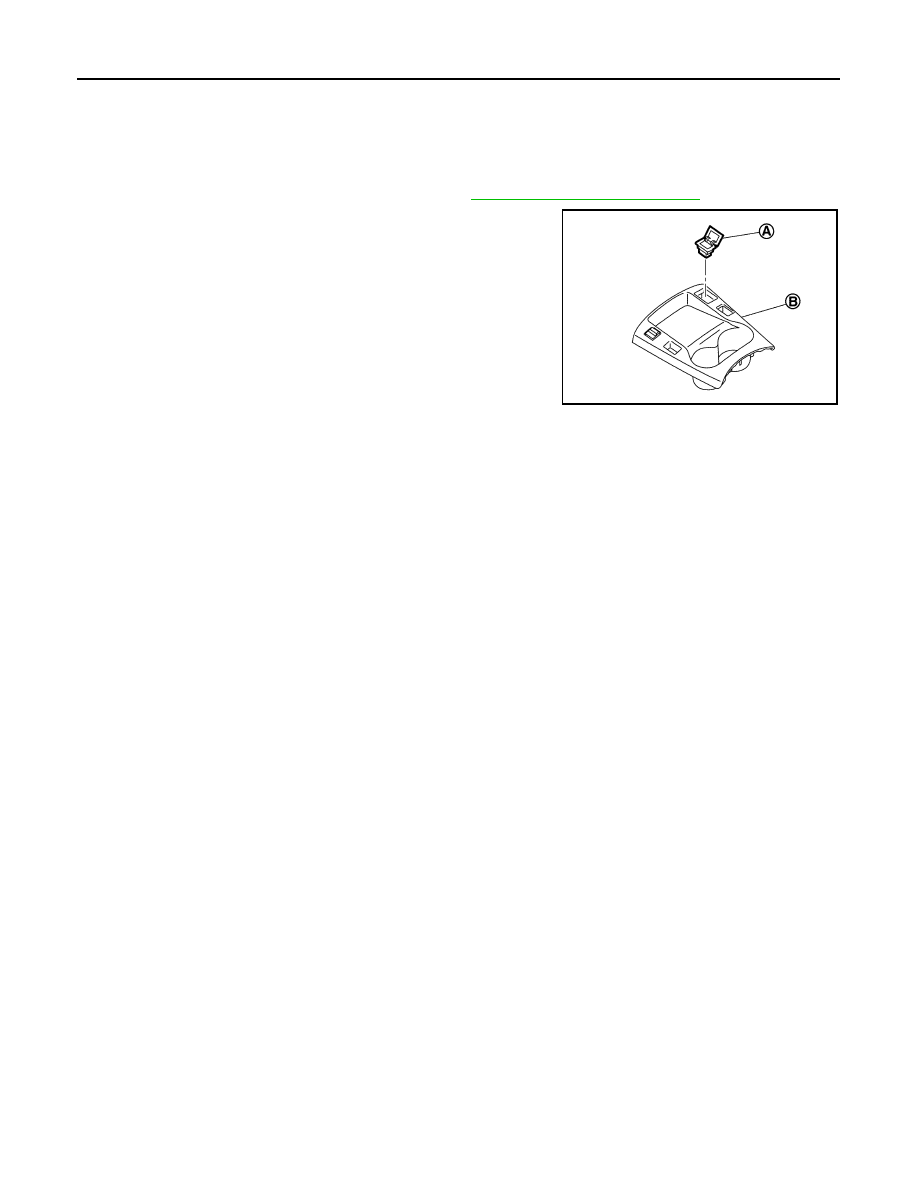

2. Press the tab from the rear of the instrument lower center cover

(B) and remove the auxiliary input jack (A).

INSTALLATION

Install in the reverse order of removal.

NOTE:

Align the notch of the instrument panel center lower cover and assemble it.

JSNIA3788ZZ
