The other party’s voice cannot be heard by hands-free phone.

When the radio wave condition is not ideal or ambient sound is too
loud, it may be difficult to hear the other person’s voice during a
call.

Poor sound quality.

Do not place the cellular phone in an area surrounded by metal or
far away from the in-vehicle phone module to prevent tone quality
degradation and wireless connection disruption.

Symptom

Cause and Counter measure

AV-192

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

AV CONTROL UNIT

REMOVAL AND INSTALLATION

AV CONTROL UNIT

Removal and Installation

INFOID:0000000010385238

REMOVAL

CAUTION:

Remove AV control unit after a lapse of 30 seconds or more after turning the power switch OFF.

NOTE:

After the power switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.

Therefore, data corruption may occur if 12V battery voltage is cut off within 30 seconds.
1. Disconnect the 12V negative battery terminal. Refer to

PG-89, "Removal and Installation"

.

2. Remove cluster lid C. Refer to

IP-17, "Removal and Installation"

.

3. Remove the AV control unit screws, disconnect the harness connectors from the AV control unit and

remove with the brackets attached.

4. Remove the bracket screws and the brackets from AV control unit (if necessary).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• If the AV control unit is replaced, input of the user ID and password and time adjustment with VCM

are required.

• If the AV control unit is not replaced, time adjustment with VCM is required.

Input Method of User ID and Password·

1. Turn power switch ON.

2. Select “Sign in” from the CARWINGS screen.

3. Enter the user ID and password.

NOTE:

Since the user ID and password are determined by the user in advance, they are input by the user.

Time Adjustment and Check Method with VCM

Refer to

AV-142, "Work Flow"

.

AV

MULTIFUNCTION SWITCH

AV-193

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MULTIFUNCTION SWITCH

Removal and Installation

INFOID:0000000010385239

REMOVAL

1. Remove cluster lid C. Refer to

IP-17, "Removal and Installation"

.

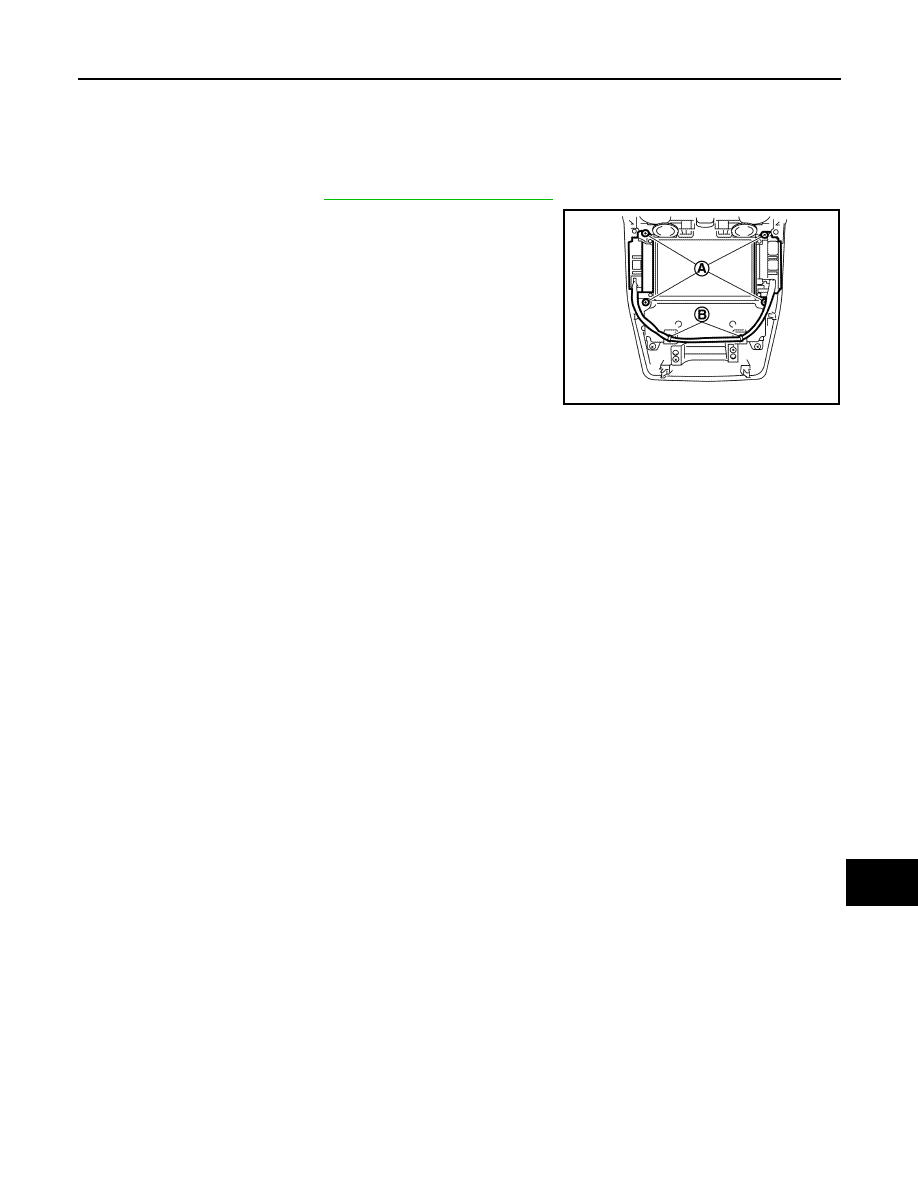

2. Remove the screws (A), clips (B) and the multifunction switch

from cluster lid C.

INSTALLATION

Install in the reverse order of removal.

JSNIA3785ZZ

AV-194

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000010385240

REMOVAL

1. Remove the front door finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove the screws and disconnect the connector to remove the front door speaker.

INSTALLATION

Install in the reverse order of removal.
