TWEETER

Removal and Installation

INFOID:0000000010385241

REMOVAL

1. Remove the front pillar garnish. Refer to

INT-26, "FRONT PILLAR GARNISH : Removal and Installation"

.

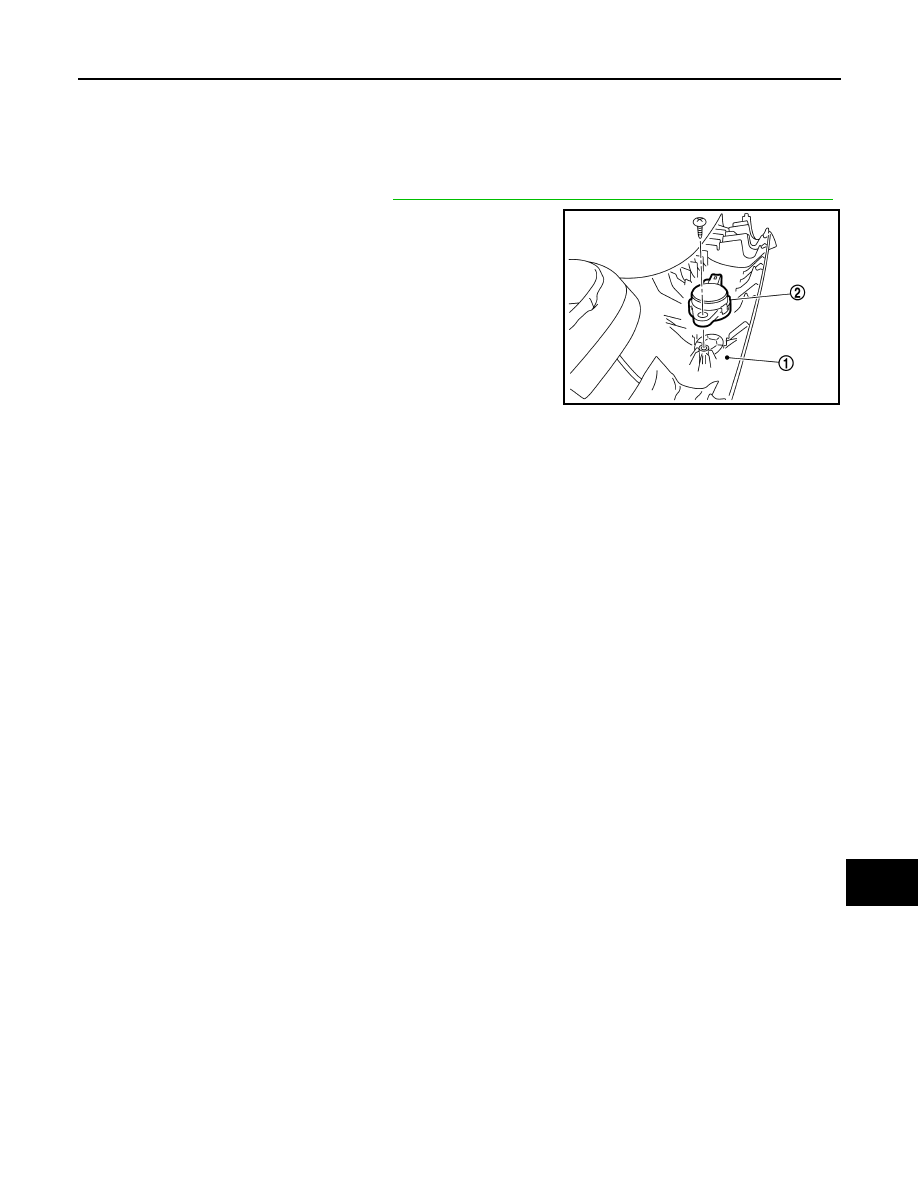

2. Remove the screws and the tweeter from the front pillar garnish.

INSTALLATION

Install in the reverse order of removal.

JSNIA3786ZZ

AV-196

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000010385242

REMOVAL

1. Remove the rear door finisher. Refer to

INT-22, "Removal and Installation"

.

2. Remove the screws and disconnect the connector to remove the rear door speaker.

INSTALLATION

Install in the reverse order of removal.

AV

MICROPHONE

AV-197

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000010385244

REMOVAL

1. Remove the map lamp assembly. Refer to

INL-52, "Removal and Installation"

.

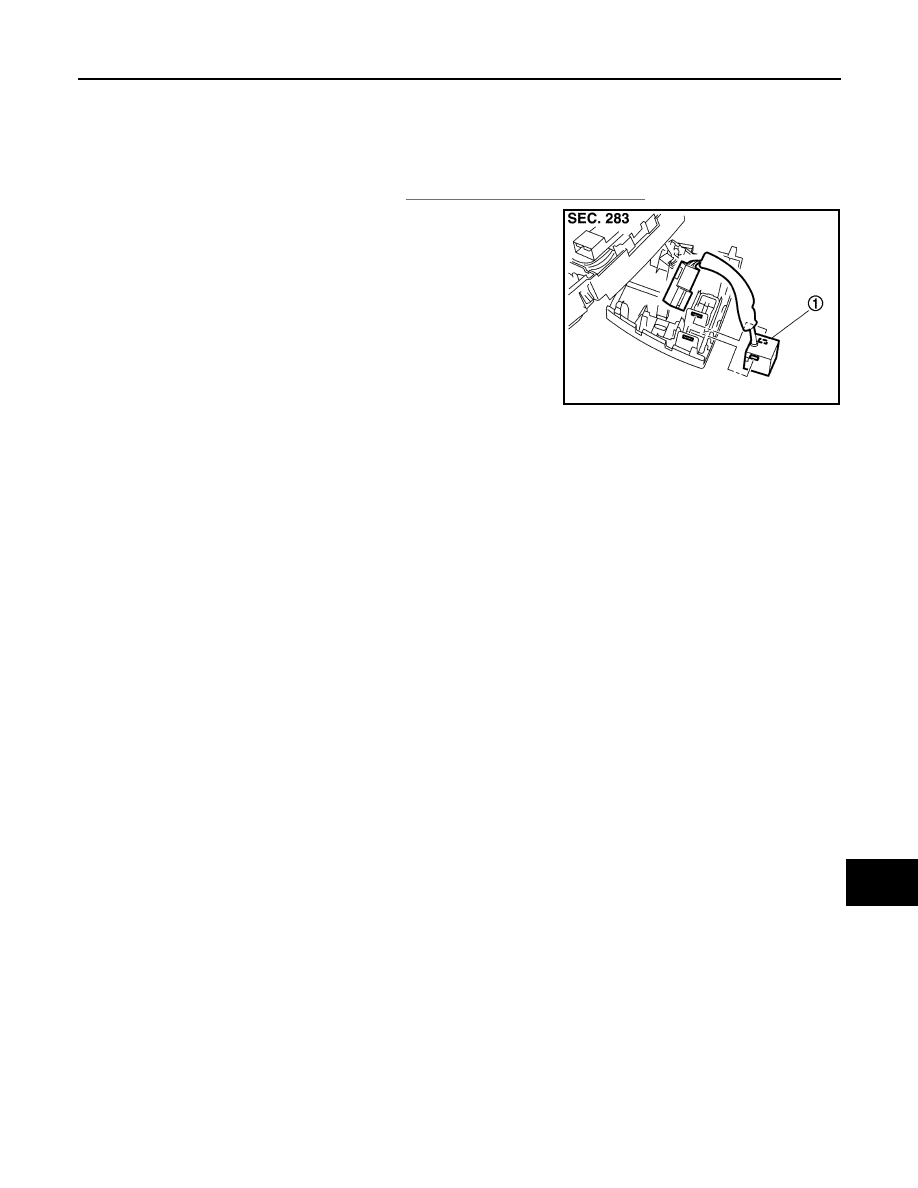

2. Press the pawl to remove the microphone (1) from the map lamp

assembly.

CAUTION:

Use care when handling the microphone pawl to avoid dam-

aging.

INSTALLATION

Install in the reverse order of removal.

NOTE:

Check the microphone for looseness after the installation.

JPNIA1399ZZ

AV-198

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

ANTENNA FEEDER

ANTENNA FEEDER

Antenna Feeder

INFOID:0000000010385245

: Indicates that the part is connected at points with same symbol in actual vehicle.

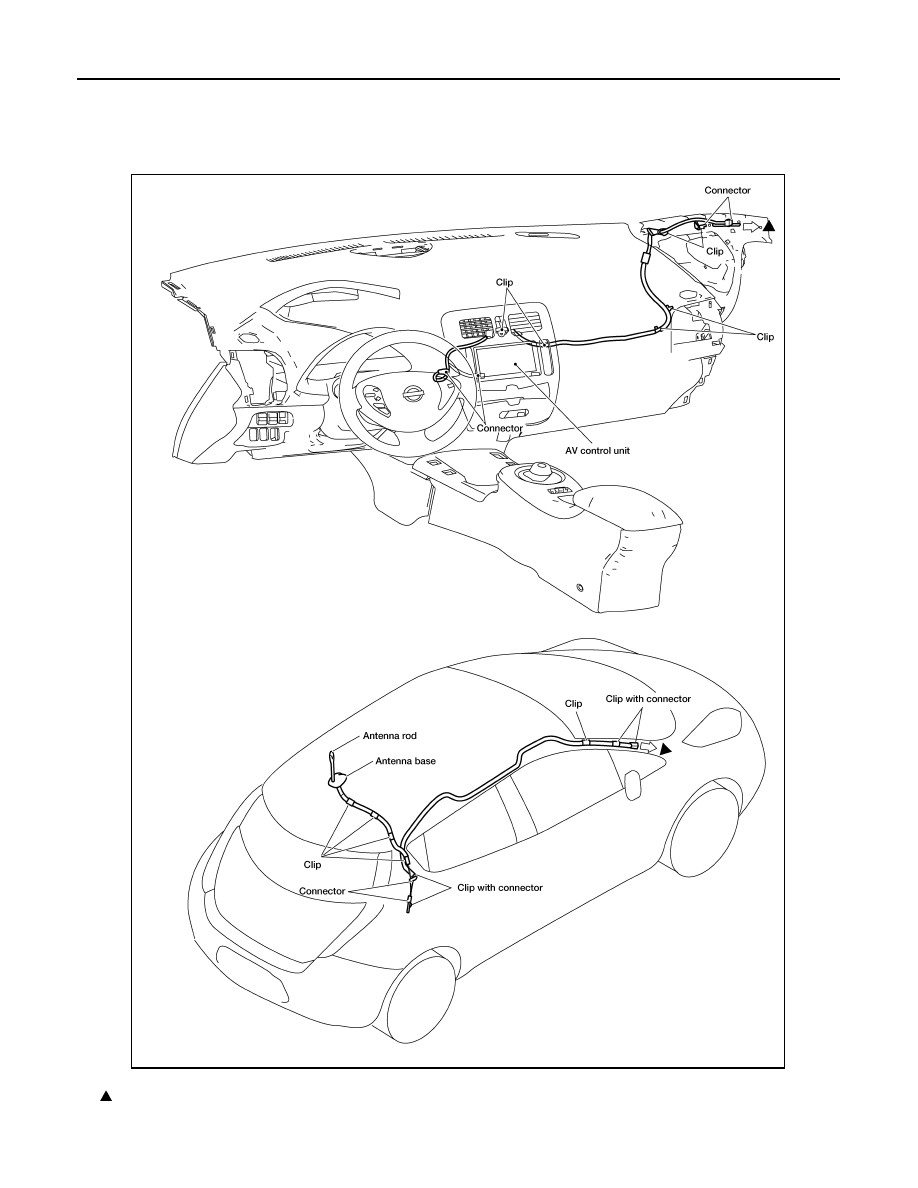

AWNIA3474GB
