AV

USB CONNECTOR

AV-203

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

USB CONNECTOR

Removal and Installation

INFOID:0000000010385250

REMOVAL

1. Remove the instrument lower center cover. Refer to

IP-17, "Removal and Installation"

.

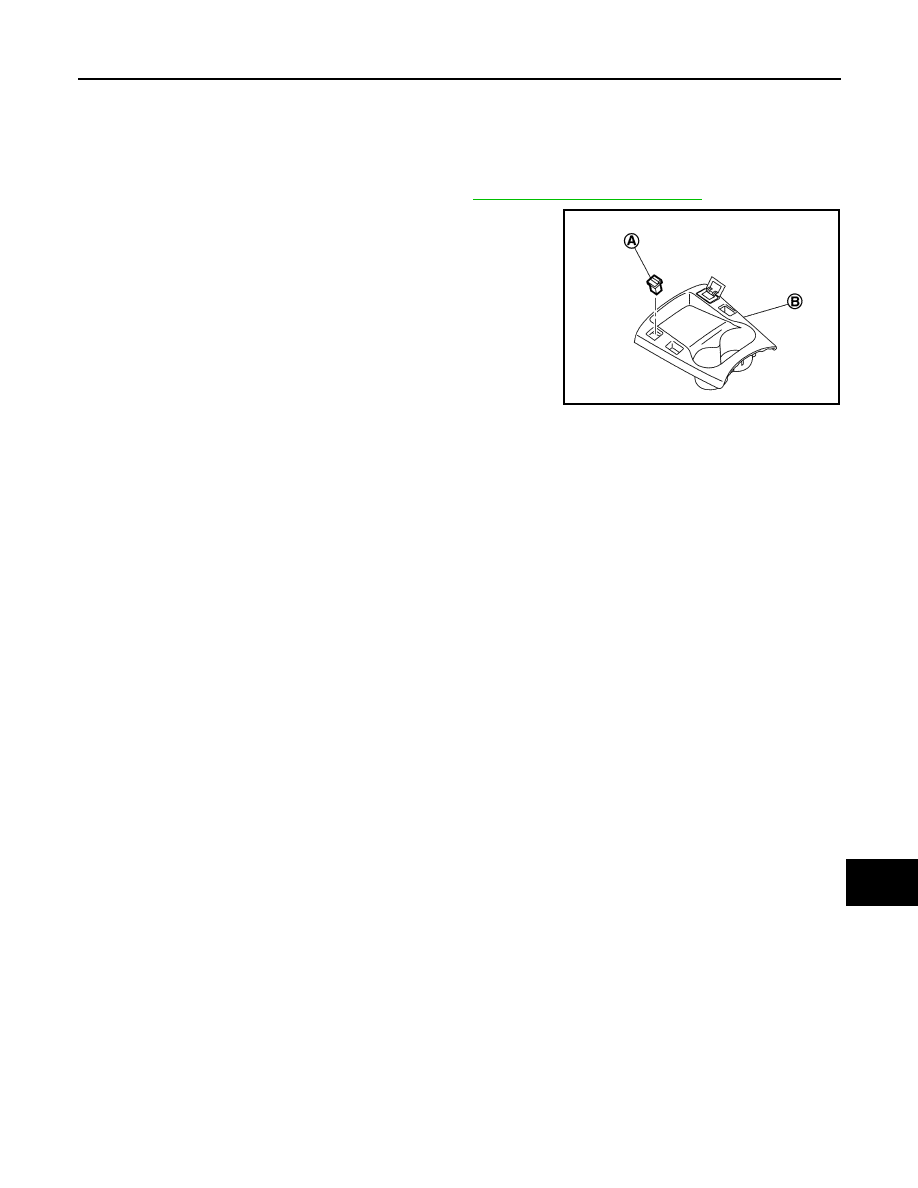

2. Press the tab from the rear of the instrument lower center cover

(B) and remove the USB connector (A).

INSTALLATION

Install in the reverse order of removal.

NOTE:

Align the notch of the instrument panel center lower cover and assemble it.

JSNIA3789ZZ

AV-204

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

AROUND VIEW MONITOR CONTROL UNIT

AROUND VIEW MONITOR CONTROL UNIT

Removal and Installation

INFOID:0000000010419334

REMOVAL

1. Remove the TCU. Refer to

AV-594, "Removal and Installation"

.

2. Remove the around view monitor control unit screws.
3. Disconnect the harness connectors from the around view monitor control unit and remove.

INSTALLATION

Install in the reverse order of removal.

NOTE:

Perform camera image calibration. Refer to

AV-425, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

AV

FRONT CAMERA

AV-205

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT CAMERA

Removal and Installation

INFOID:0000000010419336

REMOVAL

1. Open charge port lid.
2. Release the pawls and remove the access cover on the rear of the charge port lid.
3. Disconnect the harness connector from the front camera.
4. Remove the front camera from the charge port lid.

INSTALLATION

Install in the reverse order of removal.

AV-206

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (FOR MEXICO)]

SIDE CAMERA

SIDE CAMERA

Removal and Installation

INFOID:0000000010419337

The side camera is serviced as part of the door mirror assembly. Refer to

MIR-20, "DOOR MIRROR ASSEM-

BLY : Removal and Installation"

.
